TaskStar Electric Car Jack EHJ-010 User Manual

1. Introduction

The TaskStar Electric Car Jack EHJ-010 is a versatile 2-in-1 tool designed for efficient tire changes and inflation. This kit integrates an electric hydraulic jack, a tire inflator pump, a warning light, and an LED light, providing a comprehensive solution for roadside emergencies and garage maintenance. It is engineered for effortless vehicle lifting and quick tire inflation, suitable for various vehicle types including cars, SUVs, MPVs, and trucks.

This manual provides detailed instructions for the safe and effective use of your TaskStar Electric Car Jack. Please read it thoroughly before operation.

2. Safety Information

• Read All Instructions: Before operating the electric car jack, carefully read and understand all instructions and safety warnings in this manual.
• Proper Vehicle Placement: Always park the vehicle on a firm, level surface. Engage the parking brake and place wheel chocks on the tires that will remain on the ground.
• Weight Capacity: Do not exceed the maximum lifting capacity of 5 tons (11023 LBS). Ensure the jack is suitable for your vehicle's weight.
• Correct Jacking Point: Position the jack only at the vehicle manufacturer's recommended jacking points. Incorrect placement can cause vehicle damage or instability.
• Stabilize Vehicle: Once the vehicle is lifted, always use jack stands to support the vehicle before performing any work underneath. Never rely solely on the jack for support.
• Clear Work Area: Keep hands, feet, and other body parts clear of the jack and the vehicle during lifting and lowering operations.
• Power Source: Use only the provided 12V cigarette lighter or car battery connections. Ensure proper polarity when connecting to a car battery.
• Smart Protection Mechanism: The jack features a self-locking power structure and overload protection. If power is disconnected, the jack will not suddenly drop. It will resume operation once power is restored.
• Safety Knob: Utilize the safety knob to control the descent of the support rod, providing an additional layer of safety.
• Environmental Conditions: The hydraulic jack and power cable connectors are waterproof, allowing for reliable operation even in rainy conditions. However, exercise caution in adverse weather.
• Children and Pets: Keep children and pets away from the work area.

3. Product Overview

The TaskStar Electric Car Jack EHJ-010 kit includes the following components:

• Electric Car Jack (with built-in inflator pump, LCD display, and LED light)
• Power Cable (for 12V cigarette lighter)
• Battery Clip Adapter (for direct car battery connection)
• Impact Wrench (for lug nut removal)
• Socket Wrenches (various sizes for lug nuts)
• External Air Hose
• Inflation Nozzles (UK type inflator head, Air inflator needle, US type inflator head)
• Spare Fuses (x3)
• Gloves
• Small Wrench
• Tool Case

Figure 3.1: All components included in the TaskStar Electric Car Jack kit.

Figure 3.2: Detailed view of the accessory kit, including various inflation nozzles and spare fuses.

4. Setup

4.1 Power Connection

The TaskStar Electric Car Jack offers two power options:

1. 12V Cigarette Lighter: Connect the power cable directly to your vehicle's 12V cigarette lighter socket.
2. Car Battery: For direct power from the car battery, use the provided battery clip adapter. Connect the red clip to the positive (+) terminal and the black clip to the negative (-) terminal of the car battery.

Ensure the power cord is securely connected to the jack's input port.

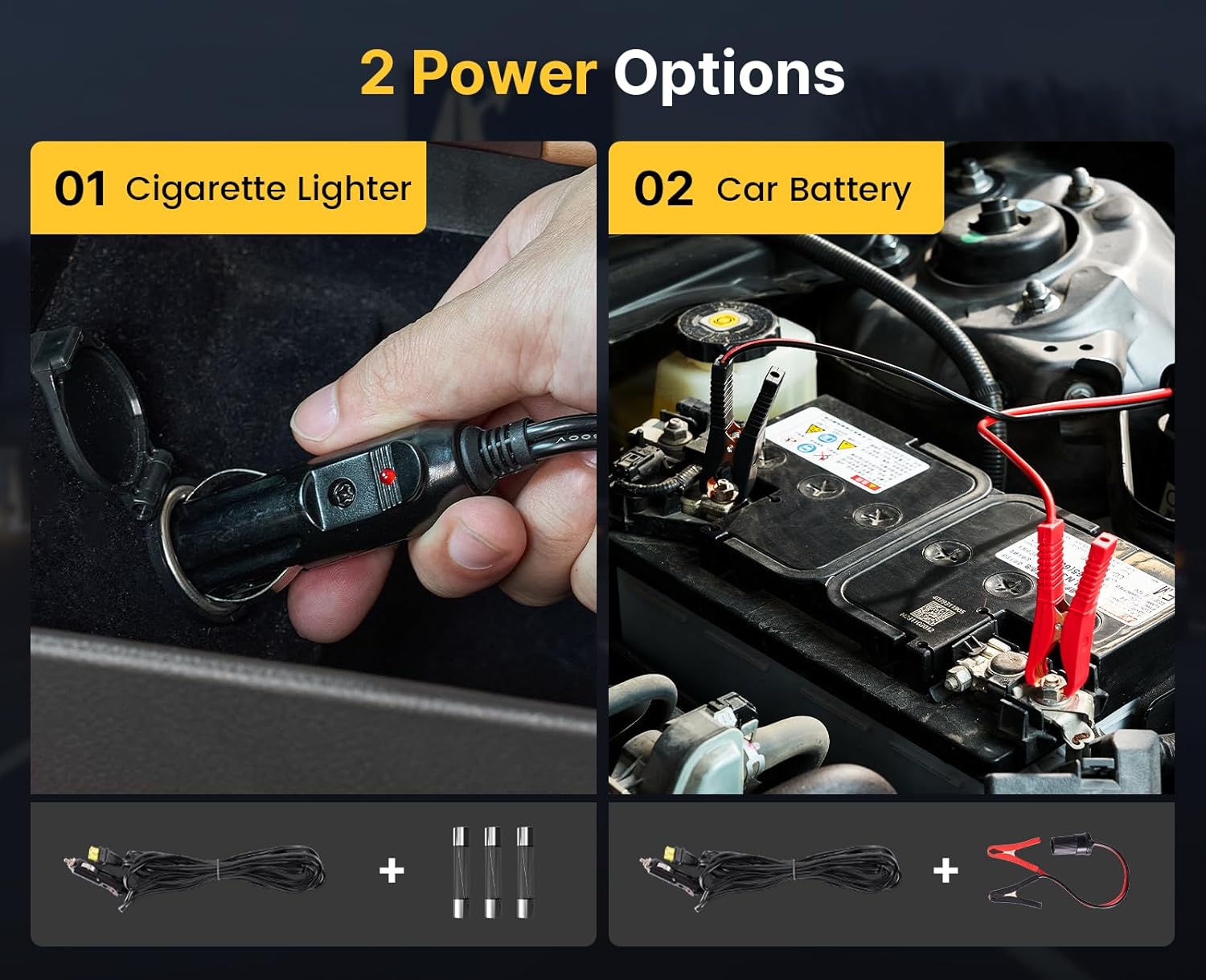

Figure 4.1: Illustration of connecting the jack via the 12V cigarette lighter or directly to the car battery.

Figure 4.2: Close-up of the power connection to the jack and the vehicle's cigarette lighter socket.

5. Operating Instructions

5.1 Lifting the Vehicle (Electric Jack)

1. Prepare Vehicle: Park the vehicle on a flat, stable surface. Engage the parking brake. If changing a tire, place wheel chocks on the opposite wheel.
2. Position Jack: Place the electric jack under the vehicle's designated jacking point. Refer to your vehicle's owner's manual for the correct jacking points.
3. Activate Jack: Connect the jack to the power source. Press the "UP" button on the jack's control panel. The jack will begin to extend, lifting the vehicle.
4. Monitor Lifting: The jack has a lifting range of 6.1 to 17.7 inches and can lift vehicles weighing less than 5 tons. Monitor the lifting process to ensure stability. The LCD display will show relevant information.
5. Secure Vehicle: Once the desired height is reached, release the "UP" button. For safety, always place appropriate jack stands under the vehicle before working underneath.

Figure 5.1: The electric jack positioned under a vehicle, ready for lifting.

Figure 5.2: Close-up of the digital LCD panel display and control buttons for lifting and lowering.

5.2 Removing/Tightening Lug Nuts (Impact Wrench)

The kit includes an electric impact wrench for easy lug nut removal and tightening.

1. Connect Wrench: Plug the impact wrench into the 12V power outlet on the electric jack.
2. Select Socket: Choose the appropriate socket size for your vehicle's lug nuts from the provided set.
3. Remove Lug Nuts: Place the socket onto a lug nut. Press the appropriate button on the wrench to loosen the lug nut. Repeat for all lug nuts.
4. Tighten Lug Nuts: After replacing the tire, hand-tighten the lug nuts. Then, use the impact wrench to tighten them securely. Always follow your vehicle manufacturer's torque specifications with a torque wrench for final tightening.

5.3 Inflating Tires (Built-in Pump)

The electric jack features a built-in tire inflator pump.

1. Connect Air Hose: Screw the external air hose onto the inflator port on the jack. Attach the appropriate inflation nozzle to the other end of the hose and then to the tire valve stem.
2. Set Desired Pressure: Use the control buttons on the jack's LCD display to set the desired tire pressure (PSI or BAR).
3. Start Inflation: Press the inflation button. The pump will automatically start and stop once the preset pressure is reached.
4. Monitor Pressure: The LCD display will show the current tire pressure during inflation.
5. Versatile Use: The included inflation nozzles allow you to inflate other items such as balls and swimming rings.

Figure 5.3: The built-in tire inflator pump connected to a tire for inflation.

Figure 5.4: Step-by-step guide on connecting, setting pressure, and pumping air for tire inflation.

5.4 Lowering the Vehicle

1. Remove Jack Stands: Ensure all jack stands are removed from under the vehicle.
2. Activate Lowering: Press the "DOWN" button on the jack's control panel. The jack will slowly retract, lowering the vehicle.
3. Use Safety Knob: If necessary, use the safety knob to manually control the descent speed.
4. Full Retraction: Allow the jack to fully retract before removing it from under the vehicle.

6. Maintenance

• Cleaning: Keep the jack and its accessories clean and free from dirt, dust, and moisture. Wipe down with a damp cloth after each use.
• Storage: Store the entire kit in its provided tool case in a dry, cool place, away from direct sunlight and extreme temperatures.
• Cable Inspection: Regularly inspect power cables and connections for any signs of damage, fraying, or wear. Replace damaged components immediately.
• Fuse Replacement: The kit includes spare fuses. If the jack or inflator stops working, check and replace the fuse if blown. Refer to the fuse compartment for location.
• Hydraulic Fluid: The hydraulic system is designed for long-term use. Do not attempt to open or service the hydraulic unit unless you are a qualified technician.

7. Troubleshooting

7.1 Jack Not Lifting/Lowering

• Check Power Connection: Ensure the power cable is securely plugged into both the jack and the vehicle's 12V socket or battery terminals.
• Verify Power Source: Confirm that the vehicle's 12V socket is active or that the car battery has sufficient charge.
• Check Fuse: Inspect the fuse in the power cable or the jack itself. Replace if blown (spare fuses are provided).
• Overload Protection: If the jack was overloaded, it might have triggered its overload protection. Remove the excess weight and try again after a brief cool-down period.

7.2 Inflator Not Working/Low Pressure

• Check Air Hose Connection: Ensure the air hose is tightly screwed onto the inflator port and the tire valve stem.
• Verify Power: Confirm the jack is receiving power as described above.
• Inspect Nozzle: Ensure the correct inflation nozzle is used and it is not blocked or damaged.
• Fuse: Check the fuse for the inflator function.

7.3 Impact Wrench Not Operating

• Power Connection: Ensure the impact wrench is properly connected to the jack's 12V power outlet.
• Vehicle Power: Confirm the vehicle's power source is active.
• Fuse: Check the fuse for the impact wrench.

8. Specifications

Figure 8.1: Visual representation of the jack's lifting capacity and compatibility with various vehicle types.

Figure 8.2: Visual summary of the electric hydraulic jack and air inflator specifications.

9. Warranty & Support

For warranty information, technical support, or any questions regarding your TaskStar Electric Car Jack EHJ-010, please contact TaskStar customer service. Refer to the product packaging or the official TaskStar website for contact details.
