PHI VILLA 10x15 ft Carport Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, maintenance, and safety of your PHI VILLA 10x15 ft Carport. Designed for durability and multi-purpose use, this carport features a galvanized steel roof and a sturdy iron frame. Please read this manual thoroughly before installation and use to ensure proper setup and long-term performance.

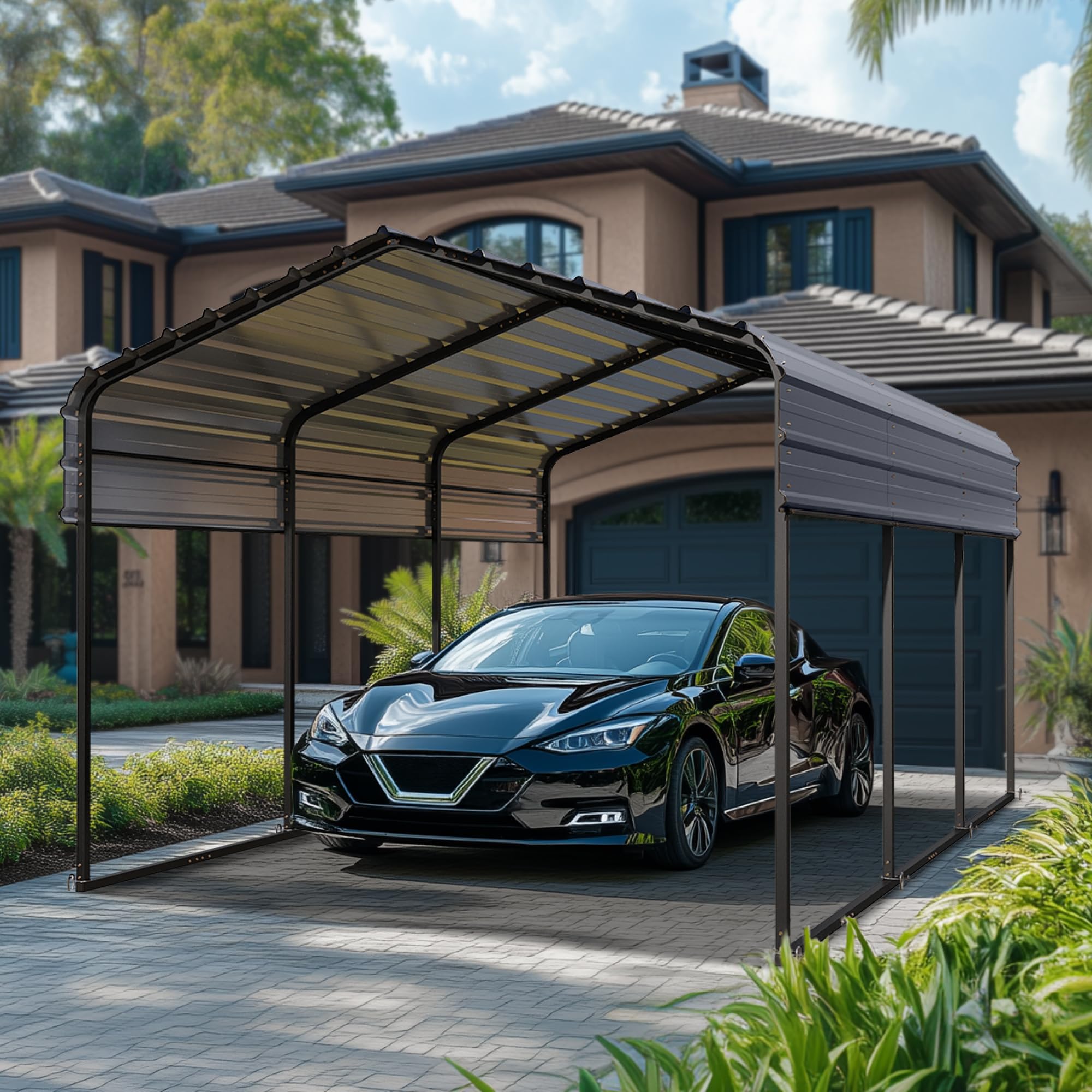

Image 1.1: The PHI VILLA 10x15 ft Carport providing shelter for a vehicle.

2. Safety Information

Your safety is paramount. Adhere to the following guidelines to prevent injury or damage to the carport.

• Secure Anchoring: Always securely anchor the carport to the ground. This is critical for stability, especially in adverse weather conditions.
• Snow Removal: Clear snow from the roof on a regular basis to prevent excessive load and potential structural damage.
• Installation: Follow all installation instructions carefully. Improper assembly can lead to instability and hazards.
• Wind and Snow Loads: The carport is designed to withstand a Wind Rating of 100 MPH and a Snow Load Capacity of 10 PSF. These ratings are for a standalone unit without an enclosure kit, assuming a securely anchored frame. Local building codes and ordinances may vary; conformance is the purchaser's responsibility.
• Level Surface: Ensure the carport is installed on a level surface for optimal stability and structural integrity.

3. Package Contents

The PHI VILLA 10x15 ft Carport is delivered in a total of 3 boxes. Please wait patiently for all boxes to arrive before beginning assembly. Verify that all necessary hardware and components are present before starting. The package includes:

• Corrugated Galvanized Steel Roof Panels with water-stop strips.
• Powder-Coated Anti-Rust Square Iron Pipes for the frame.
• Self-adaptive screws and other necessary assembly hardware.
• Instruction Manual.

4. Setup and Assembly

The carport features an innovative, upgraded self-adaptive screw-pipe framework design for simplified installation. All necessary hardware and easy-to-follow instructions are included.

1. Prepare the Site: Select a level surface for installation. Ensure adequate space for the 10' x 15' footprint.
2. Unpack Components: Carefully unpack all boxes and lay out the components, verifying against the parts list in the included instructions.
3. Assemble the Frame: Follow the step-by-step instructions to connect the powder-coated iron pipes using the self-adaptive screws.
4. Install Roof Panels: Attach the galvanized steel roof panels, ensuring water-stop strips are correctly positioned to minimize leakage.
5. Anchor the Carport: Securely anchor the carport to the ground. For grass, rocky soil, gravel, or asphalt, use appropriate anchoring methods. For concrete or flat surfaces, use concrete expansion square head bolts.

Image 4.1: Visual guide for the carport assembly process.

5. Operating Instructions

The PHI VILLA 10x15 ft Carport is designed as a versatile outdoor shelter. It provides protection for various items and can be used in multiple ways:

• Vehicle Shelter: Use it to protect cars, trucks, boats, or tractors from sun, rain, and light snow. The galvanized steel roof offers excellent UV resistance and waterproof protection.
• Outdoor Activity Shelter: The spacious design makes it suitable for outdoor events such as parties, weddings, or commercial fairs, offering shade and protection from elements.

Image 5.1: The carport's weather resistance features, including snow load, wind rating, rain protection, and anti-UV properties.

6. Maintenance

Regular maintenance ensures the longevity and safety of your carport.

• Snow Removal: It is recommended to clear snow from the roof regularly, especially in areas prone to heavy snowfall, to prevent excessive weight accumulation.
• Anchor Inspection: Periodically check the anchors to ensure they remain secure, especially after strong winds or heavy rain. Re-tighten or re-anchor as necessary.
• Frame Inspection: Inspect the iron frame for any signs of rust or damage. The powder-coated finish is designed to be anti-rust, but extreme conditions or physical damage can compromise it. Address any issues promptly.
• Roof Panel Check: Ensure roof panels are securely fastened and water-stop strips are intact to prevent leaks.

Image 6.1: A map highlighting regions where timely snow removal from the carport roof is crucial.

7. Troubleshooting

This section addresses common issues you might encounter with your carport.

• Carport Instability: If the carport feels unstable, verify that all anchors are properly installed and secured to the ground. Ensure the installation surface is level.
• Water Leakage: Check the roof panels for proper overlap and ensure the water-stop strips are correctly installed and undamaged. Tighten any loose fasteners on the roof panels.
• Damaged Components: If any part of the frame or roof is damaged, contact customer support for assistance. Do not attempt to use a damaged carport.
• Difficulty Assembling: Refer to the detailed assembly instructions provided. Ensure all parts are correctly identified and oriented. If issues persist, contact customer support.

8. Specifications

Image 8.1: Dimensional drawing of the carport, showing length, width, and height measurements.

Image 8.2: Detail of the galvanized metal roof, highlighting its anti-leak design and thickness.

Image 8.3: Detail of the heavy-duty steel frame, emphasizing its corrosion-resistant properties and tube thickness.

9. Warranty and Support

PHI VILLA offers a guaranteed 3-year warranty for this carport. For customer support, questions, or concerns regarding your product, please contact us. We are committed to responding to all customer messages within 24 hours.

For warranty claims or technical assistance, please refer to the contact information provided with your purchase documentation or visit the official PHI VILLA website.
