Lomotech 32Ft Multicolor Icicle Lights User Manual

1. Introduction

Thank you for choosing Lomotech Multicolor Icicle Lights. This manual provides essential information for the safe and effective use of your new lighting product. These 32-foot icicle lights are designed for both indoor and outdoor decorative purposes, featuring multiple lighting modes, a timer function, and a connectable design for extended coverage.

2. Product Features

• Length: 32 feet (lighted portion) with a 16.4-foot lead cable.
• Connectable Design: Up to 3 sets can be connected end-to-end for larger installations.
• 8 Lighting Modes: Includes Combination, In Wave, Sequential, Slo-Glo, Chasing/Flash, Slow Fade, Twinkle/Flash, and Steady On.
• Memory Function: Built-in chip retains the last selected mode setting after power off.
• Timer Function: Activates a 6-hour on, 18-hour off cycle.
• Waterproof Rating: IP44 for both lights and plug, suitable for outdoor use.
• Light Source: Energy-efficient LED.
• Drops: 40 drops with varying lengths.

3. Safety Information

• Ensure the power source matches the product's voltage requirements.
• Do not attempt to modify or repair the lights or adapter. Contact qualified personnel for service.
• Avoid placing lights near heat sources or flammable materials.
• Always unplug the lights from the power outlet before installation, removal, or maintenance.
• Do not secure the wiring with staples or nails.
• Keep children and pets away from the lights during operation.

4. Package Contents

• 1 x Lomotech 32Ft Multicolor Icicle Light Set
• 1 x Power Adapter with Controller

5. Setup Instructions

1. Unpack: Carefully remove the icicle lights from their packaging. Untangle the strands gently to avoid damage.
2. Placement: Determine the desired location for installation. These lights are suitable for eaves, windows, fences, or other outdoor structures. Ensure the lead cable length (16.4 ft) is sufficient to reach a power outlet.
3. Installation: Secure the main string of lights using appropriate clips or ties (not included) to your chosen surface. Allow the icicle drops to hang freely.
4. Connecting Multiple Sets (Optional): If connecting multiple sets, align the male and female connectors at the end of each light string and push them firmly together. Ensure the connection is secure and sealed if used outdoors. Up to 3 sets can be connected.
5. Power Connection: Plug the power adapter into a standard electrical outlet.

6. Operating Instructions

6.1. Changing Lighting Modes

The power adapter features a button to cycle through the 8 available lighting modes. Press the button repeatedly to switch between modes:

1. Combination
2. In Wave
3. Sequential
4. Slo-Glo
5. Chasing/Flash
6. Slow Fade
7. Twinkle/Flash
8. Steady On

The built-in memory chip will save your last selected mode, so it will resume that mode when powered on again.

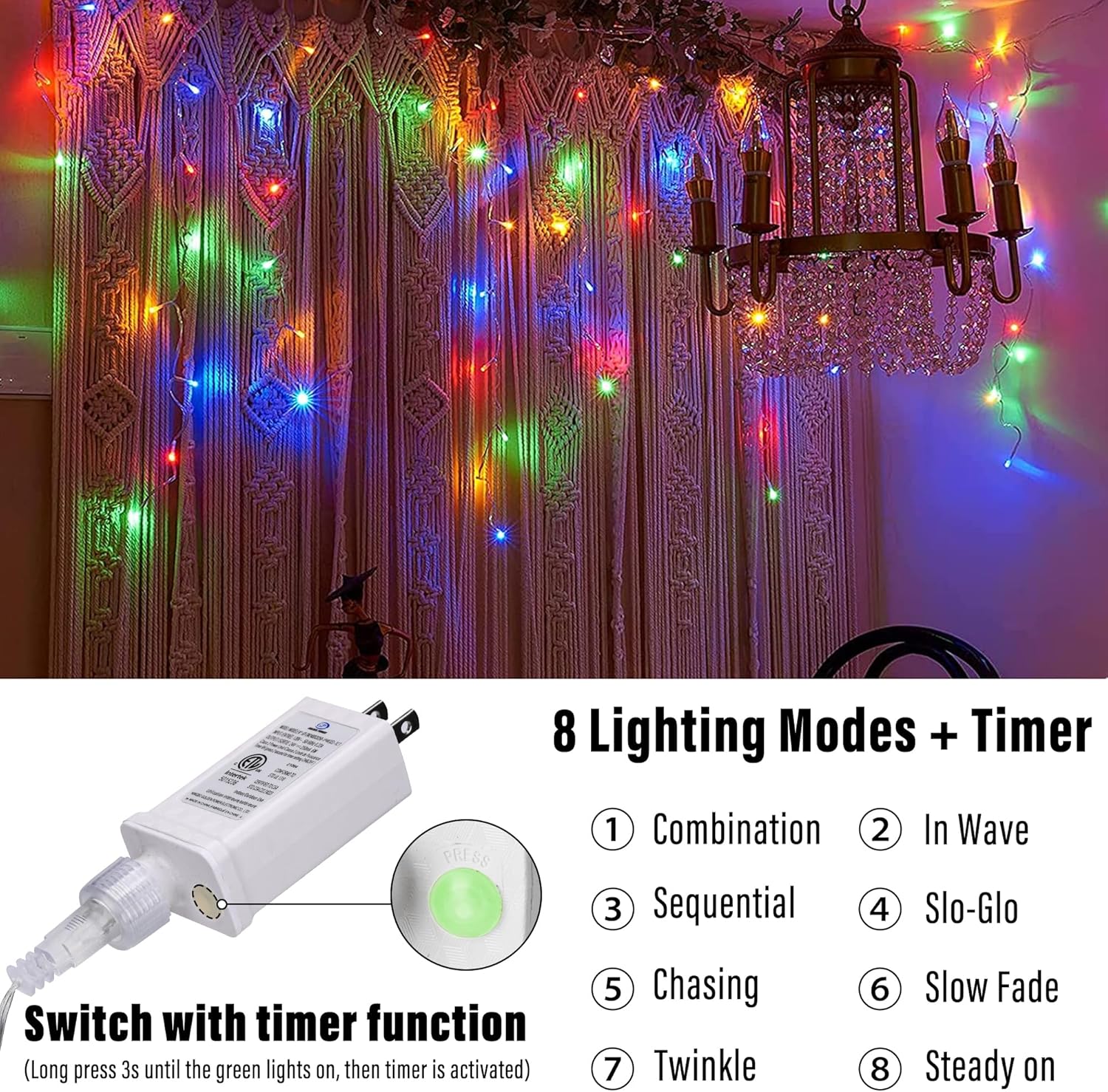

6.2. Activating the Timer Function

To activate the timer, locate the button on the power adapter. Press and hold this button for approximately 3 seconds until the timer indicator light illuminates (typically a green light). Once activated, the lights will automatically turn on for 6 hours and then turn off for 18 hours, repeating this cycle daily.

To deactivate the timer, press and hold the button again until the timer indicator light turns off.

7. Maintenance

• Cleaning: Disconnect the lights from power before cleaning. Wipe gently with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: When not in use, carefully coil the lights and store them in a cool, dry place, away from direct sunlight and moisture. Original packaging is recommended for storage to prevent tangling and damage.
• Inspection: Periodically inspect the lights, cable, and adapter for any signs of wear, damage, or loose connections. Discontinue use if any damage is found.

8. Troubleshooting

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact Lomotech customer service directly. Keep your purchase receipt for any warranty claims.
