iMounTEK Full Body Electric Massage Mat User Manual

Model: dac3a3be-67f3-4de9-9aaf-5b78826853ed

1. Important Safety Instructions

Please read all instructions carefully before using this product. Failure to follow these instructions may result in electric shock, fire, burns, or injury.

  • Always unplug the massage mat from the power outlet immediately after use and before cleaning.
  • Do not use while bathing or in a shower.
  • Do not place or store the product where it can fall or be pulled into a tub or sink.
  • Do not immerse in water or other liquid.
  • Never use pins or other metallic fasteners with this product.
  • Close supervision is necessary when this product is used by, on, or near children, invalids, or disabled persons.
  • Use this product only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
  • Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water.
  • Keep the cord away from heated surfaces.
  • Never use while sleeping or drowsy.
  • Never drop or insert any object into any opening.
  • Do not use outdoors.
  • Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
  • Do not use on sensitive skin areas or in the presence of poor circulation.
  • This product is not a medical device. Consult a doctor before use if you have medical conditions, are pregnant, or have a pacemaker.

2. Product Overview

The iMounTEK Full Body Electric Massage Mat provides a comprehensive massage experience with heat and vibration functions, targeting various body areas. It includes a detachable neck massage pillow and a foot massager for enhanced relaxation.

Key Features:

  • Full Body Massage: Features 10 massage points for the back, buttocks, waist, thighs, and calves.
  • Heat Therapy: Integrated heating function for the lumbar area with 3 adjustable levels.
  • Vibration Modes: 9 designated vibration modes with 9 point-selection options and 9 levels of intensity and speed.
  • Detachable Neck Massager: Equipped with 2 massage heads and 20 nodes, offering 3 kneading speeds and infrared heating.
  • Detachable Foot Massager: Provides targeted massage for feet or calves.
  • Smart Timer: Automatic timer settings for 10, 20, or 30 minutes.
  • Comfortable Design: Made with a super soft polyester plush surface and soft sponge filling, featuring an anti-slip bottom.

Components:

  • Main Massage Mat
  • Detachable Neck Massage Pillow
  • Detachable Foot Massager
  • Wired Remote Controller
  • Power Adapter
  • Manual Inflating Pump for Lumbar Pillow
  • Storage Bag

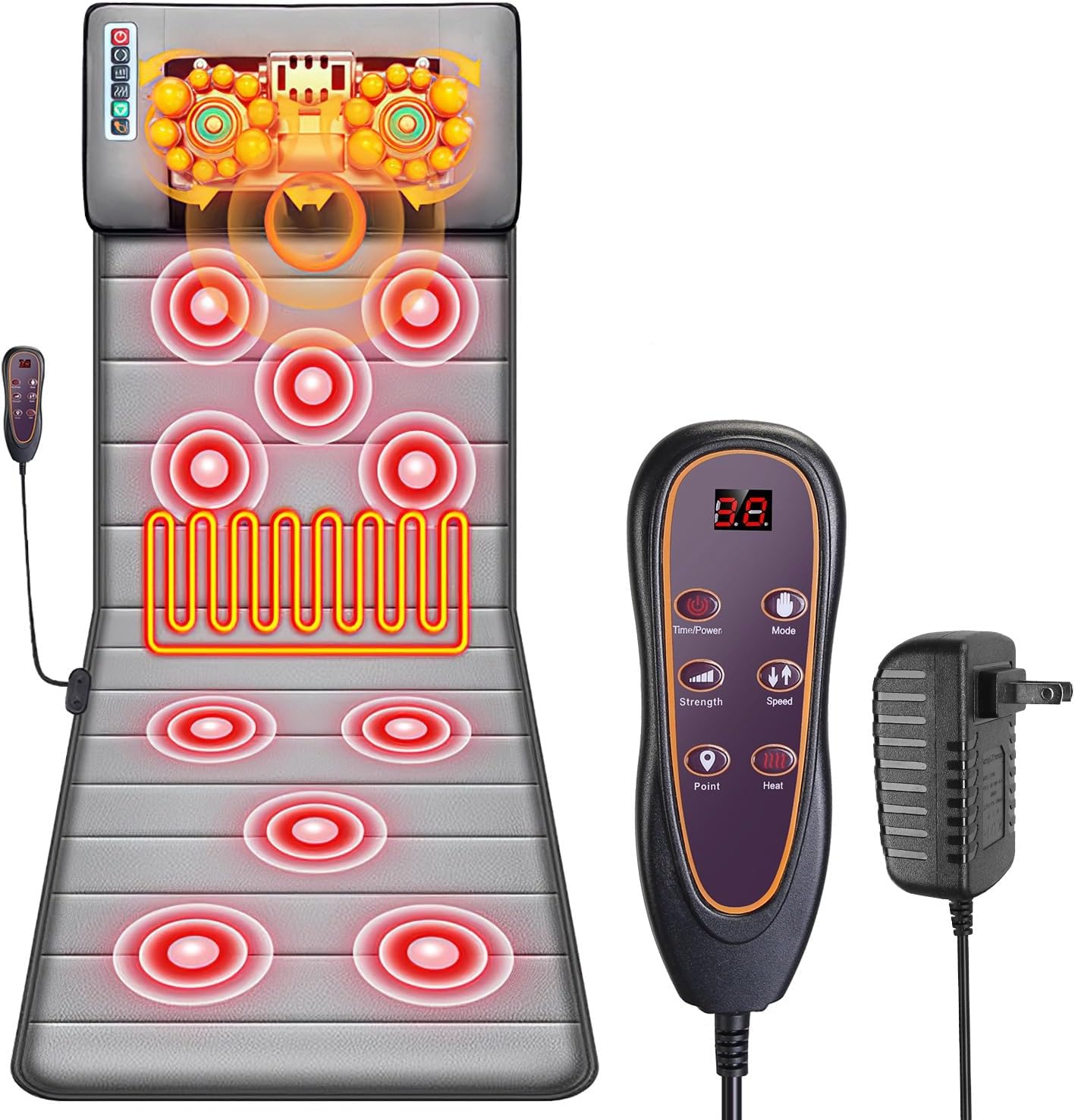

iMounTEK Full Body Electric Massage Mat with remote, power adapter, and neck pillow

Figure 1: Main components of the iMounTEK Full Body Electric Massage Mat.

Overview of iMounTEK massage mat features including timers, heating levels, massage modes, vibration intensities, point choices, and neck massager

Figure 2: Visual representation of the massage mat's features and benefits.

3. Setup Instructions

  1. Unpack Components: Carefully remove all items from the packaging. Ensure all components listed in the Product Overview section are present.
  2. Position the Mat: Lay the main massage mat flat on a bed, sofa, chair, or floor. Ensure the surface is stable and comfortable.
  3. Attach Neck Massage Pillow: The neck massage pillow is typically attached to the top section of the main mat via zippers. Align the zippers and secure the pillow.
  4. Attach Foot Massager: The foot massager connects to the bottom section of the main mat. Connect the corresponding cables.
  5. Connect Power: Locate the power input on the mat. Connect the wired remote controller to the mat, then connect the power adapter to the remote controller, and finally plug the power adapter into a standard 100-240V AC power outlet.
  6. Inflate Lumbar Pillow (Optional): If desired, use the manual inflating pump to adjust the firmness of the lumbar support pillow integrated into the mat.

Video 1: This video demonstrates the unboxing and setup process of the iMounTEK Full Body Electric Massage Mat, including connecting the various components.

Detailed view of the massage mat connections, including zippers for detachable pillow, soft sponge filling, skin-friendly plush surface, wire controller, and power adapter

Figure 3: Detailed view of the mat's connections and materials.

4. Operating Instructions

The massage mat is controlled via a wired remote. Familiarize yourself with the remote's buttons for optimal use.

Remote Controller Functions:

Diagram of the remote controller showing buttons for power, mode, strength, speed, point selection, and heat, with a digital display

Figure 4: Layout and functions of the wired remote controller.

  • Power On/Off: Press the 'Time/Power' button to turn the mat on or off.
  • Timer: Press the 'Time/Power' button repeatedly to cycle through 10, 20, or 30-minute auto-off timer settings.
  • Mode: Use the 'Mode' button to select from 9 different vibration massage modes.
  • Strength/Intensity: Adjust the vibration intensity with the 'Strength' buttons (9 levels).
  • Speed: Adjust the vibration speed with the 'Speed' buttons (9 levels).
  • Point Selection: Use the 'Point' button to select specific massage areas (neck, back, hips, legs).
  • Heat: Activate and adjust the lumbar heating function with the 'Heat' button (3 levels).

Neck Massager Operation:

The detachable neck massager has its own control panel.

Close-up of the neck massager control panel with buttons for ON/OFF, direction, kneading speeds, red light therapy, energy-saving mode, and smart modes

Figure 5: Controls for the detachable neck massage pillow.

  • Power: Use the ON/OFF button on the neck massager itself.
  • Direction: Select positive or negative kneading direction.
  • Kneading Speeds: Choose from 3 different kneading speeds.
  • Red Light Therapy: Toggle red light therapy on/off.
  • Smart Modes: Select from 3 smart massage modes (Intermittent Positive, Intermittent Negative, Intermittent Positive & Negative).

Lumbar Heat Therapy:

The mat features a dedicated heating function for the lumbar area, controlled via the main remote.

Woman relaxing on the massage mat with the lumbar heating function activated, showing the glowing red heat area

Figure 6: Lumbar soothing heat therapy in use.

  • Press the 'Heat' button on the remote to activate.
  • Cycle through 3 heating levels to find your preferred warmth.
  • The system includes overheating protection for safety.

5. Maintenance and Care

Proper care ensures the longevity and optimal performance of your massage mat.

Cleaning:

  • Always unplug the mat before cleaning.
  • Wipe the mat with a soft, slightly damp cloth. Do not use abrasive cleaners or harsh chemicals.
  • The pillow cloth with elastic fixing buckle straps is washable. Remove it from the neck massager before washing.
  • Ensure the mat is completely dry before storing or next use.

Storage:

  • Disconnect all cables and detach the neck massager and foot massager.
  • Fold the main mat neatly.
  • Place all components into the provided storage bag.
  • Store in a cool, dry place away from direct sunlight and moisture.
Detailed introduction of the massage mat's features including smooth zippers, detachable pillow, soft sponge filling, skin-friendly polyester plush surface, and wire controller

Figure 7: Features like smooth zippers and plush surface aid in maintenance and comfort.

6. Troubleshooting

  • Mat not turning on:
    • Ensure the power adapter is securely plugged into both the remote controller and a working electrical outlet.
    • Check if the remote controller is properly connected to the main mat.
    • Verify the power outlet is functional by plugging in another device.
  • No heat or weak vibration:
    • Confirm that the heat or intensity settings are adjusted to the desired level using the remote controller.
    • Ensure the mat is laid flat and not folded or obstructed, which could affect performance.
  • Neck or Foot Massager not working:
    • Check that the specific massager's power button is on (for the neck massager).
    • Ensure all connecting cables between the main mat and the detachable massagers are securely fastened.
  • Unusual noises:
    • Some vibration noise is normal. If the noise is excessive or unusual, discontinue use and contact customer support.

If you encounter any issues not listed here or if troubleshooting steps do not resolve the problem, please contact iMounTEK customer support for assistance.

7. Specifications

  • Model Number: dac3a3be-67f3-4de9-9aaf-5b78826853ed
  • Dimensions: 65 x 20 x 3.94 inches (approximate)
  • Weight: 5.85 Pounds (approximate)
  • Power Source: AC Power Adapter (100-240V)
  • Massager Form: Full Body Massage Mat
  • Massage Points: 10 (targeting back, buttocks, waist, thighs, calves)
  • Vibration Modes: 9
  • Vibration Intensity Levels: 9
  • Heating Levels: 3 (for lumbar area)
  • Timer Options: 10, 20, 30 minutes (auto-off)
  • Neck Massager: 2 massage heads, 20 nodes, 3 kneading speeds, infrared heating
  • Surface Material: Soft Polyester Plush
  • Filling: Soft Sponge
  • Additional Features: Anti-slip bottom, detachable neck and foot massagers, manual lumbar inflating pump.

8. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For product support, technical assistance, or to report any issues, please contact iMounTEK customer service through the official iMounTEK store on Amazon or their designated support channels.

iMounTEK Store: Visit the iMounTEK Store
