1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new Tieasy 30-inch Wall Mount Range Hood. Please read this manual thoroughly before using the appliance and retain it for future reference.
Figure 1: Tieasy 30-inch Wall Mount Range Hood
The Tieasy range hood is designed to effectively remove smoke, grease, and odors from your kitchen, ensuring a clean and comfortable cooking environment. It features a powerful 450 CFM fan, energy-efficient LED lighting, and intuitive touch controls.
2. Safety Information
To reduce the risk of fire, electric shock, or injury, observe the following:
- Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards.
- Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
- Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting.
- When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
- Always turn off power to the range hood at the circuit breaker before servicing.
- Clean grease filters frequently. Grease should not be allowed to accumulate on fan or filter.
3. Product Overview
Your Tieasy range hood combines powerful performance with a sleek design, featuring durable stainless steel construction and user-friendly controls.
Key Features:
- Superior Airflow: 450 CFM maximum speed for effective smoke and grease removal.
- Quiet Operation: Noise level as low as 65dB, ensuring a peaceful kitchen environment.
- Bright Illumination: Two 1.5-watt LED lights provide ample brightness for your cooking area.
- Digital Touch Control: Buttonless design with a digital touchscreen for easy fan speed and lighting control.
- Efficient Filtration: Two 5-layer aluminum mesh filters effectively capture grease particles.
- Premium Material: Constructed from heavy-duty brushed stainless steel for durability and a modern appearance.
Figure 2: 450 CFM Max Airflow for Various Cooking Styles
Figure 3: Quiet Operation at 55dB
Figure 4: Premium Quality Components
4. Setup & Installation
The Tieasy range hood offers convertible installation options (ducted or ductless) and an adjustable chimney to fit various kitchen structures and ceiling heights (7.5 to 8.5 ft). The duct size required is 6 inches round.
Installation Options:
- Ducted Ventilation: The range hood comes with an aluminum pipe for ducted installation, expelling air outside your home.
- Ductless Ventilation: For ductless conversion, a carbon filter kit (Part # USGDCF-Y) must be purchased separately. This recirculates filtered air back into the kitchen.
Refer to the detailed user manual included with your product for step-by-step installation instructions and diagrams. Ensure all local building codes and electrical regulations are followed.
Figure 5: Dimension Details
Figure 6: Included Components
Figure 7: Ducted Installation Diagram
Figure 8: Ductless Installation Diagram
5. Operating Instructions
The range hood features an intuitive digital touchscreen for easy control of its functions.
Controls:
- Power Button: Turns the unit on or off.
- Fan Speed: Select from 3 fan speeds (low, medium, high) to suit your cooking needs. Use the '+' and '-' buttons on the touchscreen to adjust.
- LED Lights: Activates the two 1.5-watt LED lights for illuminating the cooking surface.
- Timer Function: Set a timer for automatic shut-off.

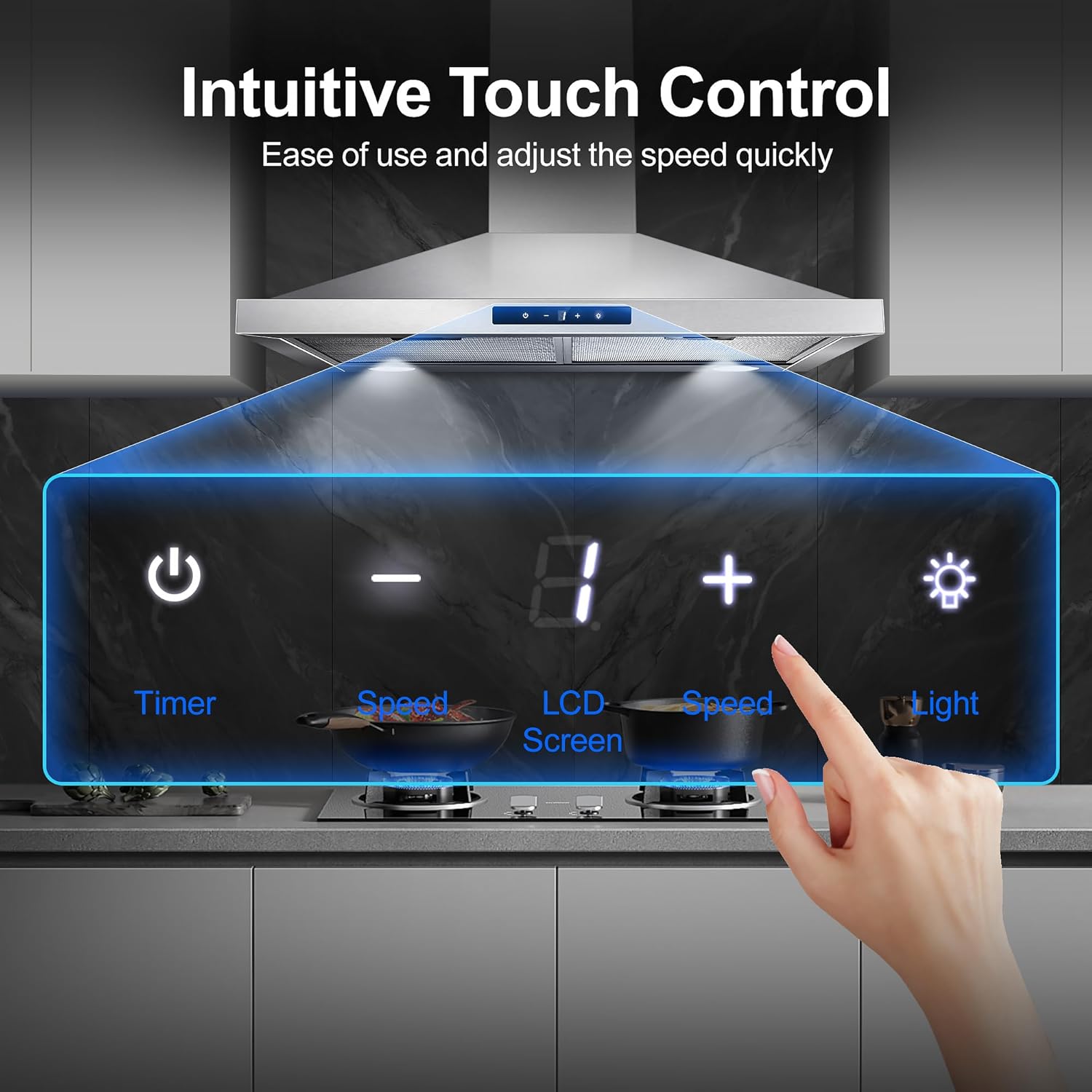

Figure 9: Digital Touch Control Panel
Figure 10: 3-Speed Fan Settings
Figure 11: Integrated LED Lights
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your range hood.
Filter Cleaning:
The two 5-layer aluminum mesh filters are removable and durable. It is recommended to clean them regularly to maintain optimal performance. They can be hand-washed or placed in a dishwasher.
Figure 12: Removable Aluminum Filters for Easy Cleaning
Stainless Steel Surface Cleaning:
Clean the brushed stainless steel surface with a soft cloth and a non-abrasive stainless steel cleaner. Avoid harsh chemicals or abrasive pads to prevent scratching.
Figure 13: Cleaning the Stainless Steel Surface
7. Troubleshooting
Specific troubleshooting steps are not detailed in the provided product information. For any operational issues, please refer to the comprehensive troubleshooting section in your full user manual or contact customer support.
8. Specifications
| Specification | Value |
|---|---|
| Model Info | USGD 1775A |
| Air Flow Capacity | 450 Cubic Feet Per Minute (CFM) |
| Material | Stainless Steel |
| Noise Level | 55 Decibels |
| Mounting Type | Wall Mount |
| Controls Type | Touch Screen |
| Voltage | 120 Volts |
| Number of Speeds | 3 |
| Item Weight | 21 Pounds |
| Light Source Type | LED (2 x 1.5W) |
| Filter Type | Mesh (5-layer aluminum) |
| Ventilation Type | Ducted/Vented (Ductless conversion requires carbon filter kit USGDCF-Y) |
| Product Dimensions | 18.3"D x 29.3"W x 36.3"H |
| Duct Size | 6" Round |
| Finish Type | Brushed |
9. Warranty and Support
Tieasy offers a two-year warranty on parts replacement and professional after-sales service for the lifetime of the product. For assistance or any issues with your 30-inch vent hood, please contact the Tieasy tech support team.
Contact Information: Please refer to the contact details provided in your product packaging or on the official Tieasy website for customer service and technical support.
