Vicco 'Larry' Corner Shelf Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, usage, and maintenance of your Vicco 'Larry' Corner Shelf. Please read these instructions carefully before beginning assembly and retain them for future reference.

The elegant 'Larry' standing shelf is a suitable choice for any apartment. With its optimal design and universal appeal, it offers both functionality and ease of use. The vertical bookshelf provides ample storage space, and its compact design makes it suitable for smaller areas.

2. Product Specifications

Note: All dimensions are approximate and may vary slightly.

Figure 1: Detailed dimensions of the Vicco 'Larry' Corner Shelf.

3. Package Contents

Before starting assembly, please verify that all components listed below are present in your package:

• Corner shelf components (various panels, shelves, drawer parts, door)
• Assembly Instructions manual
• Mounting Hardware (screws, dowels, hinges, drawer runners, handles)

If any parts are missing or damaged, please contact customer support before proceeding with assembly.

4. Safety Instructions

• Always assemble the product on a soft, clean surface to prevent scratches.
• Keep small parts and packaging materials away from children and pets to avoid choking hazards.
• Ensure all screws and fasteners are securely tightened before using the shelf. Periodically check and re-tighten if necessary.
• Do not overload the shelves or drawer. Adhere to the maximum weight capacity of 10 kg per shelf.
• Place the shelf on a level and stable surface to prevent tipping.
• If wall anchoring hardware is provided, it is highly recommended to secure the shelf to the wall to prevent accidental tipping, especially in households with children or pets.
• Do not stand or climb on the shelf.

5. Assembly Instructions

Assembly of the Vicco 'Larry' Corner Shelf requires basic household tools (e.g., screwdriver, hammer). Follow the step-by-step instructions provided in the separate assembly manual included in your package. Below are general guidelines:

1. Unpack and Identify Parts: Carefully unpack all components and lay them out. Compare them with the parts list in the assembly manual to ensure everything is present.
2. Assemble the Base: Begin by assembling the base structure according to the diagrams.
3. Install Drawer Runners: Attach the drawer runners to the designated panels.
4. Assemble the Drawer: Construct the drawer box and install it onto the runners.
5. Attach Door Hinges and Door: Secure the hinges to the cabinet and then attach the door. Adjust hinges for proper alignment.
6. Assemble Shelf Sections: Build the upper shelf sections, ensuring all panels are correctly oriented.
7. Final Assembly: Connect the upper and lower sections.
8. Install Back Panel: Secure the back panel to the unit.
9. Attach Handles: Install the handles on the drawer and door.
10. Wall Anchoring (Recommended): If desired and suitable for your wall type, attach the provided wall anchoring hardware to secure the shelf.

Figure 2: The Vicco 'Larry' Corner Shelf fully assembled and in use.

Figure 3: Various views of the 'Larry' Corner Shelf, highlighting its storage features.

6. Usage Guidelines

The Vicco 'Larry' Corner Shelf is designed for organizing and displaying various items in your living space. To ensure optimal use and longevity:

• Shelf Use: Utilize the open shelves for books, decorative items, plants, or small appliances. Distribute weight evenly and do not exceed the 10 kg weight limit per shelf.
• Drawer Use: The integrated drawer is suitable for storing smaller items, documents, or personal belongings, keeping them out of sight.
• Cabinet Use: The lower cabinet with a door provides enclosed storage for larger items or those you wish to keep protected from dust.
• Corner Placement: This unit is specifically designed to fit into room corners, maximizing space utilization.

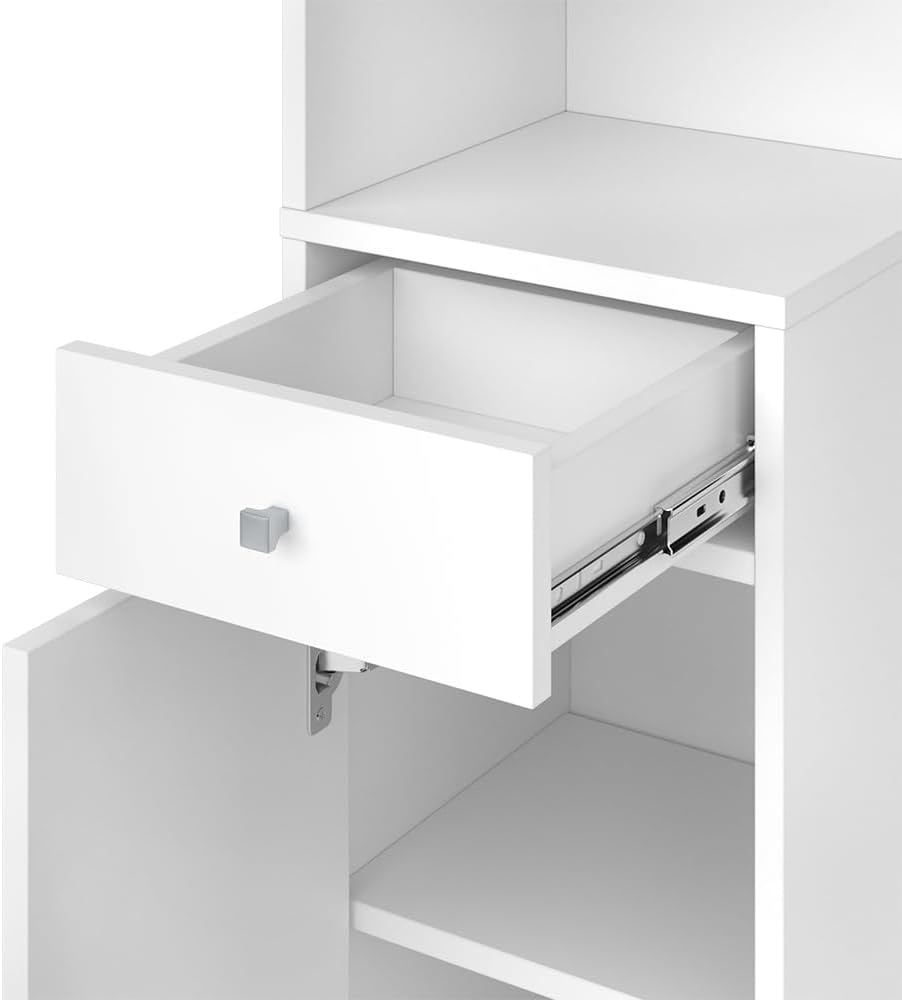

Figure 4: Detail of the functional drawer.

7. Care and Maintenance

To maintain the appearance and extend the life of your Vicco 'Larry' Corner Shelf:

• Cleaning: Wipe surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Dry immediately with a clean cloth.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or polishes containing silicone, as these can damage the melamine coating.
• Spills: Clean up spills immediately to prevent moisture damage.
• Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration.
• Heat and Moisture: Keep the shelf away from direct heat sources and areas of high humidity.
• Hardware Check: Periodically check all screws and fittings to ensure they remain tight. Re-tighten as needed.

8. Troubleshooting

If you encounter any issues with your Vicco 'Larry' Corner Shelf, refer to the following common solutions:

• Difficulty during Assembly:
      - Double-check the assembly instructions and diagrams. Ensure you are using the correct parts for each step.
      - Do not force parts together. If a part doesn't fit, re-examine the instructions.
• Shelf is Unstable/Wobbly:
      - Ensure all screws and fasteners are fully tightened.
      - Verify that the shelf is placed on a completely level surface.
      - If applicable, ensure wall anchoring hardware is properly installed.
• Drawer or Door Not Closing Properly:
      - Check the alignment of hinges and drawer runners. Adjust if necessary.
      - Ensure no obstructions are preventing the drawer or door from closing fully.
• Damaged or Missing Parts:
      - If you received damaged parts or are missing components, do not attempt to assemble the product. Contact customer support for assistance.

If the problem persists after attempting these solutions, please contact Vicco customer support.

9. Warranty and Support

Your Vicco 'Larry' Corner Shelf comes with a standard manufacturer's warranty covering defects in materials and workmanship. Please refer to the warranty information provided with your purchase for specific terms and conditions.

For technical support, replacement parts, or warranty claims, please contact Vicco customer service through the retailer where you purchased the product or visit the official Vicco website for contact details.

When contacting support, please have your model number (Larry 49518) and proof of purchase readily available.
