1. Safety Information
Please read and understand all instructions before use. Keep this manual for future reference. Adult supervision is required at all times when the product is in use.
- Age Range: Suitable for toddlers aged 18-36 months.
- Weight Limit: Maximum weight capacity is 44 lbs (20 kg).
- Assembly: Adult assembly required. Ensure all parts are securely fastened before first use.
- Environment: Use on flat, dry surfaces. Avoid slopes, uneven terrain, water, and public roads.
- Protective Gear: Always ensure the child wears appropriate safety gear, such as a helmet, when operating the ATV.
- Battery Safety: Only use the provided charger. Do not overcharge the battery. Keep battery away from children.
2. Package Contents
Verify that all components are present before beginning assembly:
- ATV Main Body
- Handlebar
- Wheels (4x)
- Front Axle
- Rear Axle
- Motor (pre-installed in some models)
- Charger
- Small Parts (washers, nuts, screws, hubcaps)
- Instruction Manual
3. Assembly Instructions
Follow these steps carefully for proper assembly. A screwdriver may be required for some steps.
Step 1: Install Rear Wheels and Axle
Insert the rear axle through the designated holes at the back of the ATV body. Secure the wheels onto the axle using the provided washers and nuts. Ensure they are tightened securely but allow the wheels to spin freely.
Image: A child riding the assembled Hikiddo Kids ATV 4 Wheeler, demonstrating its use.
Step 2: Attach Handlebar
Slide the handlebar into the steering column opening at the front of the ATV. Ensure it clicks into place or is secured with the provided screw/fastener.
Step 3: Connect Battery
Locate the battery compartment, usually under the seat. Connect the red battery terminal to the corresponding red wire, and the black terminal to the black wire. Ensure connections are firm.
Image: Close-up view of the Hikiddo Kids ATV 4 Wheeler's battery compartment, illustrating the battery connection points.
Step 4: Secure Seat and Front Bumper
Place the seat back onto the ATV body and secure it. Attach the front bumper if it's a separate piece, ensuring it's firmly screwed into place for safety.

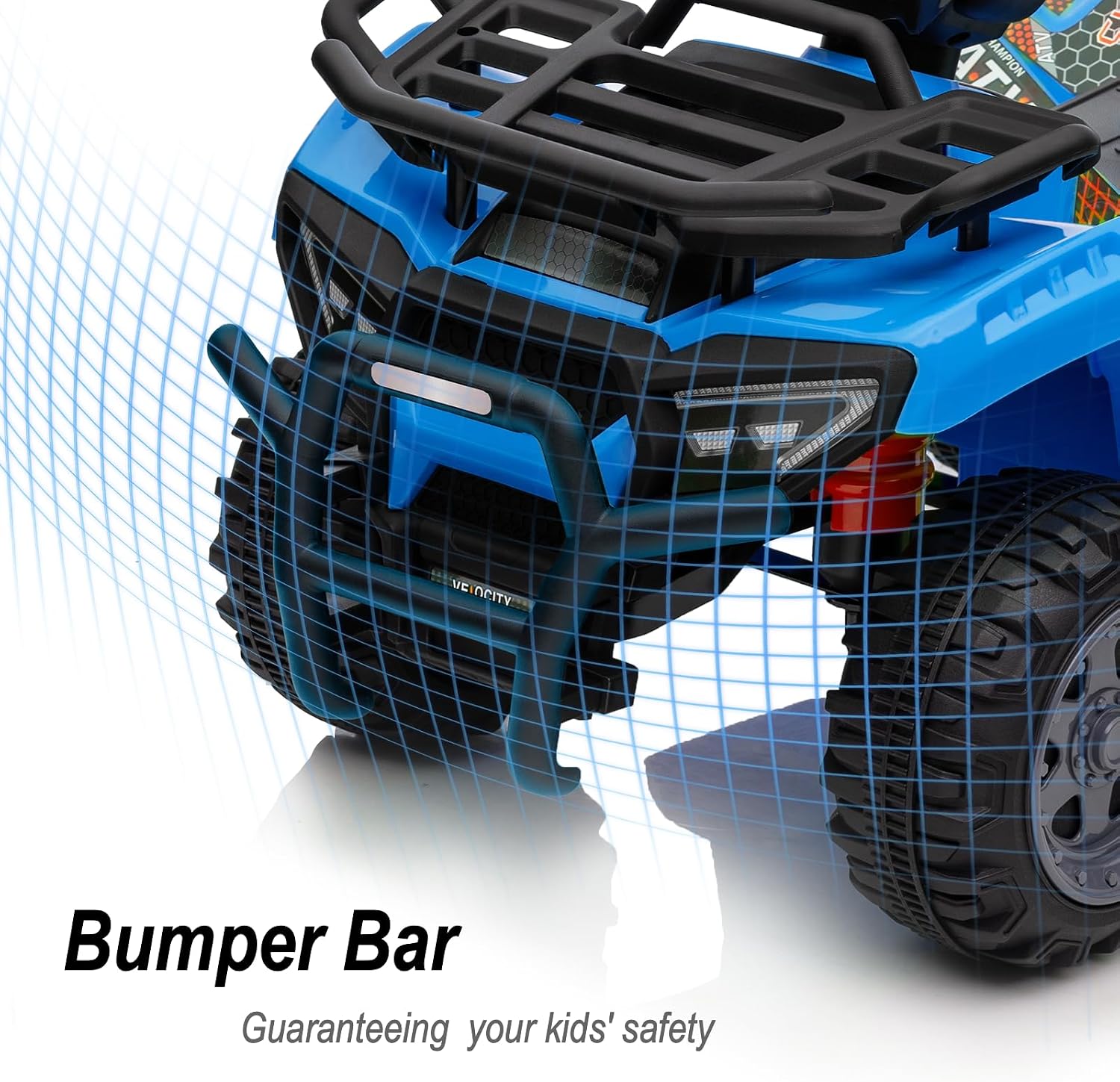

Image: The front bumper of the Hikiddo Kids ATV 4 Wheeler, emphasizing its protective design.
Assembly Video Guide
For a visual guide on assembling your Hikiddo Kids ATV, please watch the official assembly video:
Video: A step-by-step guide demonstrating the assembly process for the Hikiddo Kids ATV 4 Wheeler.
4. Charging the Battery
The ATV is powered by a rechargeable 6V 4.5Ah battery. For optimal performance and battery life, follow these charging guidelines:
- First Charge: Charge the battery for 8-10 hours before the first use.
- Regular Charging: Subsequent charges should also be 8-10 hours. Do not charge for more than 12 hours to prevent battery damage.
- Charging Port: Locate the charging port on the ATV (refer to the diagram in the original product manual if needed). Plug the charger into the port and then into a standard wall outlet.
- Indicator: The charger may have an indicator light to show charging status (e.g., red for charging, green for fully charged).
- Run Time: A full charge provides approximately 40 minutes of continuous play, depending on usage and terrain.
Image: Visual representation of the rechargeable battery and charging specifications for the Hikiddo Kids ATV 4 Wheeler.
5. Operating Instructions
Operating the Hikiddo Kids ATV is simple and intuitive for young children:
- Power On/Off: Locate the main power switch, usually near the dashboard. Flip it to the 'On' position to activate the ATV.
- Forward/Reverse: Use the forward/reverse switch to select the desired direction of travel.
- Acceleration: Press the foot pedal (or hand button, depending on model) to accelerate. Release to slow down or stop.
- Steering: Turn the handlebar left or right to steer the ATV.
- Music Function: The ATV features a music function with AUX input and USB connection. Plug in an MP3 player or USB drive to play music or stories. Controls for music and volume are typically on the dashboard.
Image: Close-up of the Hikiddo Kids ATV 4 Wheeler's dashboard, highlighting the music function controls and input ports.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your Hikiddo Kids ATV:
- Cleaning: Wipe the ATV with a soft, damp cloth. Do not use abrasive cleaners or solvents. Avoid spraying water directly onto electrical components.
- Battery Care: Recharge the battery after each use. If storing for an extended period, charge the battery once a month to maintain its health.
- Storage: Store the ATV in a dry, cool place away from direct sunlight and moisture.
- Inspection: Periodically check all screws, nuts, and connections to ensure they are tight. Inspect wheels and tires for wear and tear.
7. Troubleshooting
If you encounter issues with your ATV, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| ATV does not move | Battery is low or disconnected; Power switch is off; Loose wiring. | Charge battery; Check battery connections; Ensure power switch is ON; Inspect all wiring connections. |
| ATV moves slowly | Low battery; Overloaded; Used on rough terrain. | Recharge battery; Reduce load; Use on flat, smooth surfaces. |
| No sound/music | Volume too low; Device not connected properly; USB/AUX device issue. | Increase volume; Reconnect device; Test with a different device. |
8. Specifications
Key technical details of the Hikiddo Kids ATV 4 Wheeler:
| Feature | Detail |
|---|---|
| Brand | Hikiddo |
| Model | Kids ATV 4 Wheeler |
| Battery | 6V 4.5Ah |
| Speed Range | 0.6-1.86 mph |
| Run Time | Up to 40 minutes (on full charge) |
| Recommended Age | 18-36 months |
| Maximum Weight | 44 lbs (20 kg) |
| Dimensions (L x W x H) | 27.6" x 16.5" x 17.7" |
| Material | Polypropylene (PP) |
| Certifications | ASTM Certified |
9. Warranty and Support
For warranty information, technical support, or to purchase replacement parts, please contact Hikiddo customer service directly. Refer to the contact details provided on the product packaging or the official Hikiddo website.
Hikiddo is committed to providing quality products and excellent customer service. We value your feedback and are here to assist you with any questions or concerns.
