1. Important Safety Information
Read all instructions thoroughly before operating the Migali C-CO1-NG Convection Oven. Failure to follow these instructions may result in property damage, personal injury, or death.
- Professional Installation: This appliance must be installed by a qualified technician in accordance with all local codes and national standards, including ANSI Z223.1/NFPA 54 (National Fuel Gas Code) and NFPA 70 (National Electrical Code).
- Gas Safety: Ensure proper ventilation. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. If you smell gas, follow the "What to do if you smell gas" instructions provided by your gas supplier.
- Electrical Safety: Connect the oven to a properly grounded electrical outlet. Do not use extension cords. Disconnect power before servicing.
- Hot Surfaces: The oven surfaces, interior, and racks become extremely hot during operation. Use heat-resistant gloves or mitts when handling hot items or surfaces.
- Children and Pets: Keep children and pets away from the appliance during operation and while it is cooling down.
- Maintenance: Only qualified service personnel should perform maintenance and repairs.
2. Unpacking and Installation
Carefully unpack the Migali C-CO1-NG Convection Oven and inspect it for any shipping damage. Report any damage immediately to the carrier and your supplier.
2.1 Unpacking
- Remove all packaging materials, including any protective films or ties.
- Ensure all accessories, such as oven racks, are present.
2.2 Placement
- Place the oven on a level, stable surface capable of supporting its weight (approximately 370 lbs).
- Ensure adequate clearance around the oven for proper ventilation and servicing. Consult local codes for specific requirements.
- The oven ships with casters preinstalled for easy positioning. Ensure casters are locked once the oven is in its final location.
2.3 Gas Connection
This appliance is designed for Natural Gas. Gas connection must be performed by a licensed gas fitter.
- Ensure the gas supply pressure matches the oven's requirements.
- Install a manual shut-off valve in the gas supply line ahead of the oven.
- Check all gas connections for leaks using a non-corrosive leak detection solution.
2.4 Electrical Connection
Electrical connection must be performed by a qualified electrician.
- Connect the oven to a dedicated, properly grounded electrical circuit as specified on the appliance's data plate.
- Verify that the voltage and frequency match the oven's requirements.
3. Operating Instructions
Familiarize yourself with the control panel before operating the oven.

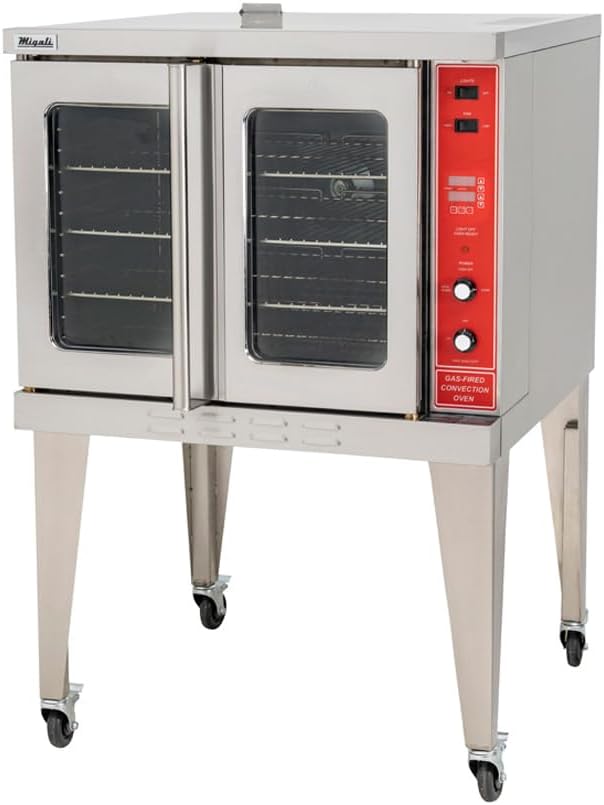

This image displays the Migali C-CO1-NG Natural Gas Convection Oven. It features a polished stainless steel exterior, two hinged double-pane glass doors, and a red control panel on the right side. The oven is mounted on four legs with casters for mobility. Inside, multiple rack guides are visible through the glass doors.
3.1 Control Panel Overview
The oven features a solid-state digital controller with knobs for temperature adjustment and other functions. The red control panel includes:
- Temperature Control Knob: Adjusts oven temperature from 150°F to 500°F.
- Digital Display: Shows current oven temperature and settings.
- Timer (if applicable): For setting cooking durations.
- Fan Speed Switch: Controls the dual-speed fan.
- Oven Light Switch: Activates the interior oven light.
- Power Switch: Turns the oven on/off.
3.2 Initial Startup and Preheating
- Ensure the gas supply valve is open and the oven is connected to power.
- Turn the Power Switch to the "ON" position. The electronic spark ignition system will initiate.
- Set the Temperature Control Knob to the desired preheating temperature (e.g., 350°F). The digital display will show the set temperature and the current oven temperature.
- Allow the oven to preheat until it reaches the set temperature. The "Hold" cooking temperature feature maintains the set temperature.
3.3 Loading and Cooking
- The oven accommodates five 18" x 26" full-size baking pans on 13-position rack guides.
- Open the hinged 50/50 dependent double pane thermal tempered glass doors carefully.
- Place pans evenly on the nickel-plated oven racks. Avoid overcrowding to ensure proper air circulation.
- Close the doors securely.
- Monitor cooking progress through the glass doors or by using the interior oven light.
- The dual-speed fan with delay switch assists in even heat distribution. Adjust as needed for specific recipes.
3.4 Shutting Down
- Once cooking is complete, turn the Temperature Control Knob to the lowest setting or "OFF".
- Turn the Power Switch to the "OFF" position.
- Allow the oven to cool completely before cleaning or performing any maintenance. The safety shut-off switch will activate if necessary.
4. Cleaning and Maintenance
Regular cleaning and maintenance ensure the longevity and optimal performance of your Migali C-CO1-NG Convection Oven.
4.1 Daily Cleaning
- Exterior: Wipe down the high polished stainless steel exterior with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that can scratch the surface.
- Interior: After the oven has cooled, wipe the enamel interior with a damp cloth and mild detergent. For stubborn stains, use an oven cleaner specifically designed for commercial ovens, following the product instructions.
- Oven Racks: Remove the nickel-plated oven racks and wash them with warm, soapy water. Rinse thoroughly and dry before returning them to the oven.
- Glass Doors: Clean the double pane thermal tempered glass doors with a glass cleaner or mild soapy water.
4.2 Periodic Maintenance
- Inspect Gas Connections: Periodically check gas connections for any signs of leaks or wear. This should be done by a qualified technician.
- Inspect Electrical Connections: Ensure all electrical connections are secure and free from damage.
- Fan Inspection: Check the dual-speed fan for any obstructions or unusual noises.
- Door Gaskets: Inspect door gaskets for tears or damage. Replace worn gaskets to maintain oven efficiency.
5. Troubleshooting
This section provides solutions to common operational issues. For problems not listed here or if solutions do not resolve the issue, contact a qualified service technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven does not heat up. | No gas supply, electrical power issue, ignition failure. | Check gas valve. Verify power connection. If ignition fails, contact service. |
| Uneven cooking. | Overcrowding, fan malfunction, improper temperature setting. | Reduce load. Check fan operation. Verify temperature setting. |
| Oven light not working. | Bulb burnt out, switch malfunction. | Replace bulb (ensure oven is cool and power is off). If issue persists, contact service. |
| Unusual noises during operation. | Fan obstruction, motor issue. | Turn off oven and inspect fan for obstructions. If noise continues, contact service. |
6. Specifications
- Model: C-CO1-NG
- Dimensions (D x W x H): 48.6" x 38.2" x 59.4"
- Weight: 370 pounds
- Fuel Type: Natural Gas
- BTU Rating: 46,000 BTUs
- Temperature Range: 150°F to 500°F
- Capacity: (5) 18" x 26" full-size baking pans
- Rack Positions: 13
- Exterior Material: High Polished Stainless Steel
- Interior Material: Enamel
- Door Type: Hinged 50/50 Dependent Double Pane Thermal Tempered Glass Doors
- Controls: Solid State Digital Controller, Knobs
- Ignition: Electronic Spark Ignition with Autopilot
- Fan: Dual Speed Fan with Delay Switch
- Safety Features: Safety Shut-off Switch
- Included Components: Oven Racks, Interior Oven Light
7. Warranty and Support
For warranty information, technical support, or to locate authorized service providers, please refer to the warranty card included with your product or visit the official Migali website. Keep your purchase receipt as proof of purchase for warranty claims.
Manufacturer: Migali
Model Number: C-CO1-NG
UPC: 819296021206
