NRS Healthcare Over-bed Table S37779

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your NRS Healthcare Over-bed Table, Model S37779. This versatile table is designed for use over a bed or chair, offering a convenient surface for various activities such as reading, writing, or dining. It features height adjustment and a tiltable tabletop for optimal user comfort.

2. Safety Information

• Maximum Load Capacity: Do not exceed the maximum load of 10 kg (1.6 stone) on the tabletop. Overloading can compromise stability and cause damage.
• Stable Surface: Ensure the table is placed on a flat, stable surface. If using castors, ensure the lockable castors are engaged when the table is in a fixed position.
• Assembly: Follow all assembly instructions carefully. Ensure all components are securely fastened before use.
• Adjustments: Always ensure adjustment mechanisms (height and tilt) are securely locked after making changes to prevent accidental movement.
• Children and Pets: Keep children and pets away from the table during assembly and ensure they do not climb on or play with the table.

3. Package Contents

Please check that all the following components are present in your package:

• Tabletop (Beech effect laminate)
• White painted metal frame components
• 4 x Castor wheels (2 lockable)
• 4 x Mushroom slider feet
• Assembly Guide

4. Setup and Assembly

The table is supplied flat-packed and requires simple assembly. No additional tools are needed.

4.1 Unpacking

Carefully remove all components from the packaging and lay them out on a clean, soft surface to prevent scratches.

4.2 Choosing Feet: Castors or Slider Feet

You have the option to fit either castor wheels for easy mobility or mushroom slider feet for a lower divan option. Choose the option most suitable for your needs.

• For Castor Wheels: Insert the four castor wheels into the designated holes at the bottom of the frame. Ensure they are firmly seated. Two of the castors are lockable; these should be positioned where they are easily accessible for locking.
• For Mushroom Slider Feet: Insert the four mushroom slider feet into the designated holes at the bottom of the frame. These allow the table to slide into place, ideal for use with divan beds or armchairs.

Image: Mushroom slider foot installation.

Image: Castor wheel attached to the table leg.

4.3 Assembling the Frame and Tabletop

1. Connect the vertical support poles to the base frame. Ensure they are securely fitted.
2. Attach the tabletop to the top of the vertical support poles. The tabletop should slide onto the adjustable mechanisms.
3. Tighten the handwheels on the vertical poles to secure the tabletop and set the initial height.

Image: Fully assembled over-bed table.

5. Operation

5.1 Adjusting Height

The table's height can be adjusted to suit your needs, whether you are using it over a bed or a chair.

1. Loosen the black handwheels located on the vertical support poles.
2. Carefully raise or lower the tabletop to the desired height.
3. Once the desired height is reached, firmly tighten both handwheels to secure the tabletop in place. Ensure both sides are tightened equally for stability.

Image: Table height adjustment mechanism.

5.2 Tilting the Tabletop

The tabletop can be tilted in either direction to provide an ergonomic angle for reading or using a tablet. It features two raised edges to prevent items from sliding off.

1. Locate the tilting mechanism beneath the tabletop.
2. Adjust the angle to your preference.
3. Secure the tilt by tightening the locking mechanism.

Image: Adjusting the tabletop tilt.

5.3 Moving the Table

• With Castor Wheels: Unlock the two lockable castors. Gently push or pull the table to its desired position. Once in place, engage the locks on the castors to prevent unwanted movement.
• With Slider Feet: The table can be slid into position. Ensure the path is clear and free of obstructions to avoid damage to the feet or floor.

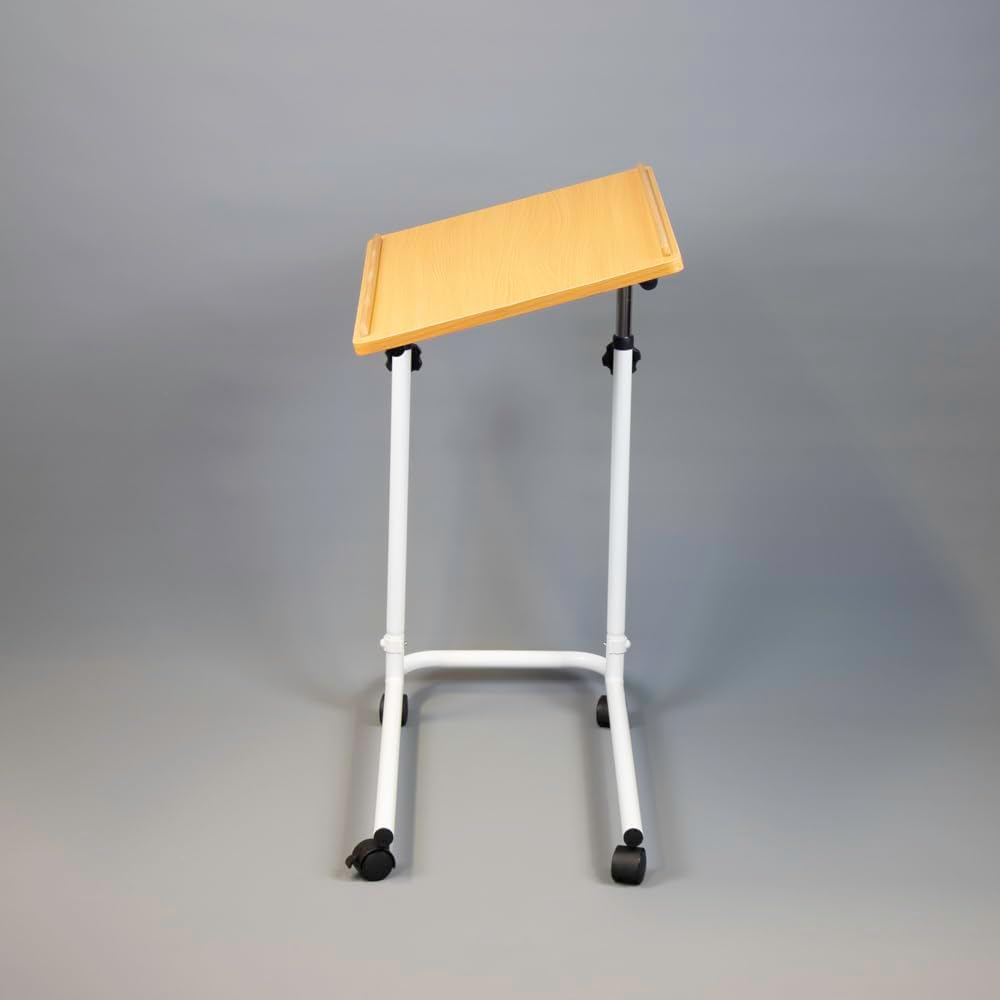

Image: Table with castor wheels for mobility.

6. Maintenance and Care

• Cleaning: Wipe the tabletop and frame with a damp cloth and mild detergent. Avoid abrasive cleaners or solvents, as these may damage the finish. Dry thoroughly after cleaning.
• Inspection: Regularly inspect all fasteners and connections to ensure they remain tight. Periodically check the castor wheels or slider feet for wear and tear.
• Storage: Store the table in a dry environment when not in use.

7. Troubleshooting

• Table is unstable: Ensure all assembly bolts and handwheels are securely tightened. Check that the table is on a flat, even surface. If using castors, ensure the lockable castors are engaged when stationary.
• Difficulty adjusting height/tilt: Loosen the handwheels sufficiently before attempting to adjust. Ensure no obstructions are preventing movement. Do not force adjustments.
• Items sliding off tilted table: Ensure the raised edges are correctly positioned to hold items. Reduce the tilt angle if items continue to slide.

8. Specifications

9. Warranty and Support

For any questions regarding your NRS Healthcare Over-bed Table, or for warranty information, please contact NRS Healthcare customer support. Please refer to the model number S37779 when contacting support.

Contact details can typically be found on the NRS Healthcare official website or on your purchase documentation.
