OLEVS Men's Quartz Analog Watch Model G9931 Instruction Manual

1. Introduction

Thank you for choosing the OLEVS Men's Quartz Analog Watch Model G9931. This manual provides essential information for the proper use and care of your watch. Please read it carefully to ensure optimal performance and longevity of your timepiece.

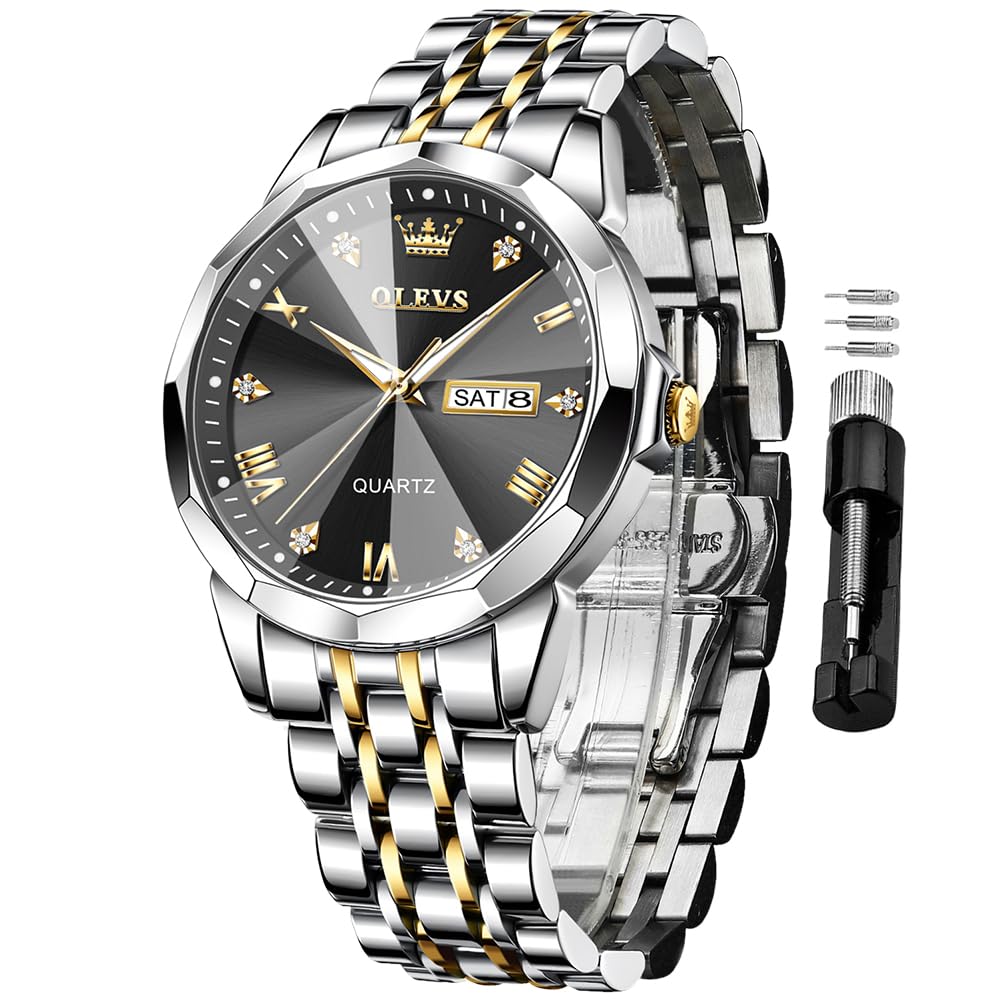

Figure 1: Front view of the OLEVS G9931 watch, showcasing its black dial, gold accents, and stainless steel bracelet.

2. Product Overview

The OLEVS G9931 is a stylish quartz analog watch designed for men, featuring a date display, luminous hands, and 30-meter water resistance. Its durable construction includes a stainless steel case and band, and a sapphire crystal for enhanced scratch resistance.

Figure 2: Side view of the watch, highlighting the crown used for time and date adjustments.

Key Features:

• Quartz Movement: Ensures accurate timekeeping.
• Date Display: Convenient window for the current date.
• Luminous Hands: Allows for visibility in low-light conditions.
• 30M Water Resistance: Suitable for daily use, such as hand washing and light rain.
• Sapphire Crystal: Highly scratch-resistant watch face.
• Stainless Steel Construction: Durable case and band.

3. Setup

3.1 Setting the Time

1. Pull the crown out to the second click position (farthest out).
2. Turn the crown to adjust the hour and minute hands to the desired time.
3. Push the crown back to the normal position to start the watch.

3.2 Setting the Date

1. Pull the crown out to the first click position.
2. Turn the crown clockwise or counter-clockwise (depending on the movement) to set the correct date. Avoid setting the date between 9 PM and 3 AM, as this is when the date change mechanism is active and could be damaged.
3. Once the date is set, push the crown back to the normal position.

3.3 Adjusting the Bracelet

The stainless steel bracelet can be adjusted to fit your wrist. This typically involves removing or adding links. For precise adjustment, it is recommended to visit a professional watch repair shop or jeweler. Improper adjustment can damage the bracelet or clasp.

4. Operation

4.1 Reading the Time and Date

The watch displays time using hour, minute, and second hands. The date is shown in a dedicated window on the dial. The luminous hands provide enhanced readability in dark environments.

Figure 3: Key features of the OLEVS G9931, including 30-meter water resistance, sapphire glass, stainless steel band, and HD luminous display.

4.2 Luminous Feature

The hands and hour markers of your OLEVS G9931 watch are coated with a luminous material. This material absorbs light during the day and emits it in the dark, allowing you to read the time in low-light conditions. The intensity and duration of the glow depend on the exposure to light.

4.3 Water Resistance

This watch is rated for 30 meters (3 ATM) of water resistance. This means it is suitable for daily use and can withstand splashes, rain, and brief immersion in water, such as during hand washing. It is not suitable for swimming, showering, diving, or any activities involving prolonged water exposure or high-pressure water.

• Ensure the crown is fully pushed in before any contact with water.
• Do not operate the crown while the watch is wet or submerged.

5. Maintenance

5.1 Cleaning

To maintain the appearance of your watch, wipe the case and bracelet regularly with a soft, dry cloth. For stainless steel, a slightly damp cloth can be used, followed by a dry cloth. Avoid using chemical cleaners, solvents, or abrasive materials, as these can damage the watch's finish.

5.2 Battery Replacement

The OLEVS G9931 uses a quartz movement, powered by a battery. When the watch stops running, the battery needs to be replaced. Battery life typically ranges from 2 to 3 years. It is recommended to have the battery replaced by a qualified watch technician to ensure the watch's water resistance is maintained and to prevent damage to the internal components.

5.3 Water Resistance Care

The gaskets that ensure water resistance can degrade over time. It is advisable to have the water resistance checked periodically (e.g., every 2-3 years) by a professional, especially if the watch is frequently exposed to water. Avoid exposing the watch to extreme temperature changes, as this can affect the gaskets.

6. Troubleshooting

Watch Not Running

• Check the crown: Ensure the crown is fully pushed in to the normal operating position.
• Battery: If the watch has stopped completely, the battery may need replacement. Consult a professional watch technician.

Date Not Changing

• Time setting: Ensure the time is set correctly, especially past midnight for the date to advance.
• Crown position: Verify the crown is fully pushed in after setting the date.

Condensation Inside the Watch

If you notice condensation inside the watch crystal, this indicates a loss of water resistance. Immediately take the watch to a professional watch repair center to prevent further damage to the movement.

7. Specifications

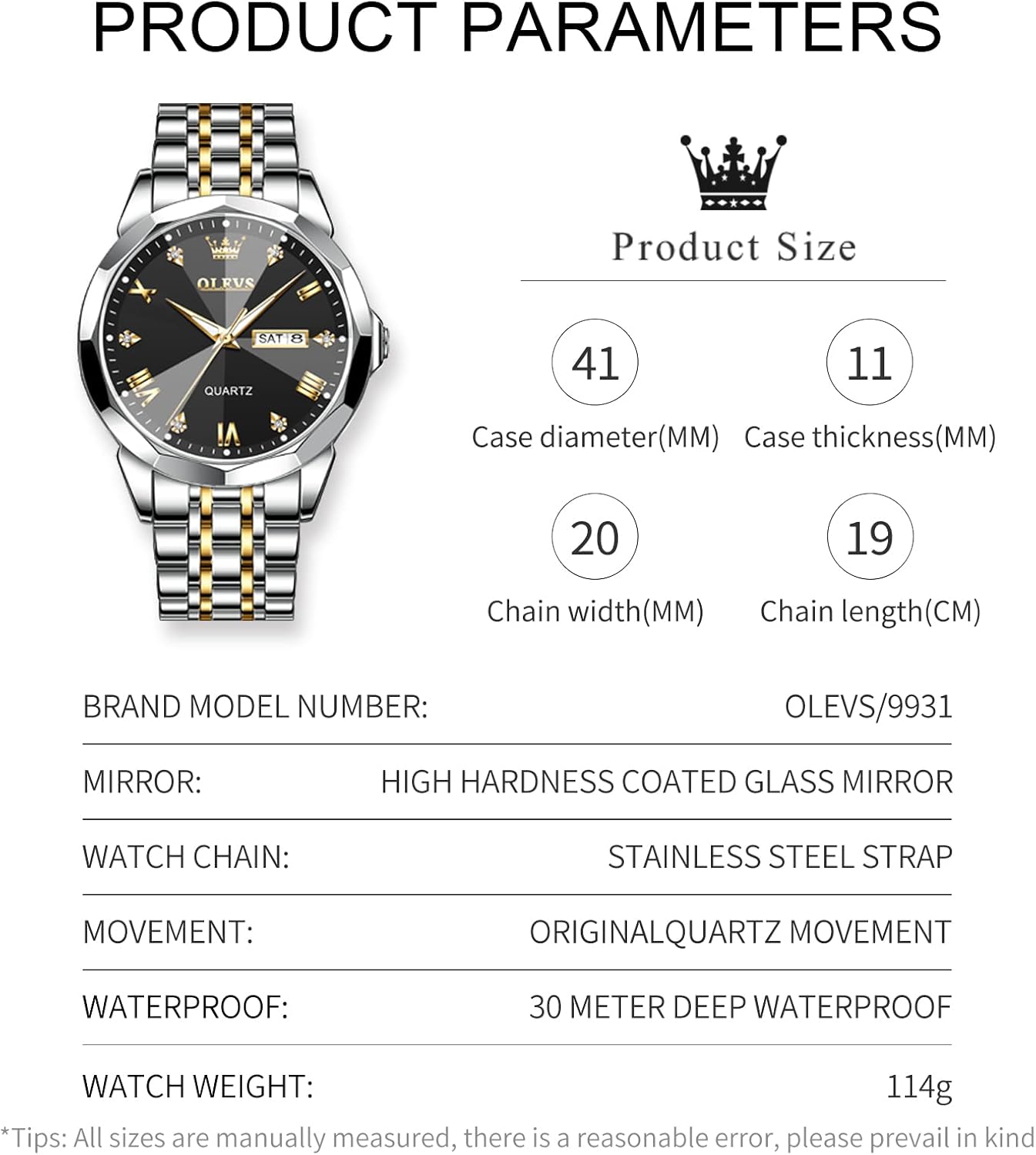

Figure 4: Detailed product parameters for the OLEVS G9931 watch.

8. Warranty and Support

8.1 Warranty Information

Your OLEVS G9931 watch comes with a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the duration and coverage details. The warranty typically covers manufacturing defects but does not cover damage resulting from improper use, accidents, or unauthorized repairs.

8.2 Customer Support

For any questions, concerns, or service requests regarding your OLEVS watch, please contact the retailer where you purchased the product or visit the official OLEVS brand store on Amazon.co.jp for further assistance.
