1. Important Safety Information
Please read this manual carefully before using your Subcold ACE100 drinks fridge. Keep it for future reference. Always follow basic safety precautions to reduce the risk of fire, electric shock, and injury.
- Ensure the appliance is properly earthed.
- Do not operate if the power cord is damaged. Contact qualified service personnel.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Keep ventilation openings clear of obstruction.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
2. Product Overview
The Subcold ACE100 is a versatile under counter drinks fridge designed for optimal beverage cooling. It features a spacious 95-litre capacity, fan-assisted cooling, and a stylish glass door with LED lighting. The unit is equipped with a digital touch control panel, automatic defrost function, and adjustable shelves for flexible storage.
Front view of the Subcold ACE100 drinks fridge, showcasing its glass door and internal shelving filled with various beverages.
Interior view of the Subcold ACE100 drinks fridge with the door open, showing the adjustable wire shelves and internal fan.
Key Features:
- Spacious 95L Capacity: Accommodates up to 101 standard cans, suitable for various beverages.
- Fan-Assisted Cooling: Ensures consistent and even temperature distribution throughout the interior.
- Stylish Glass Door: Features internal LED illumination and a modern black aluminium handle.
- Digital Touch Control Panel: Allows precise temperature adjustments.
- Automatic Defrost: Provides hassle-free maintenance.
- Adjustable Shelves: Strong, flexible shelving for customized storage.
- Lockable Door: Includes a key for securing contents.
- Quiet Operation: Operates at 40dB, suitable for various environments.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials. Inspect the fridge for any shipping damage. Report any damage to your retailer immediately. Keep packaging materials for future transport if needed.
3.2 Placement
- Place the fridge on a firm, level surface capable of supporting its weight when fully loaded.
- Ensure adequate ventilation around the unit. Allow at least 10cm (4 inches) of space at the back and sides for proper air circulation.
- Avoid direct sunlight or heat sources (e.g., radiators, ovens) as these can affect cooling performance and energy consumption.
- This unit is designed for both freestanding and under counter installation. If installing under a counter, ensure sufficient clearance for the door to open fully.
3.3 Leveling
The fridge has adjustable leveling feet at the bottom. Adjust them to ensure the unit is perfectly level. This is crucial for proper door sealing and efficient operation.
3.4 Initial Power-On
After placement, wait at least 2-4 hours before plugging the unit into a power outlet. This allows the refrigerant to settle. Plug into a dedicated, properly earthed power socket. The fridge will begin cooling immediately.
4. Operating Instructions
4.1 Temperature Control
The Subcold ACE100 features a digital touch control panel located inside the unit, typically at the top. Use the UP and DOWN arrows to adjust the desired temperature. The display will show the set temperature. The recommended operating temperature range is 2°C to 8°C.
Detail of the digital control panel and internal LED lighting.
4.2 Internal LED Light
The internal LED light can be switched on or off using the dedicated light button on the control panel. This light illuminates the interior for better visibility of your beverages.
4.3 Loading the Fridge
- Arrange bottles and cans to allow for proper air circulation. Overloading can hinder cooling efficiency.
- The wire shelves are adjustable. To reposition, carefully lift the shelf and slide it out. Reinsert into the desired slots.
- The fridge includes a wine bottle rack for horizontal storage of wine bottles.

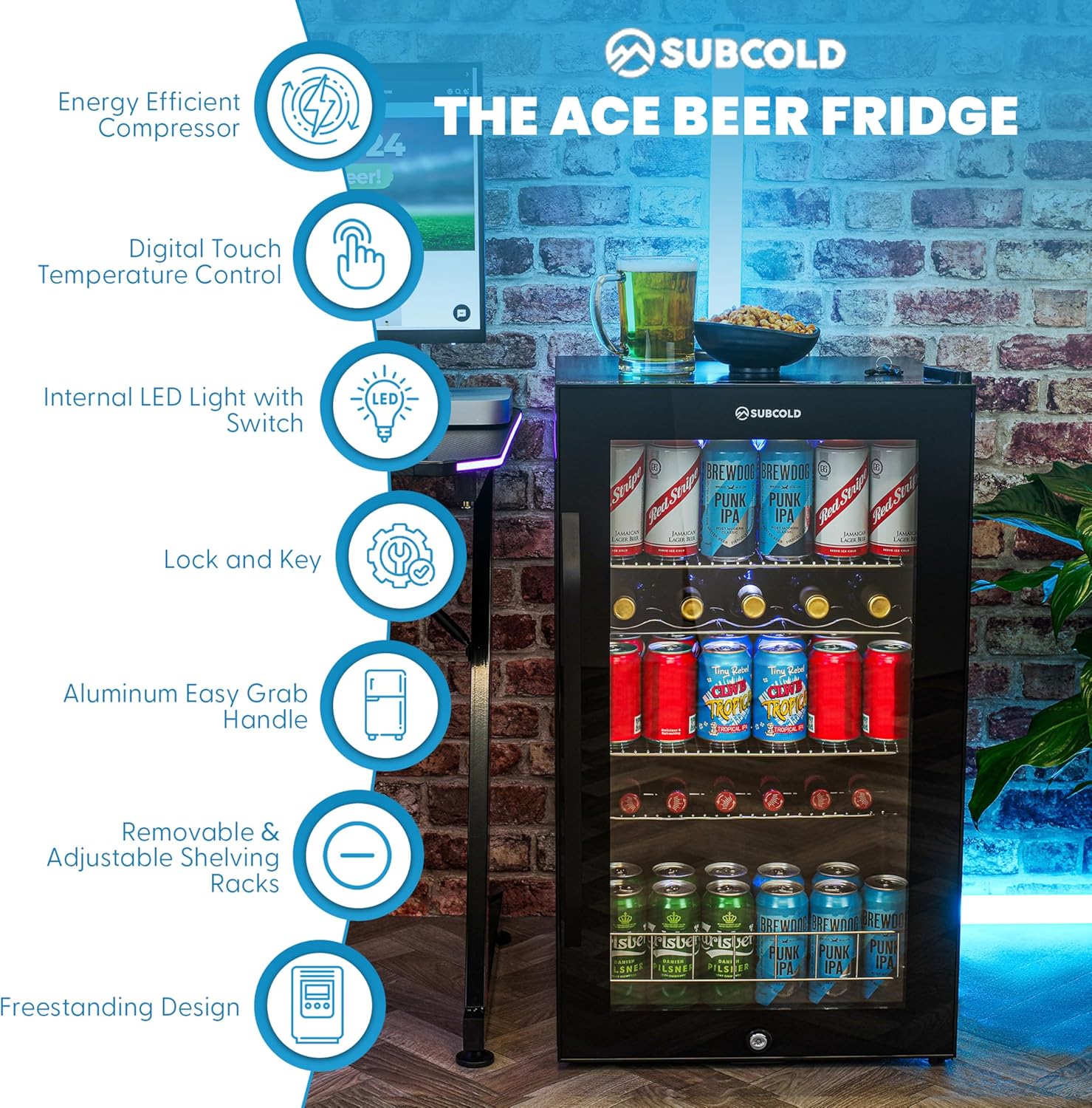

The Subcold ACE100 fridge fully stocked with drinks, demonstrating its storage capabilities.
4.4 Door Lock
The fridge is equipped with a lockable door for security. Insert the provided key into the lock located at the bottom of the door and turn to lock or unlock.
Detail of the lock and key for securing the fridge door.
5. Maintenance and Care
5.1 Cleaning
- Always unplug the appliance before cleaning.
- Clean the interior and exterior surfaces with a soft cloth and a mild detergent solution. Avoid abrasive cleaners or solvents.
- Wipe down the door gasket regularly to ensure a tight seal.
- Clean the condenser coils at the back of the unit periodically (at least twice a year) to maintain efficiency. Use a soft brush or vacuum cleaner.
5.2 Automatic Defrost
The Subcold ACE100 features an automatic defrost system. Frost will melt and evaporate automatically. There is no need for manual defrosting under normal operating conditions. If excessive ice builds up, unplug the unit and allow it to defrost naturally, then clean and restart.
5.3 Power Interruption
In case of a power outage, keep the fridge door closed to maintain the internal temperature for as long as possible. Avoid opening the door unnecessarily.
6. Troubleshooting
Before contacting customer support, please refer to the following table for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fridge does not operate. | Not plugged in; circuit breaker tripped; power outage. | Ensure plug is secure; check circuit breaker; verify power supply. |
| Fridge is not cold enough. | Temperature set too high; door opened too frequently; poor ventilation; overloaded. | Lower temperature setting; minimize door openings; ensure adequate clearance; do not overload. |
| Excessive noise. | Fridge not level; loose parts; normal compressor operation. | Adjust leveling feet; check for loose items inside; some noise from compressor/fan is normal. |
| Water on floor/inside. | Drainage hole blocked; door not sealing properly. | Clear drainage hole; check door gasket for obstructions or damage. |
| Door does not close properly. | Fridge not level; items obstructing door; door gasket dirty/damaged. | Level the fridge; rearrange contents; clean or inspect door gasket. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Subcold |
| Model | ACE100LED-BL |
| Capacity | 95 litres |
| Product Dimensions (W x D x H) | 48 cm x 47 cm x 84 cm |
| Item Weight | 35 kg |
| Annual Energy Consumption | 78 Kilowatt Hours Per Year |
| Temperature Range | 2°C to 8°C |
| Installation Type | Freestanding / Undercounter |
| Defrost System | Automatic |
| Noise Level | 40dB |
| Number of Shelves | 4 (wire) |
| Door Material | Glass |
| Special Features | Digital Temperature Control, Energy Efficient, Low Noise, Adjustable Shelves, Door Lock |
| Included Components | Electronic Controller |

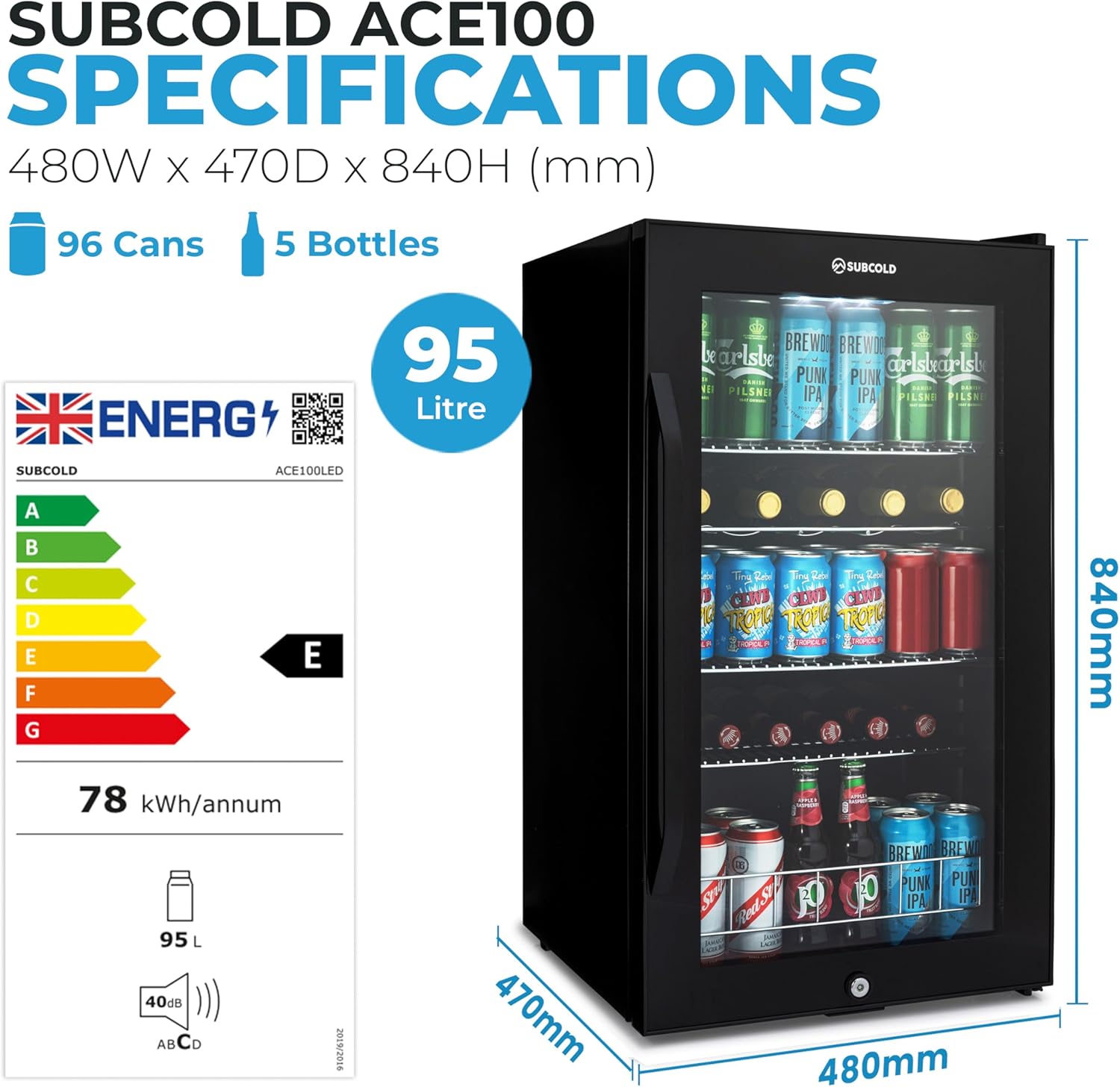

Diagram illustrating the dimensions and key specifications of the Subcold ACE100 fridge.
8. Warranty and Support
Subcold is a UK brand committed to delivering high-quality cooling solutions and exceptional support. For any questions regarding your Subcold ACE100 drinks fridge, assistance with your order, or technical support, please contact the Subcold team directly.
The product is sold by Subcold Ltd. Please refer to your purchase documentation for specific warranty terms and conditions. Typically, products come with a manufacturer's warranty covering defects in materials and workmanship.
For more information and support, you may visit the official Subcold website: www.subcold.com
