1. Introduction
Thank you for choosing the sweeek Liam 4-Drawer Bicolor Wood Effect Chest of Drawers. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read it thoroughly before beginning assembly and keep it for future reference.
This chest of drawers features a modern bicolor design with a wood effect finish, equipped with four spacious drawers utilizing a convenient push-to-open system. It is designed to provide efficient storage and enhance the aesthetic of your living space.

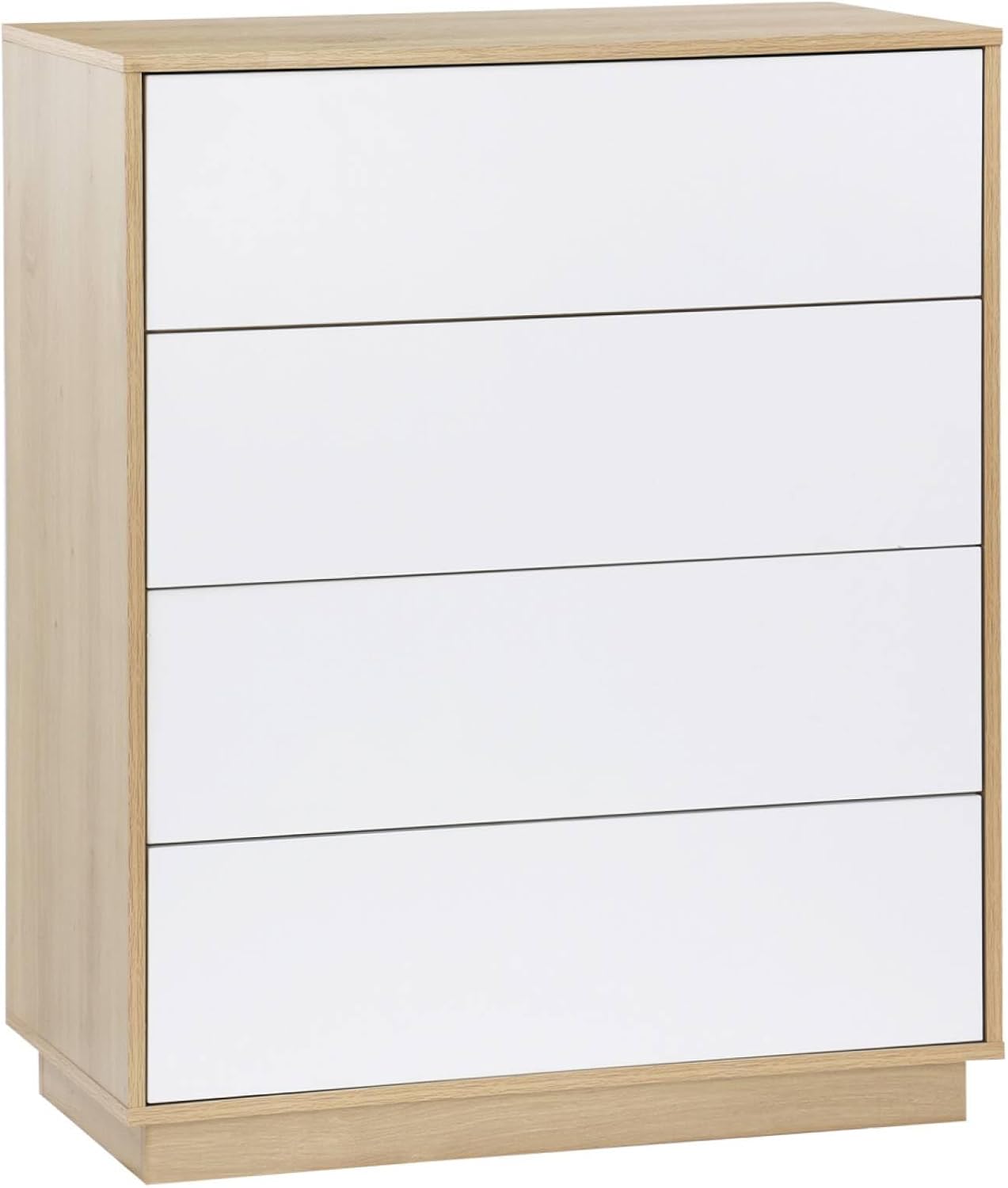

Figure 1.1: sweeek Liam 4-Drawer Bicolor Wood Effect Chest of Drawers.
2. Safety Instructions
To ensure safe use and prevent injury or damage, please adhere to the following safety guidelines:
- Assembly: Always assemble the chest of drawers on a soft, clean surface to prevent scratches. Ensure all parts are present and undamaged before starting. Follow the assembly instructions carefully.
- Stability: This furniture must be securely anchored to a wall to prevent tipping, especially if children are present. Wall anchoring hardware is typically included or recommended. Consult a professional if unsure about wall type or suitable hardware.
- Weight Capacity: Do not exceed the maximum weight capacity of 10 kg (22 lbs) per drawer or shelf. Overloading can cause structural damage or tipping.
- Children Safety: Keep small parts and packaging materials away from children during assembly. Do not allow children to climb on or play with the chest of drawers.
- Placement: Place the chest of drawers on a level, stable surface. Avoid placing it near heat sources, direct sunlight, or in areas with high humidity to prevent material degradation.
- Maintenance: Regularly check all screws and fittings to ensure they remain tight. Retighten as necessary.
3. Package Contents
Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact sweeek customer support.
- Side Panels (2)
- Top Panel (1)
- Bottom Panel (1)
- Back Panel (1)
- Drawer Fronts (4)
- Drawer Side Panels (8)
- Drawer Back Panels (4)
- Drawer Bottom Panels (4)
- Drawer Slides (8 pairs)
- Push-to-Open Mechanisms (4)
- Assembly Hardware (screws, dowels, cam locks, etc.)
- Wall Anchoring Kit (1)
- Assembly Instructions Manual (this document)
4. Setup (Assembly)
Assembly typically requires two people. Please follow the step-by-step diagrams provided in the separate assembly instruction sheet included in your package. The general steps are outlined below:
- Prepare the Area: Clear a spacious, clean, and soft area for assembly to prevent damage to the furniture parts and your floor.
- Assemble the Frame: Attach the side panels to the top and bottom panels using the provided hardware (dowels, cam locks, screws). Ensure all connections are secure.
- Install Back Panel: Slide or nail the back panel into place, ensuring it is flush and square with the frame.
- Attach Drawer Slides: Securely attach the drawer slides to the inner sides of the chest frame according to the pre-drilled holes. Ensure they are level and aligned.
- Assemble Drawers: For each of the four drawers, assemble the side, back, and bottom panels. Then, attach the drawer front. Install the corresponding drawer slides and push-to-open mechanisms onto each drawer.
- Insert Drawers: Carefully slide each assembled drawer into its designated slot in the chest frame. Test the push-to-open mechanism for smooth operation.
- Wall Anchoring: For safety, secure the chest of drawers to a wall using the provided anti-tip kit. This is a critical step to prevent accidental tipping.
Figure 4.1: Drawer mechanism and interior view.
Figure 4.2: Detail of the push-to-open drawer mechanism.
5. Operating (Usage)
The sweeek Liam chest of drawers is designed for easy and convenient storage.
- Opening Drawers: To open a drawer, gently push on the center of the drawer front. The push-to-open mechanism will release the latch, allowing the drawer to slide out smoothly.
- Closing Drawers: To close a drawer, push it firmly until you hear a click, indicating that the push-to-open mechanism has engaged and secured the drawer.
- Loading Drawers: Distribute weight evenly within each drawer. Do not overload drawers beyond the 10 kg (22 lbs) capacity. Avoid placing heavy items on the very front edge of the drawer when open, as this can cause instability.
- Top Surface: The top surface can be used for decorative items or light storage. Ensure any items placed on top do not exceed the overall weight capacity of the unit and are stable to prevent falling.
Figure 5.1: Chest of drawers in a typical room setting.
6. Maintenance
Proper care will extend the life and appearance of your chest of drawers.
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or polishes that may damage the finish. Dry immediately with a clean cloth.
- Spills: Clean up spills immediately to prevent staining or water damage.
- Hardware Check: Periodically check all screws, bolts, and fittings to ensure they are tight. Retighten as needed to maintain stability and structural integrity.
- Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading or discoloration of the wood effect finish.
- Humidity Control: Maintain a stable room temperature and humidity level to prevent warping or cracking of the wood-based panels.
7. Troubleshooting
If you encounter any issues with your sweeek Liam chest of drawers, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawers do not open/close smoothly. | Misaligned drawer slides, debris in slides, overloaded drawer. | Check alignment of drawer slides and ensure they are securely fastened. Clean any dust or debris from the slides. Reduce drawer load. |
| Push-to-open mechanism not working. | Mechanism misaligned or damaged, drawer not fully closed. | Ensure the drawer is pushed in completely until it clicks. Check if the mechanism is properly installed and aligned with the drawer front. If damaged, contact support for replacement parts. |
| Chest of drawers feels wobbly. | Loose assembly hardware, uneven floor, not wall-anchored. | Retighten all assembly screws and fittings. Ensure the chest is on a level surface; use shims if necessary. Securely anchor the unit to the wall using the anti-tip kit. |
| Visible gaps between panels. | Improper assembly, loose cam locks/screws. | Review assembly instructions and ensure all cam locks and screws are fully tightened. Disassemble and reassemble affected sections if necessary. |
If the problem persists after attempting these solutions, please contact sweeek customer support for further assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | ILIACHEST4D |
| Brand | sweeek |
| Color | White and Natural Wood Effect |
| Overall Dimensions (W x D x H) | 80 x 40 x 99 cm (31.5 x 15.7 x 39 inches) |
| Panel Thickness | 1.5 cm (0.6 inches) |
| Drawer Exterior Dimensions (W x H) | 77 x 22.5 cm (30.3 x 8.9 inches) (x4) |
| Drawer Interior Dimensions (W x D x H) | 72 x 33.5 x 12.3 cm (28.3 x 13.2 x 4.8 inches) (x4) |
| Base Dimensions (W x D x H) | 75 x 32 x 6 cm (29.5 x 12.6 x 2.4 inches) |
| Net Weight | 39 kg (86 lbs) |
| Max. Weight Supported per Drawer | 10 kg (22 lbs) |
| Assembly Required | Yes |
Figure 8.1: Product Dimensions Diagram.
9. Warranty and Support
sweeek products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official sweeek website.
If you require assistance with assembly, have questions about product use, or need to report missing/damaged parts, please contact sweeek customer support:
- Website: www.sweeek.com (Please check for your regional website)
- Email: Refer to your purchase documentation for specific contact email.
- Phone: Refer to your purchase documentation for specific contact number.
Please have your model number (ILIACHEST4D) and proof of purchase ready when contacting support.
