DROK DC-DC Buck Converter 8-32V to 3.3V 3A Instruction Manual

1. Introduction and Overview

The DROK DC-DC Buck Converter is designed to efficiently step down a higher DC input voltage to a stable 3.3V DC output. This compact voltage regulator is suitable for various applications, including automotive systems, RVs, and solar panel setups, where a consistent 3.3V power source is required from a fluctuating 8V to 32V input.

Key features include high conversion efficiency, robust protection mechanisms, and a durable, ultra-thin protective case for enhanced heat dissipation and ease of installation.

2. Safety Information

Please read and understand all safety instructions before installing or operating this device. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Ensure the input voltage does not exceed the specified maximum of 32V DC.
• Verify correct polarity before connecting the device. Incorrect wiring can damage the converter and connected equipment.
• Do not operate the converter in wet or damp conditions.
• Avoid short-circuiting the output terminals.
• Keep the device away from flammable materials.
• Installation should be performed by individuals familiar with electrical systems.

3. Product Features

• Wide Input Voltage Range: Accepts DC 8V-32V (compatible with 12V and 24V systems).
• Stable Output: Provides a fixed DC 3.3V output.
• High Output Current: Delivers up to 3A of continuous current.
• Efficient Conversion: Achieves a conversion efficiency of up to 95%.
• Integrated Protection: Features over-current, over-heating, input reverse connection, and short-circuit protection.
• Durable Design: Encased in an ultra-thin protective shell for enhanced heat dissipation and environmental resistance (waterproof, dust-proof, moisture-proof, shock-proof).
• Compact Size: Small dimensions for easy integration into various setups.

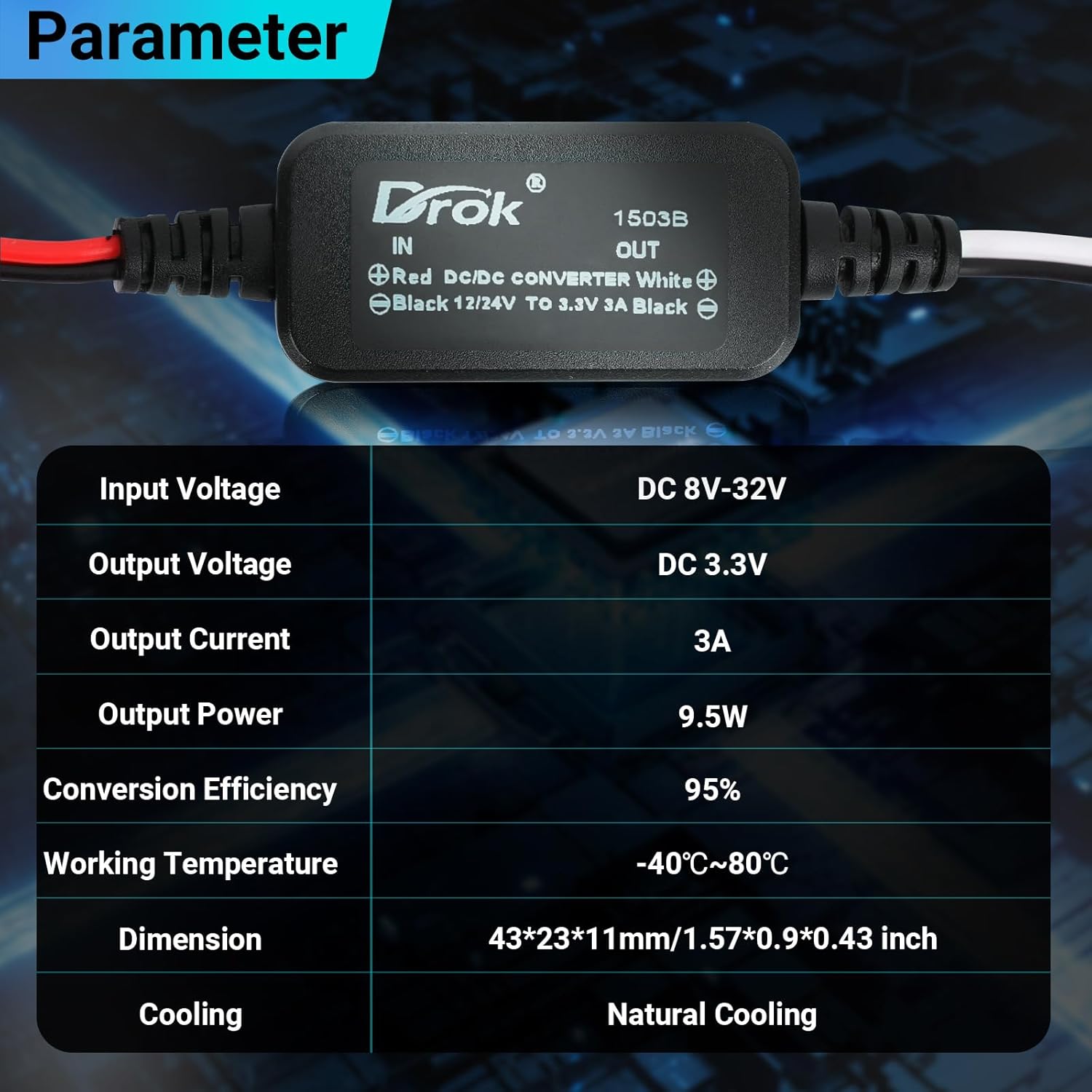

4. Specifications

The following table details the technical specifications of the DROK DC-DC Buck Converter:

5. Dimensions

The compact design of the converter allows for flexible installation in various spaces.

6. Setup and Wiring Instructions

Proper wiring is essential for the safe and correct operation of the DC-DC buck converter. Follow the steps below carefully:

1. Identify Terminals: The converter has clearly marked input and output wires.
• Input: Red wire for positive input (IN+), Black wire for negative input (IN-).
• Output: White wire for positive output (OUT+), Black wire for negative output (OUT-).
2. Connect Input: Connect the Red input wire (IN+) to the positive terminal of your DC power source (e.g., battery, solar panel). Connect the Black input wire (IN-) to the negative terminal of your DC power source.
3. Connect Output: Connect the White output wire (OUT+) to the positive input of your electronic device requiring 3.3V. Connect the Black output wire (OUT-) to the negative input of your electronic device.
4. Secure Connections: Ensure all connections are secure and insulated to prevent short circuits.

7. Operation

Once properly wired, the DROK DC-DC Buck Converter operates automatically. When power is supplied to the input terminals, the converter will regulate the voltage to a stable 3.3V at the output terminals. No user adjustments are required for voltage regulation.

8. Applications

This DC step-down converter is versatile and can be used for various DC devices that require a 3.3V power supply from a 12V or 24V source. Common applications include:

• GPS navigators for cars and RVs
• Audio equipment
• LED displays
• Small motors
• Speakers and acoustics
• Electric fans
• Toy cars
• Air conditioning systems
• Solar panel systems

9. Protection Features

The DROK DC-DC Buck Converter incorporates multiple protection circuits to ensure safe and reliable operation:

• Over-current Protection: Prevents damage from excessive current draw.
• Over-heating Protection: Shuts down the device if internal temperatures become too high.
• Input Reverse Connection Protection: Protects against damage from incorrect input polarity.
• Short-circuit Protection: Safeguards the converter and connected devices from short-circuit conditions.

10. Heat Dissipation and Casing

The converter features an ultra-thin protective case that is compact, lightweight, and designed for great heat dissipation through natural cooling. This casing also provides protection against water, dust, moisture, and shock, enhancing the device's durability in various environments.

11. Maintenance

The DROK DC-DC Buck Converter is designed for minimal maintenance. To ensure optimal performance and longevity:

• Keep the device clean and free from dust and debris.
• Ensure adequate ventilation around the converter for natural cooling.
• Regularly inspect wiring for any signs of wear or damage.
• Avoid exposing the device to extreme temperatures or harsh chemicals.

12. Troubleshooting

If the converter is not functioning as expected, perform the following basic checks:

• No Output Voltage:
  • Check if the input voltage is within the 8V-32V range.
  • Verify all wiring connections for correct polarity and secure contact.
  • Ensure there is no short circuit at the output.
• Intermittent Operation:
  • Check for loose connections.
  • Ensure the ambient temperature is within the specified operating range (-40℃ to 80℃).
  • Confirm the load current does not exceed 3A, which could trigger over-current protection.
• Device Overheating:
  • Ensure the converter is not enclosed in a space with insufficient airflow.
  • Reduce the load if it is consistently near the maximum 3A.

If issues persist after performing these checks, please contact customer support.

13. Warranty and Support

DROK provides a one-year service period for products purchased. In the event of any quality issues with your item, a brand new replacement can be obtained. For technical assistance or warranty claims, please contact DROK customer support through the official channels.
