1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Migali C-RO8-LP 48-inch Liquid Propane 8 Burner Range with 2 Standard Ovens. This commercial-grade appliance is designed for high-volume kitchen environments, offering robust performance with a total output of 211,000 BTU. Please read this manual thoroughly before installation or operation.

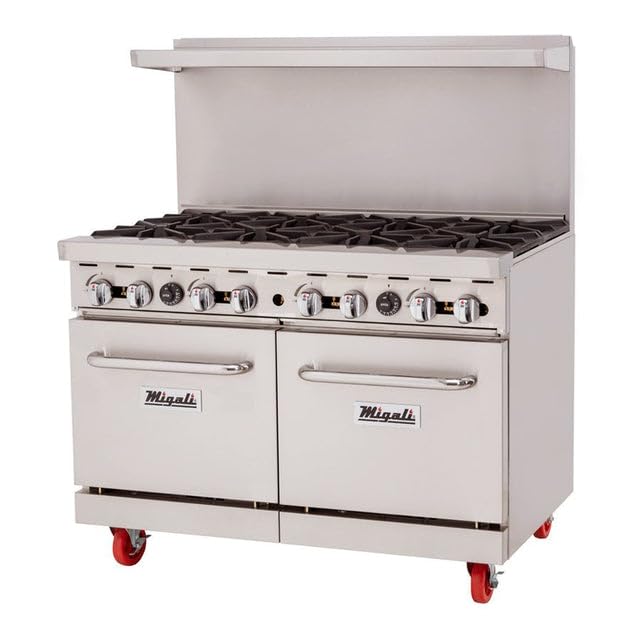

Image 1.1: Front view of the Migali C-RO8-LP 48-inch 8 Burner Liquid Propane Range. This commercial range features a stainless steel exterior, eight top burners, and two standard ovens below.
2. Safety Information
WARNING: For Commercial Use Only. This appliance is not intended for residential use. Use in residential settings will void the warranty.
Always adhere to local codes and regulations for gas appliance installation and operation. Failure to do so may result in property damage, personal injury, or death.
- Ensure proper ventilation in the kitchen area where the range is installed.
- This appliance uses Liquid Propane (LP) gas. Do not attempt to connect to Natural Gas without proper conversion by a qualified technician.
- Keep flammable materials away from the appliance.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- In case of a gas leak, immediately shut off the gas supply, evacuate the area, and contact a qualified service technician.
- The appliance is ETL Listed and ETL Sanitation certified, ensuring compliance with safety and sanitation standards.
3. Unpacking and Installation
3.1 Unpacking
Carefully remove the range from its packaging. Inspect the appliance for any shipping damage. Report any damage immediately to the carrier and your dealer. Retain all packaging materials for inspection.
3.2 Location
Place the range on a level, non-combustible surface. Ensure adequate clearance from combustible walls and materials as per local fire codes. The unit dimensions are approximately 31 x 48 x 56.4 inches (Depth x Width x Height).
3.3 Mobility
The range is equipped with six-inch casters for enhanced mobility. Ensure the casters are locked once the unit is in its final position to prevent accidental movement during operation.
3.4 Gas Connection
This unit is configured for Liquid Propane (LP) gas. A qualified and licensed gas technician must perform all gas connections. Ensure the gas supply pressure matches the appliance requirements. A conversion kit is included if conversion to natural gas is required, but this must be performed by a certified professional.
3.5 Leveling
Use a spirit level to ensure the range is perfectly level. Adjust the casters or legs as necessary to achieve a stable and level cooking surface.
4. Operation
4.1 Burner Operation
- Ensure the main gas supply valve to the range is open.
- Each of the eight cast iron burners is controlled manually by a dedicated chrome temperature knob on the front panel.
- To ignite a burner, push in and turn the corresponding knob to the "PILOT" position. The pilot light for each burner is continuously on.
- Once the pilot is lit, turn the knob further to the desired flame setting (LOW to HIGH). Each burner delivers up to 25,000 BTU/Hr.
- To turn off a burner, turn the knob back to the "OFF" position.
4.2 Oven Operation
The range features two standard ovens, each with a 27,000 BTU output and two racks.
- Ensure the main gas supply valve to the range is open.
- Open the oven door. Locate the oven pilot light.
- To ignite the oven, push in and turn the adjustable temperature oven knob to the "PILOT" position. Use a long lighter to ignite the pilot light. Hold the knob in for a few seconds after ignition to allow the thermocouple to heat up.
- Once the pilot is established, turn the knob to the desired temperature setting. The oven will begin to heat.
- The oven features a safety pilot shut-off high limit switch for safety.
- To turn off the oven, turn the knob back to the "OFF" position.
5. Cleaning and Maintenance
5.1 Daily Cleaning
- Exterior: The high-polished stainless steel exterior should be wiped down daily with a damp cloth and mild detergent. Avoid abrasive cleaners or scouring pads that can scratch the surface.
- Burner Grates (Trivets): The heavy-duty cast iron removable trivets can be lifted off for cleaning. Wash with warm, soapy water and dry thoroughly to prevent rust.
- Spill Trays: Remove and clean spill trays beneath the burners regularly to prevent grease buildup.
5.2 Oven Interior
The porcelain enamel over steel oven interior should be cleaned regularly. Allow the oven to cool completely before cleaning. Use a non-abrasive oven cleaner or warm soapy water. Rinse thoroughly and dry.
5.3 Regular Inspections
- Periodically check gas connections for leaks using a soapy water solution (never an open flame).
- Ensure burner ports are clear of food debris. Use a wire brush if necessary.
- Inspect oven door gaskets for wear and tear to ensure proper sealing.
WARNING: Always disconnect the appliance from the gas supply before performing any maintenance or cleaning that requires access to internal components.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner will not light. | Gas supply off; pilot light out; clogged burner port. | Check main gas valve; re-ignite pilot; clean burner ports. |
| Oven not heating. | Gas supply off; oven pilot light out; thermostat issue. | Check main gas valve; re-ignite oven pilot; contact service if thermostat is suspected. |
| Uneven burner flame. | Clogged burner ports; improper air shutter adjustment. | Clean burner ports; contact service for air shutter adjustment. |
| Gas odor detected. | Gas leak. | Immediately shut off gas supply, ventilate area, and call a qualified technician. Do not operate the appliance. |
For issues not listed or if solutions do not resolve the problem, contact a qualified service technician.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | C-RO8-LP |
| Dimensions (D x W x H) | 31 x 48 x 56.4 inches |
| Item Weight | 628 pounds |
| Shipping Weight | 772 pounds |
| Fuel Type | Liquid Propane (LP) |
| Total BTU Output | 211,000 BTU |
| Number of Burners | 8 |
| Burner BTU Rating (each) | 25,000 BTU/Hr |
| Burner Type | Cast Iron |
| Number of Ovens | 2 Standard Ovens |
| Oven BTU Rating (each) | 27,000 BTU |
| Oven Racks | 2 per oven |
| Exterior Material | High polished Stainless Steel |
| Oven Interior | Porcelain enamel over steel |
| Controls Type | Manual |
| Installation Type | Freestanding |
| Special Features | Certified Safety, Convertible Design, Durable, Efficient, Mobility (with casters) |
| Certifications | ETL Listed, ETL Sanitation, Energy Star |
| Included Components | Conversion Kit |
8. Warranty and Support
8.1 Warranty Information
The Migali C-RO8-LP range comes with a 2 Year Parts & Labor Warranty. This warranty covers defects in materials and workmanship under normal commercial use.
IMPORTANT: The warranty will not be honored for residential or non-commercial use of this commercial equipment. This appliance is designed and certified exclusively for commercial applications.
8.2 Customer Support
For technical assistance, warranty claims, or to locate authorized service providers, please contact Migali customer support. Refer to your purchase documentation for specific contact details or visit the official Migali website.
When contacting support, please have your model number (C-RO8-LP) and serial number readily available.
