Pharata 1000ML Humidifier Model 10008B User Manual

1. Introduction

Thank you for choosing the Pharata 1000ML Humidifier Model 10008B. This device is designed to improve air quality by adding moisture to your environment, helping to alleviate dry skin, irritated sinuses, and other discomforts caused by dry air. It also functions as an essential oil diffuser, allowing you to enjoy aromatherapy benefits. This manual provides essential information for the safe and efficient use of your humidifier.

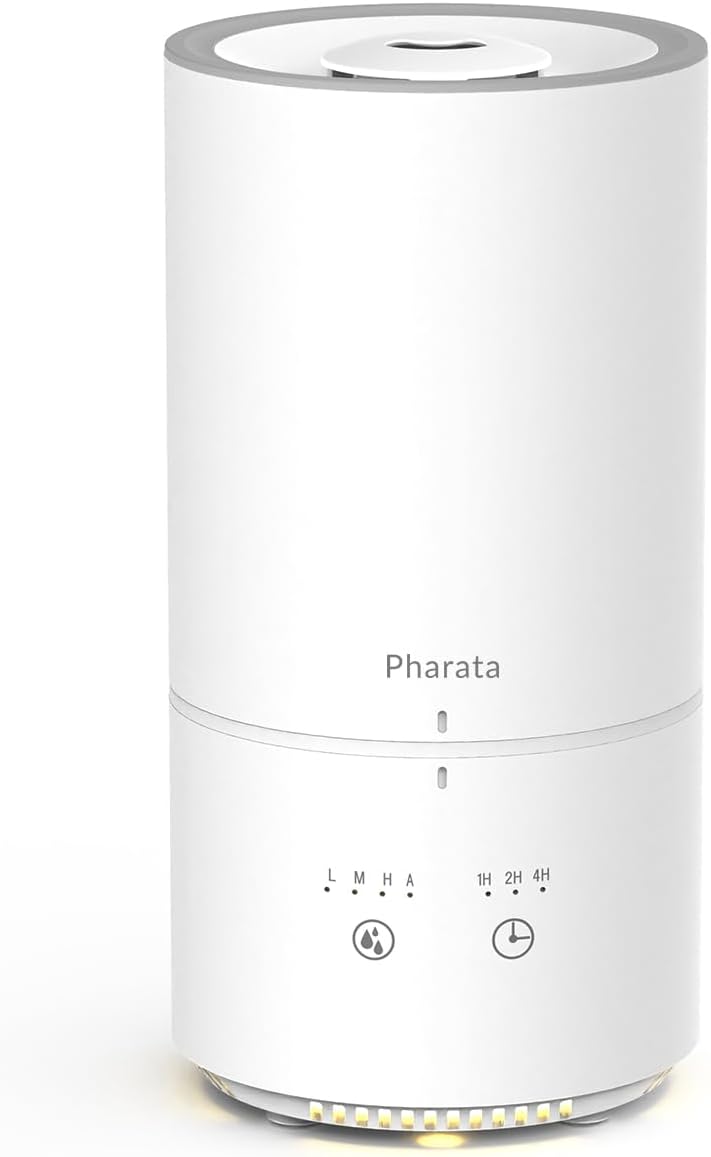

This image displays the Pharata 1000ML Humidifier. It is a white, cylindrical device with a grey top rim. The brand name 'Pharata' is visible on the upper body. Below it, a control panel features touch-sensitive indicators for mist levels (L, M, H, A for sleep mode) and timer settings (1H, 2H, 4H), along with corresponding icons for mist and timer functions. The base of the unit shows a subtle light.

2. Important Safety Instructions

• Read all instructions before using the appliance.
• Always place the humidifier on a firm, flat, waterproof surface at least 12 inches (30 cm) away from walls and appliances.
• Do not immerse the unit in water or other liquids.
• Unplug the humidifier before filling, cleaning, or moving it.
• Do not operate the humidifier with a damaged cord or plug.
• Keep out of reach of children and pets.
• Use only clean, cool tap water. Distilled water is recommended to prevent mineral buildup.
• Do not add essential oils directly into the water tank if not explicitly designed for it; use the designated essential oil tray if available, or add to the water tank as per instructions for this specific model. This model supports adding essential oils directly to the water tank.
• Do not block the mist outlet.

3. Product Components

The Pharata 1000ML Humidifier consists of the following main parts:

• Main Unit: Houses the internal components and water tank.
• Water Tank: 1-liter capacity for water.
• Mist Nozzle: Located at the top, where mist is dispersed.
• Control Panel: Touch-sensitive area for operating functions (mist level, timer).
• Power Cord: For connecting to an electrical outlet.

4. Setup

1. Unpack: Carefully remove the humidifier from its packaging and place it on a stable, flat surface.
2. Fill Water Tank: The humidifier features a top-fill design. Remove the top cover and pour clean, cool tap water directly into the water tank. The water filler spout is 4.7 inches in diameter for easy access. Do not exceed the maximum fill line. For best performance and to prevent mineral buildup, distilled water is recommended.
3. Add Essential Oils (Optional): If using as a diffuser, add a few drops of your preferred essential oil directly into the water tank.
4. Replace Cover: Securely place the top cover back onto the unit.
5. Connect Power: Plug the power cord into a suitable electrical outlet.

5. Operating Instructions

The humidifier is operated via its touch-sensitive control panel.

Power On/Off

• Touch the power icon (often represented by a droplet or power symbol) on the control panel to turn the unit on or off.

Mist Modes

The humidifier offers four different mist modes:

• Low (L): Provides a gentle mist output.
• Medium (M): A moderate mist output.
• High (H): Maximum mist output for faster humidification.
• Sleep Mode (A): In this mode, the mist will cycle, outputting for 30 seconds and then pausing for 30 seconds, repeating the cycle. This mode is designed for quiet operation during rest periods.

To cycle through the mist modes, repeatedly touch the mist control icon (often represented by a droplet symbol) until the desired mode indicator (L, M, H, or A) illuminates.

Timer Settings

You can set the humidifier to automatically shut off after a specified duration:

• 1 Hour (1H)
• 2 Hours (2H)
• 4 Hours (4H)

To set the timer, repeatedly touch the timer control icon (often represented by a clock symbol) until the indicator for your desired duration (1H, 2H, or 4H) illuminates. The unit will automatically power off once the set time has elapsed.

Auto Shut-off

The humidifier is equipped with an auto shut-off feature that activates when the water level is too low, ensuring safety and preventing damage to the unit.

6. Maintenance

Regular cleaning is crucial for optimal performance and hygiene. The top-fill design and wide opening (4.7 inches) facilitate easy cleaning.

Daily Maintenance

• Empty any remaining water from the tank.
• Rinse the water tank and base thoroughly with clean water.
• Wipe dry with a clean cloth.

Weekly Maintenance (or more frequently with hard water)

• Descaling: Unplug the unit. Pour 1 cup (240ml) of undiluted white vinegar into the water tank and base. Let it soak for 20-30 minutes.
• Cleaning: Use a soft brush or cloth to gently clean mineral deposits from the inside of the tank and the ultrasonic nebulizer (the small disc in the base).
• Rinse: Thoroughly rinse the tank and base with clean water until the smell of vinegar is gone.
• Drying: Allow all parts to air dry completely before reassembling or storing.

Caution: Do not use harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the humidifier's surfaces.

7. Troubleshooting

If you encounter issues with your humidifier, please refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

The Pharata 1000ML Humidifier Model 10008B comes with a 24-month warranty. This warranty covers defects in materials and workmanship under normal use.

If you have any questions, concerns, or require assistance with your humidifier, please do not hesitate to contact Pharata customer support. Refer to your purchase documentation or the seller's contact information for details on how to reach support.
