Introduction
The Uwell Crown S Pod System Kit is designed to deliver a superior vaping experience with its advanced features and user-friendly design. This manual provides comprehensive instructions for the safe and effective operation, maintenance, and troubleshooting of your Crown S device.

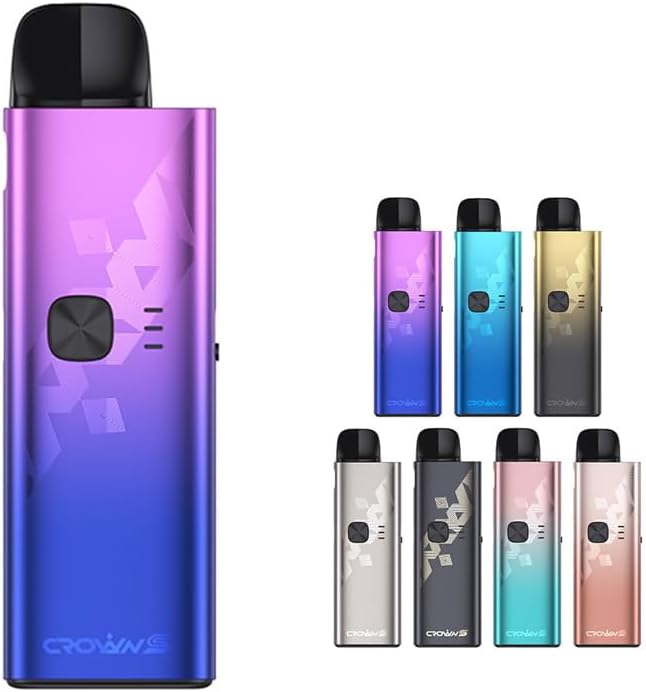

Image: The Uwell Crown S Pod System Kit in Purple Galaxy, alongside other available color options, showcasing its sleek design.
Product Features
- Tank-style performance in a compact pod system.
- Offers smooth MTL (Mouth-to-Lung) to rich DTL (Direct-to-Lung) vaping.
- Three levels of output power adjustment for customized vaping.
- Integrated 1500mAh battery capacity for extended use.
- Fine-tunable airflow control for precise draw adjustment.
- Large 5ml pod capacity reduces frequent refilling.
- Features PRO-FOCS technology for optimized flavor.
- Three ignition modes: Air-activated, Button-activated, and Air/Button combined.

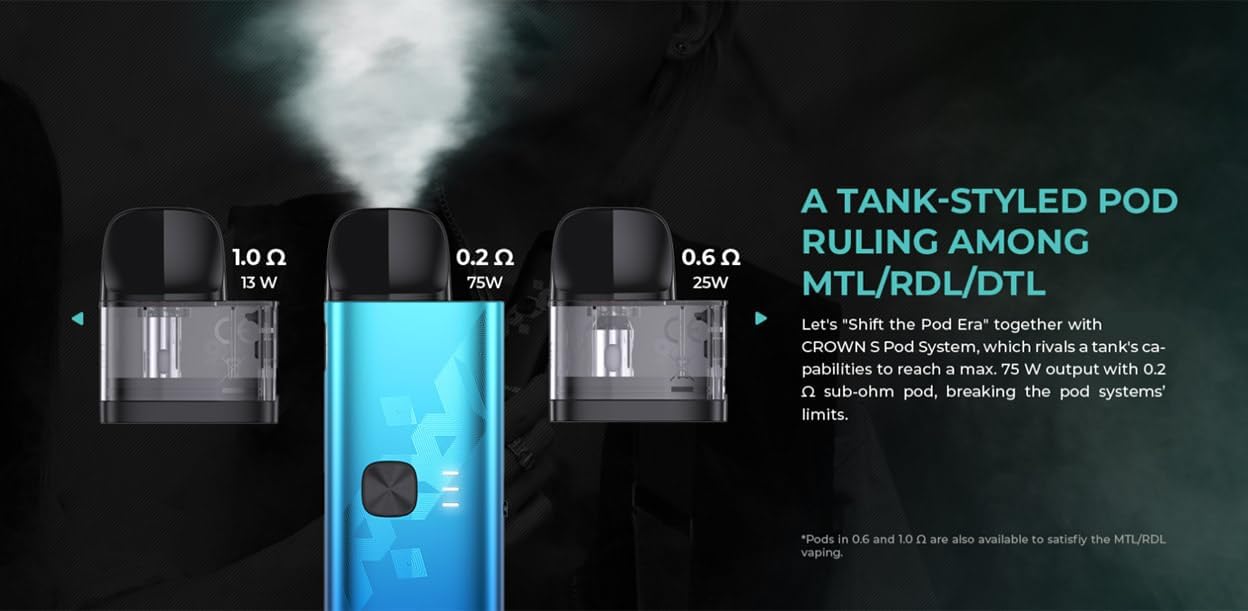

Image: Illustration of the different pod options for the Crown S, showing 1.0Ω, 0.2Ω, and 0.6Ω coil resistances with their respective recommended wattages, highlighting the versatility for various vaping styles.
Package Contents
- 1pc Crown S Device
- 1pc 0.2ohm Crown S Integrated Coil Cartridge
- 1pc 0.6ohm Crown S Integrated Coil Cartridge
- 1pc Type-C Charging Cable
- 1pc User Manual
Note: E-liquid and nicotine are not included.

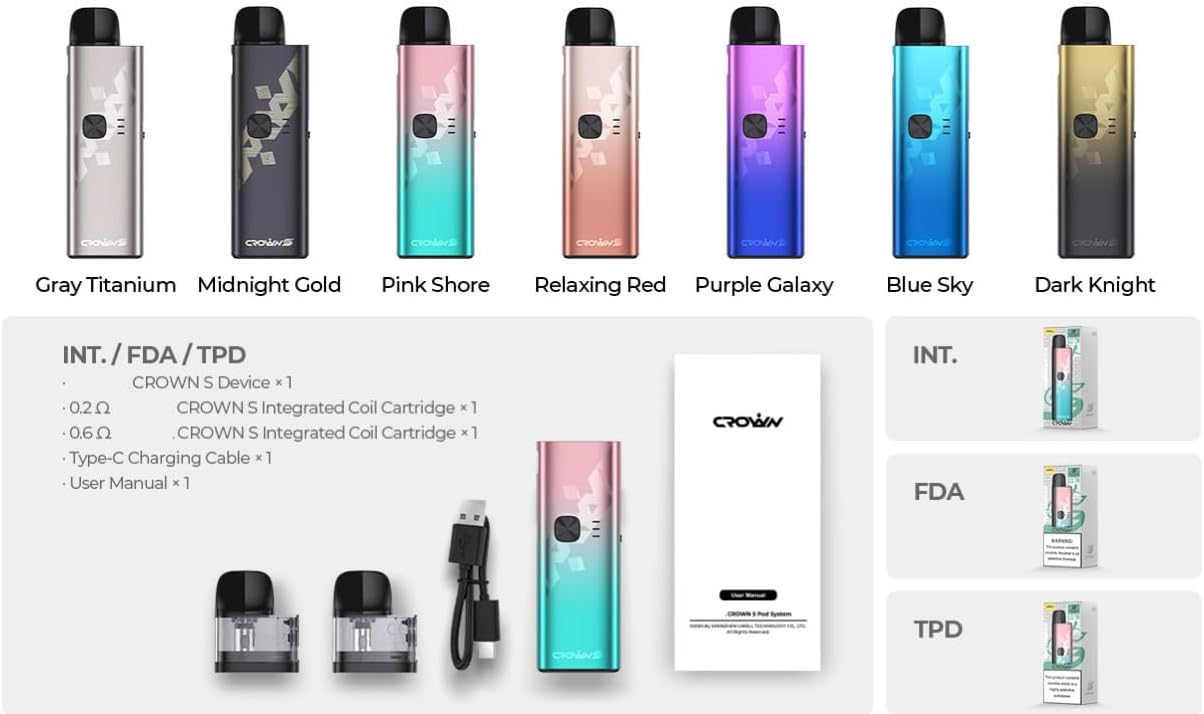

Image: A visual representation of the Uwell Crown S Pod System Kit's standard package contents, including the device, two integrated coil cartridges, a Type-C charging cable, and the user manual. Also shown are various color options for the device.
Specifications
| Parameter | Value |
|---|---|
| Materials | PCTG, PC + PBT, POM |
| Dimensions | 35.5 x 17.5 x 112.8 mm |
| Pod Capacity | 5ml |
| Max Output Power | 75W |
| Battery Capacity | 1500mAh |
| Charging Type | Side Filling, Type-C Fast Charging |
| Coil Specifications | 0.2ohm / 0.6ohm / 1.0ohm Crown S Integrated Coil Cartridge (1.0ohm sold separately) |
| Net Weight | Approx. 77g (INT./FDA), Approx. 80g (TPD) |

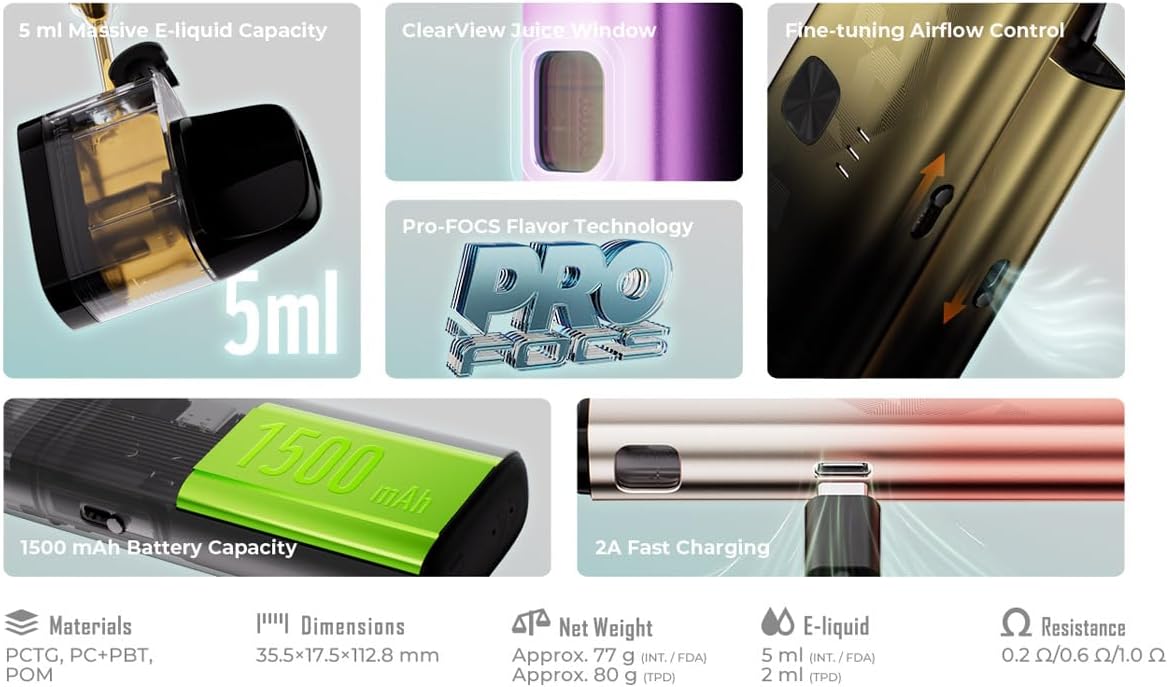

Image: A comprehensive visual breakdown of the Uwell Crown S Pod System Kit's specifications, including its construction materials, precise dimensions, 1500mAh battery capacity, 2A fast charging capability, 5ml e-liquid capacity, and available coil resistances.
Setup
1. Charging the Device
Before first use, fully charge the device. Connect the included Type-C charging cable to the charging port located at the bottom of the device and plug the other end into a suitable USB power source. The LED indicator will show charging status and turn off when fully charged.
2. Filling the Pod
- Remove the pod from the device.
- Locate the silicone stopper on the side of the pod.
- Carefully open the stopper and fill the pod with your preferred e-liquid through the filling port.
- Securely close the silicone stopper to prevent leaks.
3. Installing the Pod
Align the filled pod with the pod slot on the device and push it firmly until it clicks into place. Ensure a secure connection.

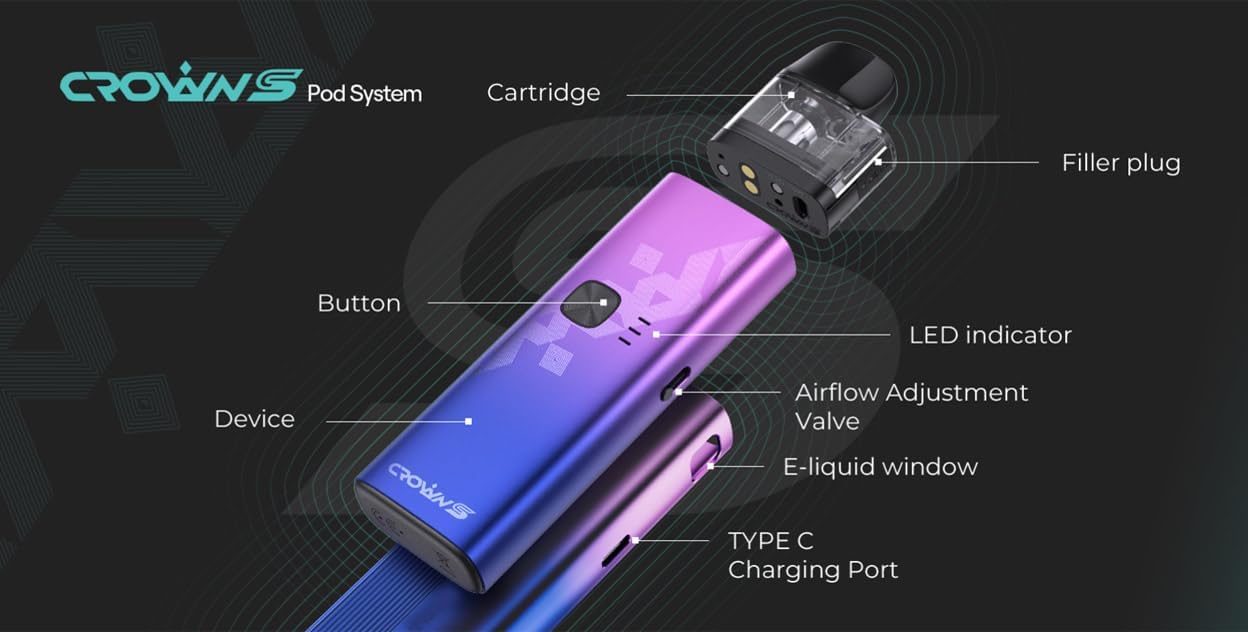

Image: An exploded view diagram of the Uwell Crown S Pod System, labeling key components such as the cartridge, filler plug, button, LED indicator, airflow adjustment valve, e-liquid window, and Type-C charging port, providing a clear guide for setup and understanding the device's parts.
Operating Instructions
1. Power On/Off
Press the fire button 5 times rapidly to turn the device on or off. The LED indicator will flash to confirm the action.
2. Adjusting Output Power
The Crown S offers 3 levels of output power. Press the fire button 3 times rapidly to cycle through the output levels (High-Range, Mid-Range, Low-Range). Select the desired output based on your preference for vapor production and flavor intensity.
Image: A visual guide demonstrating how to adjust the output power of the Uwell Crown S Pod System, showing the options for High-Range, Mid-Range, and Low-Range output, allowing users to customize their vaping experience from strong to mild.
3. Vaping Modes (Ignition Modes)
The Crown S supports three ignition modes:
- Air-Activated: Simply inhale from the mouthpiece to activate the device.
- Button-Activated: Press and hold the fire button while inhaling.
- Air/Button Combined: The device can be activated by either inhaling or pressing the button.
To switch between ignition modes, press the fire button twice rapidly. The device will indicate the current mode via the LED.
Image: An illustration detailing the ignition modes available on the Uwell Crown S Pod System, including Auto Draw (air-activated), Button (button-activated), and Auto Draw + Button (both), allowing users to tailor activation to their preference.
4. Airflow Adjustment
The device features a fine-tunable airflow control. Adjust the airflow slider on the side of the device to achieve your desired draw resistance, from tight MTL to open DTL.
Maintenance
1. Cleaning the Device
- Regularly clean the device, especially the pod connection area, with a dry cloth or cotton swab to remove any e-liquid condensation or debris.
- Ensure the charging port is free from dust and lint.
2. Replacing the Pod/Coil
The Crown S uses integrated coil cartridges. When the flavor diminishes or a burnt taste occurs, it's time to replace the entire pod. Simply pull out the old pod and insert a new one.
3. Battery Care
- Avoid overcharging or completely draining the battery.
- Charge the device using the provided Type-C cable and a compatible power adapter.
- Store the device in a cool, dry place away from direct sunlight and extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No vapor production | Low battery; Pod not installed correctly; No e-liquid; Faulty coil/pod; Device off | Charge device; Reinstall pod; Refill pod; Replace pod; Turn device on |
| Burnt taste | Low e-liquid level; Coil needs priming; Coil is worn out | Refill pod; Wait 5-10 minutes after filling new pod before vaping; Replace pod |
| Leaking pod | Overfilled pod; Damaged silicone stopper; Condensation; Worn out pod | Do not overfill; Ensure stopper is sealed; Clean condensation; Replace pod |
| Device not charging | Faulty cable/adapter; Dirty charging port; Device malfunction | Try different cable/adapter; Clean charging port; Contact support |
Safety Information
- Keep the device out of reach of children and pets.
- Do not expose the device to water or other liquids.
- Avoid direct sunlight, high temperatures, and extreme cold.
- Do not use damaged batteries or non-original accessories.
- Dispose of the device and battery responsibly according to local regulations.
- This product is intended for adult smokers and vapers only.
Warranty and Support
Uwell products come with a limited warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support or warranty claims, please contact your original retailer or visit the official Uwell website for customer service information.
For more information, visit: www.myuwell.com
