GOOLOO A3 3000A Portable Jump Starter and 150 PSI Air Compressor User Manual

Model: JS-506

1. Introduction

Thank you for choosing the GOOLOO A3 Portable Jump Starter and Air Compressor. This device is designed to provide reliable emergency jump-starting for your vehicle, inflate tires, and serve as a portable power bank and LED light source. Please read this manual thoroughly before use to ensure safe and optimal operation. Keep this manual for future reference.

2. Safety Information

Always observe the following safety precautions when using the GOOLOO A3:

  • Do not operate the device if it is damaged.
  • Ensure proper polarity when connecting the jumper cables to the vehicle battery. Incorrect connection can cause damage or injury.
  • Do not jump-start a frozen battery.
  • Keep the device away from children.
  • Use the device in a well-ventilated area.
  • Avoid exposing the device to extreme temperatures or moisture.
  • Remove the jumper clamps from the vehicle battery within 30 seconds after a successful jump start.
  • Do not use the device to charge the vehicle battery directly.

3. Package Contents

Verify that all items are present in your package:

  • 1 x GOOLOO A3 Jump Starter with Air Compressor
  • 1 x Smart Jumper Cable
  • 1 x USB-A to USB-C Cable
  • 1 x Carrying Case
  • 1 x Pump Hose
  • 1 x User Manual
  • 5 x Air Nozzles
Contents of the GOOLOO A3 package including the jump starter, smart jumper cables, USB-C cable, carrying case, pump hose, user manual, and various air nozzles.
Figure 3.1: All items included in the GOOLOO A3 package.

4. Product Overview and Features

The GOOLOO A3 is a versatile 5-in-1 device designed for automotive emergencies and outdoor activities. It combines a powerful jump starter, a tire inflator, a portable power bank, an LED flashlight, and an SOS emergency light.

Front view of the GOOLOO A3 Portable Jump Starter and Air Compressor with its digital display and jumper cables attached.
Figure 4.1: The GOOLOO A3 device.

Key Features:

  • Powerful Jump Starter: Delivers 3000A peak current, capable of jump-starting 12V vehicles with up to 9.0L gasoline or 6.5L diesel engines. Features a 'BOOST' function for low-voltage batteries.
  • High-Performance Tire Inflator: Integrated 150 PSI air compressor with 5 inflation modes (SUV, car, bike, ball, custom) and 5 different nozzles. Inflates a standard tire (205/55/R14) in approximately 1 minute. Offers 45 minutes of continuous wireless inflation on a full charge.
  • Portable Power Bank: Equipped with USB-C input (5V-2A) and USB-A output (5V/2.4A) ports to charge various electronic devices like smartphones, tablets, and drones.
  • Multi-mode LED Flashlight: Features a 400-lumen LED light with Normal, SOS, and Strobe modes for illumination and emergency signaling.
  • Advanced Safety Protection: Built-in Battery Management System (BMS) provides 10 types of protection, including short-circuit, overcurrent, reverse polarity, overheat, and overcharge protection.
  • Smart LED Display: Ultra-bright LED screen displays battery level, preset and real-time tire pressure, inflation mode, and tire pressure units (BAR/PSI/KPA).
The GOOLOO A3 device showcasing its 5-in-1 versatile functions: jump starter, tire inflator, power bank, LED flashlight, and SOS emergency light.
Figure 4.2: The 5-in-1 versatile functions of the GOOLOO A3.
Diagram illustrating the 10 integrated safety protections of the GOOLOO A3, including over-charge, short-circuit, smart-AI, spark-proof, reverse-polarity, over-current, over-discharge, high-temperature, over-voltage, and reverse-charge protection.
Figure 4.3: Integrated safety protections.

5. Setup and Charging

Before first use, fully charge the GOOLOO A3. It is recommended to recharge the device every 3-6 months to maintain battery health, even if not in use.

Charging the Device:

  1. Connect the provided USB-A to USB-C cable to the USB-C input port on the GOOLOO A3.
  2. Connect the other end of the USB cable to a suitable USB wall adapter (not included) or a car charger.
  3. The LED display will show the charging status. The device is fully charged when the battery indicator shows 100%.

6. Operating Instructions

6.1. Jump Starting a Vehicle

Use this function to jump-start a dead 12V vehicle battery.

  1. Ensure the GOOLOO A3 is sufficiently charged.
  2. Insert the smart jumper cable plug completely into the jump start port on the GOOLOO A3. The red and green lights on the smart clamp will flash alternately.
  3. Connect the red (+) clamp to the positive terminal of the vehicle battery.
  4. Connect the black (-) clamp to the negative terminal of the vehicle battery.
  5. Once connected correctly, the green indicator light on the smart clamp will turn solid green, and a click sound may be heard. If the battery voltage is very low, press the 'BOOST' button on the smart clamp.
  6. Start your vehicle's engine within 30 seconds.
  7. Once the vehicle starts, immediately remove the jumper clamps from the vehicle battery and then from the GOOLOO A3.
Four-step visual guide on how to jump start a vehicle using the GOOLOO A3: 1. Insert the jump cable into the booster. 2. Connect the clamps to the car battery. 3. Wait for the correct LED indicator. 4. Start the engine.
Figure 6.1: Steps for jump starting your vehicle.
The GOOLOO A3 jump starter connected to a car battery, ready to jump start a dead vehicle. Icons for car, motorcycle, truck, and motorboat are shown, indicating compatibility.
Figure 6.2: The GOOLOO A3 can jump start various 12V vehicles.

6.2. Using the Tire Inflator

The integrated air compressor can inflate tires for cars, motorcycles, bicycles, and various sports balls.

  1. Connect the pump hose to the air outlet port on the GOOLOO A3.
  2. Attach the appropriate air nozzle to the pump hose and then to the item you wish to inflate (e.g., tire valve).
  3. Turn on the device. The LED screen will display the current pressure.
  4. Use the 'M' button to select the desired inflation mode (car, motorcycle, bicycle, ball, or custom). Adjust the target pressure using the '+' and '-' buttons.
  5. Press the power button to start inflation. The device will automatically stop once the preset pressure is reached.
  6. Disconnect the pump hose and store the device.
Four-step visual guide on how to use the tire inflator: 1. Connect the nozzle. 2. Press to choose the mode. 3. Press the power button to start inflation. 4. Automatic stop, then remove the hose.
Figure 6.3: Simple steps to use the tire inflator.

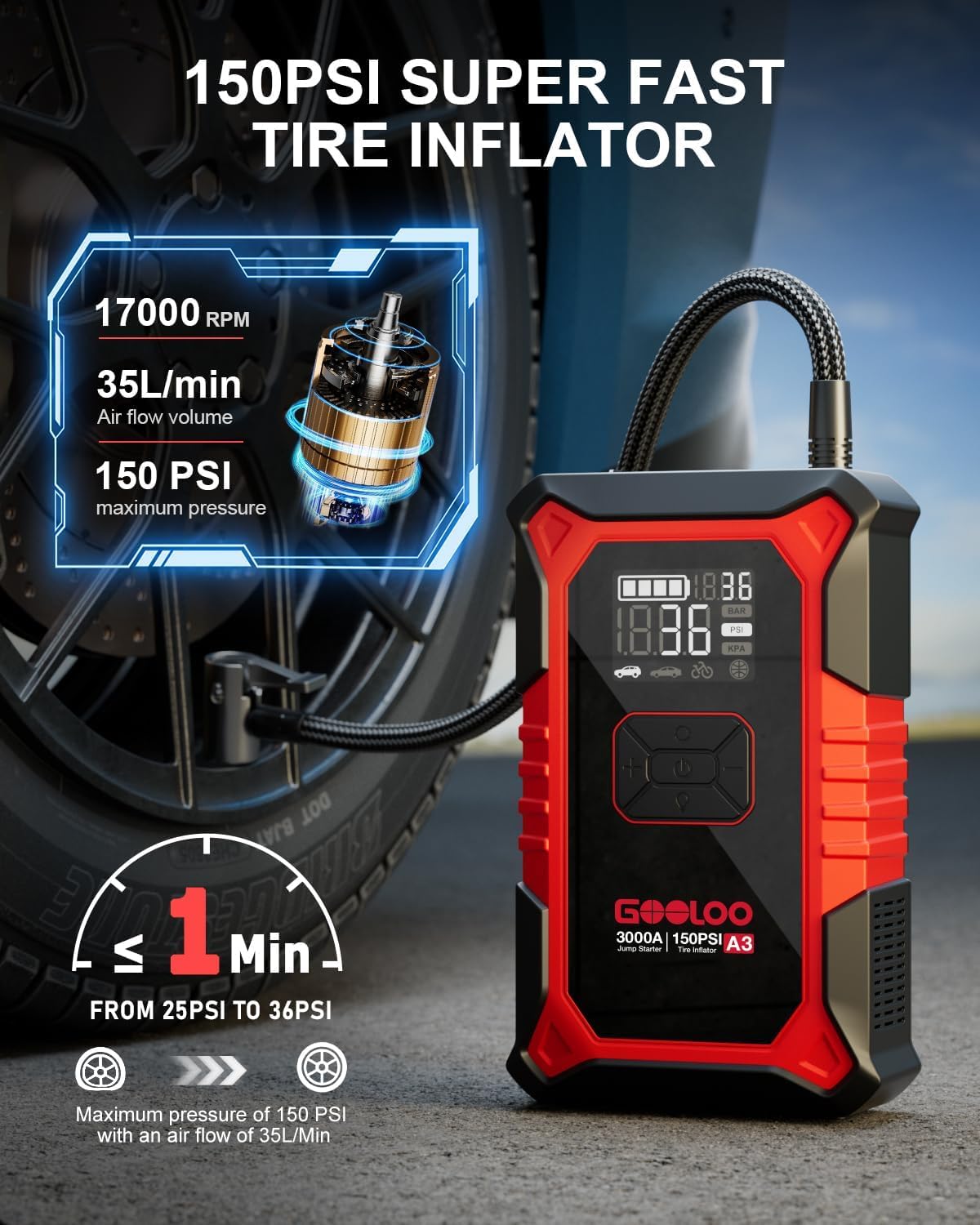

The GOOLOO A3 inflating a car tire, showing its 150 PSI capability and fast inflation time of less than 1 minute for a standard tire.
Figure 6.4: Fast and efficient tire inflation.
Diagram showing the GOOLOO A3's ability to inflate various items: car tires, motorcycle tires, bicycle tires, balls, and inflatable buoys, with adjustable pressure ranges.
Figure 6.5: Inflate a variety of items with the GOOLOO A3.

6.3. Using as a Portable Power Bank

The GOOLOO A3 can charge your electronic devices via its USB-A output port.

  1. Connect your device's USB charging cable to the USB-A output port (5V/2.4A) on the GOOLOO A3.
  2. The device will automatically begin charging your electronic device.
A smartphone being charged by the GOOLOO A3 via a USB-A port, demonstrating its function as a portable power bank for various electronic devices.
Figure 6.6: Charging a smartphone with the GOOLOO A3.

6.4. Using the LED Flashlight

The built-in LED flashlight offers multiple lighting modes for different situations.

  1. Press and hold the flashlight button to turn on the LED light in Normal mode.
  2. Press the flashlight button again to cycle through the modes: Normal > SOS > Strobe > Off.
The GOOLOO A3's 400-lumen LED flashlight illuminating a camping scene, showing its Normal, SOS, and Strobe light modes.
Figure 6.7: The 400-lumen LED flashlight in use.
Visual representation of the three LED light modes: Normal, Stroboscopic, and SOS, available on the GOOLOO A3 device.
Figure 6.8: Three modes of LED light.

7. Maintenance

Proper maintenance ensures the longevity and performance of your GOOLOO A3.

  • Cleaning: Wipe the device with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
  • Storage: Store the device in its carrying case in a cool, dry place away from direct sunlight.
  • Recharging: Recharge the device every 3-6 months to prevent deep discharge and prolong battery life. The device has a standby time of up to 24 months.
Comparison graphic showing the GOOLOO A3 with 90% battery after 24 months of standby, versus another device with 10% battery after 6 months, highlighting its long standby capability.
Figure 7.1: Long standby time of the GOOLOO A3.

8. Troubleshooting

If you encounter issues with your GOOLOO A3, refer to the following common problems and solutions:

ProblemPossible CauseSolution
Vehicle does not jump start.Incorrect clamp connection, low device battery, vehicle battery too deeply discharged.Check clamp polarity. Recharge the GOOLOO A3. Use the 'BOOST' function if the vehicle battery is very low.
Tire inflator not working.Hose not properly connected, incorrect pressure setting, device battery low.Ensure hose is securely connected. Verify pressure settings. Recharge the device.
Device not charging.Faulty USB cable or adapter, charging port obstruction.Try a different USB cable and adapter. Check the charging port for debris.

9. Specifications

FeatureDetail
BrandGOOLOO
Model NumberJS-506
Peak Current3000A
Engine CompatibilityUp to 9.0L Gas, 6.5L Diesel
Air Compressor PressureMax 150 PSI
Battery TypeLithium-polymer
Item Weight800 g
Product Dimensions (L x W x H)8 x 8 x 10 cm
Operating Temperature-20°C to 60°C

10. Warranty and Support

GOOLOO provides the following support for your product:

  • Warranty: 18-month warranty from the date of purchase.
  • Return Guarantee: 30-day unconditional return guarantee.
  • Customer Support: Lifetime customer and technical support.

For further assistance, please contact GOOLOO customer service.

A banner displaying GOOLOO's commitment to customer support, including 24-hour customer support, 30-day unconditional return guarantee, 18-month warranty, and lifetime customer & technical support.
Figure 10.1: GOOLOO customer support and warranty information.
