Jacuzzi Small Leaf Canister Pool Cleaner Attachment WP009 User Manual

1. Product Overview

The Jacuzzi Small Leaf Canister (Model WP009) is an essential accessory designed to enhance the efficiency of your in-ground suction pool cleaner. This canister effectively traps leaves and various debris before they reach your pool's primary filtration system, thereby protecting your pump and filter from unnecessary strain and potential damage. Its clear body allows for easy monitoring of collected debris, and the twist-lock lid simplifies debris removal.

Key Features:

• Compatible with Jacuzzi J-D300 Suction Side Pool Cleaners.
• Features an easy twist-lock lid for quick debris removal from the internal basket.
• Helps maintain optimal performance of your pool motor and filtration system.
• Clear plastic body for visual inspection of basket contents.
• Designed for direct attachment to your pool cleaner's hose.

2. Setup Instructions

Follow these steps to properly install your Jacuzzi Small Leaf Canister:

1. Turn off the Pool Pump: Before beginning any installation, ensure your pool's pump is completely turned off to prevent accidental operation and ensure safety.
2. Connect to Skimmer/Suction Fitting: Connect a female-to-female pool cleaner hose section to the bottom inlet of the leaf canister. Connect the other end of this hose section to your pool's skimmer or dedicated suction fitting.
3. Submerge the Canister: Carefully submerge the entire canister into the pool water. This action allows water to fill the canister and expels any trapped air, which is crucial for proper suction.
4. Connect to Automatic Pool Cleaner: Connect a male-to-female pool cleaner hose section to the canister's lid (outlet). Connect the other end of this hose section to your automatic pool cleaner.
5. Recommended Placement: For optimal performance, it is recommended to connect the leaf canister between the first and second hose sections from the pool wall.

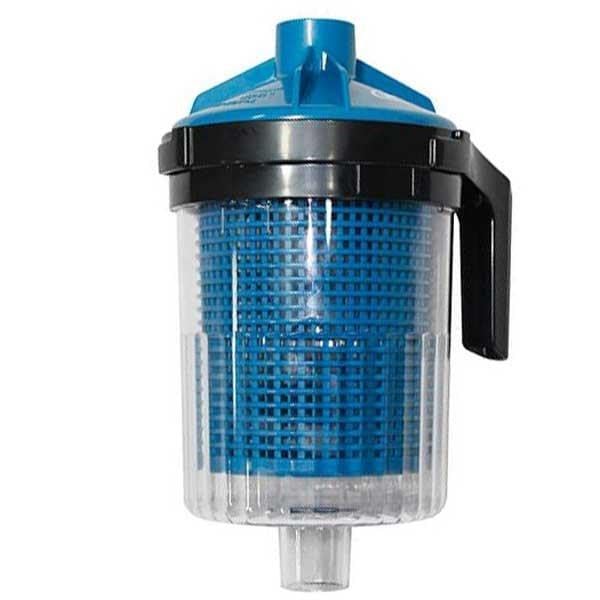

Image 1: The Jacuzzi Small Leaf Canister WP009, showing its clear body and connection points.

3. Operating Instructions

Once the Jacuzzi Small Leaf Canister is properly installed and connected:

1. Start the Pool Pump: Turn on your pool's pump. The suction cleaner will begin to operate, and water will flow through the leaf canister.
2. Monitor Debris Collection: Periodically check the clear body of the canister to observe the amount of debris collected.
3. Vacuum Pool: Allow your automatic pool cleaner to vacuum the pool as usual. The canister will intercept larger debris before it reaches your main filter.

4. Maintenance

Regular maintenance of your leaf canister ensures its continued effectiveness and prolongs the life of your pool equipment.

1. Emptying the Canister: When the canister appears full or suction performance decreases, turn off the pool pump. Disconnect the canister from the hose sections. Twist the lid to unlock and remove it. Empty the collected debris from the internal basket.
2. Cleaning the Basket: Rinse the basket thoroughly with a garden hose to remove any remaining small debris or sediment.
3. Inspect for Damage: Periodically inspect the canister body, lid, and O-rings for any cracks, wear, or damage. Replace components as necessary to maintain a proper seal and prevent leaks.
4. Reassembly: After cleaning, place the basket back into the canister, align the lid, and twist to securely lock it in place. Reconnect the canister to your pool cleaner hose system.

5. Troubleshooting

If you encounter issues with your Jacuzzi Small Leaf Canister, consider the following:

• Reduced Suction:
  • Check if the canister basket is full and needs emptying.
  • Ensure all hose connections are tight and there are no air leaks.
  • Verify that the canister lid is securely twisted and sealed.
  • Confirm the pool pump is operating correctly and the skimmer/suction line is clear.
• Canister Not Collecting Debris:
  • Ensure the canister is fully submerged and all air has been purged during setup.
  • Check for blockages in the hose leading to the canister or within the canister itself.
  • Verify that the pool cleaner is functioning properly and generating sufficient suction.
• Lid Difficult to Open/Close:
  • Ensure the O-ring is clean and properly seated. A small amount of silicone lubricant can help.
  • Avoid overtightening the lid, as this can make it difficult to open later.
  • Check for any debris or grit in the lid's threads or sealing area.

6. Specifications

7. Warranty Information

This Jacuzzi Small Leaf Canister Pool Cleaner Attachment (Model WP009) is covered by a One Year Limited Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For specific terms, conditions, and claim procedures, please refer to the warranty documentation provided with your product or contact Jacuzzi customer support.

8. Customer Support

For further assistance, technical support, or warranty inquiries regarding your Jacuzzi Small Leaf Canister Pool Cleaner Attachment, please contact Jacuzzi customer service. You may find contact information on the product packaging or the official Jacuzzi website.
