Creliver XM-898 Oxygen Concentrator Backpack and 15000mAh Battery Accessory Kit User Manual

Introduction

This manual provides instructions for the safe and effective use of your Creliver XM-898 Oxygen Concentrator Backpack and 15000mAh Battery Accessory Kit. This kit is designed to enhance the portability and extended use of your Creliver XM-898 Oxygen Concentrator. Please read this manual thoroughly before use and retain it for future reference.

Product Overview

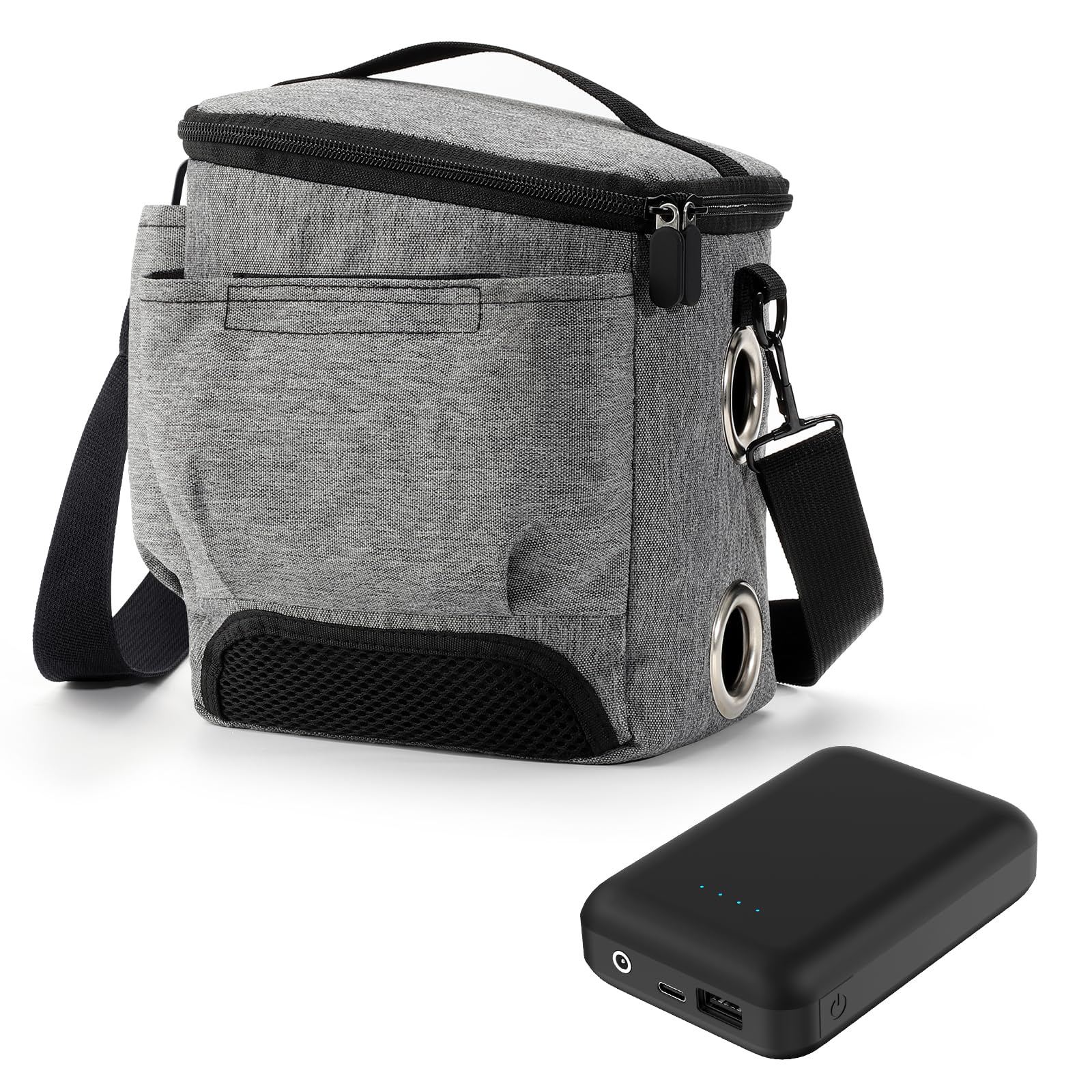

The Creliver XM-898 accessory kit includes a replacement 15000mAh battery and a dedicated backpack, specifically designed for use with the Creliver Oxygen Concentrator model XM-898. This kit provides extended power and convenient portability for your oxygen therapy needs.

Included Components:

• 15000mAh Rechargeable Battery
• Dedicated Backpack
• 12V/3A Connection Cable

Figure 1: Creliver oxygen concentrator shown with a medical professional and various accessories, including power adapters and nasal cannula.

Figure 2: The 15000mAh portable battery pack, a key component of the accessory kit.

Safety Information

Adhering to safety guidelines is crucial for preventing damage to the device and ensuring user safety.

Important Safety Warnings:

• Do not place the battery in humid or watery environments. Exposure to moisture can lead to a short circuit, fire, or other significant safety risks.
• Ensure the battery and backpack are compatible with your specific Creliver Oxygen Concentrator XM-898 model before use. Verify the model number of your concentrator to prevent incompatibility issues.
• Use only the provided 12V/3A connection cable and recommended charging accessories to prevent damage to the battery or concentrator.
• Keep the battery away from extreme temperatures, direct sunlight, and open flames.

Setup Instructions

1. Connecting the Battery to the Concentrator:

1. Locate the 12V/3A connection cable provided with your accessory kit.
2. Connect one end of the 12V/3A cable to the output port on the 15000mAh battery.
3. Connect the other end of the cable to the designated power input port on your Creliver XM-898 Oxygen Concentrator.
4. Ensure all connections are firm and secure to maintain a stable power supply.

2. Using the Backpack:

1. Carefully place your Creliver XM-898 Oxygen Concentrator inside the dedicated backpack. The backpack is designed to fit the concentrator securely.
2. Route any necessary oxygen tubing and power cables through the reinforced openings in the backpack. These openings are specifically designed to allow for normal operation while the concentrator is inside.
3. Adjust the backpack straps for a comfortable and secure fit. Ensure the concentrator remains stable and upright within the backpack during transport.

Figure 3: Illustrates the use of the oxygen concentrator in a portable setting, such as a car, enabled by the battery and backpack.

Operating Instructions

Once the 15000mAh battery is connected to your Creliver XM-898 Oxygen Concentrator and placed within the backpack, you can operate the concentrator as you normally would. The battery provides an extended power source, allowing for continuous operation without the need for a direct electrical outlet.

• Power on your Creliver XM-898 Oxygen Concentrator using its standard power button.
• The battery will supply power, enabling the concentrator to function for extended periods, ideal for outdoor activities, travel, or during power outages.
• The backpack is designed to allow for normal airflow and operation of the concentrator while being carried, ensuring an uninterrupted oxygen supply.

Charging and Maintenance

Charging the Battery:

• The 15000mAh battery is rechargeable. When the battery level is low, connect it to its designated charger (charger not included with this accessory kit, typically supplied with the concentrator or purchased separately).
• Always use the charger specified by Creliver for this battery to ensure proper charging and prevent damage or safety hazards.
• Monitor the charging indicator lights on the battery (if available) to determine charging status.

Battery Care and Maintenance:

• Store the battery in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• Avoid dropping the battery or subjecting it to strong impacts, which can damage internal components.
• Clean the exterior of the battery and backpack with a soft, dry cloth. Do not use abrasive cleaners or immerse in water.
• The battery is recyclable. When it reaches the end of its lifespan, please dispose of it responsibly according to local regulations for electronic waste.

Troubleshooting

If you encounter issues with your Creliver XM-898 Oxygen Concentrator Backpack and 15000mAh Battery Accessory Kit, refer to the following common problems and solutions:

Battery Not Powering Concentrator:

• Check Connections: Ensure the 12V/3A connection cable is securely attached to both the battery's output port and the oxygen concentrator's power input port.
• Check Battery Charge: Verify that the battery is sufficiently charged. Recharge the battery if necessary.
• Compatibility: Confirm that the battery is indeed compatible with your specific Creliver XM-898 Oxygen Concentrator model.

Backpack Fit Issues:

• Proper Positioning: Ensure the oxygen concentrator is correctly positioned and oriented within the backpack.
• Strap Adjustment: Adjust the backpack straps and any internal compartments (if applicable) to secure the concentrator and achieve a comfortable fit.
• Model Verification: Confirm that the backpack is specifically designed for the Creliver XM-898 model.

Specifications

Customer Support

For any questions, concerns, or assistance regarding your Creliver XM-898 Oxygen Concentrator Backpack and 15000mAh Battery Accessory Kit, please contact Creliver customer service. You can reach us through the Amazon platform where you purchased the product.

• Our team is committed to responding to your inquiries in a timely manner.
• Please note that shipping from our factory in China typically takes 7-10 days.
