Instruction Manual

Introduction

This manual provides essential information for the safe and effective use of your UPBRIGHT Genuine LK45 22.5V 0.65A AC/DC Adapter Charger. This power supply unit is designed for compatibility with various Stihl 18V Li-ion battery-powered cordless tools, including the FSA45 Grass Trimmer, HSA45 Hedge Trimmer, and BGA45 Leaf Blower. Please read this manual thoroughly before operation.

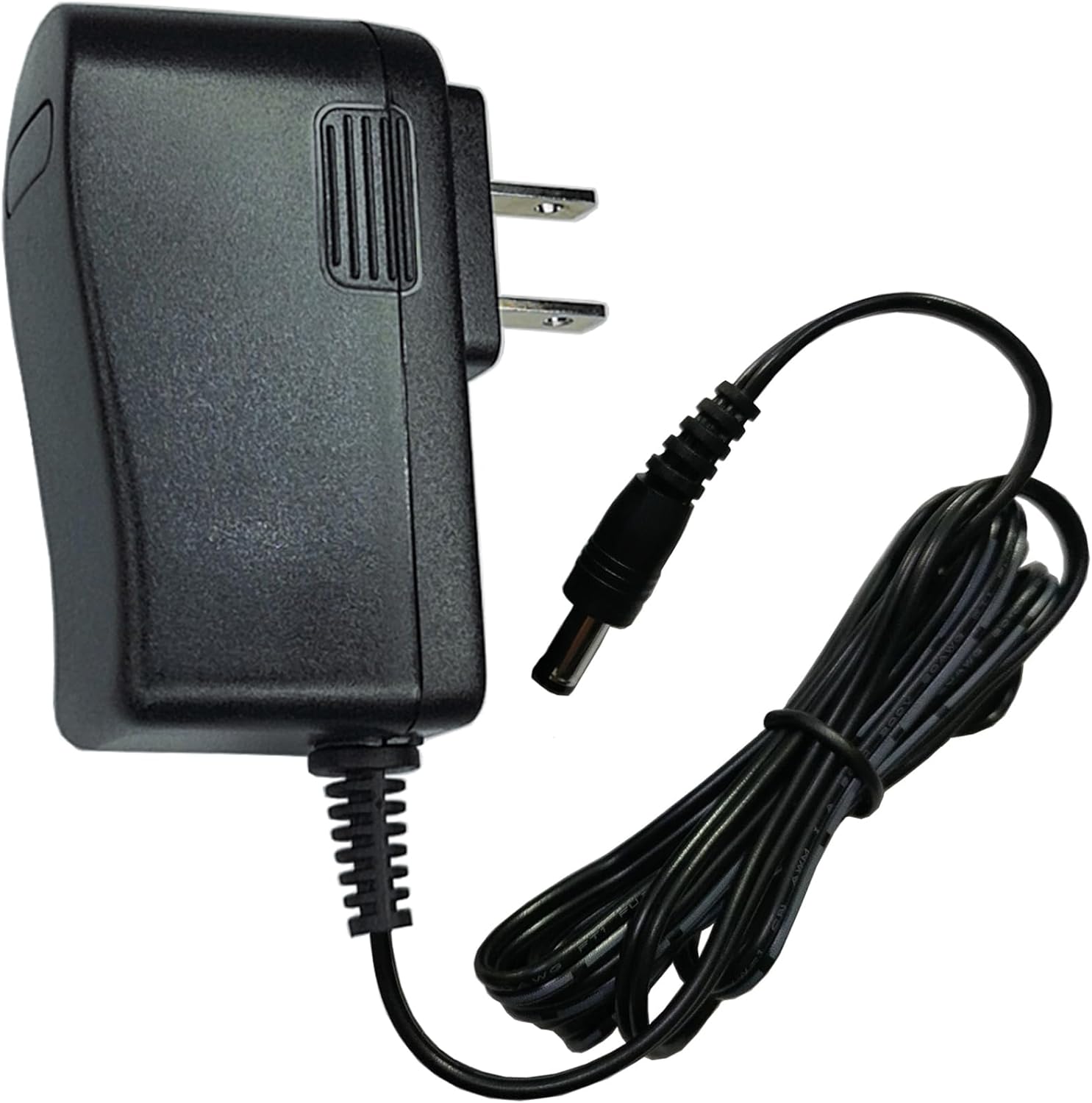

Image: The UPBRIGHT LK45 AC/DC Adapter Charger, showing the main unit with its two-prong plug and the attached DC output cable with a barrel round connector.

Safety Information

Always observe the following safety precautions to prevent injury or damage to the product:

• Use the adapter only with compatible devices as specified in this manual.
• Do not expose the adapter to moisture, rain, or extreme temperatures.
• Ensure the adapter is connected to a properly grounded electrical outlet.
• Avoid dropping or subjecting the adapter to severe impacts.
• The adapter features built-in Over Voltage Protection (OVP), Over Current Protection (OCP), and Short Circuit Protection (SCP) for enhanced safety.

Setup

Follow these steps to set up your AC/DC adapter for charging:

1. Unpack: Carefully remove the adapter from its packaging.
2. Inspect: Check the adapter and cable for any visible damage. Do not use if damaged.
3. Connect to Tool: Insert the barrel round connector of the adapter's output cable into the charging port of your compatible Stihl 18V Li-ion battery-powered tool (e.g., FSA45, HSA45, BGA45). Ensure a secure connection.
4. Connect to Power Outlet: Plug the adapter's two-prong plug into a standard 100-240VAC 50/60Hz wall outlet.

Images: The UPBRIGHT AC/DC Adapter shown in use with a Stihl FSA45 Cordless Grass Trimmer (left) and a Stihl HSA45 Cordless Hedge Trimmer (right), demonstrating compatibility. The tools themselves are not included with the charger.

Image: The UPBRIGHT AC/DC Adapter shown in use with a Stihl BGA45 Cordless Leaf Blower, demonstrating compatibility. The tool itself is not included with the charger.

Operating Instructions

Once the adapter is properly connected to both the tool and a power outlet, the charging process will begin automatically. The adapter is designed to deliver 22.5VDC at 0.65A to efficiently charge your Stihl 18V Li-ion batteries.

• Monitor the charging indicator on your Stihl tool (if available) to determine the charging status.
• Disconnect the adapter from the power outlet and the tool once charging is complete.
• Important Note: Rechargeable batteries have a finite lifespan, typically 1 to 3 years. If your battery is old or defective, it may not accept a charge, which is not an indication of a faulty charger.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your adapter:

• Cleaning: Disconnect the adapter from all power sources before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or solvents.
• Storage: Store the adapter in a cool, dry place away from direct sunlight and extreme temperatures when not in use. Avoid wrapping the cable too tightly around the adapter to prevent damage.
• Inspection: Periodically inspect the cable and connector for any signs of wear, cuts, or fraying. Replace the adapter if any damage is observed.

Troubleshooting

If you encounter issues with your adapter, consider the following common solutions:

Specifications

Warranty and Support

Your UPBRIGHT AC/DC Adapter Charger comes with a commitment to quality and customer satisfaction.

• Refund Policy: UpBright offers a 30-day refund policy from the date of purchase.
• Exchange Policy: The product is covered by a 24-month exchange warranty.
• Warranty Certificate: Please refer to the included Limited Warranty Certificate for detailed terms and conditions.

Image: A visual representation of the UpBright Limited Warranty Certificate and examples of international outlet adapters (AU, EU, UK) that may be provided for international orders.

For any questions, technical assistance, or warranty claims, please contact your retailer or visit the official UPBRIGHT website for support information.
