Protmex 21V 2.0Ah Battery User Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of your Protmex 21V 2.0Ah Lithium-Ion Battery. This battery is designed to power Protmex 21V Cordless Car Polishers. Please read this manual thoroughly before first use and retain it for future reference.

2. Important Safety Information

WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Always use the battery with compatible Protmex 21V tools and chargers. Using incompatible accessories may cause damage or injury.
• Do not disassemble, open, or shred battery packs.
• Do not expose the battery to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.
• Do not subject battery packs to mechanical shock.
• In the event of battery leakage, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
• Keep battery packs clean and dry.
• Do not use any charger other than that specifically provided for use with the equipment.
• Observe the plus (+) and minus (-) marks on the battery and equipment and ensure correct use.
• Keep battery packs out of reach of children.
• Seek medical advice immediately if a battery pack has been swallowed.
• Do not use a battery pack that is not designed for use with the equipment.
• Do not leave a battery pack on prolonged charge when not in use.
• Dispose of exhausted battery packs promptly and according to local regulations.

3. Product Overview

The Protmex 21V 2.0Ah battery is a high-capacity lithium-ion power source designed for extended use with your Protmex 21V Cordless Car Polisher. It provides reliable and consistent power for various polishing tasks.

Figure 3.1: Protmex 21V 2.0Ah Battery compatible with the Protmex 21V Button Car Polisher.

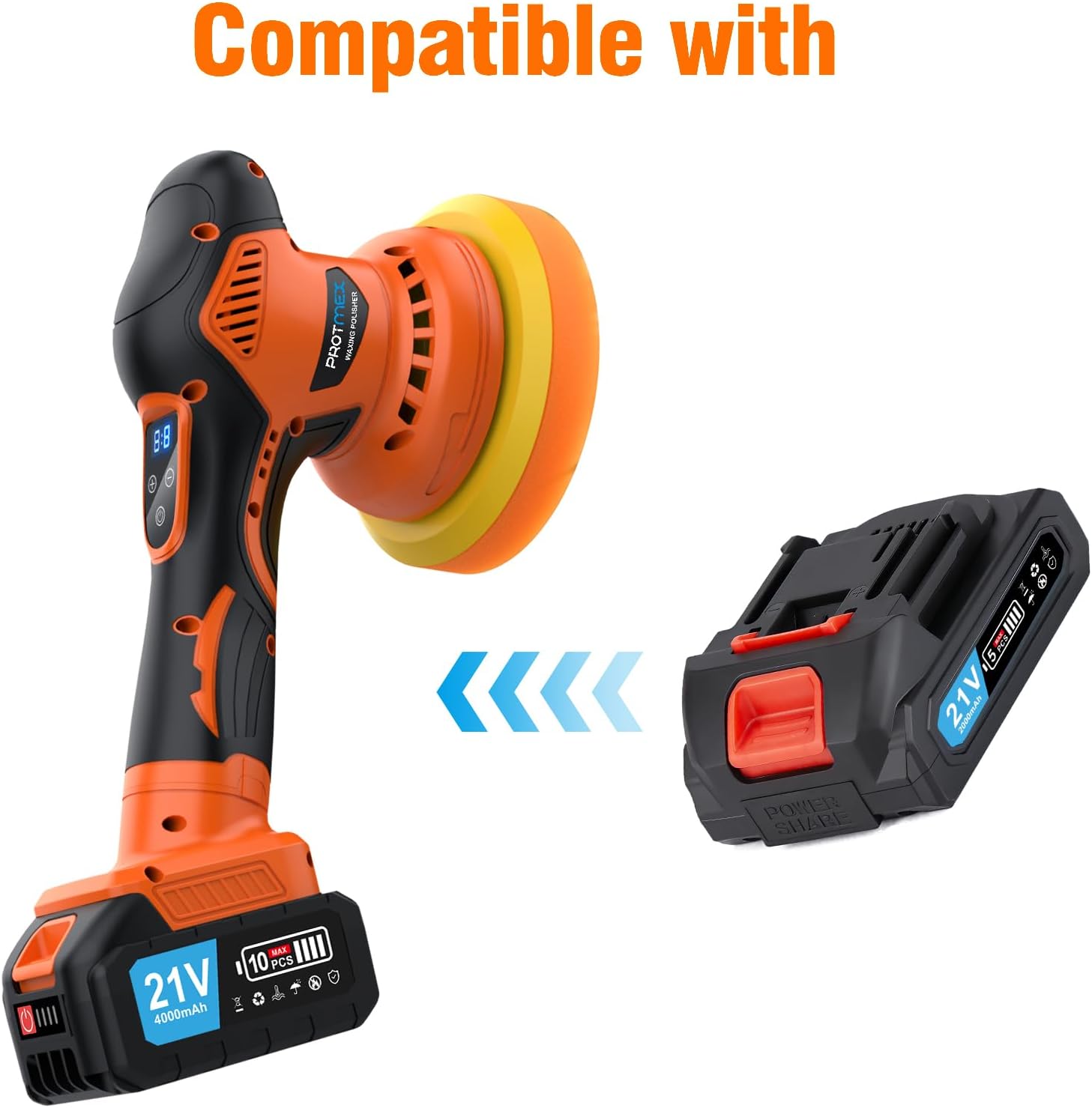

Figure 3.2: Protmex 21V 2.0Ah Battery compatible with the Protmex 21V Touchscreen Car Polisher.

Figure 3.3: The Protmex 21V 2.0Ah battery is designed for use with both the 21V Button Car Polisher and the 21V Touchscreen Car Polisher, and is charged using the 21V Polisher Charger.

4. Setup

4.1 Installing the Battery

1. Ensure the car polisher is turned off and disconnected from any power source.
2. Align the battery pack with the battery port on the base of the polisher.
3. Slide the battery into the port until it clicks securely into place. Do not force the battery.
4. Gently pull on the battery to ensure it is firmly seated before operation.

4.2 Removing the Battery

1. Ensure the car polisher is turned off.
2. Locate the battery release button (usually on the battery itself or the tool).
3. Press and hold the release button.
4. Slide the battery out of the polisher.

5. Charging the Battery

Before first use, fully charge the battery. Use only the Protmex 21V Polisher Charger (sold separately or included with your polisher kit).

1. Connect the charger to a standard electrical outlet.
2. Insert the battery pack into the charger, ensuring proper alignment.
3. The charger's indicator light will show the charging status (refer to your charger's manual for specific light patterns).
4. A full charge typically takes approximately 2 hours for a 2.0Ah battery.
5. Once fully charged, remove the battery from the charger. Do not leave batteries on charge indefinitely.

Figure 5.1: The Protmex 21V 2.0Ah battery requires approximately 2 hours for a full charge, providing up to 100 minutes of working time.

6. Operating the Battery with the Polisher

Once the battery is fully charged and securely installed in your Protmex 21V Cordless Car Polisher, you can begin operation. Refer to your specific polisher's instruction manual for detailed operating procedures.

• Ensure the work area is well-lit and free of obstructions.
• Always wear appropriate personal protective equipment (PPE), such as safety glasses.
• Start the polisher at a low speed and gradually increase as needed for the task.
• Monitor the battery charge indicator on the battery or polisher during use.
• If the battery power significantly decreases or the tool stops, recharge the battery.

Figure 6.1: The Protmex 21V 2.0Ah battery provides cordless power for polishing applications.

7. Maintenance

7.1 Battery Care

• Keep the battery terminals clean and free of dirt or debris. Use a clean, dry cloth to wipe them if necessary.
• Do not immerse the battery in water or any other liquid.
• Avoid dropping the battery or subjecting it to severe impacts.

7.2 Storage

• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• For long-term storage, it is recommended to store the battery with a partial charge (around 50%). Fully discharging or fully charging for extended periods can reduce battery life.
• Remove the battery from the polisher when not in use for extended periods.

8. Troubleshooting

9. Specifications

• Model: Protmex 21V 2.0Ah Battery
• Battery Type: Lithium-Ion
• Voltage: 21V
• Capacity: 2.0Ah (2000mAh)
• Approximate Charging Time: 2 hours
• Approximate Working Time: Up to 100 minutes (depending on load)
• Compatibility: Protmex 21V Cordless Car Polishers

10. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your original Protmex product purchase or visit the official Protmex website. Keep your purchase receipt as proof of purchase for warranty claims.

If you encounter any issues not covered in this manual, please contact Protmex customer service for assistance.
