Introduction
Thank you for choosing the FIREGAS FGS-EWS09D435CC Island Range Hood. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read it thoroughly before use and keep it for future reference.
The FIREGAS Island Range Hood features an elegant design, seamlessly integrating into modern kitchen environments.
This model is available in white, offering versatility to match various kitchen aesthetics.
Safety Information
Always adhere to the following safety precautions to prevent injury or damage to the appliance:
- Ensure the power supply matches the voltage specified on the rating label.
- Installation must be performed by a qualified technician in accordance with local regulations.
- Do not operate the appliance if the power cord is damaged.
- Regularly clean grease filters to prevent fire hazards.
- Maintain adequate ventilation in the room when the range hood is used simultaneously with gas or other fuel-burning appliances.
- Do not flambé under the range hood.
- Keep children away from the appliance during operation and cleaning.
Package Contents
Verify that all components are present before beginning installation:
- FIREGAS Island Range Hood Unit
- Grease Filter (Mesh Type)
- Carbon Filter (Model No: CC250, for recirculation mode)
- Remote Control
- Steel Cables for Hanging
- Hanging Plate Hanger Cover
- Installation Kit (Screws, Wall Plugs)
- Instruction Manual
Illustration of the package contents and key dimensions of the range hood.
Installation
The FIREGAS FGS-EWS09D435CC is designed for ceiling mounting. Follow these steps for proper installation:
Technical diagram showing installation details and dimensions for the cooker hood.
- Step 1: Mark Drilling Points
Position the mounting template on the ceiling above your cooking area. Use a pencil to mark the drilling points for the hanging plate. Ensure the location is centered and provides adequate clearance from the cooktop.
Marking drilling points on the ceiling using a template.
- Step 2: Drill Holes and Insert Wall Plugs
Drill holes at the marked points using an appropriate drill bit. Insert the provided wall plugs into the drilled holes, ensuring they are flush with the ceiling surface.
Drilling holes and inserting wall plugs.
- Step 3: Secure the Hanging Plate
Attach the hanging plate to the ceiling using the screws provided. Ensure it is securely fastened and can support the weight of the range hood.
Securing the hanging plate to the ceiling.
- Step 4: Prepare the Hanger Cover
Attach the hanger cover to the hanging plate. This cover conceals the mounting hardware and provides a finished look. The steel cables will pass through this cover.
Preparing the hanger cover for the suspension cables.
- Step 5: Hang the Range Hood
Carefully attach the steel cables to the range hood and then to the hanger cover. Adjust the cable length to achieve the desired height for the range hood above your cooktop. Ensure the hood is level and stable.
Hanging the range hood and adjusting cable length.
Operating Instructions
Your FIREGAS Island Range Hood offers convenient control options and multiple settings for efficient ventilation.
Control Modes
The range hood can be operated using either the integrated touchscreen controls or the included remote control.
The range hood supports both touch control and remote control operation.
Remote Control Functions
Remote control with buttons for power adjustment, timer, and lighting.
- Power Up (+): Increases fan speed.
- Power Down (-): Decreases fan speed.
- Delay (Timer): Activates the timer function for automatic shut-off.
- Light: Turns the LED lighting on or off.
Touchscreen Control Functions
Touchscreen control panel with clear icons and digital display.
- On/Off: Powers the unit on or off.
- Power Up (+): Increases fan speed (up to 9 levels).
- Power Down (-): Decreases fan speed.
- Digital Display: Shows the current fan speed level.
- Light: Controls the LED lighting.
Fan Speed Settings
The hood features 9 adjustable fan speed levels to accommodate various cooking needs, from gentle simmering to intense frying.
The range hood offers 9 air speed settings for optimal ventilation.

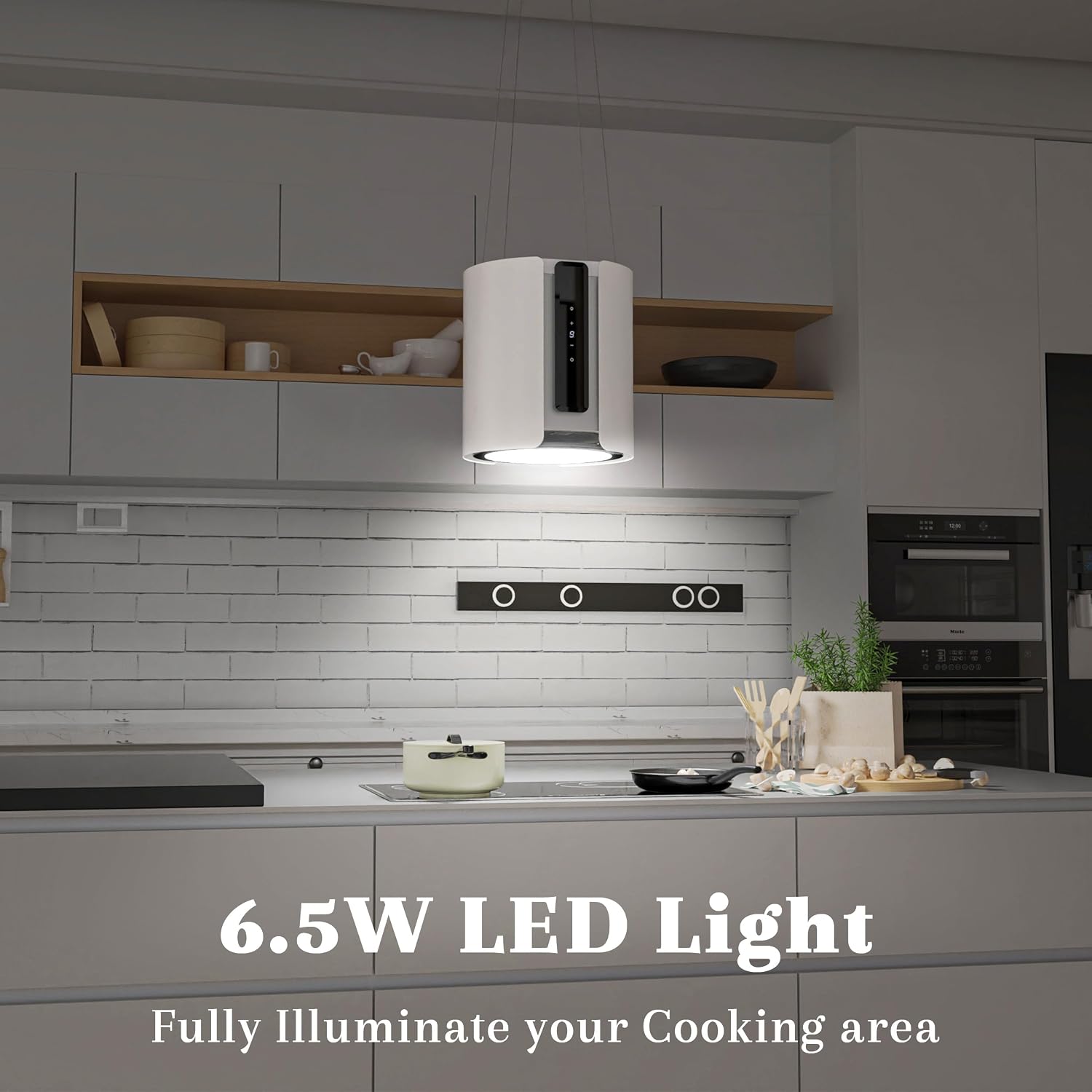

LED Lighting
The integrated 6.5W LED light illuminates your cooking area, providing clear visibility.
The LED light provides bright illumination for your cooking surface.
Maintenance
Regular maintenance ensures optimal performance and longevity of your range hood.
Cleaning the Grease Filters
The metal mesh grease filters should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to prevent grease buildup and maintain airflow efficiency. They can be washed by hand with hot soapy water or in a dishwasher.
Replacing Carbon Filters (for Recirculation Mode)
If your hood is operating in recirculation mode, the activated carbon filters (Model No: CC250) need to be replaced periodically (typically every 3-6 months, depending on usage). These filters cannot be washed or regenerated.
Air circulation within the range hood, highlighting the filtration process.
Cleaning the Exterior
Clean the exterior of the range hood with a soft cloth and a mild, non-abrasive detergent. Avoid using harsh chemicals or abrasive materials that could damage the stainless steel finish.
Troubleshooting
Refer to this section for solutions to common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hood does not turn on. | No power supply. | Check power connection and circuit breaker. |
| Low suction power. | Clogged grease filters or saturated carbon filters. | Clean grease filters or replace carbon filters. |
| Excessive noise. | Loose components or obstruction in the fan. | Check for loose parts; remove any obstructions. |
| Lights not working. | Faulty LED module or wiring issue. | Contact customer support for assistance. |
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | FIREGAS |
| Model Number | FGS-EWS09D435CC |
| Mounting Type | Island (Ceiling Mount) |
| Airflow Capacity | 480 m³/h |
| Material | Stainless Steel, Aluminum |
| Color | White |
| Dimensions (D x W x H) | 35 cm x 35 cm x 38 cm (Hood Body) |
| Control Type | Remote Control, Touch Control |
| Number of Speeds | 9 |
| Lighting | 6.5W LED |
| Noise Level | 34 Decibels |
| Energy Efficiency Class | A |
| Filter Type | Mesh (Grease Filter), Activated Carbon (for recirculation) |
| Ventilation Type | Ducted / Recirculation |
| Voltage | 220V |
Warranty Information
The FIREGAS FGS-EWS09D435CC Island Range Hood comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. Keep your proof of purchase for any warranty claims.
Spare parts availability in the EU is guaranteed for 7 years.
Customer Support
For technical assistance, troubleshooting beyond this manual, or spare parts inquiries, please contact FIREGAS customer support. Our team is dedicated to providing quick responses and lifelong technical support.
FIREGAS is committed to customer satisfaction through responsive service and continuous product improvement.
You can find contact information on our official website or through your retailer.
