FUXTEC E2RM46 Cordless Self-Propelled Lawn Mower User Manual

1. Introduction

Thank you for choosing the FUXTEC E2RM46 Cordless Self-Propelled Lawn Mower. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new lawn mower. Please read this manual thoroughly before first use and keep it for future reference.

The FUXTEC E2RM46 is designed for efficient lawn care in medium to large gardens, offering a 46 cm cutting width, mulching, and side discharge capabilities. It operates on a 40V system powered by two 20V lithium-ion batteries.

Figure 1: FUXTEC E2RM46 Cordless Lawn Mower with 2x 4Ah batteries and dual charger.

2. Safety Information

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury when operating this product. Failure to follow these instructions may result in serious injury or property damage.

General Safety Warnings:

• Read all instructions: Familiarize yourself with the controls and proper use of the equipment.
• Keep children and bystanders away: Do not allow children or people unfamiliar with these instructions to operate the lawn mower.
• Dress properly: Wear appropriate clothing, including sturdy footwear and long trousers. Do not operate the mower barefoot or in open sandals.
• Inspect the area: Before mowing, clear the area of objects such as rocks, wires, toys, and other debris that could be thrown by the blade.
• Avoid dangerous environments: Do not use the mower in wet or damp conditions. Operate only in daylight or good artificial light.
• Stay alert: Always be aware of your surroundings and potential hazards.
• Use personal protective equipment: Wear safety glasses and hearing protection.
• Battery safety: Use only the specified battery packs and charger. Do not charge batteries in damp or wet locations.
• Maintenance: Regularly inspect the mower for damage. Ensure all nuts, bolts, and screws are tight.
• Disconnect power: Always remove the battery pack before cleaning, servicing, or when leaving the machine unattended.

3. Setup and Assembly

The FUXTEC E2RM46 requires some assembly before first use. Follow these steps carefully.

3.1 Unpacking

Carefully remove all components from the packaging. Check against the packing list to ensure all parts are present and undamaged. Dispose of packaging materials responsibly.

3.2 Handle Assembly

1. Unfold the lower handle section and secure it with the provided knobs or levers.
2. Attach the upper handle section to the lower section, ensuring the cables are not pinched. Secure with the remaining knobs.
3. Adjust the handle height to a comfortable operating position if adjustable.

3.3 Grass Catcher Assembly

Assemble the 50-liter grass catcher according to the instructions provided with the catcher components. Once assembled, lift the rear discharge flap and hook the grass catcher onto the mower chassis.

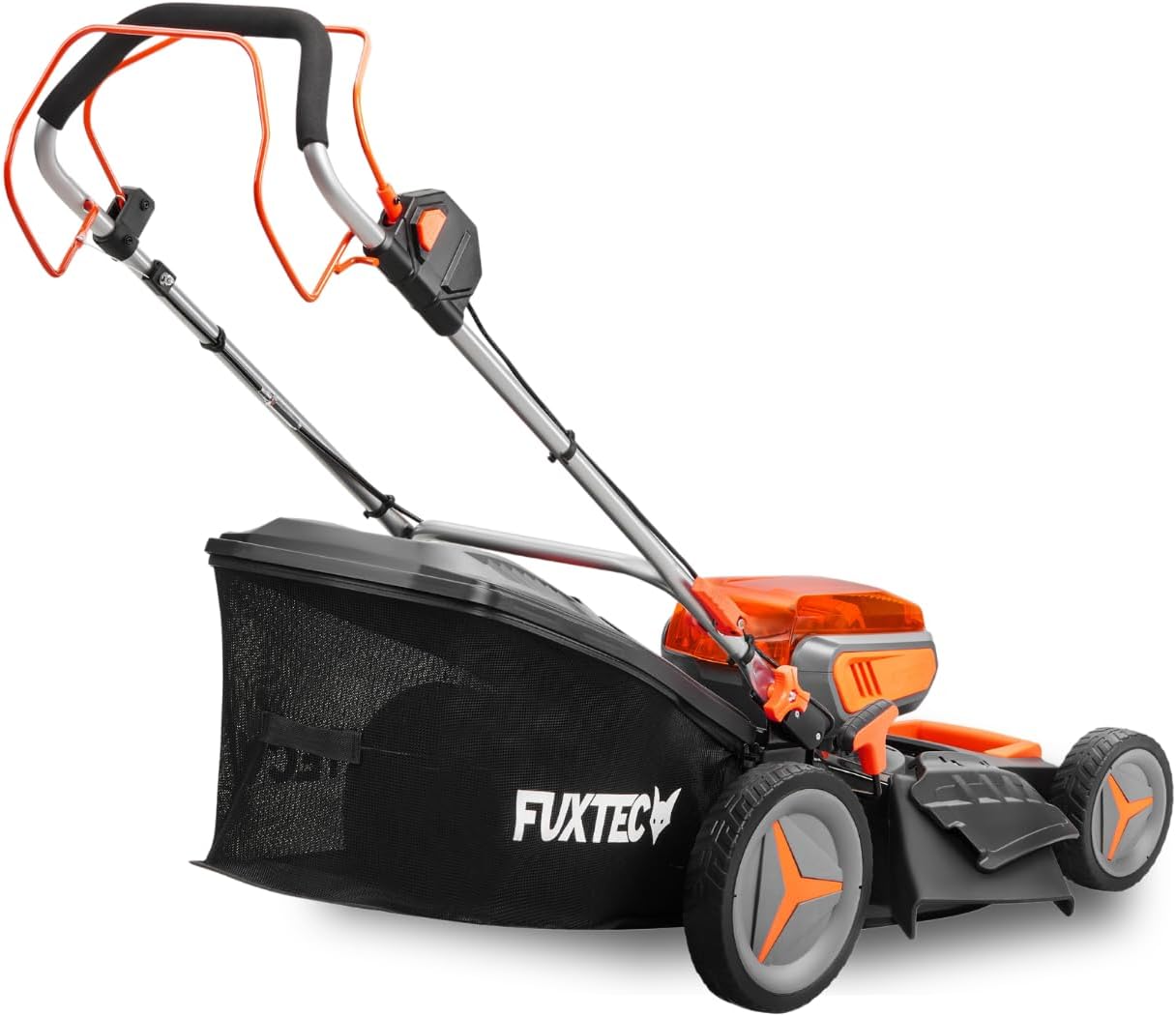

Figure 2: FUXTEC E2RM46 with grass catcher installed.

3.4 Battery Charging and Installation

• Insert the two 20V 4Ah lithium-ion batteries into the dual charger.
• Plug the charger into a standard power outlet. The charging indicator lights will show the charging status. A full charge takes approximately 120 minutes.
• Once fully charged, remove the batteries from the charger.
• Open the battery compartment on the mower and insert both charged batteries firmly until they click into place. Close the compartment cover securely.

3.5 Cutting Height Adjustment

The FUXTEC E2RM46 features a centralized cutting height adjustment with 10 positions, ranging from 25 mm to 75 mm.

1. Ensure the mower is turned off and batteries are removed before adjusting.
2. Locate the height adjustment lever on the side of the mower.
3. Pull the lever outwards and move it to the desired cutting height position.
4. Release the lever to lock it into place. Ensure all four wheels are at the same height setting.

Figure 3: Centralized cutting height adjustment.

4. Operating Instructions

Follow these steps for safe and effective operation of your FUXTEC E2RM46 lawn mower.

4.1 Starting and Stopping the Mower

1. Ensure batteries are installed and the battery compartment is closed.
2. Press and hold the safety button on the handle.
3. While holding the safety button, pull the bail lever towards the handle. The motor will start.
4. To stop the mower, release the bail lever. The motor will stop immediately.

4.2 Self-Propelled Function

The E2RM46 is self-propelled, reducing effort during operation.

• To engage the self-propelled function, press the drive lever (usually a second bail lever) towards the handle while the motor is running.
• To disengage, release the drive lever.
• The self-propelled function works independently of the blade, allowing you to move the mower without the blade spinning if needed (e.g., for transport).

Figure 4: Self-propulsion feature for effortless mowing.

4.3 Mulching and Side Discharge

Your mower offers versatile grass disposal options:

• Mulching: For mulching, ensure the grass catcher is removed and the mulching plug (if included) is inserted into the rear discharge opening. The mower will finely cut grass clippings and return them to the lawn as natural fertilizer.
• Side Discharge: For side discharge, remove the grass catcher and mulching plug. Attach the side discharge chute to the side opening of the mower deck. This option is useful for taller grass or when you don't want to collect clippings.
• Rear Collection: For collecting grass, ensure the grass catcher is properly installed and the side discharge chute and mulching plug are removed.

Figure 5: Mower components including side discharge.

4.4 Mowing Techniques

• Mow in overlapping rows to ensure even coverage.
• Avoid cutting more than one-third of the grass blade length at a time.
• For best results, mow when the grass is dry.
• Battery runtime is approximately 40 minutes, depending on grass conditions and cutting height. Plan your mowing sessions accordingly.

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your FUXTEC E2RM46 lawn mower. Always remove batteries before performing any maintenance.

5.1 Cleaning the Mower

• After each use, clean the mower deck, grass catcher, and wheels.
• Use a brush or cloth to remove grass clippings and debris. Do not use water jets or high-pressure cleaners directly on the motor or battery compartment.
• Ensure all vents are clear of obstructions.

5.2 Blade Inspection and Replacement

• Regularly inspect the blade for sharpness and damage. A dull or damaged blade can lead to poor cutting performance and excessive vibration.
• To replace the blade, wear heavy-duty gloves. Secure the blade with a block of wood and use a wrench to loosen the blade bolt.
• Install the new blade, ensuring it is correctly oriented, and tighten the blade bolt securely.

5.3 Battery Care and Storage

• Store batteries in a cool, dry place, away from direct sunlight and extreme temperatures.
• Do not store batteries in a discharged state for extended periods. Charge them periodically if not in use.
• For long-term storage, remove batteries from the mower.

5.4 General Storage

Clean the mower thoroughly before storing. The handle can be folded for compact storage. Store the mower in a dry, secure location, out of reach of children.

6. Troubleshooting

This section addresses common issues you might encounter with your FUXTEC E2RM46 lawn mower.

7. Technical Specifications

Figure 6: FUXTEC E2RM46 Technical Data Overview.

8. Warranty and Support

8.1 Warranty Information

Your FUXTEC E2RM46 lawn mower is covered by statutory warranties. Please refer to your purchase documentation for specific warranty terms and conditions. FUXTEC offers a 30-day return policy.

8.2 Customer Support

For technical assistance, spare parts, or any questions regarding your FUXTEC product, please contact our specialized customer support team. You can find contact details on the official FUXTEC website or through your retailer.

FUXTEC is an active company across Europe, based in Herrenberg, Germany, dedicated to developing high-quality products. Long-term availability of spare parts is ensured.
