CCIYU Throttle Body Assembly User Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your new CCIYU Throttle Body Assembly. The electronic throttle body is a critical component in your vehicle's engine management system, regulating the amount of air entering the engine to optimize performance and fuel efficiency. Proper installation and calibration are crucial for its correct function.

2. Product Overview

2.1 Function

The electronic throttle body operates by controlling the throttle plate's position based on signals from the engine control unit (ECU). This precise control of airflow is essential for engine power boosting, improving overall engine performance, and addressing issues such as unstable idle, slow acceleration, or rapid speed changes.

2.2 Compatibility

This CCIYU Throttle Body Assembly is designed to fit the following vehicle models:

• 2002 Mercedes-Benz C230
• 2000-2004 Mercedes-Benz SLK230

Please verify compatibility using the provided OEM part numbers before installation.

2.3 Reference OEM Part Numbers

This throttle body assembly is a direct replacement for the following OEM part numbers:

• 1111410125
• A1111410325
• 1111410325
• 0280750021
• 67-5011

Image 1: Front-side view of the CCIYU Throttle Body Assembly, showcasing its main housing and connector.

Image 2: Front view of the throttle body, highlighting the circular air intake opening.

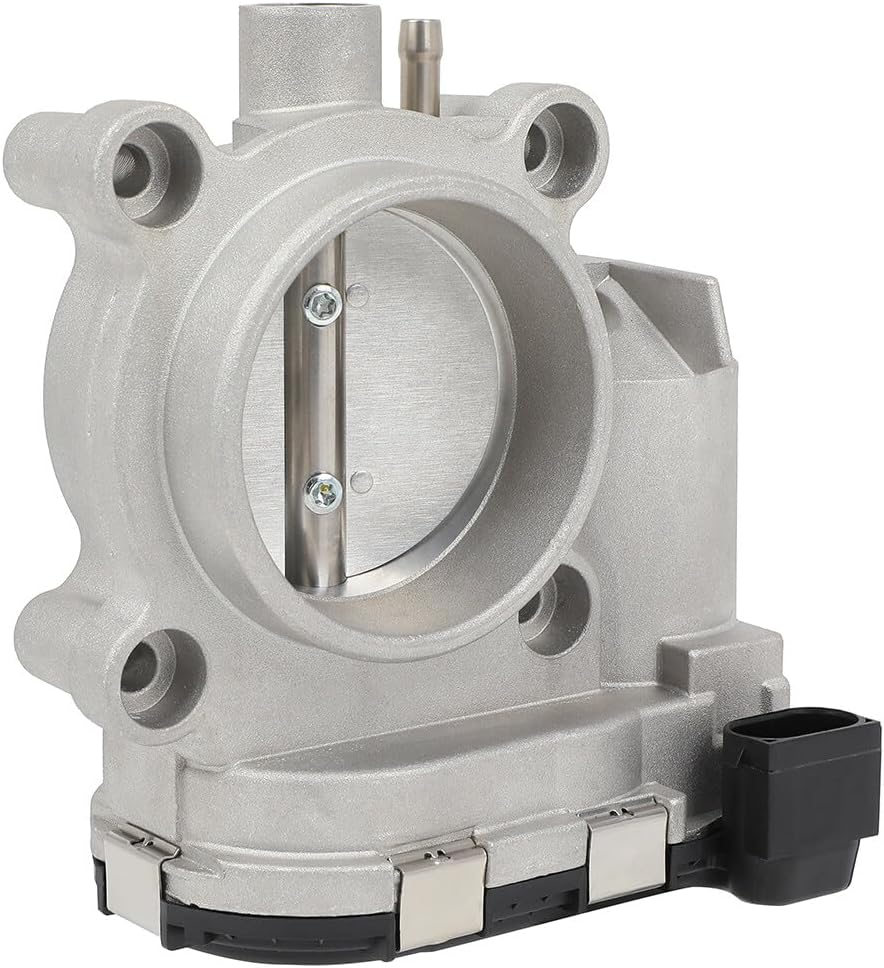

Image 3: Angled view of the throttle body, clearly showing the internal throttle plate and its pivot mechanism.

3. Installation

3.1 Pre-Installation Checks

• Ensure the vehicle's ignition is off and the battery is disconnected before beginning any work.
• Confirm the new throttle body matches the old unit and is compatible with your vehicle model.
• Gather all necessary tools for removal and installation.

3.2 General Installation Steps

1. Carefully remove the old throttle body, noting the connections and mounting points.
2. Clean the mounting surface on the intake manifold to ensure a proper seal.
3. Install the new CCIYU Throttle Body Assembly, ensuring all gaskets are correctly seated.
4. Reconnect all electrical connectors and vacuum lines.
5. Reconnect the battery.

Image 4: Close-up view of the multi-pin electrical connector on the throttle body, which connects to the vehicle's wiring harness.

3.3 Electronic Throttle Body Matching

After replacing the throttle body, the vehicle's engine control unit (ECU) may need to be recalibrated to the new component. This process is often referred to as 'matching' or 'relearning'.

Image 5: Diagram detailing the process for electronic throttle body matching, including both computer-based and manual methods.

If a diagnostic computer is available, it is recommended to perform a computer-aided matching procedure. Consult your vehicle's service manual or a qualified technician for specific steps.

Manual Matching Procedure (if no matching computer is available):

1. Turn off the ignition switch.
2. Unplug the EFI (Electronic Fuel Injection) and ETCS (Electronic Throttle Control System) fuses from the fuse box located in the engine compartment.
3. Wait for at least 1 minute.
4. Replace the EFI and ETCS fuses.

If the engine idle remains high after this procedure, the ECU may require 1-2 days of self-study to return to normal operation.

3.4 Idle Relearn Procedure

An idle relearn procedure helps the ECU adapt to the new idle position of the electronic throttle body. This can be performed as follows:

Image 6: Step-by-step guide for performing an idle relearn procedure after throttle body replacement.

1. Start the engine and run it in PARK for 3 minutes.
2. Turn the engine OFF for a minimum of 60 seconds.
3. Start the engine again and run for another 3 minutes.
4. The engine should idle normally after approximately 3 minutes.

4. Troubleshooting

4.1 Common Symptoms of a Failing Throttle Body

If your vehicle exhibits any of the following symptoms, your throttle body may be worn out or failing:

• Illumination of control lights (e.g., Check Engine Light).
• Engine stalling.
• Difficulty starting the engine.
• Hesitation or lack of response during acceleration.
• Unintended power surges while accelerating.
• Unstable or erratic idle speed.

The CCIYU throttle body is constructed from reinforced aluminum alloy to address common wear issues found in original equipment.

Image 7: Visual comparison showing improved fuel consumption (from 34.1 L/100km to 30.4 L/100km) after replacing the throttle body.

4.2 Post-Installation Issues

If you experience a high or unstable idle, or if the engine fault light illuminates immediately after replacing the throttle body, it typically indicates that the electronic throttle body matching or idle relearn procedure was not completed successfully or requires further adaptation time. Refer to Section 3.3 and 3.4 for detailed instructions on these procedures.

5. Maintenance

The CCIYU Throttle Body Assembly is designed for durability and typically requires no routine maintenance. However, it is advisable to periodically inspect the air intake system for any blockages or debris that could affect airflow to the throttle body. Ensure all connections remain secure.

6. Specifications

7. Support

For any questions regarding the CCIYU Throttle Body Assembly, please contact the manufacturer directly via the contact information provided at the point of purchase. Ensure you have your product model number and vehicle details ready for efficient assistance.
