1. Introduction
Thank you for choosing the Jagger JGR56 BAT 2-in-1 Bib Cock. This manual provides essential information for the safe installation, proper operation, and effective maintenance of your new tap. Please read these instructions carefully before installation and retain them for future reference.
The Jagger JGR56 BAT is a full brass 2-in-1 bib cock tap designed for versatile use in bathrooms, washing machine connections, or toilet health faucet pipe connections. It features a durable chrome finish and a convenient two-way water outlet.
2. Product Overview
Key Features:
- Material: Constructed from 100% virgin Brass Ingots, certified for 63% Copper, ensuring flawless casting and durability.
- Finish: High-quality chrome finish for a sleek appearance and corrosion resistance.
- Design: 2-in-1 bib cock with a wall flange for easy wall mounting.
- Water Flow: Equipped with foam flow technology for a smooth and streamlined water output.
- Operation: Quarter-turn disc mechanism ensures drip-free performance.
What's in the Box:
- 1 x Jagger JGR56 BAT 2-in-1 Bib Cock
- 1 x Wall Flange
- 1 x Teflon Tape
Image 1: The Jagger JGR56 BAT 2-in-1 Bib Cock, showcasing its chrome finish and dual outlets.
3. Specifications
| Brand | JAGGER |
| Model Name | JGR56 BAT (2 IN 1 BIB COCK TAP) |
| Material | Brass |
| Finish Type | Chrome |
| Colour | Silver |
| Mounting Type | Wall Mount |
| Number of Handles | 2 (Lever Type) |
| Hole Count | 1 |
| Special Feature | 2 Way Tap |
| Flow Rate | 5 Centiliters Per Second |
| Installation Method | Single Hole |
| Spout Height | 7 Inches (approx. 17.78 cm) |
| Spout Reach | 4 Inches (approx. 10.16 cm) |
| Item Weight | 345 Grams |
| Item Dimensions (D x W x H) | 12D x 9W x 9H Centimeters |
Image 2: Detailed product dimensions for the Jagger JGR56 BAT 2-in-1 Bib Cock.
4. Safety Information
- Always turn off the main water supply before attempting any installation, repair, or maintenance.
- Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Do not overtighten connections, as this can damage the tap or plumbing.
- Keep small parts away from children to prevent choking hazards.
5. Installation Guide
This section outlines the general steps for installing your Jagger JGR56 BAT 2-in-1 Bib Cock. Ensure you have all necessary tools and components before starting.
Tools You May Need:
- Adjustable wrench
- Pipe wrench (optional)
- Screwdriver (if wall flange requires screws)
- Cleaning cloth
Installation Steps:
- Prepare the Installation Area: Turn off the main water supply to the installation point. Ensure the wall surface is clean and free from debris.
- Apply Teflon Tape: Wrap the included Teflon tape clockwise around the threaded pipe coming out of the wall. Apply 3-5 layers to ensure a watertight seal.
- Attach the Wall Flange: Slide the decorative wall flange over the threaded pipe until it rests against the wall.
- Install the Bib Cock: Carefully screw the Jagger JGR56 BAT bib cock onto the threaded pipe. Hand-tighten first, then use an adjustable wrench to tighten it securely. Ensure the tap is oriented correctly with the main spout facing downwards and the secondary outlet accessible. Do not overtighten.
- Check for Leaks: Slowly turn on the main water supply. Inspect all connections for any signs of leaks. If leaks are detected, turn off the water supply, tighten the connection slightly, and recheck.
Image 3: Diagram illustrating the multi-layer electroplating process, contributing to the tap's durability and finish.

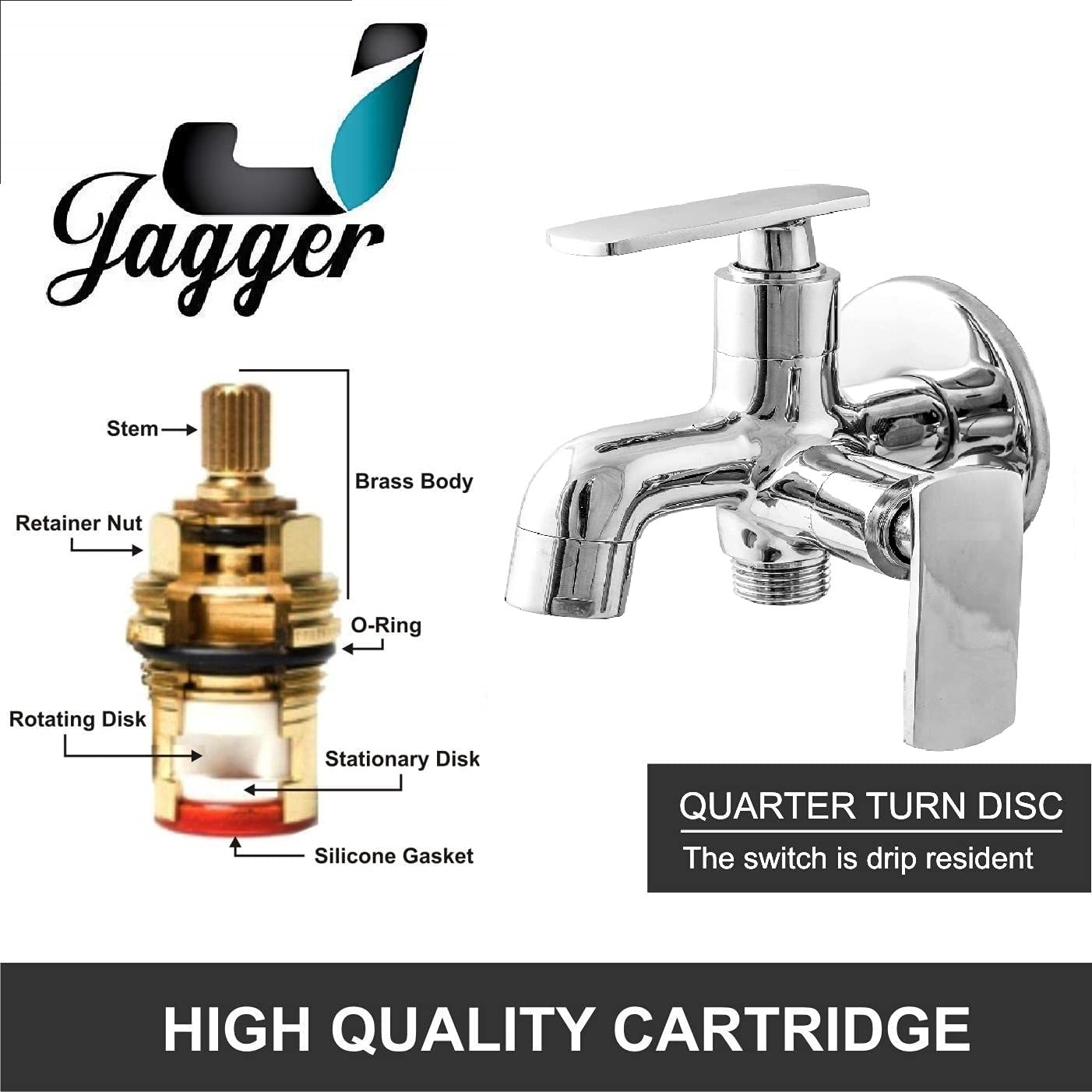

Image 4: Exploded view of the high-quality quarter-turn disc cartridge, showing components like the brass body, rotating disk, and silicone gasket.
6. Operation
The Jagger JGR56 BAT 2-in-1 Bib Cock features two independent lever handles for controlling water flow.
- Main Spout Operation: The primary lever handle controls the water flow from the main spout. Turn the handle to open or close the water flow. The quarter-turn disc ensures smooth and precise control.
- Secondary Outlet Operation: The secondary lever handle controls the water flow from the lower outlet, designed for connecting washing machine hoses or health faucet pipes. Turn this handle to open or close the water flow to the connected appliance.
Both outlets can be used simultaneously or independently as needed.
Image 5: Illustration of the aerated foam flow technology, providing a smooth and soothing water stream.
7. Maintenance
Proper maintenance will ensure the longevity and continued performance of your Jagger JGR56 BAT bib cock.
- Cleaning: Clean the chrome finish regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome fixtures. Avoid using harsh chemicals, abrasive pads, or acidic cleaners, as these can damage the finish.
- Aerator Cleaning: If water flow becomes restricted, the aerator at the tip of the main spout may be clogged. Unscrew the aerator, rinse it under running water to remove any debris, and reattach it.
- Leak Checks: Periodically check all connections for any signs of leaks. Address any leaks promptly to prevent water damage.
- Corrosion Resistance: The multi-layer plating provides excellent corrosion resistance. However, prolonged exposure to harsh chemicals or highly acidic/alkaline water can affect the finish.
8. Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water Leakage from Spout | Worn-out cartridge or O-rings. | Replace the internal cartridge or O-rings. Refer to Image 4 for cartridge components. |
| Water Leakage from Base/Connections | Loose connections or insufficient Teflon tape. | Turn off water supply, tighten connections, or reapply Teflon tape. |
| Low Water Flow | Clogged aerator or debris in the water line. | Clean the aerator (see Maintenance section). Check water supply pressure. |
| Stiff Handle Operation | Mineral buildup or worn internal components. | Clean around the handle base. If problem persists, the cartridge may need replacement. |
9. Warranty and Support
Warranty: This Jagger JGR56 BAT 2-in-1 Bib Cock comes with a 5-year warranty against manufacturing defects. Please retain your purchase receipt as proof of purchase for warranty claims.
Manufacturer: JAGGER INDIA
For any support, queries, or warranty claims, please contact your retailer or the manufacturer directly. Provide your model number (JGR56 BAT) and details of the issue for efficient assistance.
