FIMEI HGM-411 Multifunction Food Processor User Manual

1. Introduction

Thank you for choosing the FIMEI HGM-411 Multifunction Food Processor. This appliance is designed to simplify your kitchen tasks with its versatile functions, including chopping, blending, juicing, grinding, kneading, whisking, shredding, and slicing. Please read this manual carefully before first use to ensure safe and optimal operation. Keep this manual for future reference.

2. Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before operating the appliance.
• Do not immerse the motor base in water or other liquids.
• Ensure the appliance is unplugged from the power outlet before assembling, disassembling, or cleaning.
• Avoid contact with moving parts. Blades are sharp; handle with care.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• The appliance features a triple safety lock system. The machine will only operate when all three locks are securely engaged.
• Always use the food pusher when feeding ingredients through the chute. Never use your fingers or other utensils.
• Do not overload the appliance. Refer to the maximum fill lines for each attachment.
• To prevent overheating, do not operate the machine for extended periods. If the machine overheats and stops automatically, unplug it and allow it to cool down before restarting.
• This appliance is for household use only.

3. Product Components

Familiarize yourself with the various parts of your FIMEI HGM-411 Food Processor:

An overview of the FIMEI HGM-411 Multifunction Food Processor, showcasing the main unit, 3.5L chopping bowl, 1.5L blender jug, grinder, citrus juicer, dough hook, whisk, and various shredding/slicing discs.

• Motor Base: The main unit containing the 1300W motor and control dial.
• 3.5L Processing Bowl: For chopping, shredding, slicing, kneading, and whisking.
• 1.5L Blender Jug: For blending liquids, smoothies, and crushing ice.
• Grinder Attachment: For grinding coffee beans, spices, and nuts.
• Citrus Juicer Attachment: For extracting juice from citrus fruits.
• Chopping Blade: For mincing, chopping, and pureeing.
• Dough Hook: For kneading dough.
• Whisk Attachment: For whipping cream and eggs.
• Shredding/Slicing Discs (3 types):
  • Coarse Shredding/Slicing Disc
  • Fine Shredding/Slicing Disc
  • Cutting Disc
• Food Pusher: For safely guiding food into the feed chute.
• Lids: Various lids for the processing bowl, blender jug, and grinder.

4. Setup and Assembly

Before first use, wash all removable parts in warm soapy water, rinse thoroughly, and dry. Wipe the motor base with a damp cloth.

4.1 Assembling the Processing Bowl

1. Place the motor base on a stable, flat surface.
2. Attach the processing bowl onto the motor base, aligning the arrow on the bowl with the arrow on the base. Turn clockwise until it locks into place.
3. Insert the desired blade or disc onto the central shaft within the bowl. Ensure it is securely seated.
4. Place the lid onto the processing bowl, aligning the tab on the lid with the slot on the bowl handle. Turn clockwise until it locks.
5. Insert the food pusher into the feed chute. The machine will only activate when the pusher is correctly locked.

This image illustrates the dimensions of the FIMEI HGM-411 Food Processor (44cm height, 23cm depth, 26cm width) and highlights the triple safety lock system, indicating that all three locks must be securely engaged for operation.

Demonstration of the pusher lock mechanism for the 3.5L container, showing how to secure the pusher to activate the machine. It also illustrates the large and small feed chutes for adding ingredients during operation and how the design prevents food splatter.

4.2 Assembling the Blender Jug

1. Ensure the blender blade assembly is securely attached to the bottom of the blender jug.
2. Place the blender jug onto the motor base, aligning the jug with the base and turning clockwise until it locks.
3. Place the lid onto the blender jug and secure it.

4.3 Assembling the Grinder

1. Fill the grinder cup with ingredients (e.g., coffee beans, spices).
2. Attach the grinder blade assembly to the cup.
3. Invert the grinder assembly and place it onto the motor base, turning clockwise to lock.

4.4 Assembling the Citrus Juicer

1. Place the juicer bowl onto the motor base.
2. Place the reamer cone onto the shaft in the juicer bowl.
3. Ensure all parts are securely in place before operation.

5. Operating Instructions

The FIMEI HGM-411 features a control dial with 3 speeds and a pulse function.

5.1 General Operation

1. Ensure the appliance is correctly assembled and all safety locks are engaged.
2. Plug the appliance into a power outlet.
3. Turn the control dial to the desired speed (1, 2, or 3) for continuous operation, or to 'P' (Pulse) for short bursts of power.
4. To stop, turn the dial back to 'OFF'.
5. Always unplug the appliance after use and before disassembling or cleaning.

5.2 Using the Chopper (3.5L Bowl)

Use the chopping blade for mincing, chopping, and pureeing ingredients like vegetables, meat, and nuts.

1. Assemble the processing bowl with the chopping blade.
2. Add ingredients to the bowl. Do not exceed the maximum fill line.
3. Secure the lid and food pusher.
4. Select speed 1 or 2, or use the pulse function for controlled chopping.

Illustrates the versatility of the FIMEI HGM-411 Food Processor, showing its use for grinding meat with the chopping blade, kneading dough with the dough hook, and whipping cream with the whisk attachment.

5.3 Using the Shredder/Slicer (3.5L Bowl)

Choose from the coarse, fine, or cutting discs for various shredding and slicing tasks.

1. Assemble the processing bowl with the desired shredding/slicing disc.
2. Secure the lid and food pusher.
3. Turn the appliance on to speed 2 or 3.
4. Feed ingredients through the large or small feed chute using the food pusher.

This image displays the three interchangeable discs for the FIMEI HGM-411 Food Processor: one for coarsely shredding and slicing, one for finely shredding and slicing, and a cutting blade. Examples of processed vegetables are shown for each blade type.

Close-up of the large dual feed chute on the FIMEI HGM-411 Food Processor, showing how its wider opening eliminates the need for pre-cutting most foods, with examples of a tomato and a cucumber being inserted.

5.4 Using the Blender (1.5L Jug)

Ideal for making smoothies, shakes, sauces, and crushing ice.

1. Assemble the blender jug onto the motor base.
2. Add ingredients to the jug. Do not exceed the maximum fill line.
3. Secure the lid.
4. Select speed 3 or use the pulse function for blending.

Showcases the 1.5L fruit blender attachment, capable of crushing ice cubes, and the citrus juicer attachment, designed for easy juice extraction by pressing lightly.

5.5 Using the Grinder

For grinding dry ingredients like coffee beans, spices, and nuts.

1. Assemble the grinder attachment with ingredients.
2. Place the grinder onto the motor base and lock it.
3. Select speed 3 or use the pulse function for grinding.

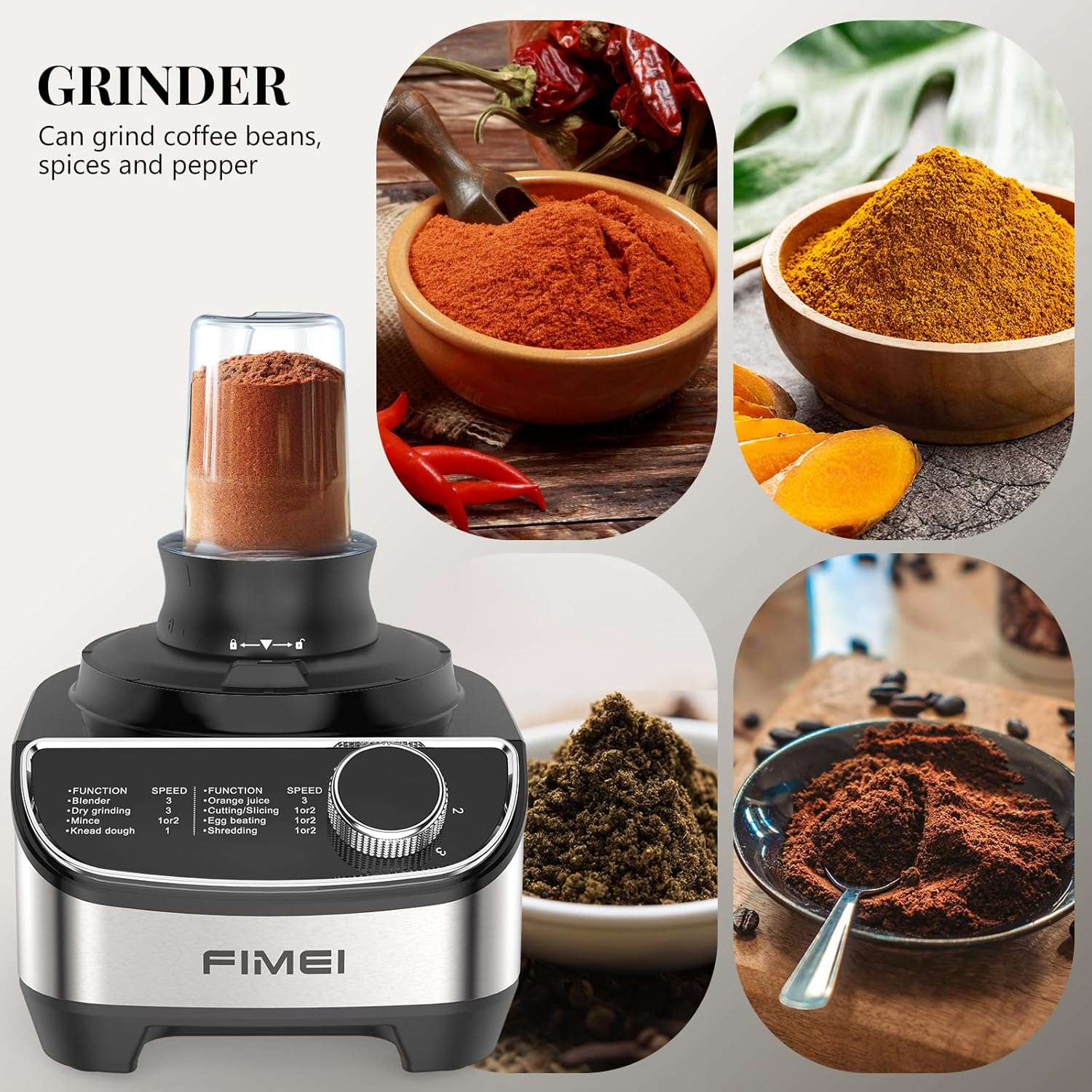

Focuses on the grinder attachment of the FIMEI HGM-411 Food Processor, demonstrating its capability to grind coffee beans, spices, and pepper into fine powders.

5.6 Using the Dough Hook (3.5L Bowl)

For kneading various types of dough.

1. Assemble the processing bowl with the dough hook.
2. Add ingredients for dough.
3. Secure the lid and food pusher.
4. Select speed 1 or 2 for kneading.

5.7 Using the Whisk Attachment (3.5L Bowl)

For whipping cream, egg whites, and light batters.

1. Assemble the processing bowl with the whisk attachment.
2. Add ingredients.
3. Secure the lid and food pusher.
4. Select speed 3 for whisking.

6. Maintenance and Cleaning

Proper cleaning and maintenance will extend the life of your appliance.

1. Always unplug the appliance before cleaning.
2. Motor Base: Wipe the motor base with a damp cloth. Do not immerse it in water or any other liquid.
3. Attachments (Bowls, Jugs, Blades, Discs): Wash all removable parts in warm, soapy water. Rinse thoroughly and dry immediately.
4. Dishwasher Safety: The FIMEI HGM-411 is not dishwasher safe. All parts should be hand washed.
5. Storage: Store the appliance and its accessories in a dry, safe place. Use the provided storage bag for blades to prevent injury.

7. Troubleshooting

If you encounter issues with your FIMEI HGM-411 Food Processor, refer to the following common problems and solutions:

• Appliance does not turn on:
  • Ensure the power cord is securely plugged into a working outlet.
  • Verify that all safety locks (bowl, lid, and food pusher) are correctly engaged. The machine will not operate if any lock is not secured.
• Motor stops during operation:
  • The appliance may have overheated. Unplug the unit and allow it to cool down for at least 30 minutes before attempting to restart.
  • Check if the bowl is overloaded. Reduce the amount of ingredients.
• Food is not processed evenly:
  • Ensure ingredients are cut into appropriate sizes before processing.
  • Use the pulse function for better control over consistency.
  • For shredding/slicing, ensure consistent pressure on the food pusher.
• Loud noise during operation:
  • Some noise is normal for a powerful motor.
  • Ensure all attachments are correctly assembled and locked.
  • Check for any foreign objects in the bowl or jug.

If the problem persists after following these steps, please contact customer support.

8. Specifications

9. Warranty and Support

Information regarding specific warranty terms and customer support contact details is not provided in the product data. Please refer to the product packaging or the retailer's website for warranty information and customer service contacts.
