KYBOLT 10'x10' Hardtop Gazebo Instruction Manual

1. Important Safety Information

Please read and understand all instructions and safety warnings before assembly and use of this gazebo. Failure to follow these instructions may result in injury or damage to the product.

• Proper Anchoring: Ensure the gazebo is securely anchored to the ground using appropriate hardware to prevent wind uplift.
• Temperature Caution: Exercise caution when touching metal components during extreme temperature changes, as they can become very hot or cold.
• Snow Load: The roof is designed to withstand snow loads up to 1700 pounds. However, heavy snow accumulation should be cleared promptly to prevent structural damage.
• Assembly Safety: Due to the product's size and weight, assembly requires at least three adults. Wear appropriate safety gear, including gloves and eye protection.
• Site Selection: Choose a level surface for installation, clear of overhead obstructions like power lines or tree branches.

2. Product Overview

The KYBOLT 10'x10' Hardtop Gazebo provides a durable and stylish outdoor shelter. It features a galvanized steel roof and a powder-coated metal frame, designed for resistance against rust and various weather conditions.

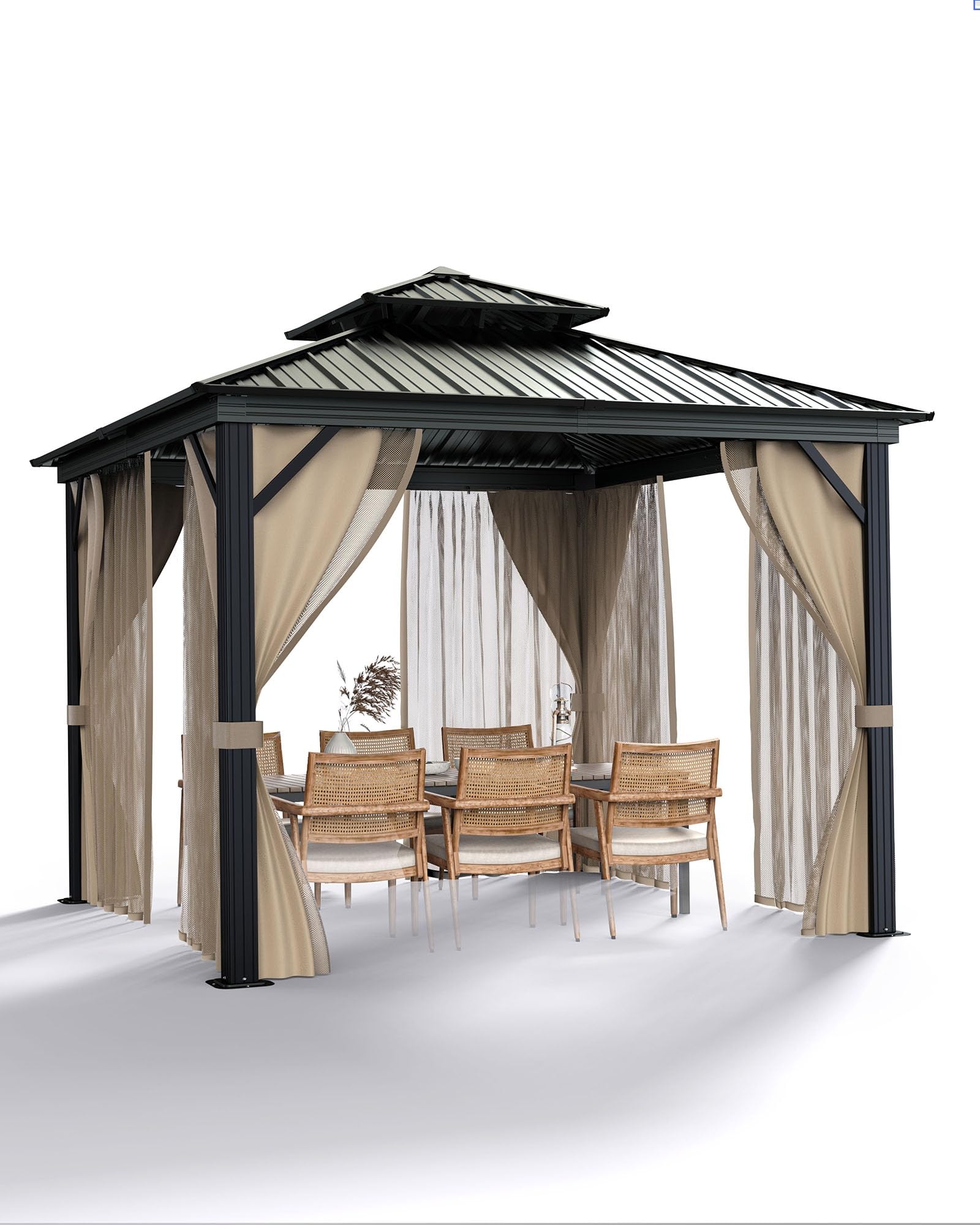

Image: The KYBOLT 10'x10' Hardtop Gazebo providing shade in an outdoor living space.

Key Features:

• Durable Construction: Heavy-duty galvanized steel roof and powder-coated pipe frame for rust resistance and stability.
• Spacious Design: Measures approximately 120 inches (10 ft) wide, 120 inches (10 ft) deep, and 112.5 inches (9.375 ft) high, offering ample space for outdoor activities.
• Weather Resistant: Enhanced to withstand various weather conditions, including significant snow loads.
• Efficient Drainage: Roof design promotes effective water runoff, keeping the underside dry.

3. Package Contents

Your KYBOLT Hardtop Gazebo is shipped in multiple sturdy cardboard boxes. Before beginning assembly, verify that all parts listed in the included parts list are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

Typical components include:

• Roof Panels (Galvanized Steel)
• Frame Posts and Beams (Powder-Coated Metal)
• Curtains/Nets (if applicable)
• Hardware Kit (bolts, nuts, washers, anchors)
• Assembly Tools (basic wrenches, hex keys)

4. Assembly Instructions

Assembly of the KYBOLT Hardtop Gazebo typically requires 3 people and an estimated time of 6-8 hours. Follow the step-by-step instructions provided in the separate assembly manual included in your package. Ensure all connections are secure before proceeding to the next step.

Key Assembly Steps:

1. Unpack and Organize: Lay out all parts and hardware, verifying against the parts list.
2. Assemble Frame: Connect the main support posts and beams. Ensure all bolts are finger-tight initially, then fully tighten once the frame is square.
3. Install Roof Structure: Attach the roof support beams and purlins.
4. Attach Roof Panels: Secure the galvanized steel roof panels according to the manual, ensuring proper overlap for water resistance. Pay attention to the efficient drainage design.
5. Install Curtains/Nets: If included, hang the curtains or netting onto the designated tracks or rings.
6. Anchor Gazebo: Securely anchor the gazebo to the ground using the provided anchoring hardware. This step is critical for stability and safety.

Image: Detail of the gazebo's reinforced poles and anti-rust coated aluminum frame, highlighting structural components.

Image: The gazebo's roof design demonstrating efficient water drainage, crucial for proper assembly and longevity.

5. Operating Your Gazebo

Your KYBOLT Hardtop Gazebo is designed to provide a comfortable and shaded area for various outdoor activities. It can accommodate 4-5 people, making it ideal for relaxation, dining, or entertaining.

• Curtains/Nets: If your model includes curtains or netting, they can be opened or closed to provide privacy, shade, or protection from insects. Ensure they are properly secured to prevent damage in windy conditions.
• Ventilation: The two-tiered roof design allows for improved airflow and ventilation, helping to dissipate heat and smoke from outdoor cooking if used underneath.
• Stability: While sturdy, avoid hanging heavy objects from the frame or roof. Do not climb on the gazebo.

6. Maintenance and Care

Regular maintenance will extend the life and appearance of your gazebo.

• Cleaning Frame: Clean the metal frame with a mild soap and water solution. Rinse thoroughly and dry to prevent water spots. Avoid abrasive cleaners or scrubbers.
• Cleaning Roof Panels: The galvanized steel roof can be cleaned with a soft brush and mild detergent. Rinse well.
• Fabric Care (Curtains/Nets): If your gazebo includes fabric curtains or netting, refer to their specific care instructions. Typically, they can be spot cleaned or hand washed with mild soap and air-dried.
• Snow Removal: During winter, regularly clear heavy snow accumulation from the roof to prevent excessive stress on the structure. The roof is designed to handle up to 1700 pounds of snow load, but proactive removal is recommended.
• Seasonal Inspection: Periodically check all bolts and connections for tightness. Re-tighten as necessary. Inspect the frame for any signs of rust or damage and address them promptly.

Image: The gazebo roof with a layer of snow, illustrating its 'Built to Last' feature and snow load capability.

7. Troubleshooting

If you encounter issues with your gazebo, refer to the following common solutions:

• Wobbly Frame: Ensure all bolts are securely tightened. Check that the gazebo is installed on a level surface and properly anchored.
• Water Leaks: Verify that roof panels are correctly overlapped and sealed according to assembly instructions. Check for any damage to the roof panels.
• Curtains Not Moving Smoothly: Inspect tracks for obstructions or damage. Ensure curtains are properly aligned.
• Rust Spots: Small rust spots on the powder-coated frame can be treated with rust-inhibiting paint after cleaning the area.

8. Specifications

Detailed specifications for the KYBOLT Hardtop Gazebo:

Image: Dimensional view of the gazebo, indicating its overall size and coverage area.

9. Warranty and Customer Support

Your KYBOLT Hardtop Gazebo is backed by a 3-year product warranty. This warranty covers manufacturing defects and material failures under normal use and service conditions.

For any inquiries, missing parts, or warranty claims, please contact KYBOLT customer support. Refer to the contact information provided in your product packaging or visit the official KYBOLT store on Amazon for support options.

When contacting support, please have your model number (DL-KYBOLT-HARD-GAZEBOS-1010-KHAKIFXnfZ) and proof of purchase readily available.
