Important Safety Information
Please read all instructions carefully before using the usmile P20 PRO Electric Toothbrush. Keep this manual for future reference.
- Do not use for children under 3 years old.
- Use under adult supervision for children.
- Do not use for purposes other than oral hygiene.
- Ensure the charging port is dry before connecting the USB-C cable.
- Do not immerse the charging cable or adapter in water.
Product Overview
Package Contents
- usmile P20 PRO Toothbrush Handle
- 2 x DiamondShine Brush Heads (with clear cases)
- USB-C Charging Cable
- User Manual
Image: The usmile P20 PRO Electric Toothbrush, showing the main handle, two brush heads, and the product packaging.
Key Features
- SmartSonic Oscillating & Vibrating: Revolutionary servo system delivers 60° oscillation and adapts to different tooth surfaces for effortless, deep cleaning using the built-in SmartBass Algorithm.
- Smart Ring 4-Zone Brushing Tracking: Provides real-time feedback on brushing coverage, indicating missed areas for a perfect clean.
- DiamondShine Brush Head with Air Cushion: Features diamond-embedded bristles for optimal whitening and air-cushion technology for cleaner teeth and healthier gums.
- 90-Day Runtime: Offers up to 3 months of continuous use on a single charge with universal USB-C charging.
- ADA & TÜV Certified: Accepted by the American Dental Association and certified by TÜV Rheinland, ensuring high standards of safety and efficacy.
Image: Illustration of the SmartSonic Oscillating & Vibrating technology, highlighting the 60° oscillation and SmartBass Algorithm.

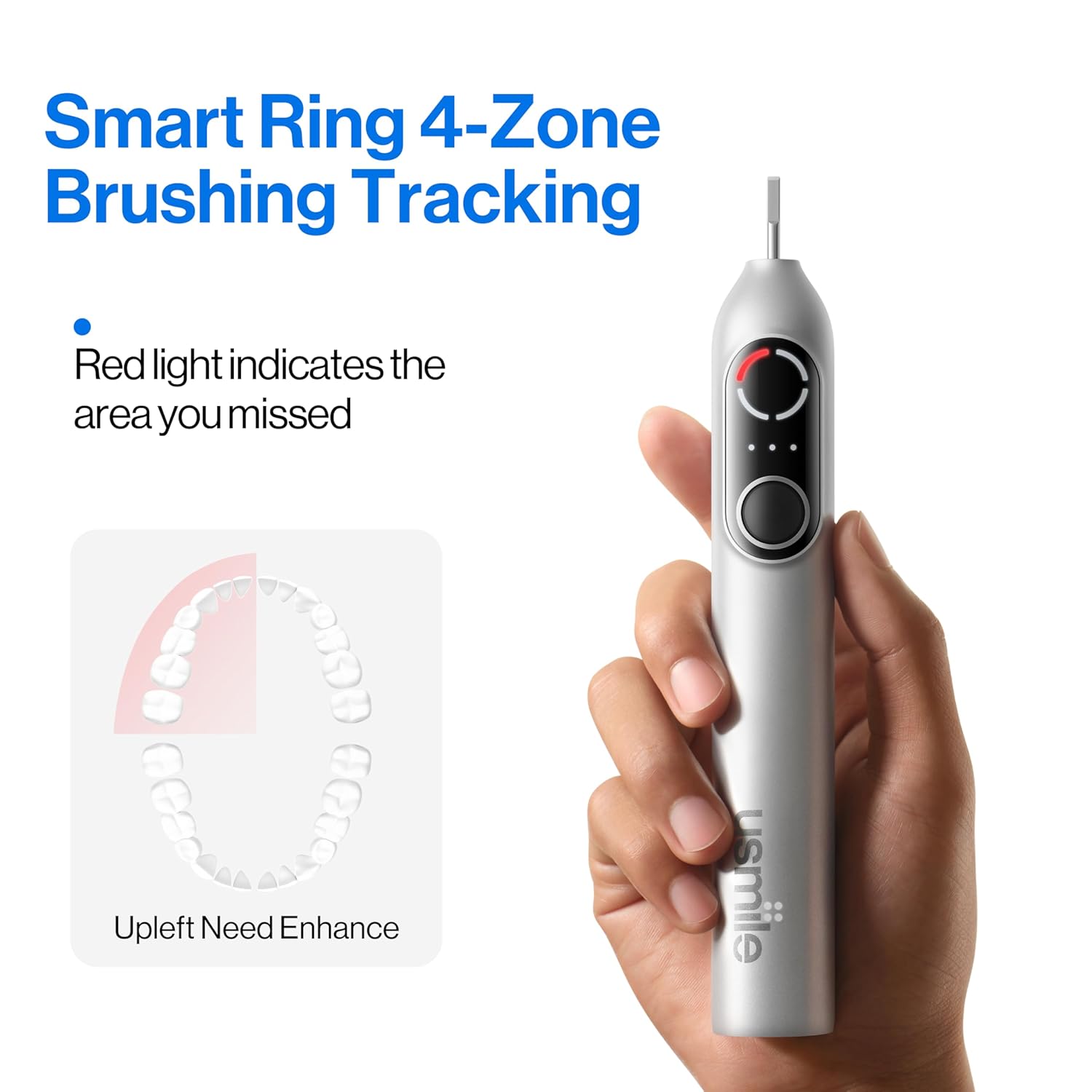

Image: The Smart Ring 4-Zone Brushing Tracking feature, showing how a red light indicates areas that require more attention during brushing.
Image: Detailed view of the DiamondShine Brush Head, emphasizing its diamond-embedded bristles for whitening and air-cushion for gum care.
Image: Visual representation of the toothbrush's 90-day runtime and convenient USB-C universal charging capability.
Image: The usmile P20 PRO's certifications, including the ADA Accepted and TÜV Rheinland Certified logos, indicating trusted quality.
Setup
Initial Charge
Before first use, fully charge your usmile P20 PRO toothbrush. Connect the provided USB-C cable to the charging port at the bottom of the handle and plug the other end into a compatible USB power source (e.g., wall adapter, computer USB port). The display will indicate charging status. A full charge can take approximately 4-6 hours and provides up to 90 days of use.
Attaching the Brush Head
- Align the brush head with the metal shaft on the toothbrush handle.
- Push the brush head down firmly until it clicks into place. Ensure it is securely attached.
- To remove, pull the brush head straight up from the handle.
Operating Instructions
Powering On/Off
- To turn on the toothbrush, press the power button (larger button) once.
- To turn off the toothbrush, press and hold the power button for 2 seconds. The toothbrush will also automatically shut off after 4 minutes of continuous operation.
Selecting Brushing Modes
The usmile P20 PRO offers multiple brushing modes to suit your needs. To switch modes:
- With the toothbrush turned on, press the function button (smaller button) repeatedly.
- The display will cycle through the available modes:
- Smart Mode: Automatically adapts oscillating and vibrating actions to different tooth surfaces for comprehensive cleaning.
- Clean Mode: For a thorough daily clean.
- White Mode: Designed for effective stain removal and whitening.
- Soft Mode: Gentle cleaning, ideal for sensitive teeth and gums.
- Release the function button when your desired mode is displayed.
Brushing Technique
For optimal results, follow these guidelines:
- Apply Toothpaste: Apply a small amount of toothpaste to the wet brush head.
- Angle the Brush: Place the brush head at a 45-degree angle to your gums, covering both the tooth surface and the gumline.
- Gentle Pressure: Guide the brush slowly across each tooth. Do not scrub or apply excessive pressure. The built-in pressure sensor will alert you if you are brushing too hard by reducing vibration and illuminating a red light.
- 4-Zone Brushing Tracking: The Smart Ring feature on the display will guide you through 4 quadrants of your mouth (upper right, upper left, lower left, lower right). Brush each quadrant for 30 seconds. The toothbrush will provide a brief pause or vibration to indicate when to move to the next quadrant.
- 2-Minute Timer: The toothbrush has a built-in 2-minute timer to ensure you brush for the dentist-recommended duration.
- Thorough Coverage: Ensure you brush all surfaces of your teeth: outer, inner, and chewing surfaces.
Charging
USB-C Charging
The usmile P20 PRO features a universal USB-C charging port for convenience. To charge:
- Ensure the charging port at the bottom of the handle is dry.
- Insert the USB-C cable into the port.
- Connect the other end of the cable to a USB power source.
- The display will show the charging progress.
Battery Life
A fully charged usmile P20 PRO provides up to 90 days of battery life, based on typical usage of two 2-minute brushing sessions per day. This extended battery life makes it ideal for travel without needing to carry a charger frequently.
Maintenance
Cleaning the Toothbrush
To maintain hygiene and performance:
- After each use, rinse the brush head thoroughly under running water while the toothbrush is still on to remove any remaining toothpaste or debris.
- Turn off the toothbrush and remove the brush head. Rinse the brush head and the metal shaft area of the handle separately.
- Wipe the handle with a damp cloth. The usmile P20 PRO is IPX8 waterproof, allowing for easy rinsing and even use in the shower.
- Allow all parts to air dry before reassembling or storing.
Replacing the Brush Head
Dentists recommend replacing your toothbrush head every 3 months, or sooner if the bristles become frayed. To replace:
- Grip the toothbrush handle firmly.
- Pull the old brush head straight up and off the metal shaft.
- Align a new usmile DiamondShine brush head with the shaft and push it down until it clicks into place.
Troubleshooting
If you encounter any issues with your usmile P20 PRO, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Toothbrush does not turn on. | Battery is depleted. | Charge the toothbrush fully using the USB-C cable. |
| Weak vibration or reduced performance. | Low battery. / Brush head worn out. | Recharge the toothbrush. / Replace the brush head. |
| Red light illuminates during brushing. | Applying too much pressure. | Reduce pressure. Brush gently. |
| Toothbrush stops unexpectedly. | Automatic 4-minute shutdown. / Battery depleted. | This is normal operation. If not, recharge the toothbrush. |
| Difficulty changing modes. | Incorrect button press. | Ensure you are pressing the smaller function button repeatedly while the toothbrush is on. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | P20 PRO |
| Product Dimensions | 1.09 x 1.06 x 9.92 inches |
| Weight | 5.26 ounces |
| Battery Type | 1 Lithium Ion battery (included) |
| Power Source | Battery Powered (USB-C rechargeable) |
| Special Features | Brushing Timer, Oscillating-Vibrating, Pressure Sensor, Smart Ring 4-Zone Tracking |
| Waterproof Rating | IPX8 |
| Manufacturer | usmile |
Warranty and Support
usmile products are manufactured to high-quality standards. For specific warranty information regarding your P20 PRO Electric Toothbrush, please refer to the warranty card included in your product packaging or visit the official usmile website. If you require technical support, have questions about product operation, or need assistance with troubleshooting beyond what is covered in this manual, please contact usmile customer service through their official channels.
You can find more information and contact details on the usmile brand store: usmile Official Store
