Haier HW70-BP14929-S I-Pro Series 3 Slim Washing Machine User Manual

1. Introduction

Thank you for choosing the Haier HW70-BP14929-S I-Pro Series 3 Slim Washing Machine. This manual provides essential information for the safe and efficient use of your appliance. Please read it thoroughly before installation and operation, and keep it for future reference.

2. Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.

• Ensure the appliance is properly grounded.
• Do not allow children to play with or in the appliance.
• Unplug the appliance before cleaning or performing any maintenance.
• Do not wash items that are soiled with flammable substances.
• Keep the area around the appliance clear of combustible materials.
• Do not operate the appliance if it is damaged or malfunctioning.

3. Product Overview

Familiarize yourself with the main components of your washing machine.

Components:

• Control Panel: For program selection and settings.
• Detergent Dispenser: For laundry detergent and fabric softener.
• Drum: Stainless steel drum for washing clothes.
• Door: Front-loading door with safety lock.
• Power Cable: For electrical connection.
• Water Inlet Hose: For connecting to the water supply.
• Drain Hose: For water drainage.

4. Installation

Proper installation is crucial for the performance and longevity of your washing machine.

Installation Steps:

1. Unpacking: Carefully remove all packaging materials and transport bolts from the rear of the machine. Keep the bolts for future transport if needed.
2. Positioning: Place the washing machine on a firm, level surface. Ensure there is adequate space around the appliance for ventilation and connections.
3. Leveling: Adjust the leveling feet at the bottom of the machine until it is perfectly stable and level. Use a spirit level to verify.
4. Water Connection: Connect the water inlet hose to a cold water tap. Ensure all connections are tight to prevent leaks.
5. Drainage: Securely place the drain hose into a standpipe or over the edge of a sink, ensuring it is not kinked or blocked.
6. Electrical Connection: Plug the power cable into a grounded electrical outlet. Ensure the voltage matches the appliance's requirements (230V).
7. First Use: Before washing clothes, run an empty cycle with a small amount of detergent to clean the drum and internal components.

5. Operating Instructions

Your Haier washing machine offers various programs and features for optimal laundry care.

Control Panel:

The intuitive touch control panel allows for easy program selection and customization. The display shows the remaining time for the cycle.

Key Features:

• Antibacterial Treatment (ABT): Haier's exclusive ABT treatment protects the most sensitive areas of the washing machine, such as the detergent drawer and door seal, from mold and bacteria buildup, ensuring a hygienic wash.
• Refresh Technology: This micro-steam technology removes odors, fine dust, and allergens from fabrics, reduces wrinkles, and softens textiles. It's ideal for refreshing clothes without a full wash cycle.
• Delay Start: Program your wash cycle to start at a later time, up to 24 hours, to suit your schedule.
• High Efficiency: Designed for energy and water saving, contributing to lower utility bills.

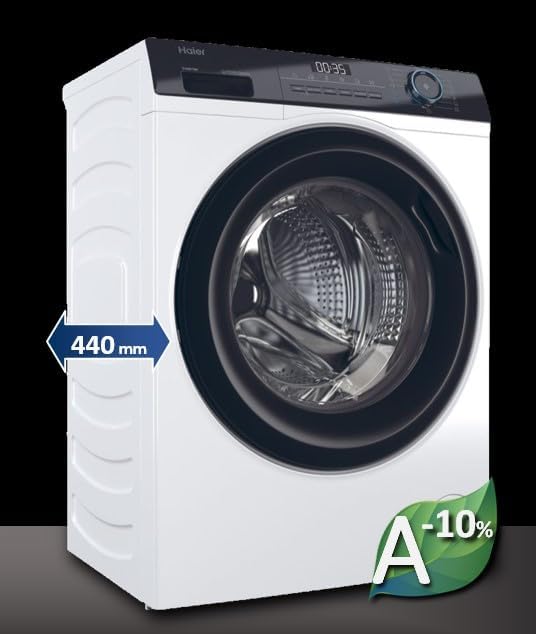

• XXL Drum (525mm): The large drum capacity (7 kg) and design enhance washing performance and care for your garments.

Washing Programs:

The washing machine comes with 3 standard programs. Refer to the control panel for specific program details and additional options.

• Select the appropriate program based on fabric type and soil level.
• Add detergent and fabric softener to the dispenser.
• Load laundry into the drum, ensuring not to overload.
• Close the door securely and press the Start button.

6. Maintenance and Cleaning

Regular maintenance ensures optimal performance and extends the lifespan of your appliance.

• Exterior Cleaning: Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners.
• Detergent Dispenser: Periodically remove and clean the detergent dispenser to prevent residue buildup.
• Drum Cleaning: Run a drum clean cycle (if available) or an empty hot wash cycle with a washing machine cleaner monthly.
• Door Seal: Wipe the door seal after each wash to remove lint and moisture, preventing mold growth.
• Filter Cleaning: Check and clean the drain pump filter regularly to prevent blockages.

7. Troubleshooting

Before contacting customer service, try these solutions for common issues.

8. Specifications

Technical details of the Haier HW70-BP14929-S washing machine.

9. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Haier website. Keep your purchase receipt as proof of purchase.
