Olodumare 3-Piece Manual Recliner Sectional Sofa Instruction Manual

Introduction

This manual provides essential information for the safe and proper assembly, operation, and maintenance of your Olodumare 3-Piece Manual Recliner Sectional Sofa. Please read all instructions carefully before use and retain this manual for future reference.

Safety Information

• Keep children and pets away from the reclining mechanism.
• Ensure sufficient clearance around the sofa when reclining to prevent obstruction or damage.
• Do not stand on the footrest or armrests.
• Avoid placing heavy objects on the recliner mechanism.
• Always ensure the recliner is fully closed before moving the sofa.
• Maximum weight limit per seat is 330 pounds.

Package Contents

Your Olodumare 3-Piece Manual Recliner Sectional Sofa includes the following components:

• 1 x Single Recliner Chair
• 1 x 2-Seater Recliner Loveseat with Center Console
• 1 x 3-Seater Recliner Sofa
• Assembly Hardware (bolts, washers, etc.)
• Instruction Manual
• Throw Pillows (if included with your specific model)

Please verify all parts are present before beginning assembly. If any parts are missing or damaged, contact customer support.

Setup and Assembly

Assembly is required for this product. It is recommended to have two adults for assembly. Ensure you have adequate space to assemble the furniture.

1. Unpack all components and lay them out on a soft, clean surface to prevent scratches.
2. Identify the backrests and seat bases for each section (single chair, loveseat, sofa).
3. Align the metal brackets on the backrest with the corresponding brackets on the seat base.
4. Slide the backrest firmly onto the seat base until it clicks securely into place. Repeat for all sections.
5. For the loveseat, ensure the center console is properly aligned and secured during assembly.
6. Connect the sectional pieces using the provided connectors at the base, if applicable, to prevent separation.
7. Plug in the power cord for the LED light strip (if applicable) to a suitable power outlet.
8. Confirm all connections are secure and the furniture is stable before use.

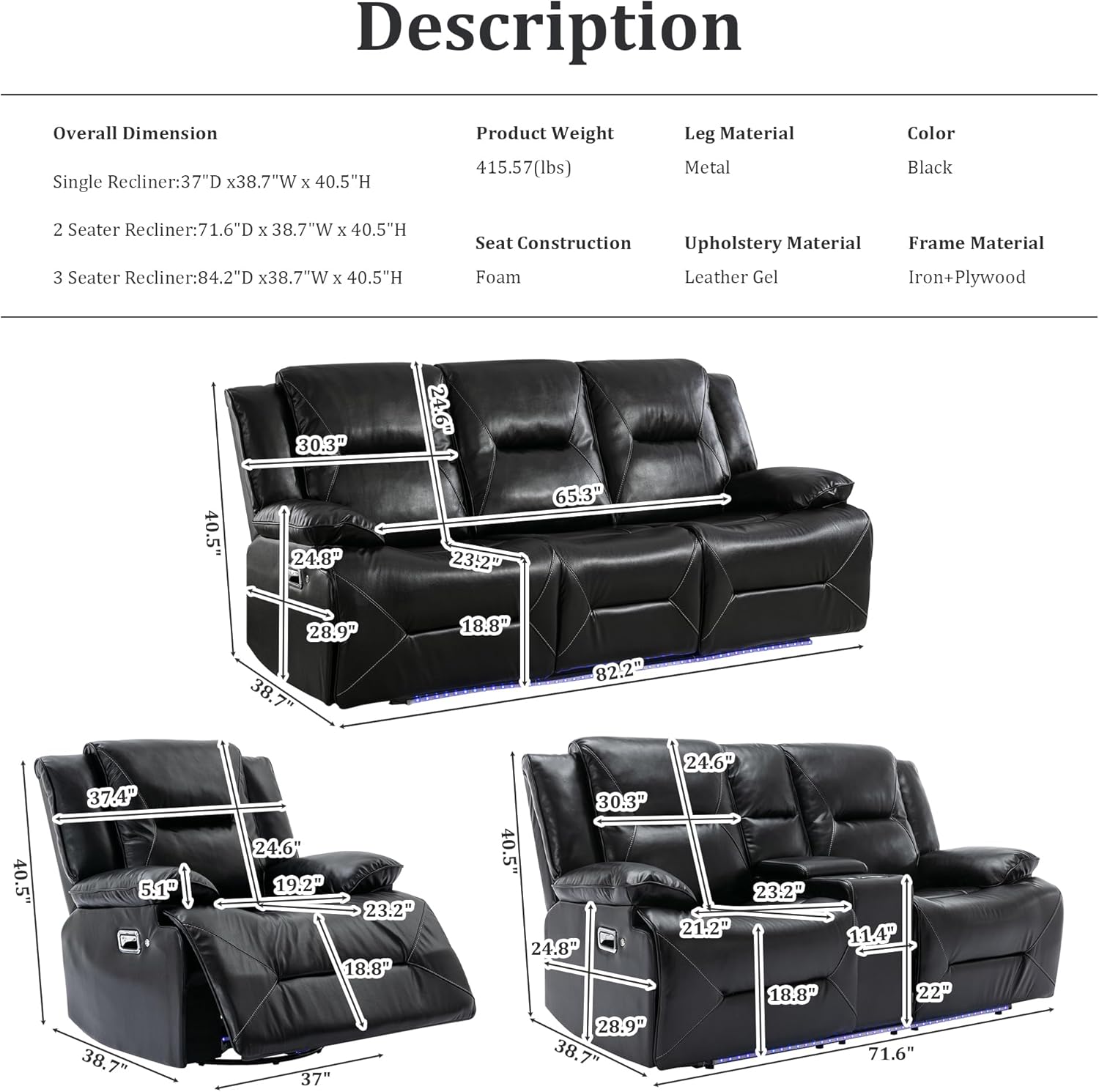

Image: Overall dimensions and individual component measurements for the sectional sofa.

Operating Instructions

1. Manual Reclining Function

Each recliner seat features a manual reclining mechanism. To recline, locate the lever on the side of the seat (typically on the outer side of the armrest). Pull the lever to release the footrest and lean back to achieve your desired reclining angle (between 110° and 150°). To return to the upright position, push the footrest down with your legs until it locks into place, then gently push your back forward.

Image: Detail of the manual recliner lever.

2. Center Console with Drop-down Table and Cup Holders

The 2-seater loveseat includes a center console. The middle backrest can be folded down to reveal a flat surface, creating a convenient drop-down table. This table is equipped with two built-in cup holders for beverages. To use, gently pull the top of the middle backrest forward and down. To return it to the upright position, lift it back into place until it locks securely.

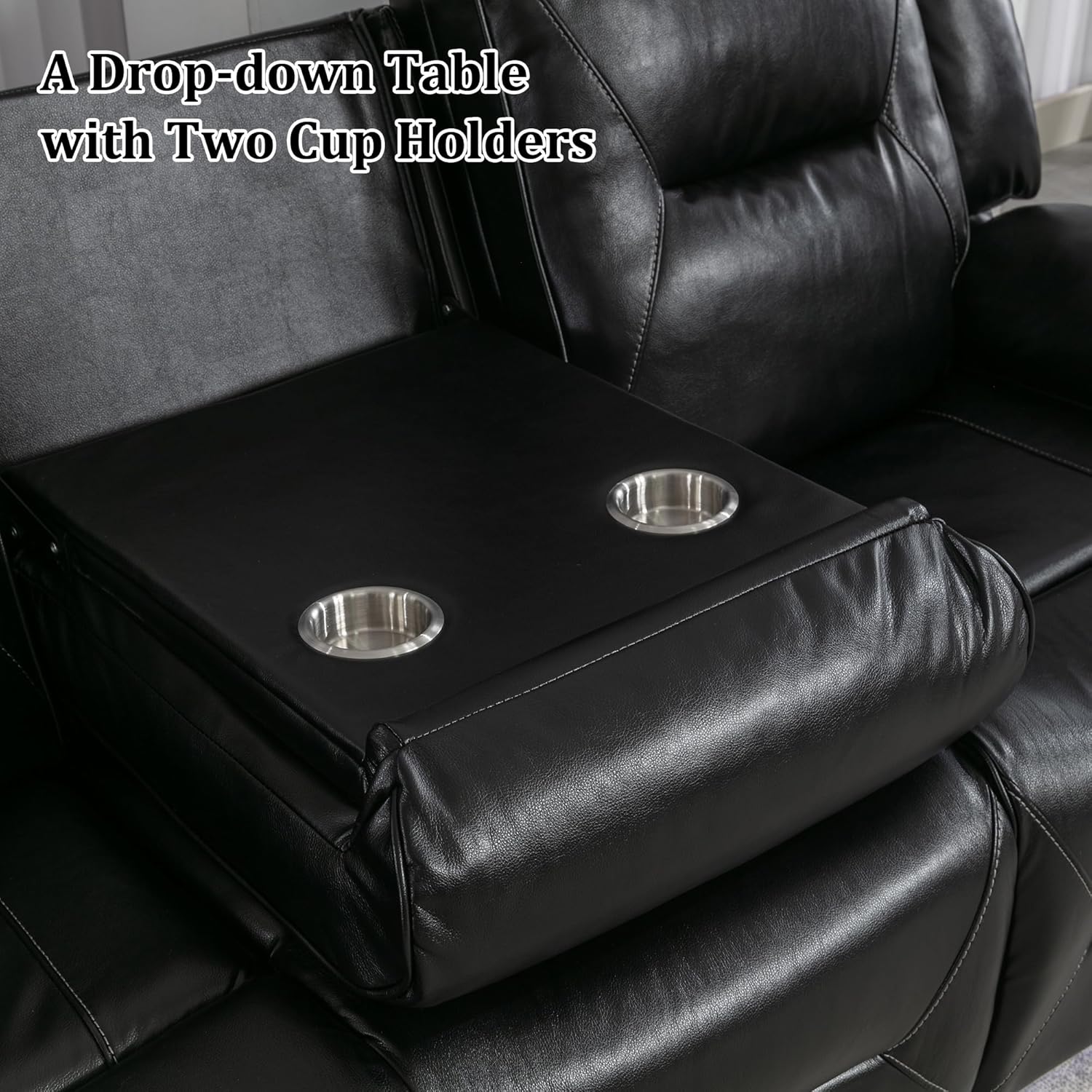

Image: The drop-down table with two cup holders on the loveseat.

Image: Product detail showing hidden storage box and two built-in cup holders.

3. Hidden Storage Compartments

The center console also features hidden storage compartments. Lift the padded top of the console to access space for remote controls, magazines, or other small items.

4. LED Light Strip

The sofa is equipped with an LED light strip located at the base. This feature provides ambient lighting. To activate or deactivate the LED light, locate the small button on the side of the sofa, usually near the recliner lever. Press the button to toggle the light on or off.

Image: The LED light strip enhancing the ambiance of the room.

5. Adjustable Headrest (if applicable)

Some models may feature an adjustable headrest. Gently push or pull the headrest to adjust it to your preferred angle for optimal neck and head support.

6. Rocking Motion and 360-Degree Swivel (Single Recliner Chair)

The single recliner chair offers a gentle rocking motion and a 360-degree swivel function. This allows for versatile positioning and added relaxation. Ensure the chair is not reclined when attempting to swivel or rock to maintain stability.

Product Features Overview Video

Maintenance

Proper care will extend the life and appearance of your sectional sofa.

• Cleaning: For routine cleaning, wipe the PU leather upholstery with a damp cloth. Avoid harsh chemicals or abrasive cleaners, as these can damage the material.
• Spills: Blot spills immediately with a clean, dry cloth. Do not rub.
• Mechanism: Periodically check and tighten any loose bolts on the reclining mechanism. Lubricate moving parts if necessary with a silicone-based lubricant (avoid oil-based lubricants).
• Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading and cracking of the upholstery.

Troubleshooting

If you encounter any issues with your sectional sofa, please refer to the following common solutions:

• Recliner not engaging: Ensure the backrest is fully seated and locked into the base. Check for any obstructions around the mechanism.
• LED light not working: Verify the power cord is securely plugged into both the sofa and a working electrical outlet. Check if the power button is pressed.
• Squeaking noise: Apply a small amount of silicone lubricant to the moving parts of the reclining mechanism.
• Unstable sections: Ensure all sectional connectors are properly engaged and tightened.

If the problem persists, please contact Olodumare customer support.

Specifications

Warranty and Support

This Olodumare product comes with a Limited Warranty. For specific details regarding warranty coverage and duration, please refer to the documentation included with your purchase or contact Olodumare customer support.

For assistance with assembly, missing parts, troubleshooting, or warranty claims, please contact Olodumare customer service through the retailer where the product was purchased or visit the official Olodumare store on Amazon: Olodumare Store.
