1. Introduction
The YITRANIC HP330 Portable Spectrometer is a versatile lighting measurement device designed for precise analysis of light color, color rendering index, and other critical lighting parameters. Featuring a 3.5-inch IPS touch screen and a wavelength range of 380-780 nm, this instrument offers accurate measurements and user-friendly operation. Its compact and robust design makes it suitable for both professional applications and on-site use.
This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your HP330 Portable Spectrometer.
2. Key Features
- High Accuracy: Equipped with a high-precision CCD sensor and a compact crossed Czerny Turner (CT) spectroscopy system for accurate light measurement. Wavelength Range: 380-780nm.
- Multifunctional Analysis: Analyzes comprehensive parameters such as color rendering index, irradiance, color tolerance, and color purity of light sources.
- Compact Design: Lightweight and handheld, featuring a 3.5-inch IPS touch screen for direct, hassle-free data reading. Designed for both experienced users and beginners.
- Connectivity: Connects wirelessly to Android devices via Bluetooth for real-time data monitoring and easier operation. PC software is also available for data export and analysis.
- Wide Application: Ideal for lighting analysis, horticulture, photography, manufacturing quality control, and scientific research.
3. What's in the Box
Verify that all items are present upon unpacking:
- HP330 Spectrometer Unit
- Charging Adapter
- Type-C Data Cable
4. Device Overview
The HP330 features a sleek, portable design with a 3.5-inch IPS touch screen for intuitive interaction. The device integrates a high-precision optical path and a CCD detector (TCD1254) for accurate spectral analysis.

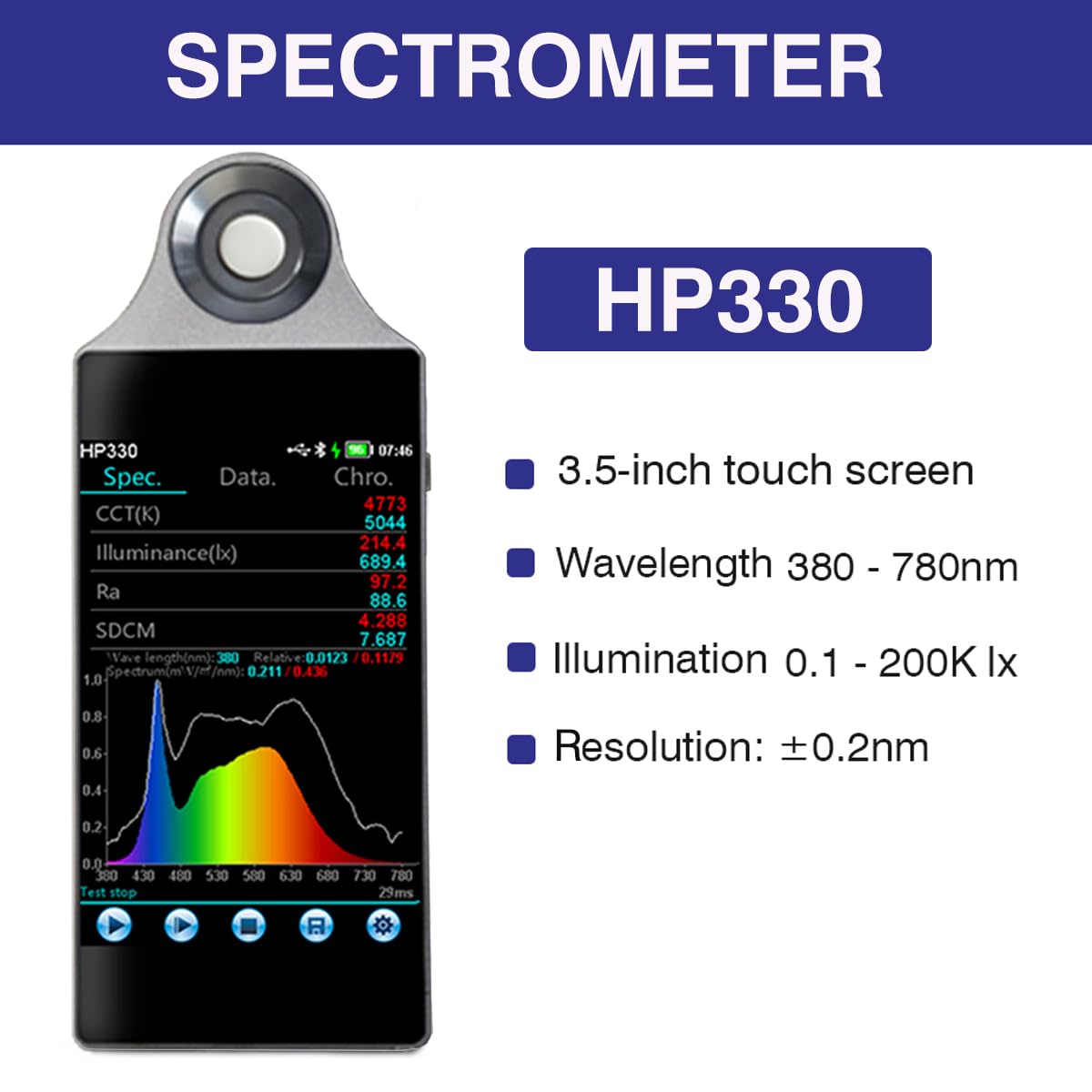

Figure 4.1: Front view of the HP330 Spectrometer displaying various light measurement parameters on its 3.5-inch touch screen.
The device's interface provides real-time data, including CCT(K), Illuminance(lx), Ra, SDCM, and spectral distribution graphs, allowing for immediate assessment of light source characteristics.
5. Setup
5.1 Charging the Device
- Connect the provided Type-C data cable to the HP330 spectrometer's charging port.
- Connect the other end of the cable to the charging adapter, then plug the adapter into a power outlet.
- The device will indicate charging status on its screen. Ensure the device is fully charged before first use for optimal battery life.
5.2 Initial Power On
Press and hold the power button (location typically on the side or top of the device) for a few seconds until the screen illuminates. The device will boot up and display the main measurement interface.
5.3 Bluetooth Connectivity (Android App)
- Ensure Bluetooth is enabled on your Android smartphone or tablet.
- Download and install the official YITRANIC spectrometer application from the Google Play Store.
- Open the application and follow the on-screen instructions to search for and pair with your HP330 device. The device name will typically appear as "HP330" or similar.
- Once paired, you can monitor real-time data and control the spectrometer from your Android device.
5.4 PC Software Installation
The HP330 supports PC software for advanced data analysis and export. Refer to the manufacturer's website or included documentation for the latest software download and installation instructions for Windows and Mac systems.
6. Operating Instructions
6.1 Basic Measurement via Touch Screen
The 3.5-inch IPS touch screen allows for direct operation and parameter analysis. Navigate through menus and settings by tapping and swiping on the screen. To initiate a measurement, typically press a 'Test' or 'Measure' icon on the screen. The device will then display the results.
6.2 Main Test Parameters
The HP330 can measure and display a wide range of lighting parameters, including:
- Illuminance (lx), Irradiance (W/m²)
- Candlelight (fc), Spectral Power Distribution
- CIE1931, CIE1960, CIE1976 Color Coordinates (x,y; u,v; u',v')
- SDCM (Standard Deviation of Color Matching)
- S/P Ratio, Purity (%)
- Red, Green, Blue Ratios (%)
- Color Tolerance Elliptic Graph
- Peak Wavelength (nm), Half Width (nm), Dominant Wavelength (nm)
- Central Wavelength (nm), Centroid (nm)
- Correlated Color Temperature (CCT(K)), Duv
- Color Rendering Index (CRI (Ra)), AvgR, P(λ)
6.3 Using the Android App and PC Software
The companion Android app and PC software enhance the functionality of the HP330 by providing advanced data monitoring, analysis, and export capabilities.

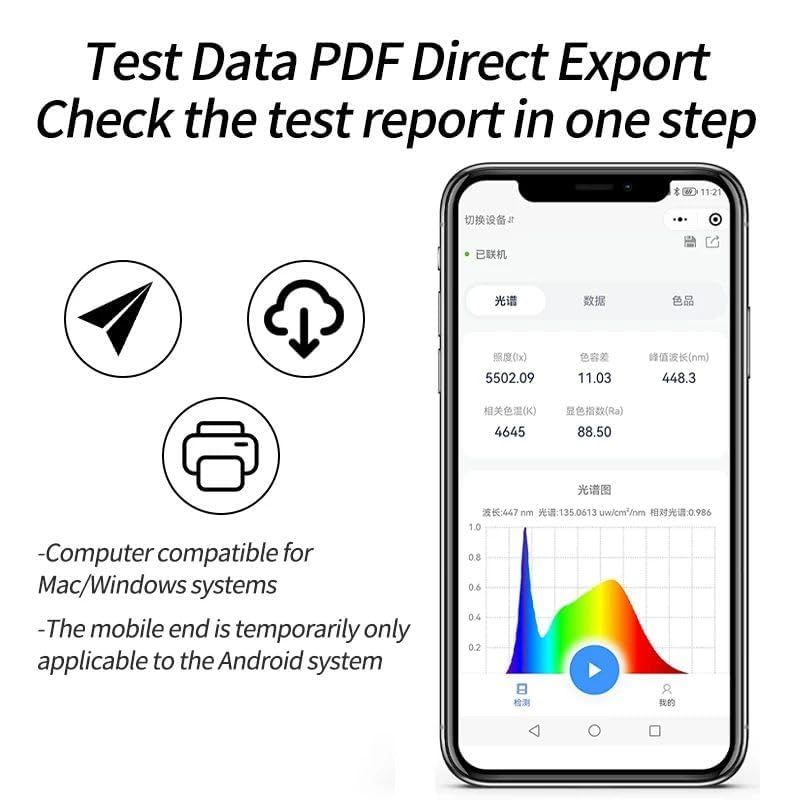

Figure 6.1: Screenshot of the mobile application interface, demonstrating direct PDF export of test data.
- Real-time Monitoring: View live measurement data on your connected device.
- Data Export: Export test data to PDF or other formats for reporting and record-keeping.
- Advanced Analysis: Utilize the software for in-depth analysis, comparison testing, transmission testing, timing testing, and wavelength adjustment.

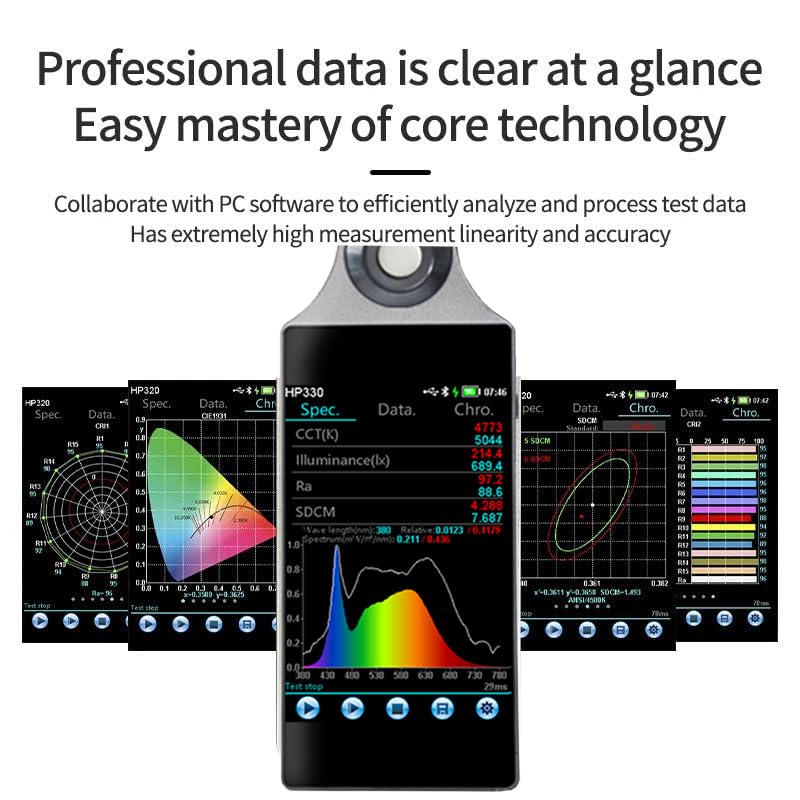

Figure 6.2: Various data visualizations and analysis options available through the spectrometer's interface and companion software.
7. Maintenance
7.1 Cleaning
Gently wipe the device's exterior with a soft, dry cloth. For the screen, use a microfiber cloth specifically designed for electronics. Avoid using abrasive cleaners or solvents that could damage the device.
7.2 Storage and Operating Environment
To ensure the longevity and accuracy of your HP330 spectrometer, adhere to the following environmental guidelines:
- Storage Environment: Humidity less than 70% RH, temperature less than 50°C.
- Operating Environment: Temperature between -10°C to +40°C, humidity between 0-70% RH.
Avoid exposing the device to extreme temperatures, high humidity, direct sunlight, or corrosive environments.
8. Troubleshooting
This section addresses common issues you might encounter with your HP330 spectrometer.
8.1 Device Does Not Power On
- Ensure the device is fully charged. Connect it to the charging adapter and allow sufficient time for charging.
- Verify that the power button is pressed and held for the required duration (typically 3-5 seconds).
8.2 Bluetooth Connection Issues
- Confirm that Bluetooth is enabled on both the HP330 and your Android device.
- Ensure the HP330 is within the Bluetooth range of your Android device.
- Restart both the HP330 and your Android device, then attempt to pair again.
- Check if the YITRANIC app is updated to the latest version.
8.3 Software Compatibility or Display Issues
- Ensure you have downloaded the correct version of the PC or Android software for your operating system and region.
- If encountering display issues with characters or text, verify your system's language settings and ensure the software supports your chosen language.
- For persistent software problems, refer to the official YITRANIC support resources or contact customer service.
8.4 Inaccurate Readings
- Ensure the device's optical sensor is clean and free from dust or smudges.
- Verify that the device is operating within its recommended environmental conditions (temperature and humidity).
- If you suspect calibration issues, contact YITRANIC customer support for assistance.
9. Specifications
Detailed technical specifications for the YITRANIC HP330 Portable Spectrometer:
| Parameter | Value |
|---|---|
| Model Number | HP330 |
| Wavelength Range | 380-780 nm |
| Spectral Resolution | ±0.2 nm |
| Photometric Linearity | ±0.3% |
| Detector | CCD (TCD1254) |
| Display | 3.5-inch IPS Touch Screen |
| Connectivity | Bluetooth (for Android), USB (for PC) |
| Power Source | Built-in Lithium Battery, Type-C Charging |
| Storage Temperature | <50°C |
| Storage Humidity | <70% RH |
| Operating Temperature | -10°C to +40°C |
| Operating Humidity | 0-70% RH |

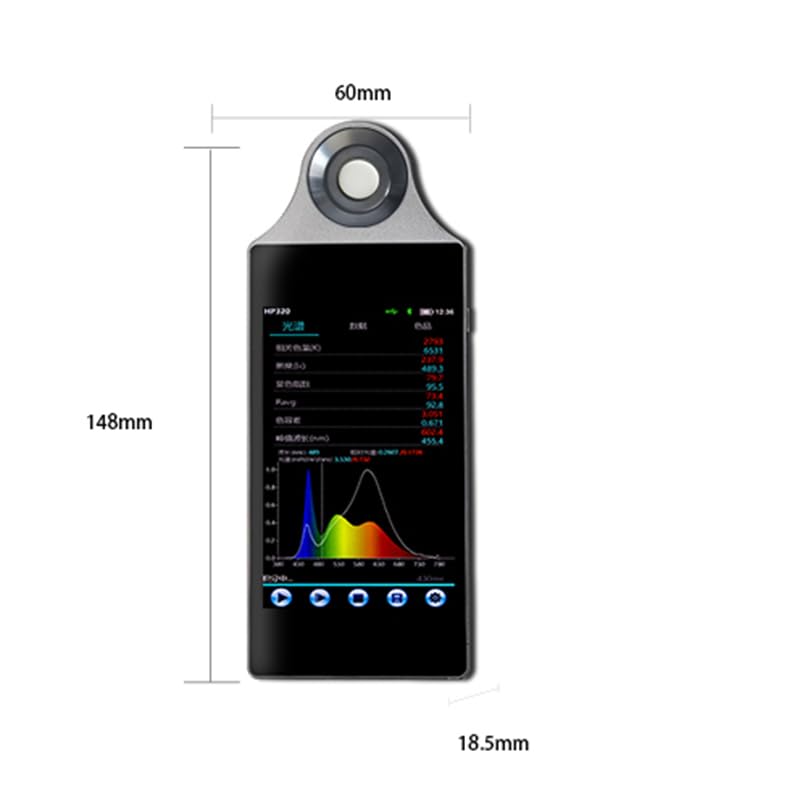

Figure 9.1: Dimensions of the HP330 Spectrometer.
10. Applications
The YITRANIC HP330 Portable Spectrometer is suitable for a wide range of applications, including:
- On-site testing of commercial, healthcare, home, and building lighting.
- Laboratory research and product development.
- Quality control and online monitoring of light source products.
- Horticulture and plant cultivation.
- Photography and lighting design.
- Scientific research in various fields.
Figure 10.1: Examples of diverse applications for the HP330 Spectrometer.
11. Warranty Information
The YITRANIC HP330 Portable Spectrometer comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product meets its specified performance standards under normal use. Please retain your proof of purchase for warranty claims.
For detailed warranty terms and conditions, please refer to the official YITRANIC website or contact customer support.
12. Support Information
If you require technical assistance, have questions about your device, or need to report an issue, please contact YITRANIC customer support. You can typically find contact information on the official YITRANIC website or through the documentation included with your product.
When contacting support, please have your product model (HP330) and purchase details readily available to facilitate a quicker resolution.
