Introduction
This user manual provides essential information for the safe operation, maintenance, and troubleshooting of your Fafrees F26 Lasting Electric Bicycle. Please read this manual thoroughly before your first ride to ensure proper use and to maximize your riding experience.
Safety Information
Your safety is paramount. Always adhere to the following guidelines:
- Always wear a helmet that meets safety standards.
- Familiarize yourself with local traffic laws and regulations regarding electric bicycles.
- Perform a pre-ride inspection before each use, checking brakes, tires, and battery level.
- Do not exceed the maximum load capacity of 120 kg.
- Ensure the seat post is adjusted correctly and does not exceed the safety limit mark.
- Be aware of your surroundings and ride defensively.
- Do not ride under the influence of alcohol or drugs.
- Keep your frame number recorded. It is a unique identifier for your bicycle and crucial for recovery in case of theft. The frame number is typically located under the bicycle.
Product Overview
The Fafrees F26 Lasting Electric Bicycle is designed for comfortable and efficient urban and light trail riding. Key features include a powerful motor, long-range battery, and integrated safety components.
Figure 1: Overview of the Fafrees F26 Lasting Electric Bicycle, showing its main components including the frame, wheels, handlebars, seat, and integrated battery.
Key Components and Features
- 250W Brushless Motor: Provides strong power and quick acceleration up to 25 km/h.
- 36V 20.3Ah Lithium-ion Battery: Offers an extended range of up to 140 km in assisted mode.
- 2.3-inch LCD Display: Shows real-time riding data including speed, distance, and battery life.
- Mechanical Disc Brakes: Ensures precise control and reliable stopping power.
- 7-Speed Transmission Gear: Allows for smooth gear changes across varied terrains.
- Front Suspension Fork: Absorbs shocks and vibrations for a smoother ride.
- Integrated Front and Rear Lights: Enhances visibility for safe riding in low-light conditions.
- Adjustable Stem: Allows riders to customize handlebar angle for a comfortable riding position.
- Front Rack: Provides additional carrying capacity for urban commuting or errands.
- Chain Cover: Protects the chain from dirt and minimizes entanglement with clothing.
Figure 2: Visual representation of the F26 Lasting's key specifications including battery capacity, maximum range, and recommended rider height, along with icons for adjustable stem, charging time, Shimano 7-speed, IP54 waterproof rating, LCD display, and suspension fork.
Adjustable Stem
The adjustable stem allows you to change the angle of the handlebars, enabling you to find a suitable and comfortable riding position tailored to your preference.
Figure 3: Close-up view of the adjustable stem, demonstrating how the angle can be modified for rider comfort.
Setup
Unpacking and Initial Assembly
Your Fafrees F26 Lasting Electric Bicycle comes partially assembled. Follow these steps for final assembly:
- Carefully remove all components from the packaging.
- Attach the front wheel, ensuring the quick-release skewer is securely tightened.
- Install the handlebars, adjusting the stem angle for your preferred riding position. Use the provided tools to tighten all bolts.
- Attach the pedals, noting that the left pedal (L) and right pedal (R) are threaded differently. Tighten firmly.
- Insert the seat post into the frame, ensuring it is above the minimum insertion line and below the safety limit mark. Adjust the seat height for comfortable pedaling.
- Install the front rack if not pre-installed, securing it with the provided hardware.
- Charge the battery fully before your first ride. Refer to the "Battery Charging" section for details.
Battery Installation and Charging
The battery is integrated into the frame. To charge, locate the charging port, typically on the side of the battery or frame. Connect the charger to the port and then to a power outlet. The charging indicator on the charger will show the charging status. A full charge takes approximately 6 to 7 hours.
Operating Instructions
Powering On/Off and Display Usage
To power on the bicycle, press and hold the power button on the LCD display. The display will illuminate, showing your speed, battery level, and current assist mode. To power off, press and hold the power button again.
The 2.3-inch LCD display provides real-time information:
- Speed: Current riding speed.
- Battery Level: Indicates remaining battery charge.
- PAS Level: Power Assist System level (0-5).
- Distance: Trip distance or total odometer.
- Error Codes: Displays codes if a system fault occurs.
Riding Modes
The Fafrees F26 Lasting offers three riding modes:
- Human Mode: Ride like a traditional bicycle with no electric assistance.
- Pedal-Assist Mode (PAS): The motor provides assistance as you pedal. Adjust the assist level (0-5) using the '+' and '-' buttons on the display. Higher levels provide more assistance.
- Pure Electric Mode: Use the throttle (if equipped and legal in your region) to propel the bicycle without pedaling.
- 6 km/h Walk Assist Mode: Activates a low-speed assist for walking the bike, useful when pushing it uphill.
Figure 4: Close-up view of the mechanical disc brakes and the 7-speed transmission gear system, highlighting the brake lever with power-off function and the different riding modes (Pedal, Pedal-assist, Full electrical).
Braking System
The bicycle is equipped with mechanical disc brakes on both the front and rear wheels. Squeeze the brake levers gently to slow down and firmly to stop. The brake levers are designed to cut off motor power when engaged, ensuring safe braking.
Figure 5: Diagram illustrating the various lighting and reflective components for enhanced visibility, including the front light, rear brake light, front reflector, pedal reflector, and wheel reflector.
Maintenance
Regular maintenance ensures the longevity and safe operation of your electric bicycle.
- Tire Pressure: Check tire pressure before each ride. Maintain recommended pressure for optimal performance and safety.
- Brakes: Regularly inspect brake pads for wear and ensure brake levers operate smoothly. Adjust or replace as needed.
- Chain: Keep the chain clean and lubricated to prevent rust and ensure smooth gear changes. The chain cover helps protect it from dirt.
- Fasteners: Periodically check all bolts and nuts for tightness, especially on the handlebars, wheels, and seat post.
- Battery Care: Store the battery in a cool, dry place. If storing for extended periods, charge it to 50-70% every 1-2 months.
- Cleaning: Clean the bicycle with a damp cloth. Avoid high-pressure washing directly on electrical components.

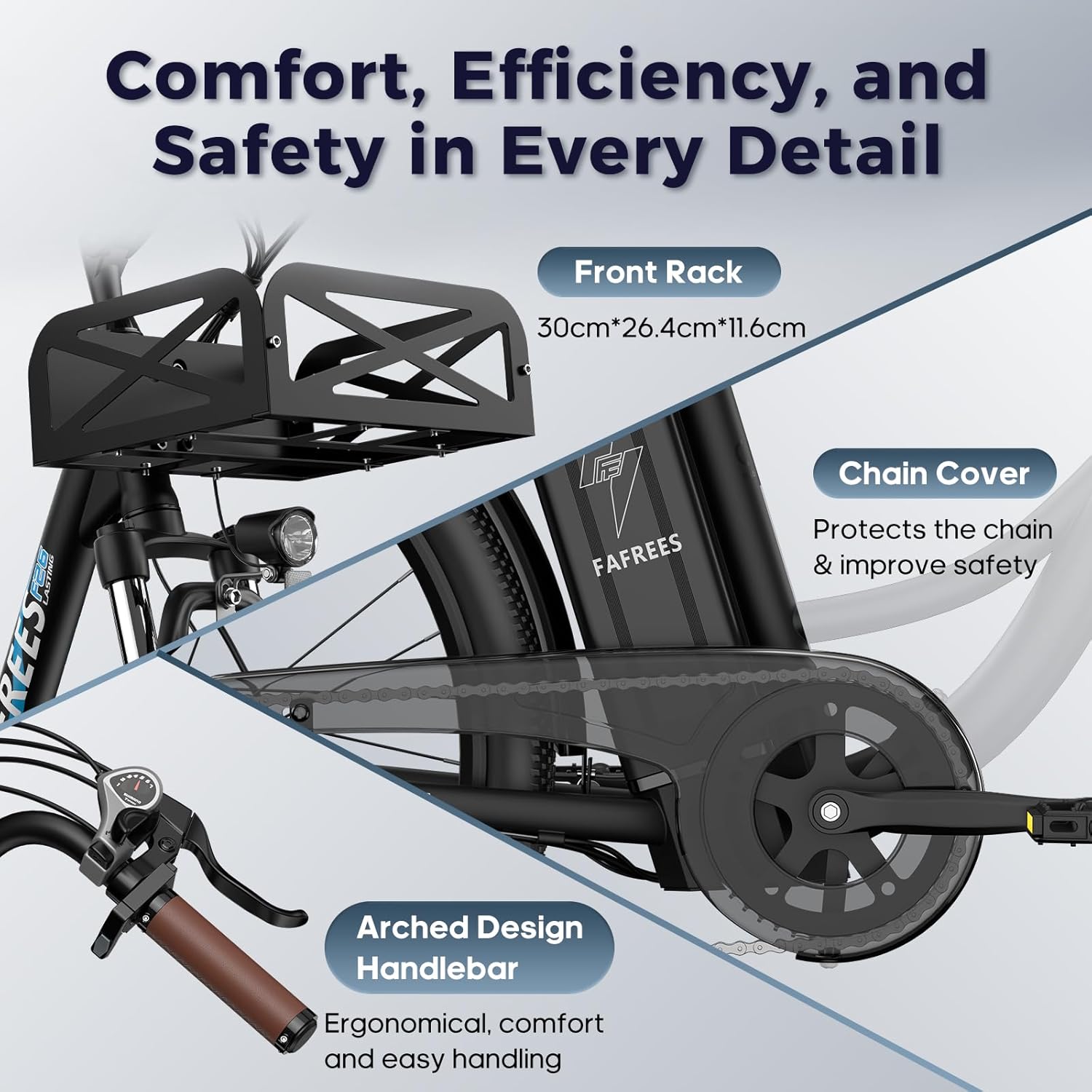

Figure 6: Illustration of design elements contributing to comfort, efficiency, and safety, including the front rack for cargo, the chain cover for protection, and the ergonomically arched handlebar.
Troubleshooting
This section addresses common issues you might encounter with your Fafrees F26 Lasting Electric Bicycle.
- No Power:
- Check if the battery is fully charged and properly seated.
- Ensure the power button on the display is pressed and held correctly.
- Motor Not Assisting:
- Verify that you are in Pedal-Assist mode (PAS level 1-5) and not Human Mode.
- Check if brake levers are fully released, as they cut motor power.
- Ensure the speed sensor on the rear wheel is clean and properly aligned.
- Display Not Working:
- Check battery connection.
- Ensure all cables to the display are securely connected.
- Brakes Squealing/Ineffective:
- Brake pads may be worn or contaminated. Clean or replace pads.
- Brake calipers may need adjustment.
- What to do if there is a problem with the bike?
Please provide a precise description of your problem. If there are photos or videos, it would be better for our engineers to offer an effective solution within two working days. You can send us the video link as a photo, as Amazon does not allow sending videos directly.
Specifications
| Category | Specification |
|---|---|
| Model | F26 Lasting |
| Unfolded Dimensions | 177 x 104 x 63 cm |
| Adjustable Handlebar Height | 104 to 110 cm |
| Adjustable Seat Height | 82 to 99 cm |
| Tire Dimensions | 26" x 1.95" |
| Recommended Rider Height | 158-198 cm |
| Net Weight | 31 kg |
| Max Load | 120 kg |
| Frame Material | Carbon Steel |
| Max Speed | 25 km/h |
| Max Range (Assisted Mode) | 160-200 km |
| Max Range (Pure Electric Mode) | 80-100 km |
| Battery Type | 18650 Lithium-ion (36V 20.3Ah / 730.8 Wh) |
| Charging Time | 6-7 hours |
| Motor Rated Power | 36V 250W |
| Max Torque | 42 Nm |
| Drive Type | Rear Wheel Drive |
| Fork Type | Suspension Fork (40mm travel) |
| Max Climbing Capacity | 15° |
| Display Type | 2.3" Large LCD Display |
| Brake Type | Mechanical Disc Brakes |
| Waterproof Level | IP54 |
| Operating Temperature | -10 ~ 45℃ |
Figure 7: Detailed ergonomic design diagram with key dimensions (A-F) and load capacity (120kg), along with recommended rider height (158-198cm).
Package Contents
- 1 x FAFREES Electric Bicycle
- 1 x Charger
- 1 x Tool Kit
- 1 x User Manual (English, German, French, Spanish, Italian)
- 1 x Gift Box (including 1 inner tube, 2 valve caps, 2 wheel reflectors, 2 brake pads, 1 keychain)
Warranty and Support
For warranty information and customer support, please refer to the official Fafrees website or contact the seller directly. Keep your purchase receipt and frame number handy for any inquiries.
For common questions, you may refer to the Fafrees Brand Store.
