1. Introduction
Thank you for choosing the Consciot 44 inch Low Profile Ceiling Fan. This modern ceiling fan is designed to provide efficient air circulation and customizable lighting for both indoor and covered outdoor spaces. Featuring a quiet, reversible DC motor, 6-speed settings, and a dimmable LED light with 3 color temperatures, this fan offers comfort and convenience. Please read this manual thoroughly before installation and operation to ensure proper use and safety.

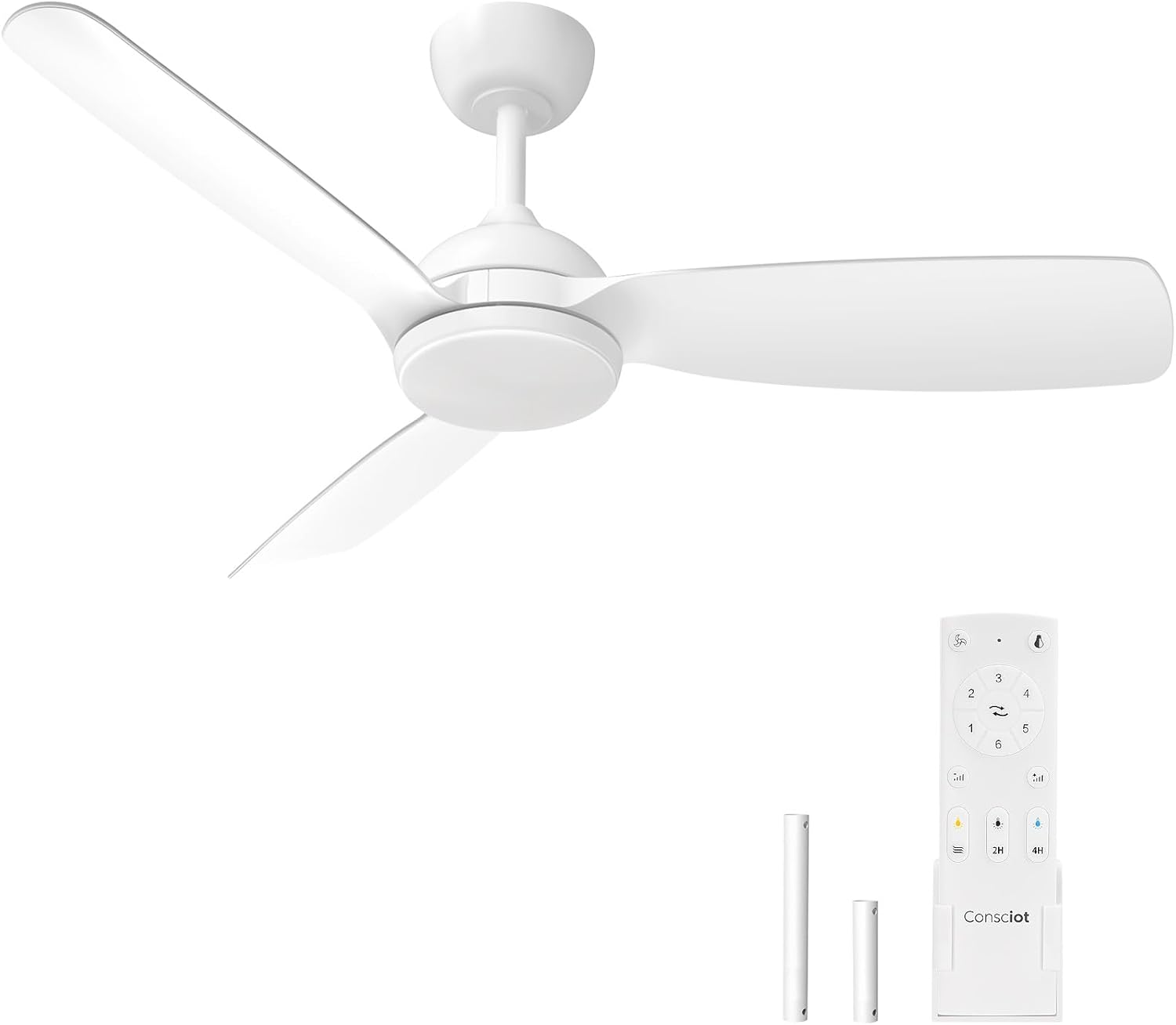

Image 1.1: Consciot 44 inch Low Profile Ceiling Fan with included remote control and downrods.
2. Safety Information
To reduce the risk of fire, electric shock, or personal injury, always follow these basic safety precautions:
- Read all instructions before installing the fan.
- Ensure the power is turned off at the circuit breaker before installation or servicing.
- All wiring must be in accordance with national and local electrical codes. If you are unsure, consult a qualified electrician.
- The fan must be mounted to a ceiling joist or support structure capable of supporting a minimum of 35 lbs (15.9 kg).
- Do not operate the fan with damaged blades or housing.
- Keep hands, hair, and clothing away from moving fan blades.
- This fan is damp-rated, suitable for indoor and covered outdoor use. Do not expose to direct rain or water.
3. Product Specifications
| Feature | Description |
|---|---|
| Brand | Consciot |
| Model Name | CL17001226 |
| Size | 44 inches |
| Color | White |
| Motor Type | Reversible DC Motor |
| Speed Settings | 6 |
| Noise Level | Max 42 dB |
| Air Flow Capacity | 4544 Cubic Feet Per Minute (CFM) |
| Light Output | 1500 LM LED |
| Color Temperature | 3000K (Warm White), 4000K (Cool White), 5000K (Daylight) |
| Dimmable | Yes (5%-100%) |
| Control Method | Remote Control |
| Timer Settings | 2H/4H |
| Included Components | Ceiling fan, Light Kit, Remote, 5" and 10" Downrods |
| Indoor/Outdoor Usage | Indoor, Covered Outdoor (Damp-rated) |
| Sloped Ceiling Support | Up to 15° |
Image 3.1: Detailed dimensions of the ceiling fan and recommended room sizes (10ft x 10ft to 18ft x 18ft).
Image 3.2: Illustration of the fan's damp rating, indicating suitability for bedrooms, laundry rooms, kitchens, and covered patios.
4. Installation Guide
This section provides step-by-step instructions for installing your ceiling fan. It is recommended to have two people for installation.
4.1 Pre-Installation Checklist
- Ensure all components listed in the package contents are present.
- Turn off power at the main circuit breaker.
- Confirm the mounting location can support the fan's weight.
4.2 Mounting Options
The fan supports both flat and sloped ceiling installations (up to 15 degrees). Two downrod lengths (5" and 10") are provided for flexible mounting.
Image 4.1: Visual guide for flat mount and sloped mount ceiling installations, including minimum height requirements.
4.3 Wiring and Assembly
Follow the detailed wiring diagram provided in the physical manual. Connect the fan to the power supply according to local electrical codes. Once wiring is complete, attach the fan blades and the light kit securely.
Image 4.2: Example of the ceiling fan installed in a bedroom, demonstrating its aesthetic integration.
5. Operating Instructions
Your Consciot ceiling fan is controlled by the included remote. Ensure 2 AAA batteries (not included) are installed in the remote.
5.1 Remote Control Functions
- Fan On/Off: Powers the fan on or off.
- 6 Level Speeds: Adjusts fan speed from 1 (lowest) to 6 (highest).
- Light On/Off: Turns the LED light on or off.
- Dimming +/-: Adjusts the brightness of the light from 5% to 100%.
- 3CCT (Color Temperature Change): Cycles through Warm White (3000K), Cool White (4000K), and Daylight (5000K).
- Reversible Switch: Changes the direction of the fan blades for summer (clockwise, cooling) or winter (anti-clockwise, air circulation) modes.
- Timer Setting: Sets the fan to turn off automatically after 2 or 4 hours.
- Natural Wind: Simulates a natural breeze by varying fan speeds.
Image 5.1: Detailed diagram of the remote control, highlighting each button's function.
Image 5.2: Visual representation of the 1500LM customizable LED light, showing 3000K, 4000K, and 5000K color temperatures and 5%-100% dimming capability.
5.2 Reversible DC Motor Function
The reversible DC motor allows you to change the direction of the fan's rotation to optimize air circulation for different seasons.
- Summer Mode (Clockwise Rotation): Pushes air downwards, creating a cooling breeze.
- Winter Mode (Anti-Clockwise Rotation): Draws air upwards, circulating warm air trapped near the ceiling.

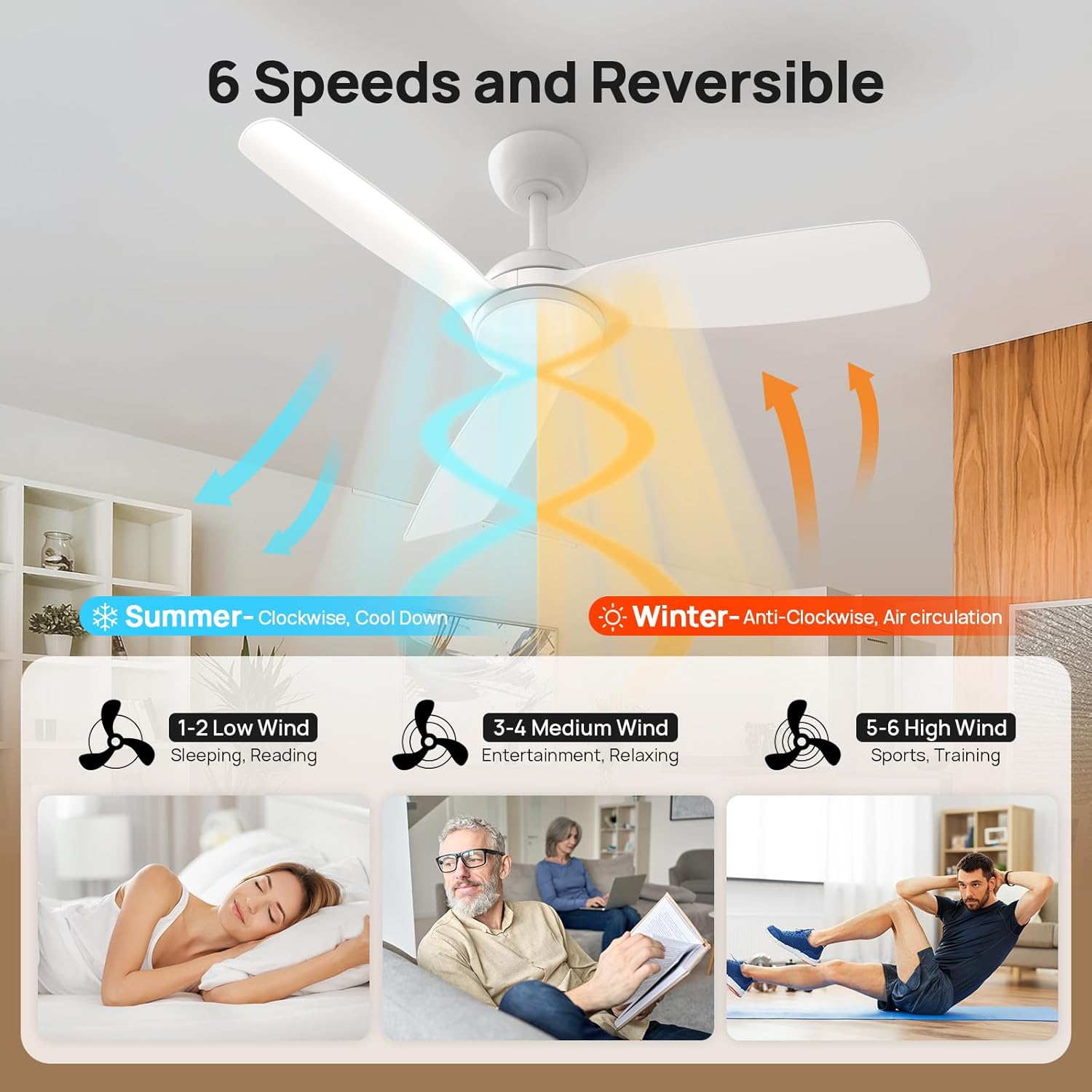

Image 5.3: Illustration demonstrating the airflow direction for summer (cooling) and winter (air circulation) modes.
5.3 Memory Function
The fan and light settings will be memorized after power loss, ensuring your preferred settings are restored when the fan is turned back on.
Image 5.4: Depiction of the fan's memory function, showing settings retention after power cycles.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your ceiling fan.
- Cleaning: To clean the fan, wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure power is off before cleaning.
- Blade Care: Periodically check blade screws for tightness. Loose blades can cause wobbling and noise.
- Light Kit: The LED light source is integrated and not user-replaceable. If issues arise, contact customer support.
7. Troubleshooting
If you encounter any issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Remote control issues. | Check circuit breaker; Verify all wire connections are secure; Replace remote batteries; Re-pair remote if necessary. |
| Fan wobbles | Loose blade screws; Unbalanced blades; Loose mounting bracket. | Tighten all blade screws; Use balancing kit (not included) if needed; Ensure mounting bracket is securely fastened. |
| Light does not work | Loose wire connection to light kit; Remote control issue. | Check light kit wiring; Replace remote batteries; Ensure light button on remote is pressed. |
| Fan is noisy | Loose screws; Motor hum; Blades hitting an obstruction. | Tighten all screws; Ensure fan is securely mounted; Check for any obstructions in the fan's path. |
If the problem persists after trying these solutions, please contact Consciot customer support.
Image 7.1: The fan operates at a maximum of 42dB, ensuring quiet performance suitable for bedrooms.
8. Warranty and Support
Consciot is committed to providing high-quality products and excellent customer service. Your Consciot 44 inch Low Profile Ceiling Fan comes with a 24-month worry-free warranty for the motor and accessories.
For any product problems, technical assistance, or warranty claims, please contact our dedicated after-sales team. Refer to the contact information provided in your product packaging or visit the official Consciot website for support details.
We value your satisfaction and are here to assist you.
