Introduction
This manual provides detailed instructions for the setup, operation, and maintenance of the Audiosavings American DJ ADJ UBL9H LED RGBAL+UV Wash Light Strip Bar. Please read this manual thoroughly before operating the device to ensure proper use and to maximize its performance and lifespan.
Image: A bundle of eight Audiosavings American DJ UBL9H LED wash light bars, showcasing their multi-color output.
Product Overview
Key Features
- Equipped with 9 x 20W Ultra bright (Red, Green, Blue, Amber, Lime, and UV) LEDs.
- Offers a 17° beam angle.
- Features a high Color Rendering Index (CRI) of over 90.
- Provides linear color temperature control from 2,300K to 9,900K.
- Supports smooth RGBAL+UV color mixing.
- Includes a Horizontal Magnetic Alignment feature for seamless multi-fixture setups.
- Compatible with the ADJ UC-IR24 remote control.
- RDM (Remote Device Management) compatible.
- Offers 7 DMX channel modes (6, 11, 13, 16, 18, 25, & 28 channels).
- Features 3 groups of 3 RGBAL+UV LED pixels, controllable via DMX in 18, 25, and 28 channel modes.
- Includes 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode.
- LED Refresh Rate: 1.9KHz.
- 64 built-in Color Macros.
- 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2).
- 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve).
- Built-in microphone for sound-triggered effects.
- LED pulse and strobe effects.
- Electronic Dimming: 0-100%.
- Linkable DMX via 5-pin XLR cable.
- Locking power In/Out for daisy-chaining power.
- Multi-voltage operation: AC 100V-240V 50/60Hz.
- Power Draw: 54W.
- Daisy-chain power link: Up to 22 units @120V or 40 units @230V.
- Certifications: cETLus, CE, FCC.
- IP20 rated for indoor use.
Package Contents
The Audiosavings American DJ ADJ UBL9H package includes:
- UBL9H Wash Light Strip Bar
- Indoor Locking Power Cord
- UC-IR24 Remote Control
- 20° Diffusion Filter
- Mounting brackets (for ground placement or truss mounting)
Image: The UC-IR24 remote control and the indoor locking power cord, essential accessories for operating the UBL9H light bar.
Setup Instructions
Unpacking and Inspection
- Carefully remove the UBL9H light bar and all accessories from the packaging.
- Inspect the unit for any signs of damage during transit. If damage is found, contact your dealer immediately.
- Ensure all listed package contents are present.
Mounting
The UBL9H includes mounting brackets for versatile placement:
- Ground Placement: Attach the brackets to the sides of the unit and position it on a flat, stable surface.
- Truss Mounting: The brackets can be used to attach a clamp (not included) for mounting the unit to a truss system. Ensure the clamp is securely fastened and the truss system can support the weight of the fixture.
Image: A single UBL9H light bar shown with its mounting brackets attached, ready for ground placement or truss mounting.
Power Connection
- Connect the indoor locking power cord to the POWER IN port on the rear of the UBL9H.
- Plug the other end of the power cord into a compatible AC 100V-240V, 50/60Hz power outlet.
- For daisy-chaining multiple units, connect additional UBL9H units from the POWER OUT port of the first unit to the POWER IN port of the next. Observe maximum linkable units: 22 units @120V or 40 units @230V.
Image: The rear panel of the UBL9H, displaying the power input/output and DMX input/output ports, along with the OLED display and control buttons.
DMX Connection (Optional)
For DMX control, connect a 5-pin XLR DMX cable from your DMX controller to the DMX IN port on the UBL9H. For multiple units, daisy-chain from the DMX OUT of one unit to the DMX IN of the next.
Diffusion Filter Attachment
The included 20° diffusion filter can be attached to the front of the light bar to modify the beam angle and soften the light output.

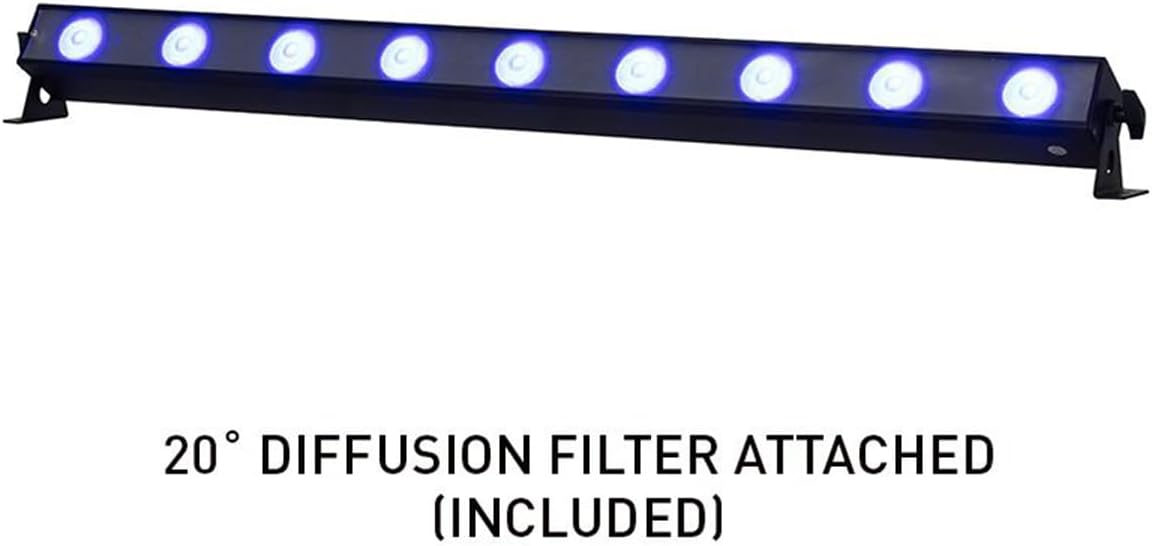

Image: A UBL9H light bar with the 20° diffusion filter installed, demonstrating how the filter modifies the light output.
Horizontal Magnetic Alignment
The UBL9H features a built-in horizontal magnetic alignment system, allowing multiple units to be seamlessly connected side-by-side for a continuous wash effect.
Image: A detailed view of the magnetic alignment system on the UBL9H, showing how units can be joined together for a continuous lighting array.
Operating Instructions
The UBL9H can be operated via its onboard OLED display and buttons, the UC-IR24 remote control, or a DMX-512 controller.
OLED Display and Buttons
Use the 4-buttons located next to the OLED display on the rear of the unit to navigate menus and adjust settings. The display provides feedback on the current mode, DMX address, and other parameters.
Operational Modes
The UBL9H offers five primary operational modes:
- Auto Run Mode: Cycles through pre-programmed light shows automatically.
- Program Mode: Allows selection of specific built-in programs.
- Sound Trigger Mode: The light effects react to sound detected by the built-in microphone.
- RGBAL+UV Manual Mode: Provides direct control over Red, Green, Blue, Amber, Lime, and UV LED intensities.
- DMX-512 Mode: Enables external control via a DMX controller.
DMX Control
When in DMX-512 Mode, the unit responds to commands from a DMX controller. Select one of the 7 DMX channel modes (6, 11, 13, 16, 18, 25, or 28 channels) based on your control requirements. In 18, 25, and 28 channel modes, the 3 groups of 3 RGBAL+UV LED pixels can be controlled independently.
Color Temperature Control
Adjust the linear color temperature from 2,300K (warm white) to 9,900K (cool white) to match environmental lighting or achieve specific aesthetic effects.
Dimming and Strobe Effects
The unit supports electronic dimming from 0-100%. Select from 6 dim modes and 4 dim curves to achieve desired dimming characteristics. LED pulse and strobe effects are also available.
UC-IR24 Remote Control
The included UC-IR24 remote control allows for convenient wireless operation of various functions from a distance of up to 32.8 feet (10 meters).
Image: A UBL9H light bar illuminated with blue light, demonstrating its color output capabilities.
Image: Multiple UBL9H light bars installed along a wall, producing a vibrant purple wash effect in an event space.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your UBL9H light bar.
- Cleaning: Periodically clean the exterior of the unit with a soft, dry cloth. Ensure the lenses are free of dust and debris to maintain light output quality. Do not use harsh chemicals or abrasive materials.
- Ventilation: Ensure that the ventilation openings are not obstructed to prevent overheating.
- Cable Inspection: Regularly check power and DMX cables for any signs of wear or damage. Replace damaged cables immediately.
- Storage: When not in use for extended periods, store the unit in a dry, dust-free environment.
Troubleshooting
If you encounter issues with your UBL9H light bar, refer to the following common troubleshooting steps:
- No Power:
- Check if the power cord is securely connected to both the unit and the power outlet.
- Verify that the power outlet is functional.
- Ensure the power switch (if present) is in the ON position.
- No Light Output:
- Check the selected operational mode. Ensure it is not in a standby or off state.
- If using DMX, verify the DMX signal and address settings.
- Check dimming levels; ensure they are not set to 0%.
- Incorrect Color/Effect:
- If using DMX, confirm the DMX channel mode and controller settings.
- In manual modes, re-adjust color parameters.
- Ensure no diffusion filters or accessories are inadvertently altering the light.
- Remote Control Not Responding:
- Ensure there are no obstructions between the remote and the unit's IR receiver.
- Check the battery in the UC-IR24 remote control and replace if necessary.
- Verify the unit is within the remote's operational range (up to 32.8 feet).
For further assistance, contact Audiosavings customer support.
Specifications
| Feature | Detail |
|---|---|
| Light Source | 9 x 20W Ultra bright (Red, Green, Blue, Amber, Lime, UV) LEDs |
| LED Life Expectancy | Approximately 50,000 hours |
| Beam Angle | 17° |
| CRI (Color Rendering Index) | >90 |
| Pixel Pitch | 113mm |
| Color Temperature Control | 2,300K to 9,900K |
| DMX Channel Modes | 6, 11, 13, 16, 18, 25, 28 channels |
| Operational Modes | Auto Run, Program, Sound Trigger, RGBAL+UV Manual, DMX-512 |
| LED Refresh Rate | 1.9KHz |
| Dim Modes | 6 selectable (Standard, Stage, TV, Architectural, Theatre & Stage 2) |
| Dim Curves | 4 selectable (Square, Linear, Inv. Square & S. Curve) |
| Electronic Dimming | 0-100% |
| Power Input | AC 100V-240V, 50/60Hz |
| Power Draw | 54W |
| Daisy-chain Power Link (120V) | Up to 22 units |
| Daisy-chain Power Link (230V) | Up to 40 units |
| Dimensions (LxWxH) | 2.96" x 42.60" x 4.2" (75x1082x106.7mm) |
| Weight | 7.28 lbs (3.3 kg) |
| IP Rating | IP20 (Indoor use only) |
| Certifications | cETLus, CE, FCC |
| Operating Temperature Range | -1°F to 113°F (-20°C to 45°C) |
Warranty and Support
This product is offered by Audiosavings. For specific warranty information, please refer to the documentation provided with your purchase or contact Audiosavings directly.
Return Policy: This product is eligible for a 30-day return policy, allowing for refunds or replacements within this period.
For technical support or service inquiries, please contact Audiosavings customer support through their official channels.
