Introduction
Thank you for choosing the SUNVIVI 8-Quart Electric Roaster Oven. This versatile appliance is designed for roasting, baking, slow cooking, and warming, offering a convenient solution for various culinary needs. Please read this manual thoroughly before first use to ensure safe and optimal operation.
Important Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons. This includes:
- Read all instructions before operating the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the main unit in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
Product Components
The SUNVIVI 8-Quart Electric Roaster Oven includes the following main components:
- Main Roaster Unit: The outer housing with heating elements and control knob.
- Removable Roasting Pan: An enamel-on-steel pan for cooking.
- Self-Basting Lid: Designed to circulate moisture for juicy results.
- Roasting Rack: A metal rack to elevate food within the roasting pan.
Image: The roaster oven with its lid removed, revealing the removable roasting pan and the roasting rack. The instruction manual is also visible inside the pan.
Setup Instructions
- Unpack: Carefully remove all packaging materials and components from the box.
- Clean: Before first use, wash the removable roasting pan, self-basting lid, and roasting rack in warm, soapy water. Rinse thoroughly and dry completely. The main roaster unit should be wiped with a damp cloth. Do not immerse the main unit in water.
- Assemble: Place the clean, dry removable roasting pan into the main roaster unit. Insert the roasting rack into the pan.
- Placement: Position the roaster oven on a stable, heat-resistant surface, away from walls and other appliances to allow for proper ventilation.
- Initial Burn-Off: It is recommended to operate the roaster empty for 30 minutes at 350°F (175°C) before first use to burn off any manufacturing oils. This may produce a slight odor and smoke, which is normal. Ensure adequate ventilation during this process.
Image: A hand demonstrates placing the roasting rack inside the removable roasting pan of the roaster oven.
Operating Instructions
Temperature Control
The roaster oven features an adjustable thermostat with a temperature range of 150°F to 400°F (65°C to 204°C), plus specific settings for "KEEP WARM" and "DEFROST".
- Preheating: Turn the temperature control knob to the desired temperature. The indicator light will illuminate, signaling that the unit is heating. The light will turn off once the set temperature is reached.
- Cooking: Place food on the roasting rack within the removable pan. Cover with the self-basting lid.

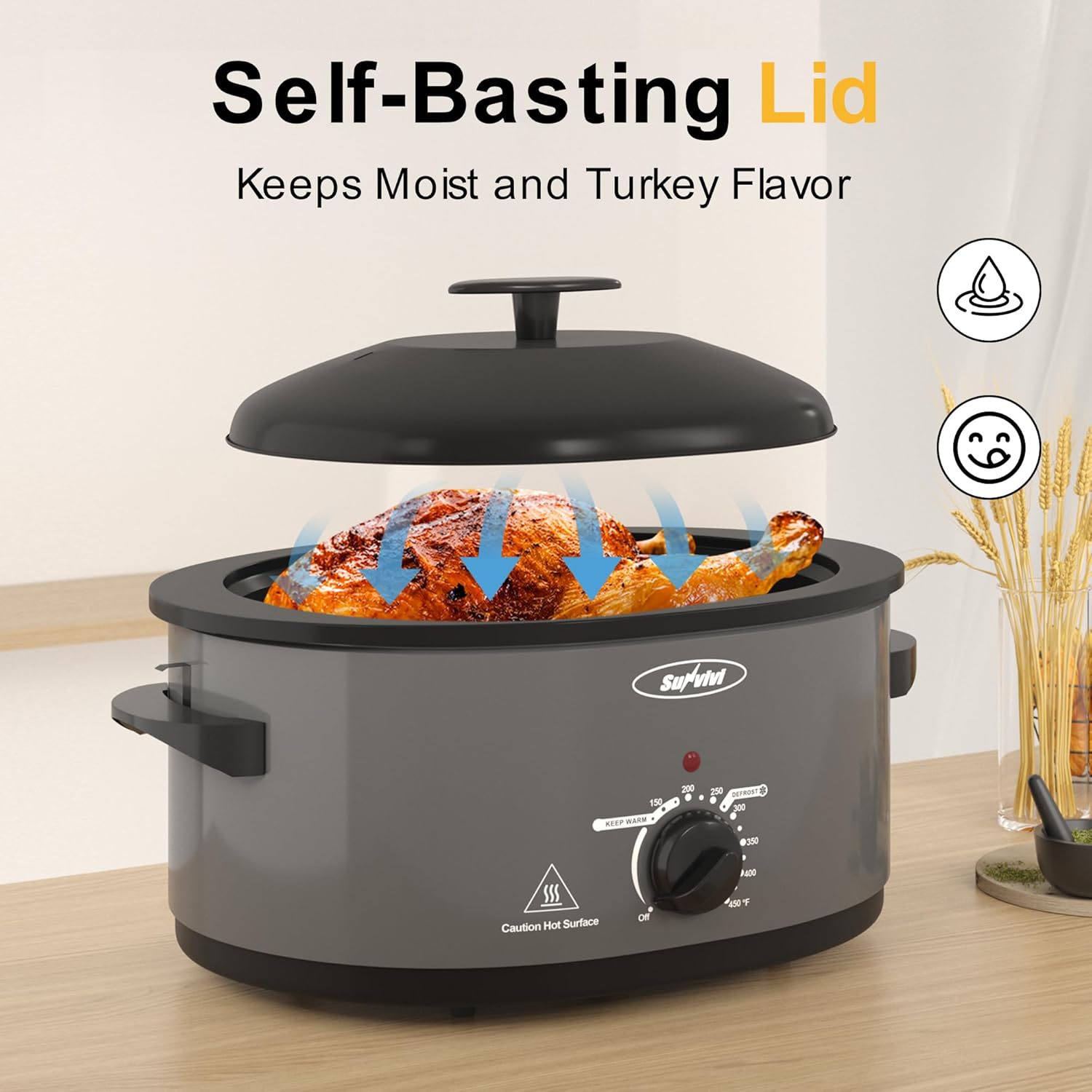

- Self-Basting Lid: The unique design of the lid ensures continuous moisture circulation, which helps keep food juicy and tender.
- Defrost Function: Use the "DEFROST" setting to safely thaw frozen foods before cooking.
- Keep Warm Function: Once cooking is complete, turn the knob to "KEEP WARM" to maintain food at an ideal serving temperature without overcooking.
Image: A hand adjusting the temperature control knob on the roaster oven, highlighting the various temperature settings and the indicator light.
Versatile Cooking
This roaster oven is suitable for a variety of dishes:
- Roasting: Perfect for turkeys, chickens, roasts, and other large cuts of meat.
- Baking: Can be used for casseroles, breads, and desserts.
- Slow Cooking: Functions as a slow cooker for stews, soups, and tenderizing meats.
- Warming: Ideal for keeping food warm during gatherings or buffets.
Image: A perfectly roasted chicken inside the roaster oven, demonstrating its roasting capability.
Video: A demonstration of the SUNVIVI 8-Quart Electric Roaster Oven, showing various cooking applications and the ease of cleaning the removable pan.
Cleaning and Maintenance
Proper cleaning and maintenance will extend the life of your roaster oven.
- Unplug and Cool: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
- Removable Parts: The removable roasting pan, self-basting lid, and roasting rack are dishwasher safe. Alternatively, wash them in warm, soapy water, rinse, and dry thoroughly.
- Main Unit: Wipe the exterior of the main roaster unit with a damp cloth. Do not use abrasive cleaners or scouring pads. Never immerse the main unit in water or any other liquid.
- Storage: Ensure all parts are clean and dry before storing the roaster oven in a cool, dry place.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet malfunction. | Ensure the power cord is securely plugged into a working electrical outlet. Check circuit breaker. |
| Food not cooking evenly. | Incorrect temperature setting; lid not properly sealed; too much food. | Verify temperature setting. Ensure lid is securely placed. Avoid overfilling the pan. |
| Smoke or odor during first use. | Manufacturing oils burning off. | This is normal during initial burn-off. Ensure good ventilation. It should dissipate after first use. |
Specifications
- Brand: SUNVIVI
- Model Name: ZER006GR-11
- Color: Grey
- Capacity: 8 Quarts
- Product Dimensions: 17.7"D x 10.15"W x 12.7"H
- Material: Stainless Steel
- Control Type: Knob Control
- Special Feature: Cool Touch Exterior
- Power Source: Electric
- Item Weight: 9.38 pounds
Warranty and Support
The SUNVIVI 8-Quart Electric Roaster Oven comes with a one-year warranty, ensuring your satisfaction. For any product inquiries, technical support, or warranty claims, please contact SUNVIVI customer service.
Refer to the contact information provided in your product packaging or visit the official SUNVIVI website for assistance.
