STANLEY FATMAX TradeLift Multifunctional Lifting Tool Instruction Manual

Introduction

The STANLEY FATMAX TradeLift is a versatile multifunctional tool designed for lifting, leveling, holding, and spreading tasks. It enables single-person operation for tasks typically requiring two, saving time and effort while reducing the risk of injury. This tool is suitable for various projects, including cabinet installation, window installation, door hanging, carpentry, and drywall work. It offers a lifting capacity of up to 150 kg, precise 2.5 mm ratchet adjustments, and a spreading capability of up to 220 mm. Its durable construction ensures exceptional professional strength and longevity.

Safety Information

Always read and understand all instructions before using the TradeLift tool. Failure to follow these instructions may result in serious injury or property damage.

• Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves.
• Ensure the workpiece is stable and properly secured before lifting or adjusting.
• Do not exceed the maximum load capacity of 150 kg.
• Keep hands and fingers clear of moving parts during operation.
• Use the tool on a stable, level surface.
• Store the tool in a dry, secure place away from children.

Package Contents

The STANLEY FATMAX TradeLift package includes:

• 1 x STANLEY FATMAX TradeLift Tool (FMHT83552-1)
• Instruction Manual

Note: This product is also available in a double pack.

Setup

The TradeLift tool is designed for quick and easy deployment. No complex assembly is required.

1. Unpacking: Carefully remove the TradeLift tool from its packaging. Inspect for any damage.
2. Positioning: Place the base of the TradeLift tool firmly on a stable surface directly beneath the object you intend to lift, level, hold, or spread. Ensure the lifting plate is positioned correctly against the object.
3. Adjusting the Spreading Function (if applicable): If using for spreading, ensure the tool is configured correctly. The tool can extend up to 220 mm for spreading applications.

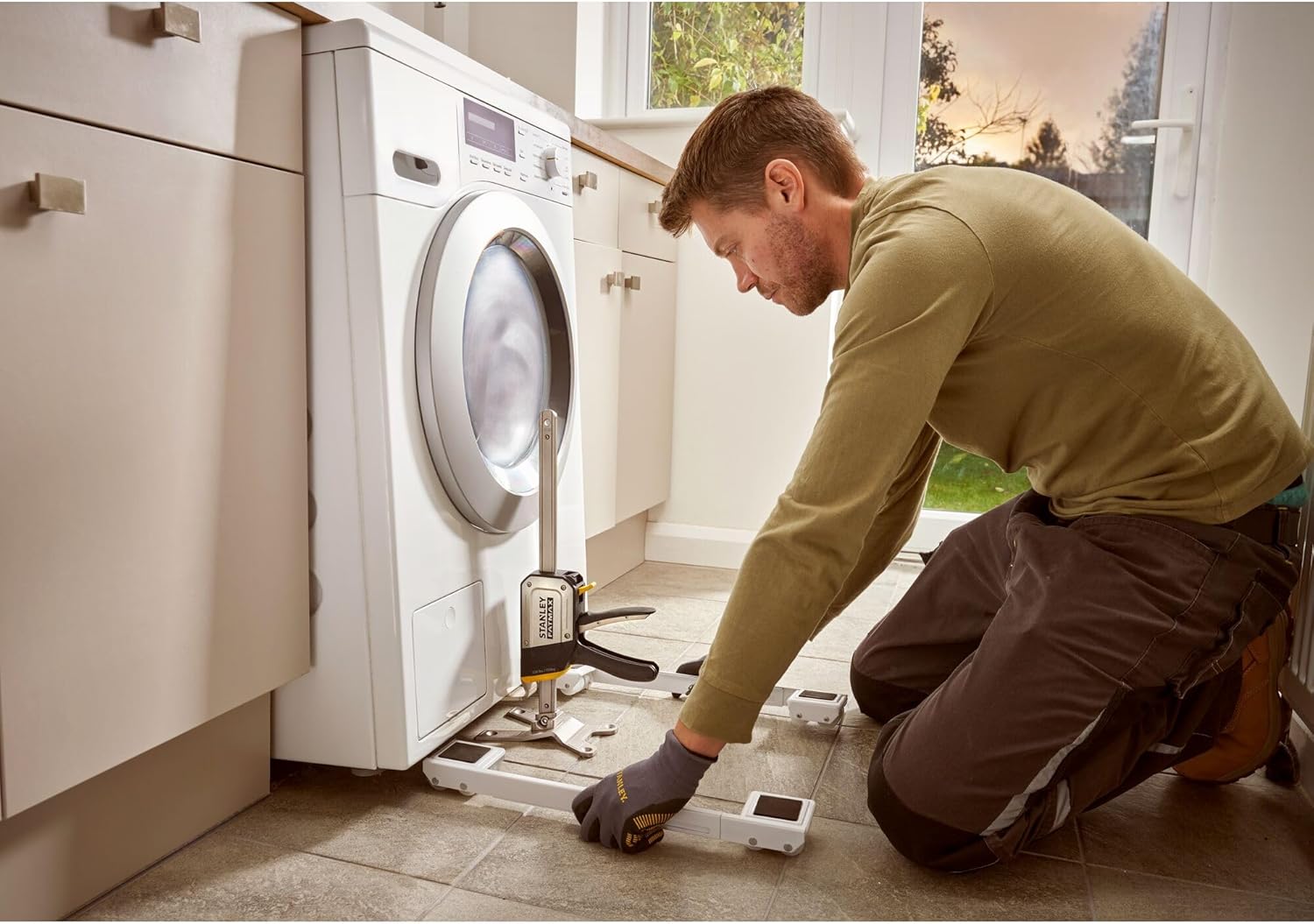

Image: The TradeLift tool positioned under a washing machine for lifting, demonstrating its setup for heavy appliance movement.

Operating Instructions

The TradeLift tool offers four primary functions: lifting, leveling, holding, and spreading.

1. Lifting and Holding

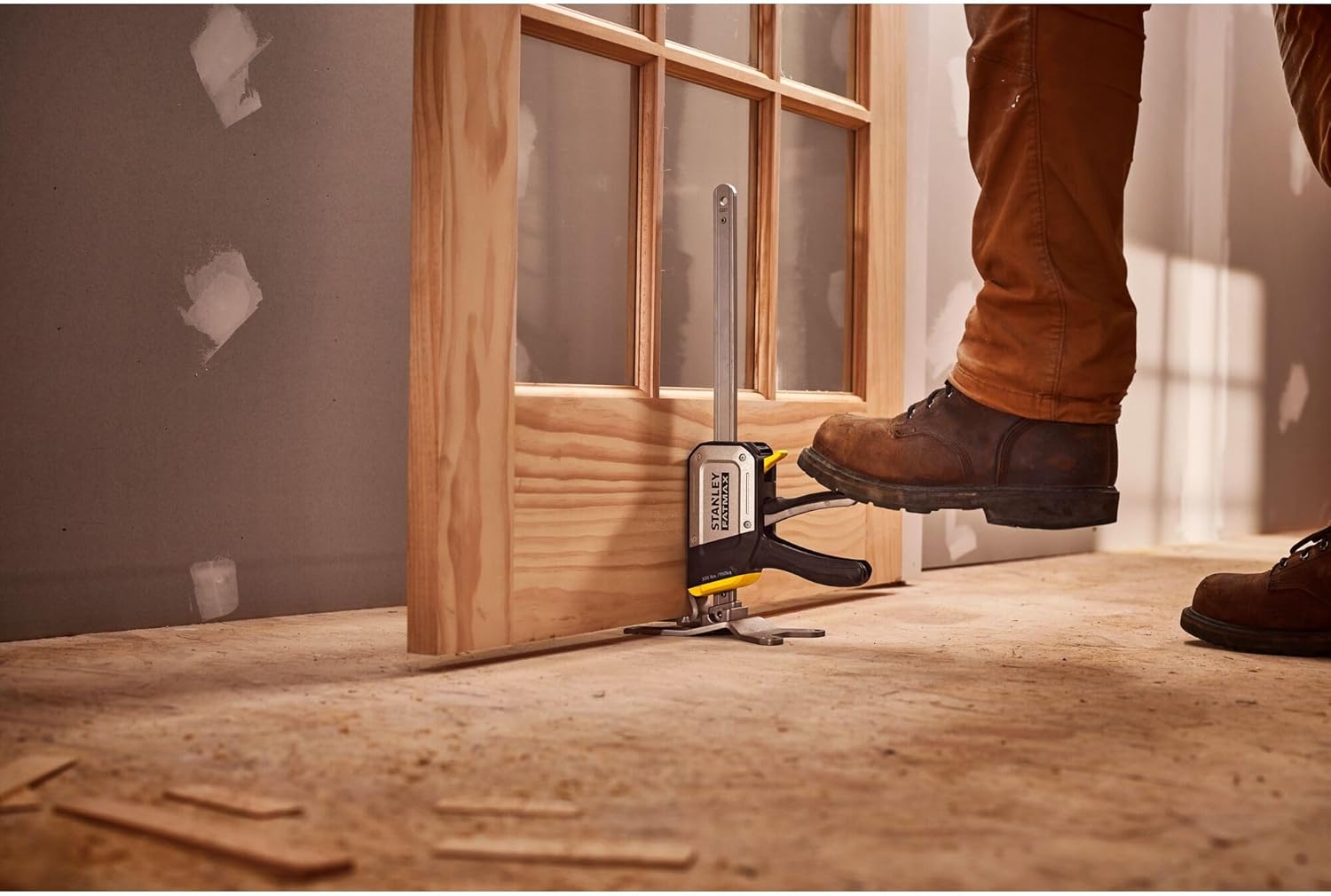

1. Positioning: Place the TradeLift tool under the object to be lifted. Ensure the base is stable and the lifting plate is securely under the object.
2. Lifting: Use the foot pedal to gradually raise the object. Each press of the pedal will lift the object by a small increment, allowing for precise control. The tool can lift up to 150 kg.
3. Holding: The tool will automatically hold the object at the desired height once the pedal is released.
4. Lowering: To lower the object, press the recessed full release button. This safety feature prevents accidental lowering.

Image: A TradeLift tool supporting a cabinet during installation, demonstrating its holding capability.

2. Leveling

1. Fine Adjustment: For precise leveling, use the 2.5 mm ratchet adjustment feature. This allows for minute adjustments to achieve perfect alignment.
2. Verification: Use a spirit level or other leveling tools to verify the object's position.

Image: A TradeLift tool assisting in leveling a bathtub, showcasing its precision adjustment capabilities.

3. Spreading

1. Configuration: The TradeLift tool can be configured to act as a spreader. Ensure the tool is set up for spreading applications.
2. Operation: Position the tool between two objects that need to be spread apart. Operate the handle to extend the tool, applying controlled pressure. It can spread up to 220 mm.

Image: A TradeLift tool being used to push floorboards together, demonstrating its spreading function.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your TradeLift tool.

• Cleaning: After each use, wipe down the tool with a clean, dry cloth to remove dust, dirt, and debris. The closed metal housing helps prevent dust contamination.
• Lubrication: Periodically apply a light lubricant to the moving parts, such as the lifting mechanism and pivot points, to ensure smooth operation.
• Inspection: Regularly inspect the tool for any signs of wear, damage, or loose components. Do not use the tool if any part is damaged.
• Storage: Store the tool in a dry, protected environment to prevent rust and corrosion.

Troubleshooting

If you encounter issues with your TradeLift tool, refer to the following common troubleshooting tips:

• Tool not lifting/spreading: Ensure the object is within the tool's weight capacity (150 kg) and spreading range (220 mm). Check for any obstructions or debris in the mechanism.
• Difficulty lowering: Ensure the recessed full release button is fully depressed. Check for any binding in the mechanism.
• Unstable operation: Verify that the tool's base is on a flat, stable surface and the object is balanced.

For persistent issues, contact STANLEY customer support.

Specifications

Warranty

STANLEY products are manufactured to high-quality standards and are guaranteed against manufacturing defects. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official STANLEY website.

Support

For further assistance, technical support, or to purchase replacement parts, please contact STANLEY customer service or visit our website:

• Website: www.stanleytools.com
• Customer Service: Refer to your product packaging or the STANLEY website for local contact information.
