1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your DELTA 20'x16' PE Party Tent. Designed for various outdoor events, this tent features a durable steel frame, a waterproof PE top cover, and removable sidewalls for versatility and protection.

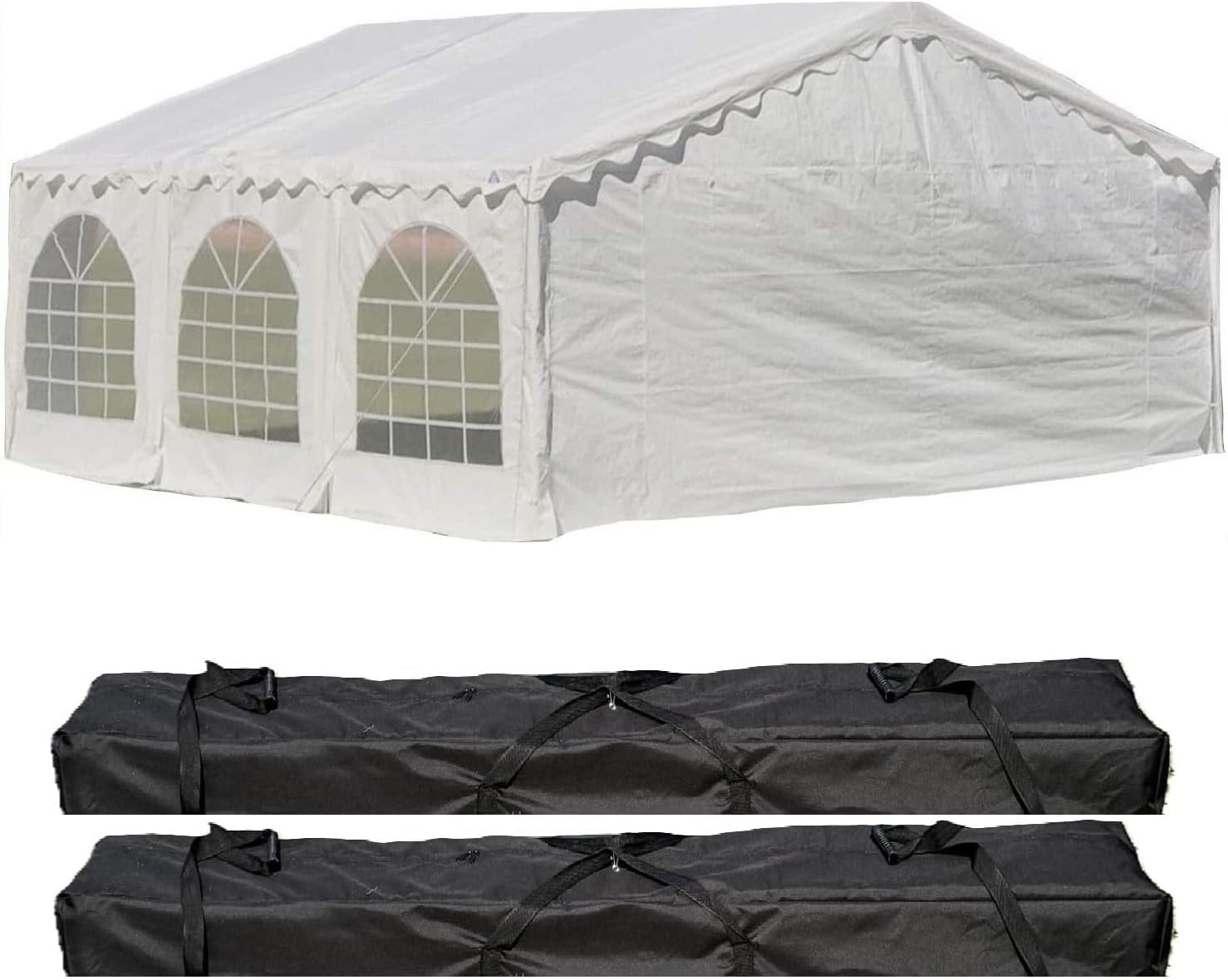

Image 1.1: Fully assembled DELTA 20'x16' PE Party Tent.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in injury or damage to the product.
- Ensure the tent is securely anchored at all times, especially in windy conditions. High winds can cause the tent to lift or collapse.
- Do not use the tent in severe weather conditions, including heavy rain, strong winds, lightning, or snow. Disassemble and store the tent if adverse weather is expected.
- Keep all flame and heat sources away from the tent fabric. The fabric is not fireproof.
- Be aware of potential sun exposure. While the tent offers UV protection, prolonged exposure to direct sunlight can still occur.
- Always assemble and disassemble the tent with at least two adults.
- Regularly inspect all components for wear or damage. Do not use damaged parts.
3. Package Contents
Verify that all components listed below are present and undamaged before beginning assembly. The package includes 3 boxes with a total weight of approximately 166 pounds.
- 1 x Top Cover (180g PE cloth, waterproof)
- 6 x Window Walls (140g PE, removable)
- 2 x Zipper Doors (140g PE, removable)
- Steel Frame Components (1.5-inch / 38mm galvanized steel tubes)
- Metal Connectors (1.66-inch / 42mm diameter)
- 4 x Super Stakes for added stability
- 2 x Long Storage Bags
Image 3.1: Tent components packed in two long storage bags.
Image 3.2: Included super stakes for securing the tent.
4. Setup Instructions
Assembly requires at least two people. Follow these steps for a secure and efficient setup:
- Unpack and Organize: Lay out all frame components, connectors, fabric covers, and stakes on a clean, flat surface. Group similar parts together.
- Assemble the Roof Frame: Connect the galvanized steel tubes using the metal connectors to form the roof structure. Utilize the user-friendly push-button system for secure connections. Refer to the diagram for correct orientation.
- Attach the Legs: Once the roof frame is complete, attach the vertical leg poles to the corners and intermediate points of the roof frame.
- Raise the Frame: With assistance, carefully lift the assembled frame to its full height. Ensure all connections are firmly seated.
- Install the Top Cover: Drape the waterproof PE top cover over the frame. Secure it to the frame using the provided fasteners or ties. Ensure the cover is taut to prevent water pooling.
- Attach Sidewalls and Doors: Install the removable window walls and zipper doors to the sides of the tent. These attach via fasteners or ties along the frame.
- Anchor the Tent: Securely anchor the tent to the ground using the provided super stakes. Drive the stakes deep into the ground at each leg and any additional anchor points. For extra stability, consider using guy ropes (not included) if conditions warrant.
Image 4.1: Interior view showing the steel frame and roof cover attachment.
Image 4.2: Detail of a frame connection point, illustrating the push-button system.
5. Operating Instructions
The DELTA PE Party Tent is designed for versatile outdoor use, providing shade and protection from light rain.
- Ventilation: The removable window walls and zipper doors allow for adjustable ventilation. Open or remove sections as needed to maintain airflow and comfort within the tent.
- UV Protection: The PE fabric offers protection against ultraviolet rays, making it suitable for daytime outdoor events.
- Water Resistance: The 180g PE top cover is waterproof, providing shelter during light precipitation. Ensure the top cover is taut to prevent water from pooling, which can stress the frame.
Image 5.1: Detail of a removable sidewall with a window, demonstrating ventilation options.
6. Maintenance
Proper maintenance will extend the lifespan of your party tent.
- Cleaning: Clean the PE fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as these can damage the material. Rinse thoroughly and allow to air dry completely before storage.
- Frame Care: Wipe down the steel frame with a damp cloth to remove dirt and debris. Ensure all parts are dry to prevent rust.
- Storage: Disassemble the tent and store all components in the provided storage bags in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the fabric is completely dry to prevent mold and mildew.
- Inspection: Periodically inspect the fabric for tears or punctures and the frame for bends or rust. Address any issues promptly to prevent further damage.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water pooling on roof | Top cover not taut enough; improper assembly; heavy rain. | Ensure the top cover is stretched tightly across the frame. Re-check frame assembly for correct angles. Disassemble in heavy rain. |
| Tent instability | Insufficient anchoring; loose frame connections; strong winds. | Verify all super stakes are fully driven into the ground. Check all push-button connections. Disassemble in strong winds. |
| Difficulty with assembly/disassembly | Attempting alone; parts misalignment. | Ensure at least two people are assisting. Double-check part numbers and orientation against diagrams. |
8. Specifications
- Brand: DELTA
- Model: 20'x16' PE Party Tent
- Frame Material: Galvanized Steel (1.5 inches / 38mm tubes, 1.66 inches / 42mm connectors)
- Cover Material: 180g PE (Top), 140g PE (Sidewalls/Doors)
- Color: White
- Water Resistance Level: Waterproof
- Ultraviolet Light Protection: Yes
- Item Weight: 168 Pounds
- Assembly Required: Yes
- Recommended Uses: Outdoor events, parties, picnics, BBQs
9. Warranty and Support
This DELTA product is manufactured by WPIC. For support or inquiries regarding your DELTA 20'x16' PE Party Tent, please contact the seller or manufacturer directly.
A 30-day return policy is typically offered for this product. Please refer to your purchase documentation for specific terms and conditions.
For further assistance, you may visit the DELTA Store on Amazon.
