Introduction
This manual provides essential information for the proper use, installation, and maintenance of your HATHASPACE HARMONY 200 H13 True HEPA Filter Replacement. This filter is specifically designed for the HATHASPACE HARMONY 200 Air Purifier (HSE200 model) to ensure optimal air quality in your environment.
Image: HATHASPACE HARMONY 200 H13 True HEPA Filter Replacement, shown with its product packaging.
Product Features
The HATHASPACE HARMONY 200 H13 True HEPA Filter Replacement features a comprehensive 3-stage filtration system designed to capture a wide range of airborne pollutants:
- H13 True HEPA Filtration: Superior to standard H11 HEPA filters, this filter captures 99.97% of airborne particles as small as 0.3 microns, including pollen, dust mites, pet dander, and fine dust.
- Activated Carbon Filter: This layer effectively absorbs smoke, odors, and various harmful gases such as formaldehyde, ammonia, sulfur dioxide, nitrogen oxide, toluene, acetic acid, trimethylamine, and benzene. Small microporous zeolite minerals are integrated to further remove heavy metals and combustion chemicals.
- Polypropylene Pre-filter: The initial layer captures larger particles like dust, lint, and pet hair, extending the life of the subsequent filters.

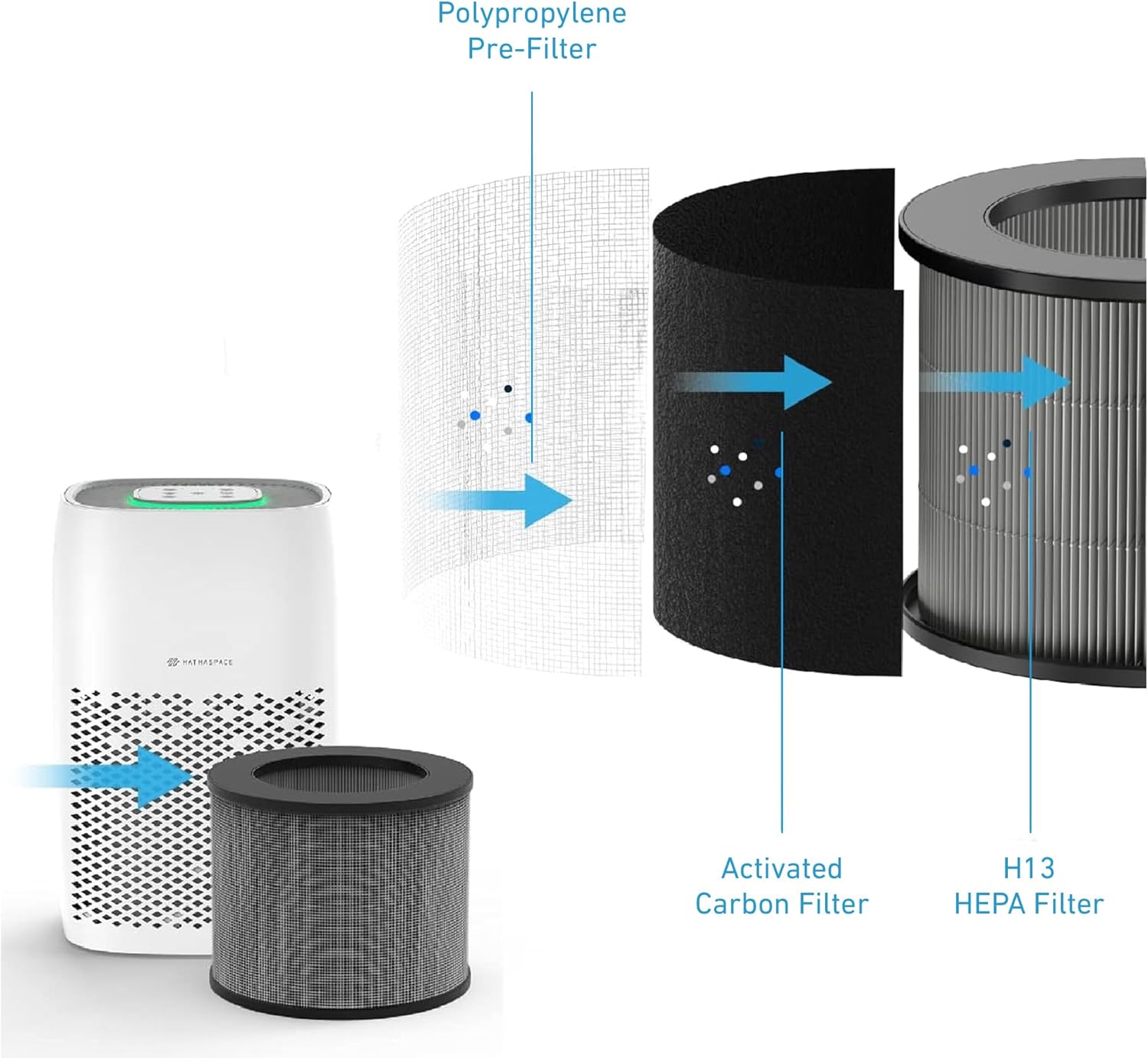

Image: An exploded view illustrating the three distinct filtration layers of the HATHASPACE HARMONY 200 filter.
This multi-stage system works synergistically to provide cleaner, fresher air by targeting common airborne pollutants and odors.
Setup and Installation
To install the HATHASPACE HARMONY 200 H13 True HEPA Filter Replacement in your HSE200 Air Purifier, follow these steps:
- Power Off: Ensure the air purifier is turned off and unplugged from the power outlet before beginning the filter replacement process.
- Access Filter Compartment: Locate the filter compartment on your HATHASPACE HARMONY 200 Air Purifier. This is typically at the base or rear of the unit. Refer to your air purifier's specific manual for exact instructions on opening the compartment.
- Remove Old Filter: Carefully remove the used filter from the compartment. Dispose of the old filter responsibly.
- Unpack New Filter: Remove the new HATHASPACE HARMONY 200 H13 True HEPA Filter Replacement from its protective packaging.
- Insert New Filter: Insert the new filter into the air purifier, ensuring it is seated correctly and securely within the compartment. The filter is designed to fit in one orientation.
- Close Compartment: Close the filter compartment cover securely.
- Reset Filter Indicator: Plug the air purifier back in and power it on. Follow the instructions in your air purifier's manual to reset the filter replacement indicator, if applicable.
Image: Illustration of the filter removal and insertion process for the HATHASPACE air purifier.
Maintenance and Filter Replacement
Regular filter replacement is crucial for maintaining the performance and efficiency of your HATHASPACE HARMONY 200 Air Purifier. The filter's lifespan depends on usage and air quality, but general guidelines are provided below.
Filter Lifespan
For optimal performance and the cleanest air year-round, it is recommended to replace your HATHASPACE HARMONY 200 H13 True HEPA Filter at least every 3 to 4 months. This ensures that the filtration system continues to effectively capture pollutants and odors.
Image: Visual guide highlighting key aspects of filter maintenance, including recommended replacement frequency.
Cleaning the Filter
The HATHASPACE HARMONY 200 H13 True HEPA Filter is not washable and should not be cleaned with water or any liquids. Attempting to wash the filter can damage its delicate structure and compromise its filtration capabilities. Replace the filter as recommended.
Troubleshooting
If you encounter issues after replacing your filter, consider the following common scenarios:
- Air Purifier Not Turning On: Ensure the filter compartment cover is securely closed. Many air purifiers have a safety switch that prevents operation if the cover is not properly latched. Also, confirm the unit is correctly plugged into a working power outlet.
- Filter Indicator Light Remains On: After replacing the filter, you may need to manually reset the filter life indicator on your air purifier. Refer to your air purifier's user manual for specific instructions on how to perform this reset.
- Reduced Airflow or Odors Persist: If airflow seems diminished or odors are still present shortly after replacement, double-check that the new filter was installed correctly and is not obstructed. Ensure you are using a genuine HATHASPACE replacement filter, as non-genuine filters may not fit properly or perform as expected.
For persistent issues not covered here, please refer to the troubleshooting section of your HATHASPACE HARMONY 200 Air Purifier manual or contact HATHASPACE customer support.
Specifications
| Attribute | Detail |
|---|---|
| Brand | HATHASPACE |
| Model Info | RM-HARMONY-200 |
| Compatible Device | HSE200 Air Purifier |
| Filtration Type | H13 True HEPA, Activated Carbon, Polypropylene Pre-filter (3-Stage) |
| Item Weight | 8.4 ounces |
| Product Dimensions | 7 x 7 x 5.75 inches |
| Material Type | Activated charcoal, Polypropylene |
| Batteries Required? | No |
| UPC | 852635008285 |
| Recommended Replacement | Every 3-4 months |
Warranty and Support
HATHASPACE is committed to providing high-quality products and customer satisfaction. We offer lifetime support for our products.
If you experience any problems with your HATHASPACE HARMONY 200 H13 True HEPA Filter Replacement, please do not hesitate to contact the HATHASPACE team. We are available to assist you and will facilitate a replacement if necessary.
For support, please visit the official HATHASPACE website or refer to the contact information provided with your original air purifier purchase.
