1. Introduction
This manual provides detailed instructions for the safe and effective use of your Streamlight Wedge Everyday Carry Flashlight. The Wedge is designed for reliable performance and durability, suitable for daily use, professional tasks, and outdoor activities.
Image 1.1: Front view of the Streamlight Wedge Flashlight.
2. Package Contents
Verify that all items are present in your package:
- Streamlight Wedge Flashlight (with integrated Lithium Polymer battery)
- USB-C Cable
- Pocket Clip (pre-installed or included)
- Wrist Lanyard
- User Guide (this document)
3. Key Features
- Dual-Mode Brightness: Offers a standard 300 Lumens constant-on mode and a 1,000-Lumen THRO (Temporarily Heightened Regulated Output) burst mode for quick, intense illumination.
- Slim EDC Design: Ergonomic profile for comfortable handling and discreet pocket carry. Includes a deep-carry pocket clip that can be attached to either side.
- Intuitive Thumb-Rotary Control: Seamless, one-handed operation with a tactile rotary switch for mode selection and battery-level feedback.
- USB-C Rechargeable: Integrated battery recharges via USB-C in approximately 3 hours. An LED indicator shows charging status.
- Durable Construction: Made from rugged Type II MIL-Spec anodized aluminum housing with a polycarbonate lens. IPX7-rated for waterproofing (up to 1 meter) and drop-tested to 1 meter.
Image 3.1: The intuitive rotating thumb switch provides tactile control over light modes.
4. Setup: Initial Charging
Before first use, fully charge your Streamlight Wedge flashlight.
- Locate the USB-C charging port on the end of the flashlight.
- Connect the provided USB-C cable to the flashlight's charging port.
- Connect the other end of the USB-C cable to a compatible USB power source (e.g., wall adapter, computer USB port).
- Observe the LED indicator:
- Steady Red: Indicates the battery is charging.
- Green: Indicates the battery is fully charged.
- Blinking Red: Indicates low battery and requires charging soon.
- A full charge typically takes approximately 3 hours.
Image 4.1: LED indicator for battery status during charging.

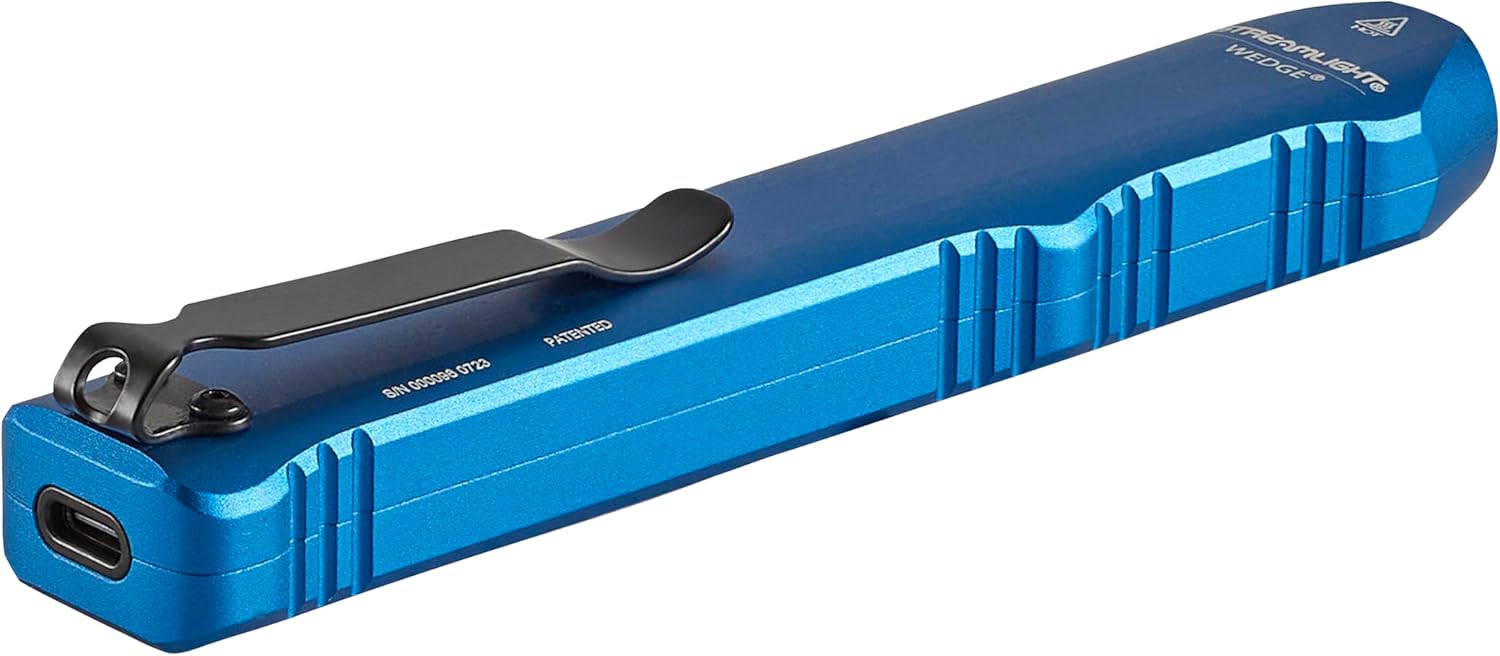

Image 4.2: The USB-C charging port for convenient recharging.
5. Operating Instructions
5.1 Power On/Off and Mode Selection
The Streamlight Wedge features a thumb-rotary switch for easy operation.
- Standard Mode (300 Lumens): Rotate the thumb switch forward to the first detent. The flashlight will activate in standard mode, providing 300 lumens of constant illumination.
- THRO Mode (1,000 Lumens Burst): From the off position, rotate and hold the thumb switch fully forward past the first detent. The flashlight will activate in THRO mode, providing a temporary burst of 1,000 lumens. Release the switch to return to the off position. This mode is designed for short, intense illumination needs.
- Turning Off: Rotate the thumb switch backward to the off position.
Image 5.1: Operating the flashlight with a single hand.
Image 5.2: Activating THRO (Temporarily Heightened Regulated Output) mode for 1000 lumens.
5.2 Pocket Clip Installation
The deep-carry pocket clip can be reversed to suit your preferred carry method.
- Using a small Phillips head screwdriver, carefully remove the two screws securing the pocket clip.
- Remove the pocket clip.
- Align the pocket clip on the opposite side of the flashlight.
- Re-insert and tighten the two screws to secure the clip. Do not overtighten.
Image 5.3: The strong pocket clip allows for secure carry in a pocket or attached to gear.
6. Maintenance
- Cleaning: Wipe the flashlight body with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Lens Care: Clean the polycarbonate lens with a soft, lint-free cloth. For stubborn dirt, use a small amount of mild soap and water.
- Charging Port: Keep the USB-C charging port free of debris.
- Storage: Store the flashlight in a cool, dry place when not in use for extended periods. Recharge the battery periodically to maintain its health.
7. Troubleshooting
- Flashlight does not turn on:
- Ensure the battery is charged. Connect the flashlight to a USB-C power source and check the LED indicator.
- Verify the thumb switch is fully rotated to the desired mode (Standard or THRO).
- Light output is dim:
- The battery may be low. Recharge the flashlight.
- Ensure the lens is clean and free of obstructions.
- Flashlight does not charge:
- Check the USB-C cable for damage and ensure it is securely connected to both the flashlight and the power source.
- Try a different USB-C cable or power adapter.
- Ensure the charging port on the flashlight is clean.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 88817 |
| Light Source | LED |
| Brightness (Standard) | 300 Lumens |
| Brightness (THRO Burst) | 1000 Lumens |
| Beam Distance (Standard) | 69 Meters |
| Candela | 1200 Candela |
| Power Source | Integrated Lithium Polymer Battery |
| Recharge Time | Approx. 3 Hours (via USB-C) |
| Runtime (Standard) | 3 Hours |
| Material | Anodized Aluminum |
| Water Resistance | IPX7 (Waterproof up to 1 Meter) |
| Impact Resistance | Drop-tested to 1 Meter |
| Dimensions | 5.46"D x 0.6"W x 1"H |
| Item Weight | 3.2 ounces |
| Certifications | ANSI FL1, CE, IPX7 |
9. Warranty and Support
9.1 Warranty Information
The Streamlight Wedge Flashlight is covered by a Limited Lifetime Warranty. For specific details regarding warranty coverage and claims, please refer to the official Streamlight website or contact their customer service.
9.2 Customer Support
For technical assistance, service, or further inquiries, please visit the Streamlight website or contact their customer support department.
