Introduction
Thank you for choosing the EVERCROSS EV08M Electric Motorcycle for Kids. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric motorcycle. Designed for young riders, the EV08M features a 150W motor, two speed modes (8 km/h and 16 km/h), a 10 km range, and durable 12-inch pneumatic tires for a smooth and enjoyable riding experience. Please read this manual thoroughly before first use and keep it for future reference.
Image: A child wearing a helmet and protective gear rides the EVERCROSS EV08M electric motorcycle. Key features like motor power, speed, battery, and range are overlaid.
Safety Information
General Safety Guidelines
- Adult Supervision Required: This product is intended for children aged 3-10 years. Constant adult supervision is mandatory during operation.
- Protective Gear: Always ensure the rider wears appropriate safety gear, including a helmet, knee pads, and elbow pads.
- Riding Environment: Operate the motorcycle in safe, open areas away from traffic, steep inclines, water, and other hazards. Avoid riding on public roads or sidewalks.
- Weight Limit: Do not exceed the maximum weight capacity of 50 kg (110 lbs).
- Pre-Ride Check: Before each ride, check the brakes, tire pressure, and battery charge level. Ensure all bolts and fasteners are secure.
- Foot Placement: Keep feet on the footrests while riding.
- Charging Safety: Only use the provided charger. Do not overcharge the battery. Keep the charger and battery away from water and extreme temperatures.
Image: A child on the EVERCROSS EV08M electric motorcycle, illustrating the recommended age range (3-12 years old) and product specifications like maximum load and dimensions.
Setup
Unpacking
- Carefully remove all components from the packaging.
- Verify that all parts listed in the packing list are present. The package should include 1 x Electric Motorcycle, 1 x Charger, and 1 x User Manual.
- Retain packaging materials for future storage or transport.
Assembly
The EVERCROSS EV08M requires minimal assembly. Follow these steps:
- Handlebar Installation: Attach the handlebar to the steering column using the provided screws. Ensure it is centered and securely tightened. (Typically 4 screws)
- Footrest Installation: Mount the footrests to the designated points on the motorcycle frame. Secure them with the remaining screws. (Typically 2 screws per footrest)
- Tire Inflation: Check and inflate the 12-inch pneumatic tires to the recommended pressure, usually indicated on the tire sidewall.

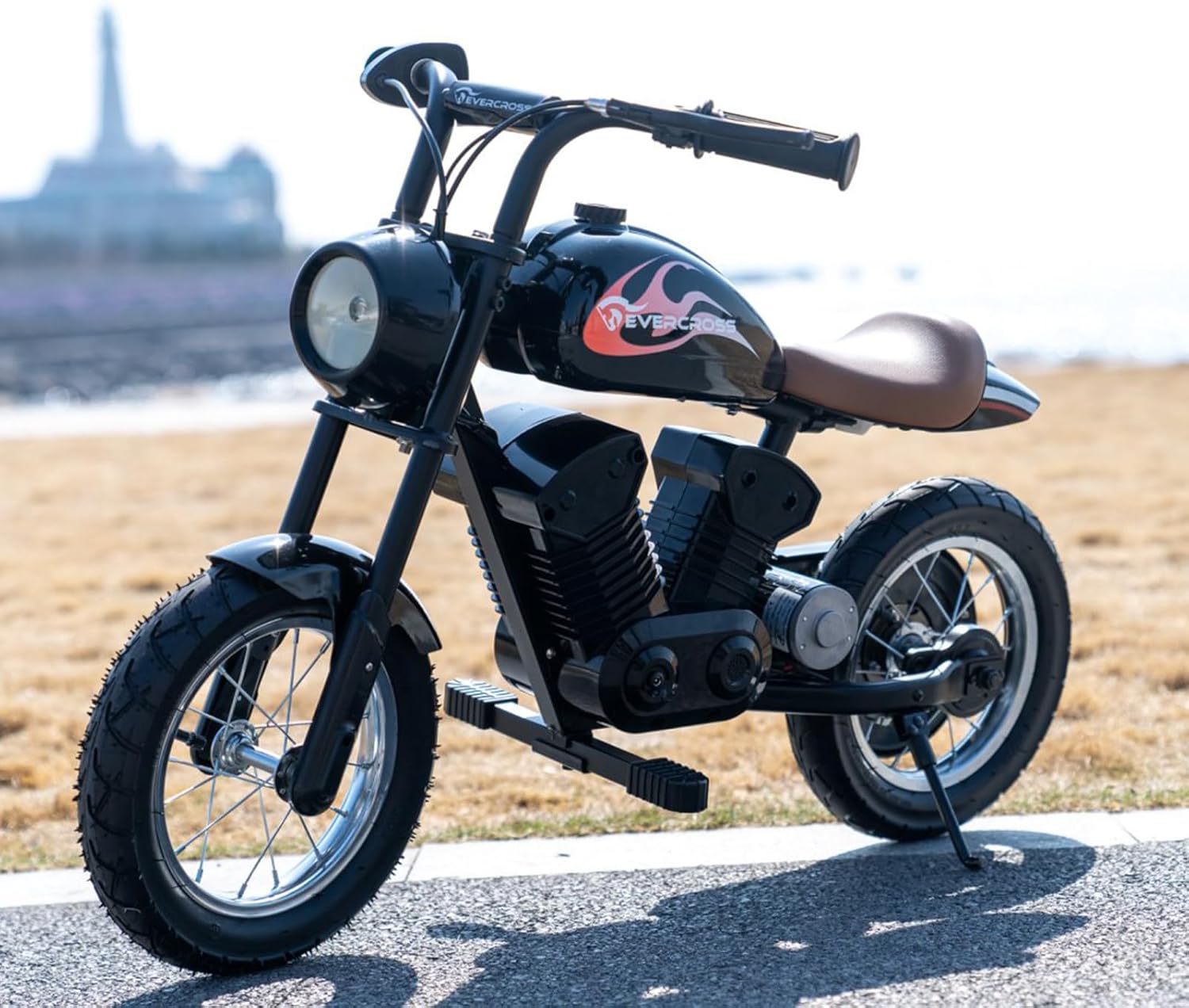

Image: The fully assembled EVERCROSS EV08M electric motorcycle, showcasing its retro design and overall structure.
Initial Charging
Before the first use, the battery must be fully charged.
- Locate the charging port on the motorcycle.
- Connect the charger to the charging port, then plug the charger into a standard wall outlet.
- Allow the battery to charge for approximately 12 hours for the initial charge. Subsequent charges may take less time.
- The charger indicator light will typically change color (e.g., red to green) when charging is complete.
Operating Instructions
Controls Overview
Image: Detailed view of the motorcycle's handlebar and frame, with labels indicating the brake lever, power display, twist-grip throttle, speed gear button, and power ON/OFF button.
- Power ON/OFF Button: Located on the frame, press to turn the motorcycle on or off.
- Speed Gear Button: Allows switching between the two available speed modes (8 km/h and 16 km/h).
- Twist-Grip Throttle: Located on the right handlebar, twist to accelerate.
- Brake Lever: Located on the left handlebar, squeeze to engage the drum brake.
- Power Display: Indicates the current battery charge level.
Starting the Motorcycle
- Ensure the motorcycle is on a flat, stable surface.
- Press the Power ON/OFF button to turn on the motorcycle. The power display will illuminate.
- Select the desired speed mode using the Speed Gear Button. Start with the lower speed mode (8 km/h) for new riders.
- With the rider seated and feet on the footrests, gently twist the throttle to begin moving.
Speed Modes
The EV08M offers two speed settings:
- Low Speed (8 km/h): Ideal for beginners and younger children, providing a controlled and safe pace.
- High Speed (16 km/h): For more experienced riders, offering a more exhilarating ride.
Switch between modes using the Speed Gear Button while the motorcycle is stationary or moving at a low speed.
Braking
To stop the motorcycle, release the throttle and gently squeeze the brake lever on the left handlebar. The drum brake system provides effective stopping power.
Image: A detailed view of the drum brake system, illustrating the brake lever on the handlebar and the rear wheel's braking components.
Maintenance
Battery Care
- Charge the battery fully after each use to prolong its lifespan.
- If storing the motorcycle for an extended period, charge the battery every 30 days to prevent deep discharge.
- Do not expose the battery to extreme temperatures (below 0°C or above 40°C).
- If the battery is damaged or leaking, discontinue use immediately and contact customer support.
Tire Maintenance
- Regularly check the tire pressure and inflate to the recommended PSI (pounds per square inch) as indicated on the tire sidewall.
- Inspect tires for wear, punctures, or damage before each ride. Replace damaged tires promptly.
Image: The sturdy 12-inch pneumatic tires of the EV08M, illustrating their design for various terrains including snow, grassland, sand, and city roads.
Cleaning and Storage
- Clean the motorcycle with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Avoid spraying water directly onto electrical components.
- Store the motorcycle in a dry, cool place, away from direct sunlight and moisture.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Motorcycle does not turn on. | Battery is discharged or not connected. Power button not pressed. | Charge the battery. Ensure battery connections are secure. Press the power button firmly. |
| Motorcycle does not move when throttle is twisted. | Throttle malfunction. Motor issue. Safety cut-off engaged. | Check throttle connection. Turn off and on again. If problem persists, contact support. |
| Short riding range. | Battery not fully charged. Old battery. Riding conditions (terrain, weight, speed mode). | Ensure battery is fully charged before each ride. Battery may need replacement if old. Adjust riding style. |
| Brakes are not effective. | Brake cable loose or worn pads. | Inspect brake cable and pads. Adjust or replace as necessary. Consult a professional if unsure. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | EV08M |
| Motor Power | 150W |
| Speed Modes | 8 km/h, 16 km/h |
| Battery | 14.4V/4AH |
| Max Range | Approximately 10 km |
| Tires | 12-inch Pneumatic Tires |
| Max Load Capacity | 50 kg (110 lbs) |
| Product Dimensions | 97 x 50 x 64 cm |
| Net Weight | 12.3 kg |
| Recommended Age | 3-10 years old |
| Material | Plastics |
Warranty Information
The EVERCROSS EV08M Electric Motorcycle for Kids comes with a 1-Year Manufacturer's Warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.
Customer Support
For any questions, technical assistance, or warranty claims regarding your EVERCROSS EV08M Electric Motorcycle, please contact our customer support team:
- Email: support@evercross.com
- Website: www.evercross.com
Please have your model number (EV08M) and proof of purchase ready when contacting support.
