TEYUN Q2 Microphone Preamp User Manual

1. Introduction

The TEYUN Q2 is an active in-line microphone preamplifier designed to provide a clean +28dB gain boost for dynamic and ribbon microphones. It enhances microphone clarity and reduces noise, making it suitable for various audio applications including studio recording, live streaming, and stage performances. This manual will guide you through the proper setup, operation, and maintenance of your Q2 preamp.

Image: The TEYUN Q2 microphone preamplifier, showing its compact design and branding.

2. Important Safety Information

• Do not expose the device to water or excessive moisture.
• Avoid extreme temperatures.
• Do not attempt to open or modify the device. Refer all servicing to qualified personnel.
• Ensure proper ventilation when in use.
• This device requires 48V phantom power from your audio interface or mixer to operate.

3. Package Contents

Verify that all items are present in your package:

• TEYUN Q2 Active In-Line Microphone Preamp (1 unit)

Note: Product images may sometimes show multiple units for illustrative purposes. This package includes one (1) TEYUN Q2 preamp.

Image: The TEYUN Q2 preamp, representing the single unit included in the package.

4. Product Overview

The TEYUN Q2 is a compact, cylindrical device with XLR male and female connectors. It features a robust full-metal structure for durability and effective shielding.

4.1 Key Features

• +28dB Fixed Gain: Provides a significant boost to microphone signals.
• Lossless Amplification: Designed to maintain original sound quality while reducing noise.
• Full Metal Structure: Ensures durability and stable performance.
• Phantom Power Required: Operates using 48V phantom power from your mixer or audio interface.

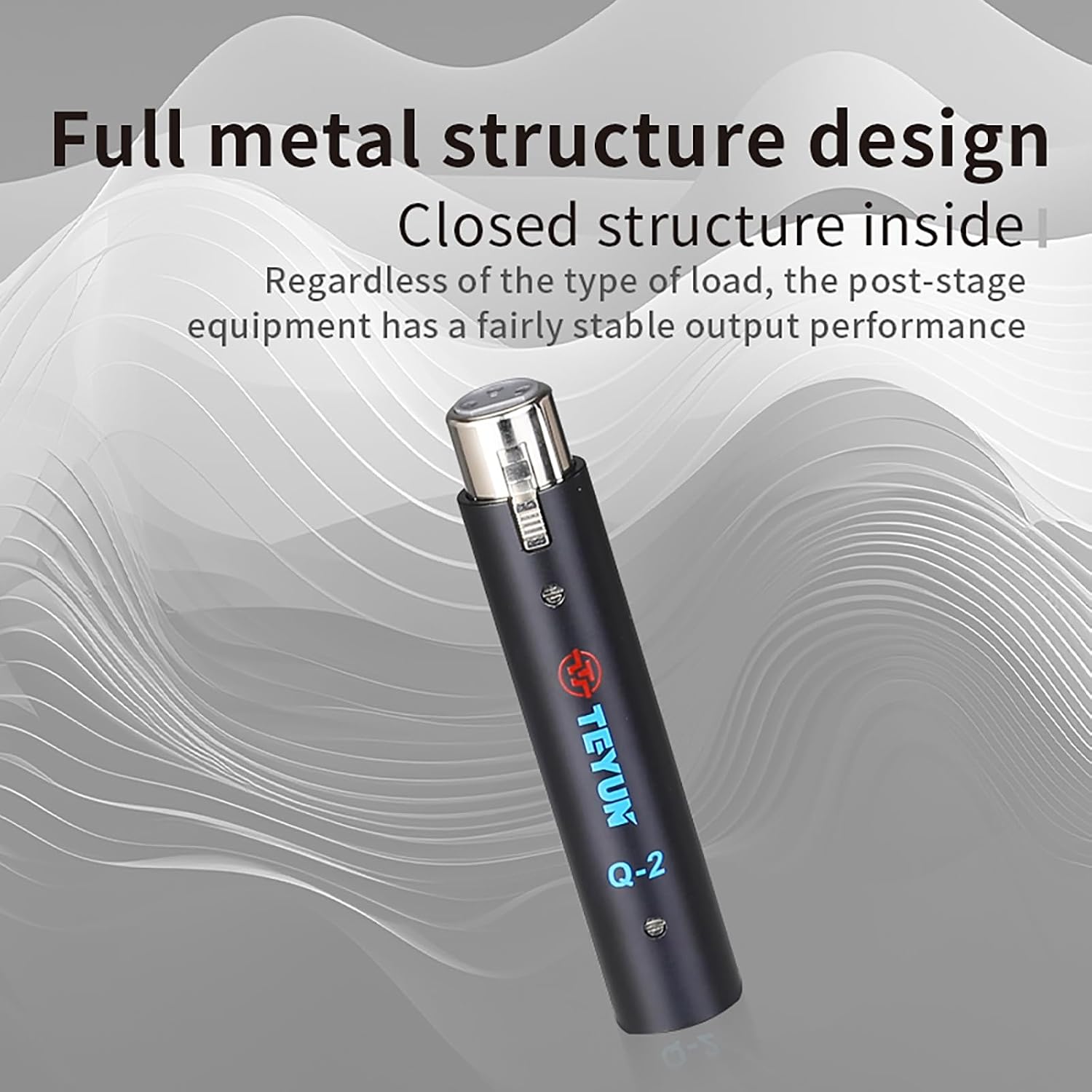

Image: Close-up of the TEYUN Q2, highlighting its full metal structure design.

5. Setup Instructions

The TEYUN Q2 is designed for simple plug-and-play operation. Follow these steps to integrate it into your audio setup:

1. Connect Microphone: Connect your dynamic or ribbon microphone to the XLR female input of the TEYUN Q2 preamp.
2. Connect to Audio Interface/Mixer: Connect the XLR male output of the TEYUN Q2 preamp to an XLR input on your audio interface or mixing console.
3. Activate Phantom Power: Ensure that the 48V phantom power is activated on the corresponding input channel of your audio interface or mixing console. The Q2 requires phantom power to operate, but it does not pass phantom power to the microphone, making it safe for ribbon microphones.
4. Verify Connection: Once connected and phantom power is supplied, the Q2 will be active and ready to boost your microphone's signal.

Image: Diagram illustrating the connection of the TEYUN Q2 preamp between a dynamic microphone and an audio mixer/sound card.

6. Operating Instructions

The TEYUN Q2 operates automatically once connected and powered. It provides a fixed +28dB of clean gain.

• The Q2 will boost the signal of your dynamic or ribbon microphone by 28dB. This allows you to reduce the gain setting on your audio interface or mixer, potentially lowering the overall noise floor.
• Monitor your audio levels carefully to avoid clipping after the gain boost. Adjust the input gain on your audio interface or mixer as needed.
• The Q2 is designed for "lossless amplification," meaning it aims to amplify the signal without introducing significant coloration or additional noise.

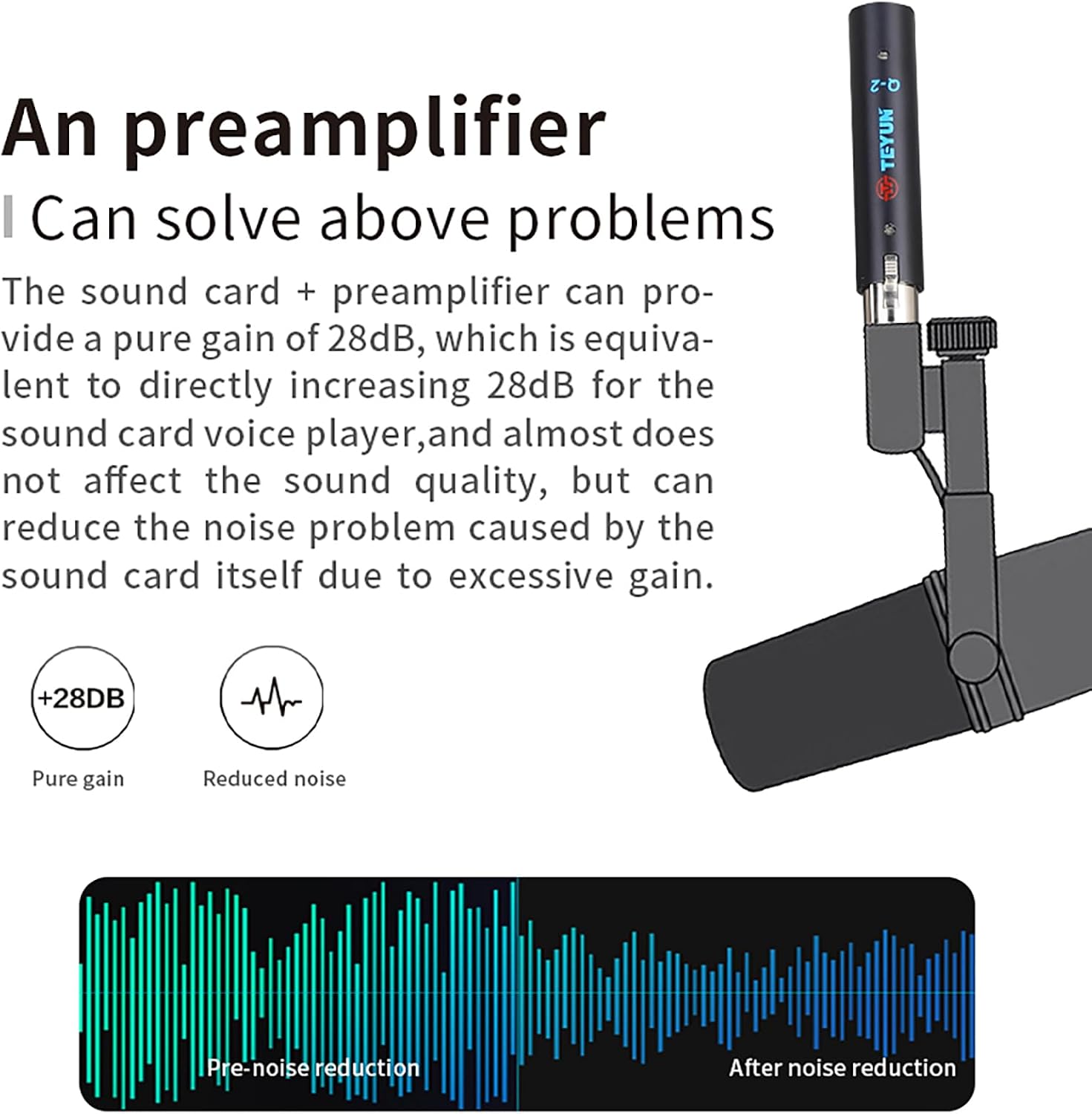

Image: Visual representation of sound wave before and after noise reduction, demonstrating the preamp's effect.

7. Maintenance

• Cleaning: Use a soft, dry cloth to clean the exterior of the preamp. Do not use liquid cleaners or solvents.
• Storage: Store the preamp in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• Handling: Handle the device with care to prevent damage to the connectors or internal components.

8. Troubleshooting

Image: Visual representation of common audio issues like noise and low volume, which the preamp helps address.

9. Specifications

10. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact TEYUN customer service through their official website or your retailer.
