RUIXI RX60

RUIXI Vintage Lift Arm Gas Lighter (Model RX60) Instruction Manual

45-Degree Angled Soft Flame Butane Lighter with Built-in Pipe Tool

Introduction

Thank you for choosing the RUIXI Vintage Lift Arm Gas Lighter, Model RX60. This lighter combines a classic design with modern functionality, featuring a 45-degree angled soft flame ideal for pipe enthusiasts and a convenient built-in tamper and pick tool. Crafted from durable rosewood and zinc alloy, this refillable butane lighter offers reliable performance and a sophisticated aesthetic. Please read this manual thoroughly before use to ensure safe and proper operation.

Safety Information

WARNING: Keep out of reach of children. Lighters are not toys.

  • Contains flammable butane gas under pressure.
  • Ignite lighter away from face and clothing.
  • Do not expose to heat above 120°F (49°C) or prolonged sunlight.
  • Never puncture or incinerate lighter.
  • Ensure flame is extinguished after each use.
  • Do not keep lit for more than 30 seconds.
  • Use only in well-ventilated areas.
  • Always use high-quality butane fuel for refilling.

Product Overview

The RUIXI RX60 lighter is designed for both functionality and style. Key features include:

  • 45° Angled Soft Flame: Specifically designed for pipe lighting, preventing scorching and ensuring an even burn.
  • Elegant Retro Lift Arm Mechanism: Provides a smooth, mechanical ignition with a classic feel.
  • Integrated 2-in-1 Pipe Tool: A high-quality metal tamper and cleaning pick are conveniently stored in the base.
  • Solid, Full-Metal Construction: Crafted from heavy-duty zinc alloy with a rosewood finish for durability and a comfortable grip.
  • Refillable Butane: Designed for easy refilling with standard butane gas.
RUIXI Vintage Lift Arm Gas Lighter, Rosewood and Metal Build
Image: The RUIXI Vintage Lift Arm Gas Lighter, showcasing its rosewood and metal construction. Dimensions are visible, highlighting its compact size.
RUIXI Lighter with 45-degree angled soft flame for pipe smoking
Image: The RUIXI lighter demonstrating its 45-degree angled soft flame, ideal for precise pipe lighting.

Setup

1. Butane Refill

The lighter is shipped without fuel for safety reasons. Before first use, it must be filled with butane gas. Use only high-quality butane fuel.

  1. Invert the lighter.
  2. Press the tip of the butane fuel can vertically into the refill valve located at the bottom of the lighter.
  3. Hold for approximately 5-10 seconds. Repeat 2-3 times to ensure a full refill.
  4. Wait a few minutes after refilling before igniting to allow the gas to stabilize.

Note: If the lighter does not ignite after refilling, it may be due to air trapped in the fuel tank. Use a small tool to press the refill valve to release any trapped air, then refill again.

2. Flame Adjustment

The flame height can be adjusted using the flame adjustment knob on the bottom of the lighter.

  • Turn the knob towards the (+) sign for a larger flame.
  • Turn the knob towards the (-) sign for a smaller flame.

Adjust the flame to a suitable height for your intended use, typically 1-1.5 inches for pipe smoking.

RUIXI Lighter bottom showing gas refill port and flame adjustment knob
Image: The bottom of the RUIXI lighter, indicating the gas refill port and the flame adjustment knob.

Operating Instructions

1. Ignition

  1. Hold the lighter firmly.
  2. Lift the arm mechanism upwards. This will open the gas valve and prepare the flint wheel.
  3. Simultaneously, rotate the flint wheel with your thumb to create a spark and ignite the butane gas.
  4. Once lit, maintain the flame by keeping the arm lifted.
  5. To extinguish, release the lift arm.

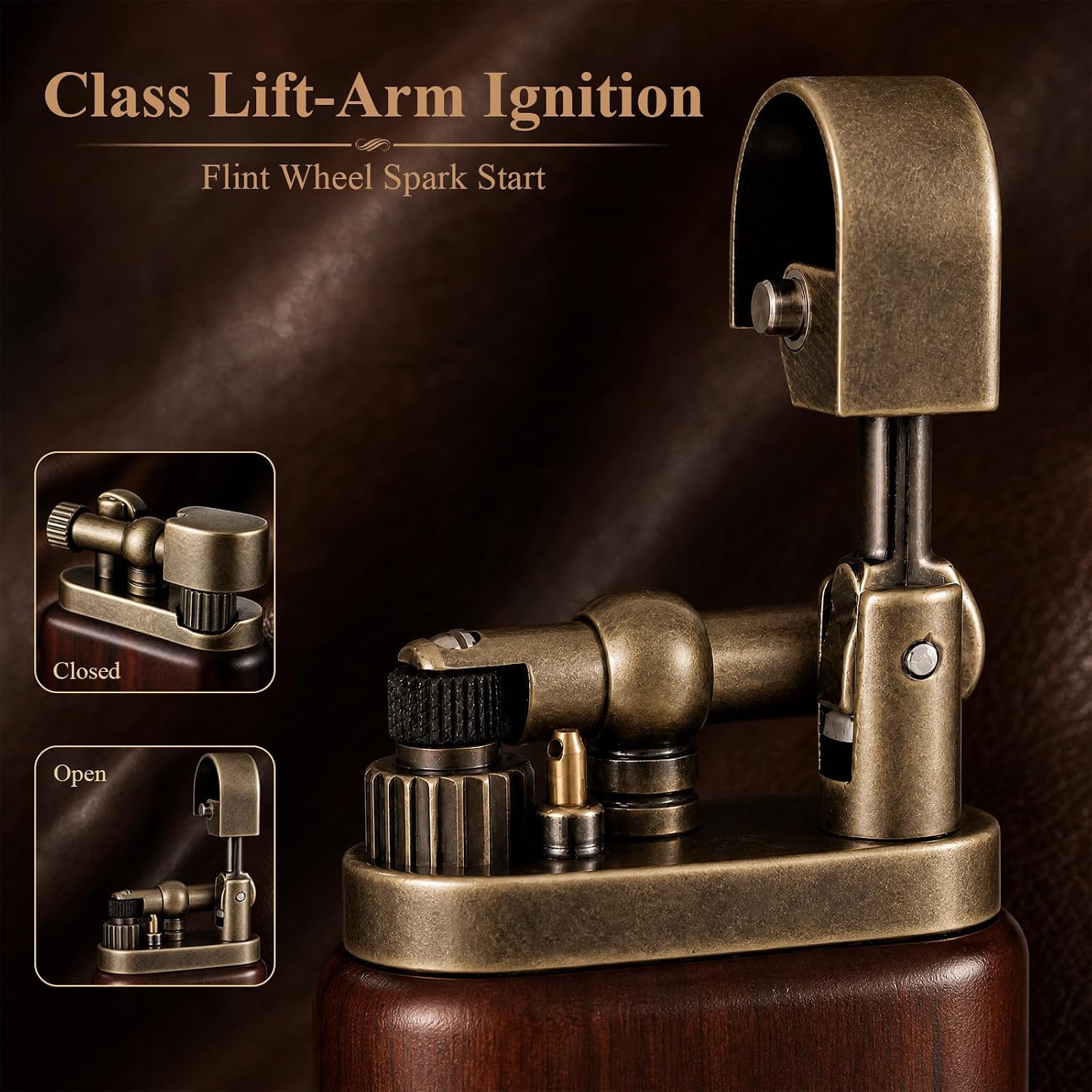

RUIXI Lighter showing closed and open positions of the lift-arm ignition
Image: Detailed view of the RUIXI lighter's classic lift-arm ignition system in both closed and open positions.

2. Using the Built-in Pipe Tool

The integrated pipe tool is located at the bottom of the lighter, opposite the refill valve.

  • Tamper: Use the flat end of the tool to gently flatten and compact tobacco in your pipe bowl for an even burn.
  • Pick/Scraper: Use the pointed end to clean the pipe bowl or clear blockages.
RUIXI Lighter with built-in pipe tool, showing tamper and pick functions
Image: The RUIXI lighter with its built-in dual-head pipe tool, illustrating its scraper and tamper functions.

Maintenance

1. Cleaning

Regular cleaning will help maintain your lighter's performance and appearance.

  • Wipe the exterior with a soft, dry cloth.
  • Use a small brush or compressed air to clear any debris from the flint wheel and burner nozzle.
  • Avoid using harsh chemicals or abrasive materials.

2. Flint Replacement

If the lighter stops producing sparks, the flint may need to be replaced. This process involves disassembling a small part of the lighter.

Video: Instructions on how to replace the flint in your RUIXI Vintage Lift Arm Gas Lighter. This video demonstrates the steps for proper flint replacement.

For detailed instructions on how to replace the flint, please refer to the embedded video above. Ensure you use compatible replacement flints.

Troubleshooting

ProblemPossible CauseSolution
Lighter does not ignite.No fuel, trapped air in tank, worn flint, or clogged nozzle.Refill with butane, bleed air from tank, replace flint, or clean nozzle.
Weak or inconsistent flame.Low fuel, incorrect flame adjustment, or low-quality butane.Refill fuel, adjust flame height, or use premium butane.
Lighter leaks fuel.Overfilled, faulty seal, or improper refilling technique.Ensure not to overfill. If leaking persists, contact customer support. Store upright.
Flint wheel does not spark.Worn flint or debris in flint wheel mechanism.Replace flint (refer to Maintenance section) or clean the flint wheel.

Specifications

  • Brand: RUIXI
  • Model: RX60
  • Color: Rosewood
  • Material: Rosewood, Zinc Alloy
  • Fuel Type: Liquefied Petroleum Gas (Butane)
  • Product Dimensions: 2.64"L x 1.22"W x 0.51"Th (68mm x 33mm x 17mm)
  • Ignition: Lift Arm, Flint Wheel Spark Start
  • Special Features: 45° Angled Soft Flame, Built-in Tamper and Pick Tool
  • UPC: 715748331940

Warranty and Support

RUIXI stands behind the quality of its products. For any questions, concerns, or warranty inquiries regarding your RUIXI Vintage Lift Arm Gas Lighter, please contact RUIXI customer support through the retailer where the product was purchased or visit the official RUIXI store page on Amazon.

Amazon Store Page: RUIXI Store
