1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your AirWire 10x15 FT Metal Carport. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This carport is designed to provide durable and versatile shelter for vehicles, boats, and other equipment, offering protection against various weather conditions.
Image: The AirWire 10x15 FT Metal Carport, demonstrating its primary function as a vehicle shelter.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or property damage.
- Ensure the carport is anchored securely to withstand wind and other weather conditions.
- Choose a level, clear area for installation, free of hazards such as debris, overhead power lines, or underground utilities.
- Maintain adequate space between the carport and potential fire risks.
- Be mindful of ventilation and temperature regulation, especially in enclosed structures or during extreme weather.
- Always wear appropriate personal protective equipment (PPE) during assembly, including gloves and eye protection.
- Assembly requires at least two adults. Some steps may require three people due to the weight and size of components.
3. Components and Specifications
Before assembly, verify that all components are present and undamaged. Refer to the packing list provided with your product. Key components include high-quality square steel tubing for the frame and galvanized steel roof panels.
Image: Key structural components of the AirWire Carport, highlighting reinforced elements.
Product Specifications:
| Attribute | Detail |
|---|---|
| Brand | AirWire |
| Model Number | ATP1015FT |
| Material | Metal (Galvanized Steel) |
| Style | 10x15 FT |
| Product Dimensions (L x W x H) | 180"L x 120"W x 100.8"H |
| Item Weight | 266 Pounds |
| Water Resistance Level | Water Resistant |
| Ultraviolet Light Protection | Yes |
| Assembly Required | Yes |
| Color | Black |

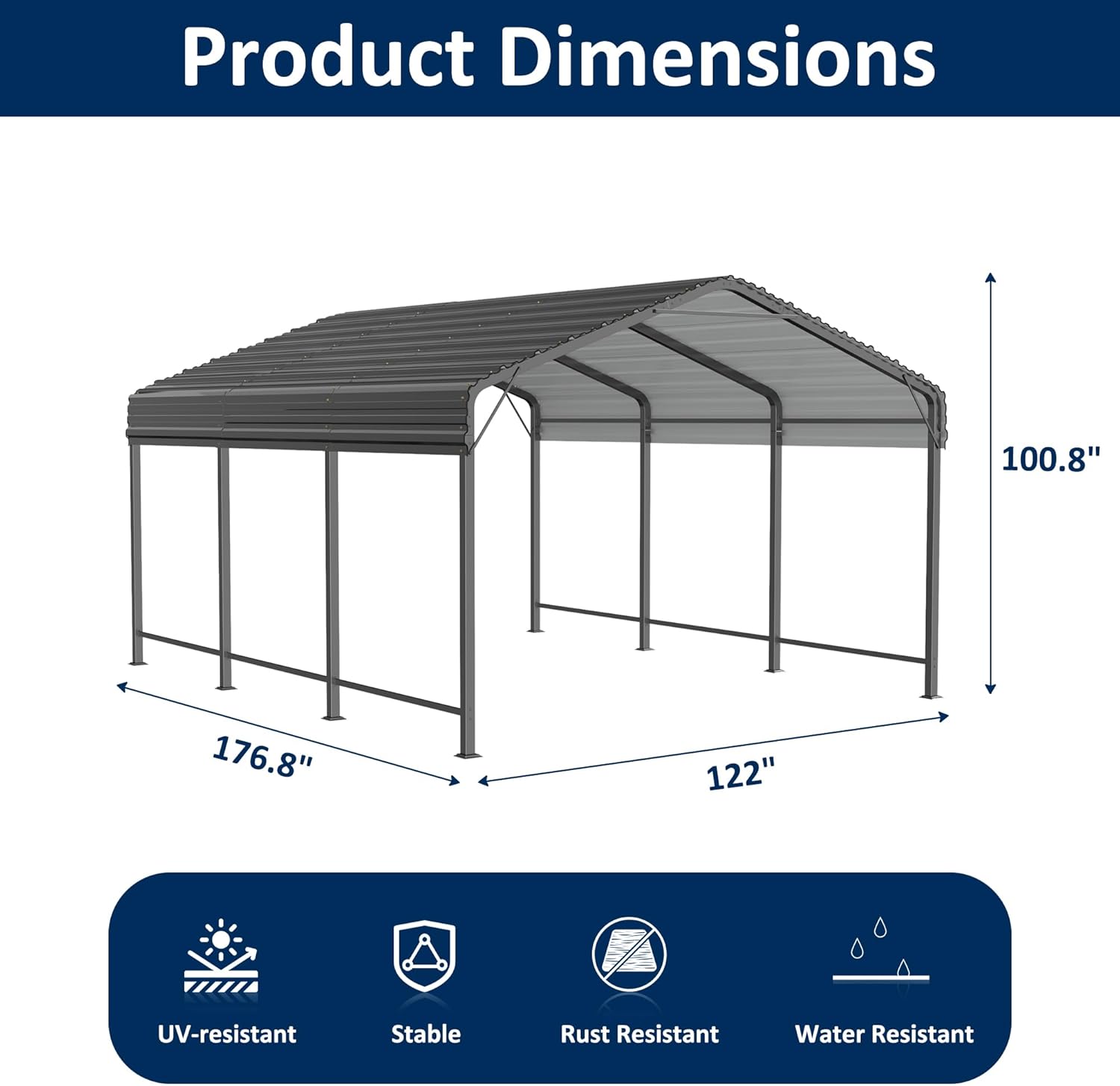

Image: Detailed product dimensions and key resistance features.
4. Assembly Instructions (Setup)
Assembly of the AirWire Carport requires careful attention to detail and adherence to the following steps. It is recommended to have at least two people for assembly, and a cordless drill will be beneficial.
- Prepare the Site: Select a level, clear area for installation. Ensure there are no obstructions or hazards.
- Assemble the Canopy Frame: Follow the diagrams in your included instruction booklet to connect the steel tubing sections to form the roof frame. Ensure all connections are secure.
- Install the Canopy Cover: Carefully place the galvanized steel roof panels onto the assembled frame. Ensure proper overlap for waterproofing. Secure panels using the provided hardware, paying close attention to the waterproof sealant strips and rubber edges. Note: Some users have found additional caulking beneficial for preventing leaks.
- Attach to Base Pillars: With assistance, lift the assembled roof and attach it to the vertical support legs. Ensure the legs are properly aligned with the heavy-duty ground stakes.
- Secure the Carport: Utilize the provided concrete anchors or heavy-duty nails to firmly anchor the carport to the ground. Proper anchoring is critical for stability, especially in windy conditions.

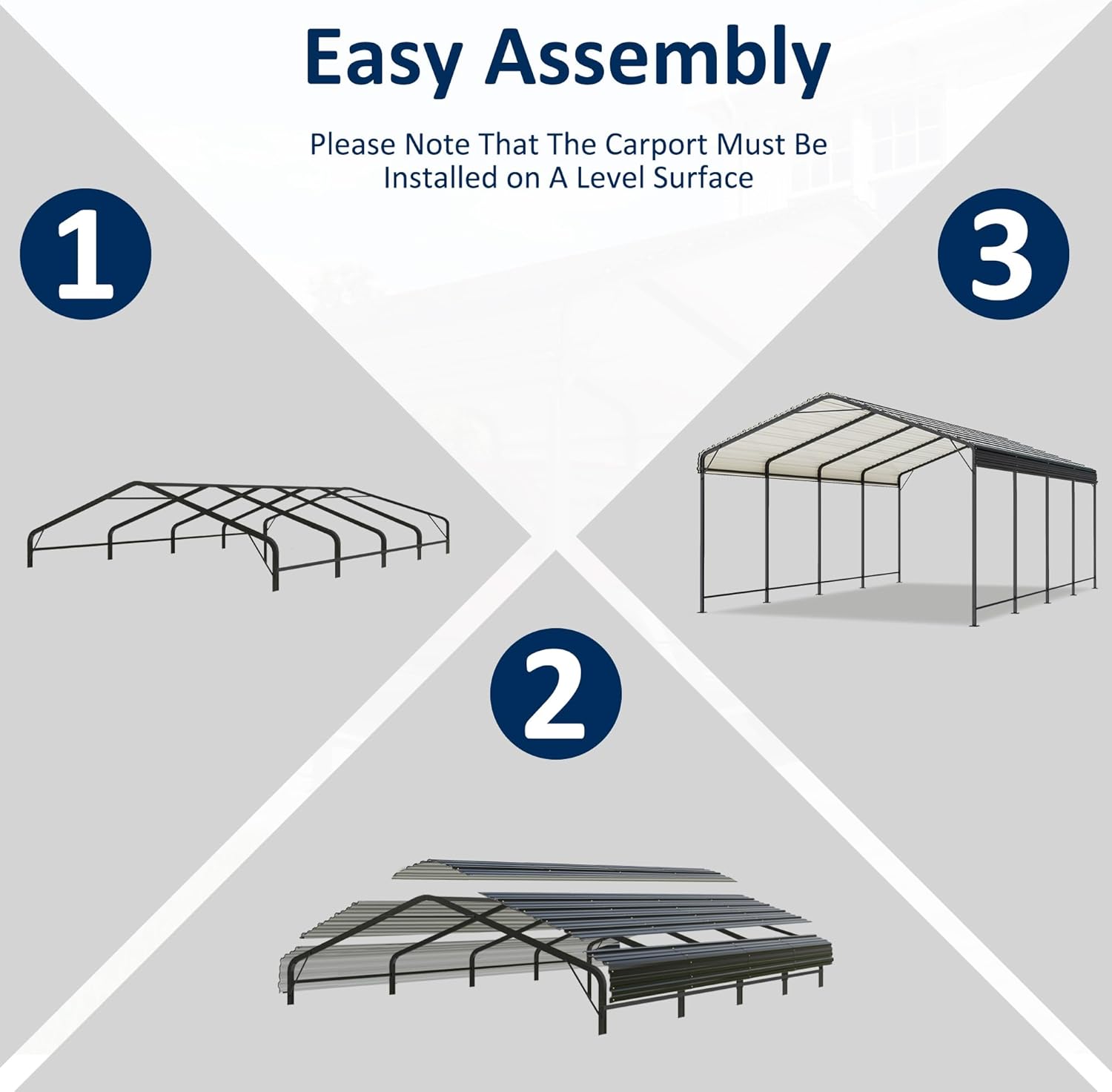

Image: Visual guide for the three main stages of carport assembly.
5. Operating the Carport
Your AirWire Metal Carport is designed for versatile use and protection. Once properly assembled and anchored, it provides a reliable shelter for various items.
- Vehicle Protection: Park your car, truck, or boat under the carport to shield it from sun, rain, snow, and hail. The UV-resistant galvanized sheet helps protect vehicles from high temperatures and sun damage.
- Multipurpose Use: The carport can also serve as an outdoor activity space, a storage area for equipment, or a shaded gathering spot.
- Weather Resistance: The pitched roof design allows for efficient water drainage, preventing accumulation. The robust metal frame is built to withstand significant snow loads and wind speeds up to 100 MPH when properly anchored.
Image: The pitched roof design facilitates efficient water drainage.
Image: The UV-resistant galvanized sheet protects against sun exposure.
6. Maintenance
Regular maintenance will ensure the longevity and continued performance of your AirWire Metal Carport.
- Cleaning: Periodically clean the roof panels and frame with mild soap and water to remove dirt, debris, and environmental buildup. Avoid abrasive cleaners or tools that could scratch the galvanized finish.
- Structural Inspection: Annually inspect all bolts, screws, and connections to ensure they remain tight and secure. Re-tighten any loose fasteners.
- Roof Integrity: Check the roof panels for any signs of damage, bending, or separation. Ensure the waterproof sealant strips and rubber edges are intact. If leaks occur, consider applying additional sealant or caulk to the panel seams.
- Anchoring System: Verify that the ground anchors are still firmly secured, especially after severe weather events. Re-secure or reinforce if necessary.
- Snow Removal: While the carport is designed to withstand snow loads, heavy accumulation should be cleared from the roof to prevent excessive stress on the structure. Use a soft broom or brush to avoid damaging the panels.
7. Troubleshooting
This section addresses common issues you might encounter with your carport.
- Roof Leaks: If water seeps through the roof panels, inspect the waterproof tape and sealant strips. Ensure panels are properly overlapped and secured. Applying additional silicone caulk along the seams of the roof panels can significantly improve waterproofing. Check that the washers on the roof screws are intact and properly seated.
- Missing Parts: In the event of missing components upon delivery, contact AirWire customer service immediately with your product model number and a description of the missing parts.
- Structural Instability: If the carport feels unstable, ensure all frame connections are tightly secured. Verify that the ground anchors are properly installed and holding firm. Re-evaluate the installation site for levelness and soil stability.
- Difficulty Assembling: Refer to the detailed assembly diagrams in your manual. Ensure you have adequate assistance (at least two people, preferably three for lifting the roof structure). Double-check that components are oriented correctly before fastening.
8. Customer Service and Support
AirWire is committed to providing a smooth and satisfying ownership experience. If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact our customer service team.
For support, please refer to the contact information provided in your product packaging or visit the official AirWire website. When contacting support, please have your model number (ATP1015FT) and purchase details readily available.
