1. Introduction
Thank you for choosing the DMASUN Exercise Bike Model 8715A. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before use to ensure optimal performance and longevity of your exercise bike.

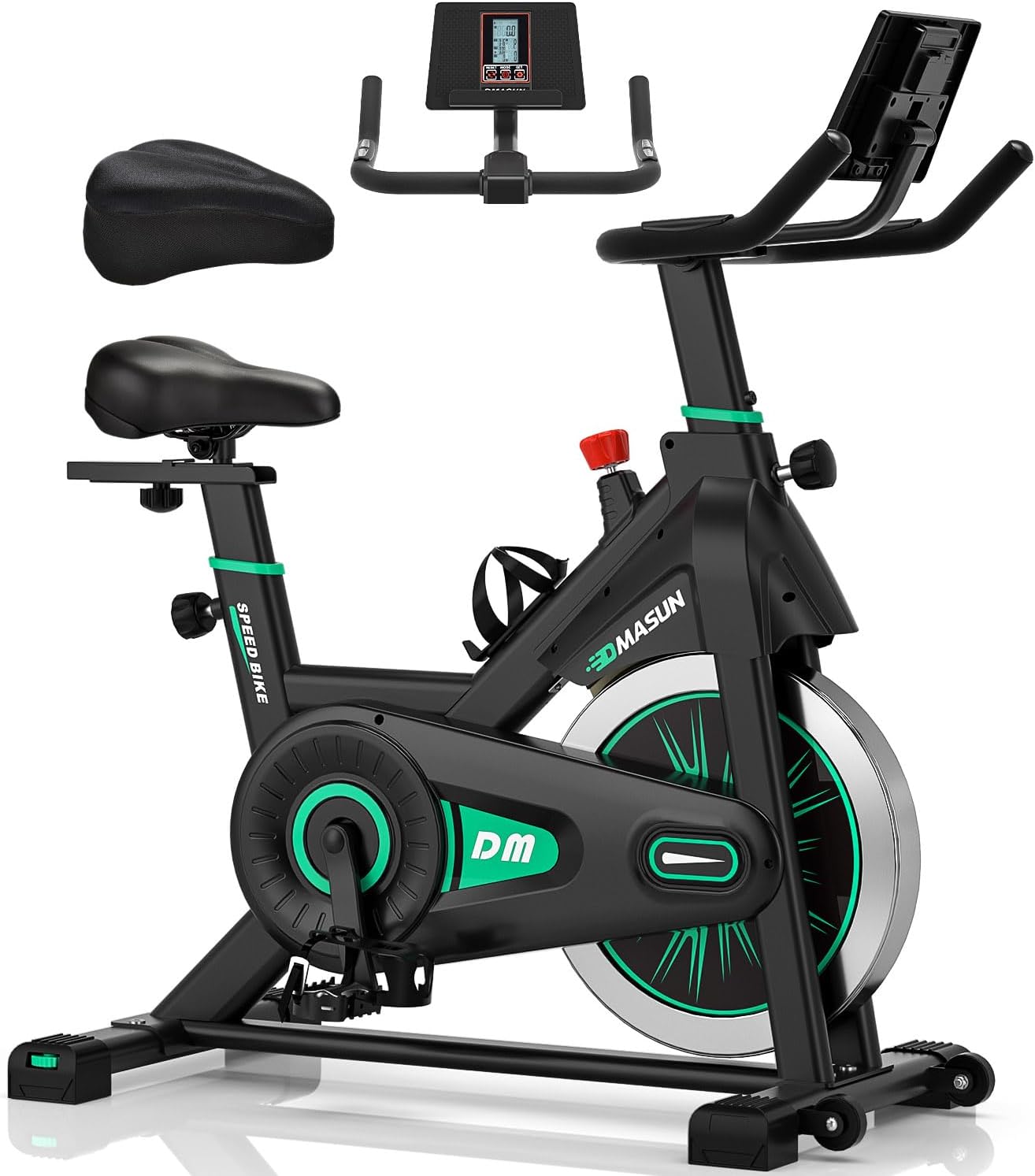

Image 1.1: The DMASUN Exercise Bike Model 8715A, a home trainer bicycle designed for indoor cycling.
2. Safety Information
Before using the DMASUN Exercise Bike, please observe the following safety precautions:
- Consult a physician before starting any new exercise program.
- Ensure all bolts and nuts are securely tightened before each use.
- Place the exercise bike on a flat, stable surface.
- Keep children and pets away from the equipment during operation.
- Wear appropriate exercise attire and footwear.
- The maximum user weight for this device is 160 kg (350 lbs).
- If you experience dizziness, pain, or shortness of breath, stop exercising immediately.
- This device is not suitable for medical treatment.
Image 2.1: Illustration of the exercise bike's sturdy frame, highlighting stability and safety features.
3. Setup and Assembly
The DMASUN Exercise Bike Model 8715A comes 70% pre-assembled. Follow these steps for complete assembly:
- Unpacking: Carefully remove all components from the packaging. Verify all parts are present against the included parts list.
- Stabilizer Installation: Attach the front and rear stabilizers to the main frame using the provided bolts and tools. Ensure they are firmly secured.
- Pedal Attachment: Identify the left (L) and right (R) pedals. Thread the pedals into the crank arms. Note that the left pedal threads counter-clockwise. Tighten securely.
- Seat Post and Seat Installation: Insert the seat post into the main frame and secure it at your desired height. Attach the padded seat to the seat post.
- Handlebar Post and Handlebar Installation: Insert the handlebar post into the main frame. Attach the handlebar to the post and secure it.
- Console Installation: Connect the sensor wires from the main frame to the LCD monitor. Mount the LCD monitor onto the handlebar post.
- Final Check: Double-check all connections and tightened bolts before first use.
Assembly typically takes less than 30 minutes with the included instructions and tools.
Image 3.1: The compact design of the DMASUN Exercise Bike, illustrating its dimensions for placement.
4. Operating Instructions
4.1 Adjusting Seat and Handlebars
- Seat Adjustment: The padded seat is 4-way adjustable (up/down, forward/backward). Loosen the adjustment knob, move the seat to the desired position, and tighten the knob securely. Suitable for heights from 145 cm to 195 cm.
- Handlebar Adjustment: The non-slip handlebars are 2-way adjustable (up/down). Loosen the adjustment knob, set the handlebars to a comfortable height, and tighten the knob.
Image 4.1: The ergonomically designed, padded seat for a comfortable riding experience.
4.2 Resistance Adjustment
The exercise bike features stepless resistance adjustment from 0% to 100% using a classic brake system. Turn the red knob clockwise to increase resistance and counter-clockwise to decrease it. To stop the flywheel quickly in an emergency, press the red knob down firmly.
- 0-20% Resistance: Ideal for warm-up or light recovery.
- 50-80% Resistance: Suitable for fat burning and moderate cardio.
- 80-95% Resistance: For intense muscle building workouts.
Image 4.2: The resistance adjustment knob, allowing for precise control of workout intensity.
4.3 LCD Monitor Functions
The multifunctional LCD monitor displays important exercise data to help you track your progress:
- Time: Duration of your workout.
- Speed: Current cycling speed.
- Distance: Total distance covered during the session.
- Calories: Estimated calories burned.
- Pulse: Heart rate monitoring (if equipped with sensors, typically on handlebars).
The monitor also includes a holder for tablets and smartphones, allowing you to enjoy media during your workout.
Image 4.3: The LCD monitor displaying workout metrics and featuring a tablet/smartphone holder.
4.4 Smooth and Quiet Operation
The DMASUN Exercise Bike features an updated heavy flywheel and ABS pulley system, combined with an improved felt pad braking system, to ensure smooth and quiet operation. This design minimizes noise and wear, allowing for focused training.
Image 4.4: Close-up of the smooth drivetrain and flywheel, illustrating the quiet operation mechanism.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your DMASUN Exercise Bike:
- Cleaning: Wipe down the bike with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
- Lubrication: Periodically check and lubricate moving parts as recommended in the detailed manual (if provided separately).
- Bolt Check: Regularly inspect all bolts and nuts for tightness. Re-tighten as necessary to prevent wobbling and ensure stability.
- Brake Pad Inspection: Check the felt brake pad for wear. Replace if significantly worn to maintain effective resistance.
- Storage: Store the bike in a dry, cool place away from direct sunlight and extreme temperatures.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike is wobbly or unstable. | Loose bolts; uneven surface. | Check and tighten all assembly bolts. Ensure the bike is on a level surface. Adjust leveling feet if present. |
| Squeaking or grinding noise during operation. | Loose components; lack of lubrication; worn brake pad. | Inspect and tighten all connections. Apply lubricant to moving parts if necessary. Check brake pad for wear and replace if needed. |
| Resistance knob not functioning correctly. | Brake pad misalignment or wear; cable issue. | Check the brake pad's position and condition. Ensure the resistance cable (if applicable) is properly connected and not frayed. |
| LCD monitor not displaying data. | Loose sensor connection; dead batteries (if applicable). | Verify sensor wires are securely connected to the monitor. Replace batteries in the LCD monitor if it uses them (product states "Batteries Included? No", implying it might be pedal-powered for display or uses internal non-replaceable battery). |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | 8715A |
| Product Dimensions | 114 cm (L) x 52 cm (W) x 120 cm (H) |
| Item Weight | 30 kg |
| Maximum User Weight | 160 kg |
| Recommended User Height | 145 cm - 195 cm |
| Flywheel Weight | 12 kg |
| Resistance Type | Stepless adjustment (felt brake pad) |
| Drive System | Belt |
| Frame Material | Aluminum Steel (over 2mm thick steel) |
| Display | LCD monitor (Time, Speed, Calories, Distance) |
| Seat Adjustment | 4-way padded seat |
| Handlebar Adjustment | 2-way adjustable |
| Special Features | Tablet/smartphone holder, non-slip pedals, transport wheels, water bottle holder. |
| Power Source | Pedal-powered (non-electric) |
8. Warranty and Support
DMASUN provides excellent customer service and stands by the quality of its products.
- Warranty: The DMASUN Exercise Bike Model 8715A comes with a 3-year warranty for repairs or replacements.
- Customer Service: For any questions, concerns, or warranty claims, please contact DMASUN customer service. Refer to your purchase documentation or the official DMASUN website for contact details.
- Online Resources: Visit the official DMASUN store for additional product information and support: DMASUN Store.
