Introduction
This manual provides detailed instructions for the safe and proper installation, operation, and maintenance of your BONTEC Single Monitor Desk Mount MDM001A. Please read this manual thoroughly before installation and retain it for future reference.
Important Safety Information
- Weight Capacity: Do not exceed the maximum weight capacity of 22 lbs (10 kg). Overloading may result in property damage or personal injury.
- Screen Size: This mount is designed for monitors between 13 and 34 inches.
- VESA Compatibility: Ensure your monitor has VESA mounting patterns of 75x75mm or 100x100mm.
- Desk Stability: Verify that your desk surface is stable and strong enough to support the combined weight of the mount and your monitor.
- Installation: Follow all installation steps carefully. If you are unsure about any part of the installation, seek professional assistance.
- Moving Parts: Be cautious when adjusting the mount to avoid pinching fingers or other body parts.
Package Contents
Please verify that all components are present and undamaged before proceeding with installation. If any parts are missing or damaged, contact customer support.
- Monitor Arm Assembly
- Desk Clamp Component
- Grommet Base Component
- VESA Plate
- Hardware Kit (screws, washers, spacers)
- Allen Keys
- Cable Management Clips
Image: Overview of the BONTEC Single Monitor Desk Mount MDM001A, illustrating the main components and both desk clamp and grommet base installation options.
Setup and Installation
The BONTEC Single Monitor Desk Mount offers two installation methods: Desk Clamp and Grommet Base. Choose the method best suited for your desk.
Compatibility Check
- Monitor Size: 13-34 inches
- Monitor Weight: Up to 22 lbs (10 kg)
- VESA Patterns: 75x75mm or 100x100mm
Image: Visual representation of monitor compatibility requirements, including screen size, weight, and VESA patterns.
Installation Methods

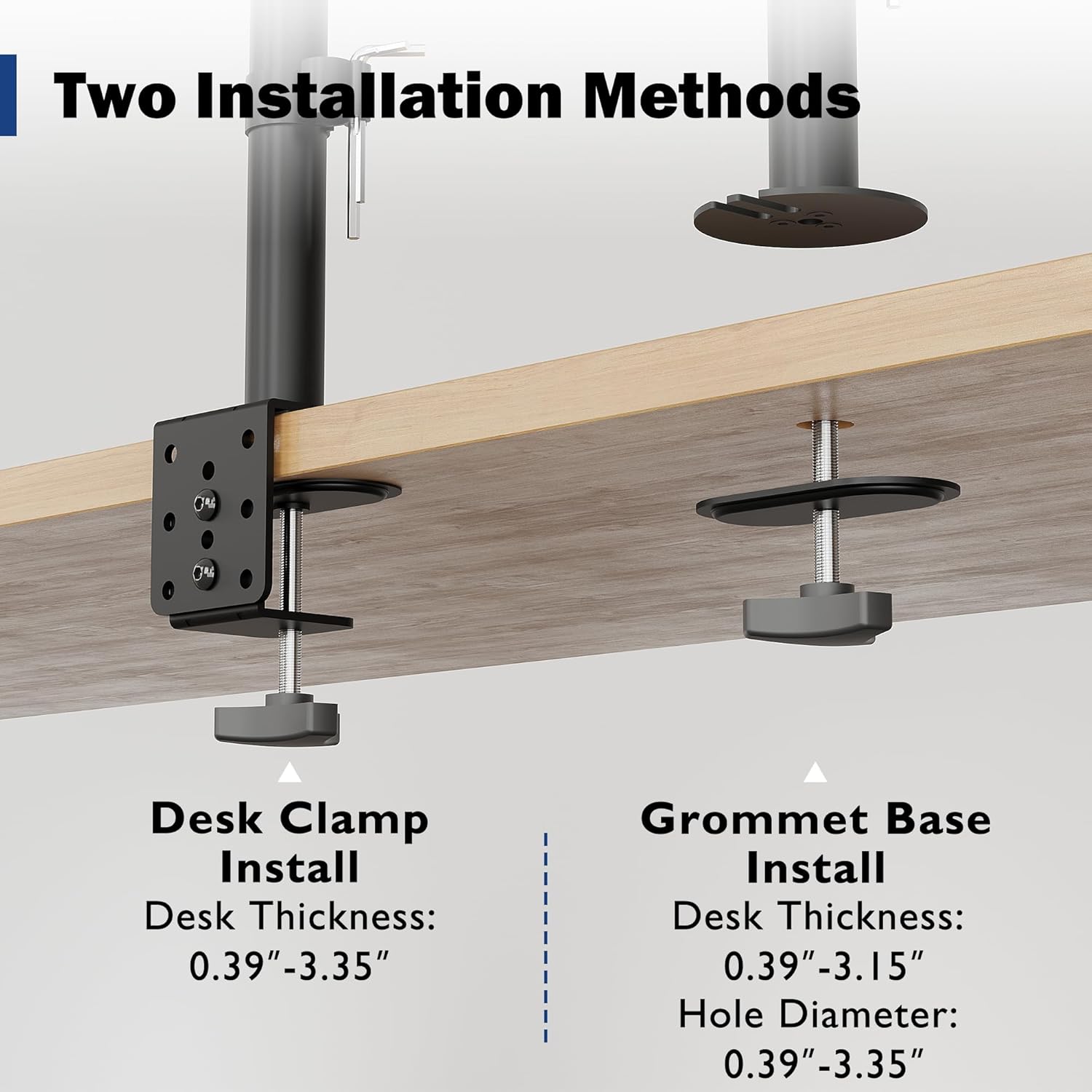

Image: Detailed illustration comparing the Desk Clamp and Grommet Base installation methods, including compatible desk thickness and hole diameter specifications.
Method 1: Desk Clamp Installation
- Attach the desk clamp component to the main pole.
- Position the clamp on the edge of your desk. Ensure the desk thickness is between 0.39" and 3.35".
- Tighten the clamp screw firmly until the mount is securely fixed to the desk.
Method 2: Grommet Base Installation
- If your desk has a bolt-through hole, ensure its diameter is between 0.39" and 3.35" and the desk thickness is between 0.39" and 3.15".
- Disassemble the desk clamp and use the grommet base plate and screw.
- Insert the grommet screw through the desk hole and secure it from underneath with the provided nut.
- Attach the main pole to the grommet base.
Attaching the Monitor
- Attach the VESA plate to the back of your monitor using the appropriate screws and spacers from the hardware kit. Ensure a secure fit.
- Carefully slide the monitor (with the attached VESA plate) onto the mounting head of the arm.
- Tighten any security screws on the mounting head to prevent accidental dislodging.
Operating and Adjustments
The BONTEC monitor mount offers various adjustments to optimize your viewing experience and ergonomic posture.
Height Adjustment
The monitor can be raised or lowered along the 16.73-inch pole. Loosen the collar on the pole, adjust the monitor to the desired height, and then re-tighten the collar to secure its position.
Image: Illustration of the monitor mount's vertical height adjustment capability along the central pole.
Tilt, Swivel, and Rotation
The special swivel head design allows for flexible positioning:
- Tilt: Adjust the screen vertically by ±15° to reduce glare and find the optimal viewing angle.
- Swivel: Rotate the monitor horizontally up to 360° to share your screen or change viewing direction.
- Rotation: Rotate the screen 360° from landscape to portrait mode for different tasks.
After adjusting the angle, use the back screw lock on the VESA plate to provide extra security and maintain the desired position.
Image: Visual guide to the tilt, swivel, and rotation adjustments available on the monitor mount.
Cable Management
Utilize the integrated cable management clips along the pole to route and organize your monitor cables. This helps maintain a tidy workspace and prevents cable clutter.
An integrated storage slot for Allen keys is also provided on the pole for convenient access to adjustment tools.
Image: Close-up view of the cable management clips and the Allen key storage slot on the mount's pole.
Maintenance
- Cleaning: Clean the mount with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
- Periodic Checks: Periodically check all screws and connections to ensure they remain tight and secure. Re-tighten if necessary.
- Lubrication: No lubrication is typically required for this product.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Monitor sags or does not hold position. | Mounting screws are loose; monitor weight exceeds capacity. | Ensure all screws, especially the back screw lock on the VESA plate, are tightened. Verify monitor weight is within 22 lbs (10 kg). |
| Mount is unstable on the desk. | Desk clamp/grommet base is not tightened sufficiently. | Re-tighten the desk clamp or grommet base screw. Ensure desk thickness is within specified limits. |
| Difficulty adjusting monitor height. | Height adjustment collar is too tight. | Loosen the height adjustment collar on the pole before attempting to adjust height. Re-tighten once desired height is achieved. |
| Cables are messy. | Cable management not utilized. | Route cables through the integrated cable management clips on the pole. |
Specifications
- Brand: BONTEC
- Model: MDM001A
- Screen Size Compatibility: 13-34 inches
- Weight Capacity: 22 lbs (10 kg)
- VESA Compatibility: 75x75mm, 100x100mm
- Tilt Range: ±15°
- Swivel Range: 360°
- Rotation: 360°
- Height Adjustment: Up to 16.73 inches (along pole)
- Desk Clamp Thickness: 0.39" - 3.35"
- Grommet Base Desk Thickness: 0.39" - 3.15"
- Grommet Hole Diameter: 0.39" - 3.35"
- Material: Metal
- Color: Black
Warranty and Support
Specific warranty details are not provided within this manual. For warranty information, technical support, or to inquire about replacement parts, please visit the official BONTEC website or contact their customer service directly.
Website: BONTEC Store on Amazon
