maXpeedingrods Adjustable Front Track Bar for Jeep Cherokee XJ / Wrangler TJ (1.5-4.5" Lift) Instruction Manual

Product Overview

The maXpeedingrods Adjustable Front Track Bar is designed to enhance the suspension performance and alignment of Jeep Cherokee XJ (1984-2001) and Jeep Wrangler TJ (1997-2006) models with 1.5 to 4.5 inches of vehicle lift. This component helps maintain proper axle alignment and steering geometry after lifting the vehicle, contributing to improved handling and stability.

Model Number: UQ87WN

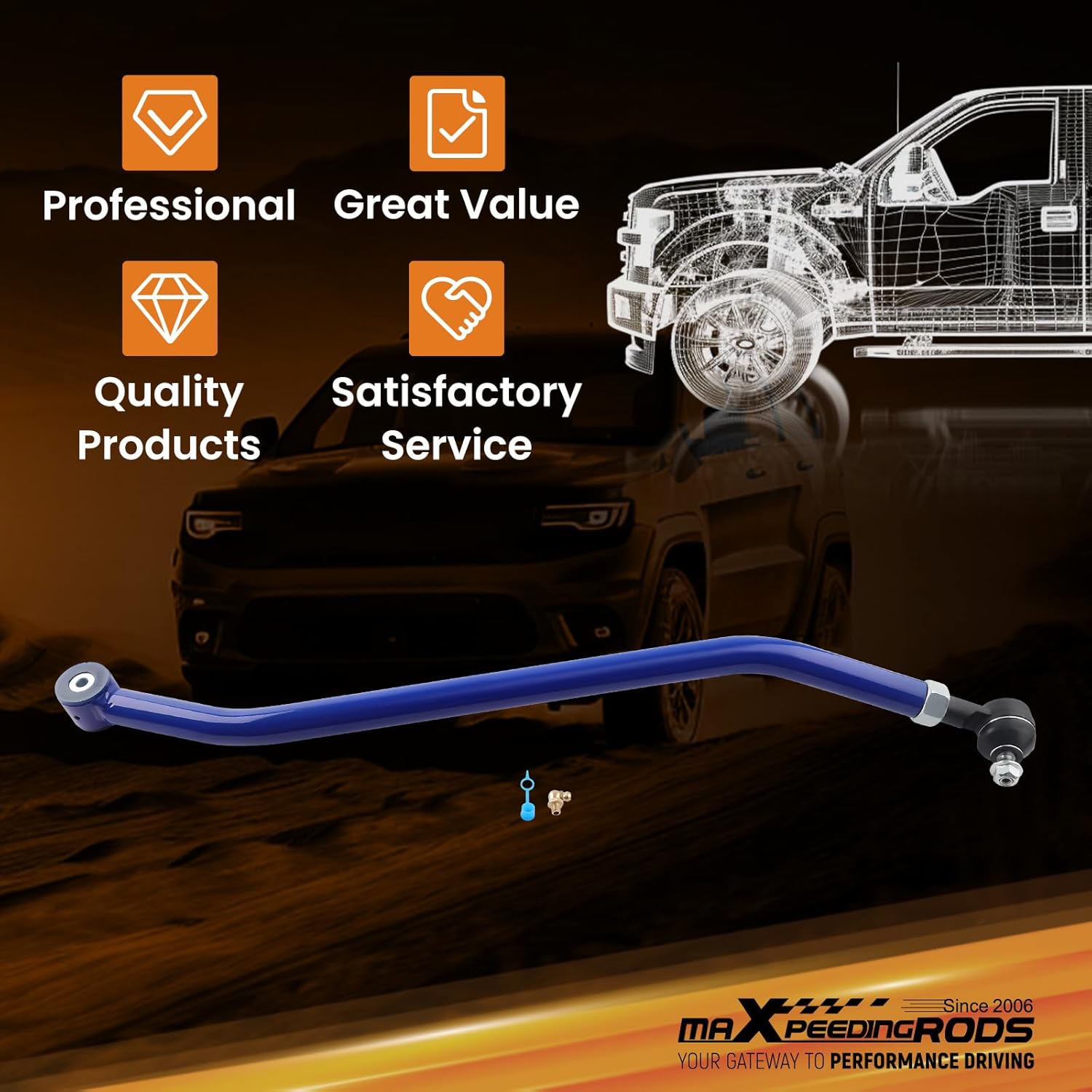

Image: maXpeedingrods Adjustable Front Track Bar.

Compatibility

This adjustable front track bar is compatible with the following vehicle models:

• Jeep Cherokee XJ (1984-2001)
• Jeep Wrangler TJ (1997-2006)

Note: This product is not suitable for right-hand drive vehicles.

Image: Compatibility details for the maXpeedingrods Adjustable Front Track Bar.

Key Features

• Adjustable Length: The track bar offers an adjustable length range from 30.28 inches (MIN) to 31.73 inches (MAX). This adjustability accommodates vehicles with 1.5 to 4.5 inches of lift, allowing for precise axle centering and alignment correction after suspension modifications.


  Image: Illustration of the adjustable track bar for lifted suspensions.

• Upgraded Polyurethane (PU) Bushings: Features durable polyurethane bushings, which offer superior wear resistance and longevity compared to standard rubber bushings. These bushings contribute to more responsive handling and improved vehicle control.


  Image: Detail of the upgraded polyurethane bushing.

• Durable Construction: Constructed from 1.25-inch O.D. (Outer Diameter) and 0.25-inch wall tubular steel. The robust design and blue powder coating ensure high strength, resistance to corrosion, and extended durability in various driving conditions.


  Image: Durable material and construction of the track bar.
• Grease Zerk Fittings: Equipped with grease zerk fittings for easy lubrication of internal moving parts. Regular greasing helps extend the lifespan of the track bar and ensures smooth operation.


  Image: Grease zerk fittings for maintenance.

What's in the Box

The package includes:

• 1 x maXpeedingrods Adjustable Front Track Bar
• Necessary Installation Hardware

Image: Contents of the product package.

Installation Instructions

Installation of suspension components requires mechanical knowledge and specialized tools. It is highly recommended that this adjustable front track bar be installed by a qualified professional to ensure proper fitment, alignment, and vehicle safety.

General Installation Guidelines (Professional Installation Recommended):

1. Safety First: Ensure the vehicle is securely supported on jack stands or a lift. Disconnect the battery if necessary.
2. Remove Old Track Bar: Carefully unbolt and remove the existing front track bar. Note the orientation and attachment points.
3. Install New Track Bar: Position the new maXpeedingrods adjustable front track bar. Loosely attach it to the frame and axle mounting points using the provided hardware.
4. Adjust Length: With the vehicle at ride height (or simulating ride height), adjust the length of the track bar to center the front axle. This is crucial for proper steering geometry and preventing tire rub. Refer to vehicle-specific alignment procedures.
5. Tighten Hardware: Once the axle is centered, tighten all mounting hardware to the manufacturer's specified torque settings.
6. Final Inspection: Double-check all connections and ensure there is no interference with other suspension or steering components.
7. Professional Alignment: After installation, a professional wheel alignment is mandatory to ensure correct caster, camber, and toe settings, which are critical for vehicle handling and tire wear.

For a visual reference on control arm installation (similar principles may apply), please refer to the video below. Note that this video may feature a different vehicle or specific control arm type, but demonstrates general installation practices for suspension components.

Maintenance

Regular maintenance is essential to ensure the longevity and optimal performance of your adjustable front track bar.

• Lubrication: Periodically lubricate the grease zerk fittings using a grease gun. This helps maintain smooth movement and prevents premature wear of the bushings and joints. Do not over-tighten the grease zerks to prevent damage.
• Inspection: Regularly inspect the track bar for any signs of wear, damage, or loose connections. Check the bushings for cracks or deterioration. Ensure all bolts are securely tightened.
• Cleaning: Keep the track bar clean from excessive dirt, mud, and corrosive substances, especially after off-road use.

Troubleshooting

If you experience any issues after installing the track bar, consider the following common troubleshooting steps:

• Steering Issues (e.g., "Death Wobble", wandering): This often indicates improper axle centering or incorrect alignment settings. Re-check the track bar length adjustment and ensure the axle is perfectly centered. A professional alignment is crucial.
• Noise (e.g., clunking, squeaking): Inspect all mounting points for looseness. Check bushings for wear or damage. Ensure adequate lubrication of grease zerks.
• Difficulty Adjusting: Ensure the adjustment threads are clean and lubricated. If seized, apply penetrating oil.

If problems persist, consult with a certified automotive technician or contact maXpeedingrods customer support for assistance.

Specifications

Warranty and Support

maXpeedingrods is committed to product quality and customer satisfaction. If the polyurethane bushing wears out from normal use, replacement bushings are available. Please contact maXpeedingrods customer support for assistance with replacement parts or any other product-related inquiries.

For further support, visit the official maXpeedingrods website or refer to your purchase documentation for contact information.
