Devoko L-Shaped Gaming Desk Instruction Manual

1. Introduction

Thank you for choosing the Devoko L-Shaped Gaming Desk. This manual provides detailed instructions for the assembly, operation, and maintenance of your new desk. Please read this manual carefully before assembly and use to ensure proper function and safety. This desk features an L-shaped design, integrated LED lighting, two power outlets, and two USB charging ports, along with convenient storage solutions.

2. Safety Information

• Always follow the assembly instructions carefully. Incorrect assembly can lead to instability and potential injury.
• Do not overload the desk. Refer to the specifications section for weight limits.
• Keep all electrical components (LED strip, power outlets, USB ports) away from water and moisture.
• Ensure all screws and fasteners are tightened securely before use. Periodically check and re-tighten as needed.
• Do not allow children to climb on or play with the desk.
• Use only the provided power cord and ensure it is properly connected to a grounded outlet.

3. Package Contents

Before beginning assembly, please verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Desk Panels (L-shaped sections)
• Steel Frame Components (legs, support bars)
• LED Light Strip with Remote Control
• Integrated Power Strip with 2 Outlets and 2 USB Ports
• CPU Stand
• Storage Shelves (upper and lower)
• Iron Hooks
• Fabric Storage Drawer
• Assembly Hardware (screws, bolts, nuts)
• Assembly Tools (Allen wrench, screwdriver)
• Instruction Manual

Image 3.1: Overview of desk components and dimensions. This diagram illustrates the various parts of the desk and their measurements, aiding in identification during assembly.

4. Setup and Assembly Instructions

Assembly typically requires one person and includes all necessary tools. Follow the numbered steps in the provided separate assembly guide for detailed instructions. The desk offers three possible installation configurations to adapt to different room layouts.

1. Unpack and Identify Parts: Lay out all components on a clean, soft surface to prevent scratches. Compare with the package contents list.
2. Assemble the Steel Frame: Connect the main steel frame components using the provided screws and Allen wrench. Do not fully tighten screws until all parts are loosely connected.
3. Attach Desk Panels: Secure the engineered wood desk panels to the assembled steel frame. Ensure proper alignment for the L-shape configuration.
4. Install Storage Shelves: Attach the upper and lower storage shelves to the designated frame sections.
5. Mount CPU Stand and Fabric Drawer: Secure the CPU stand and attach the fabric storage drawer to its designated location.
6. Install Power Strip: Integrate the power strip with outlets and USB ports into the designated cutout on the desk surface.
7. Attach LED Strip: Adhere the LED light strip to the underside of the upper shelf or desired location.
8. Final Tightening: Once all components are in place and aligned, fully tighten all screws and fasteners.
9. Attach Iron Hooks: Secure the iron hooks to the side of the desk for headphone or accessory storage.

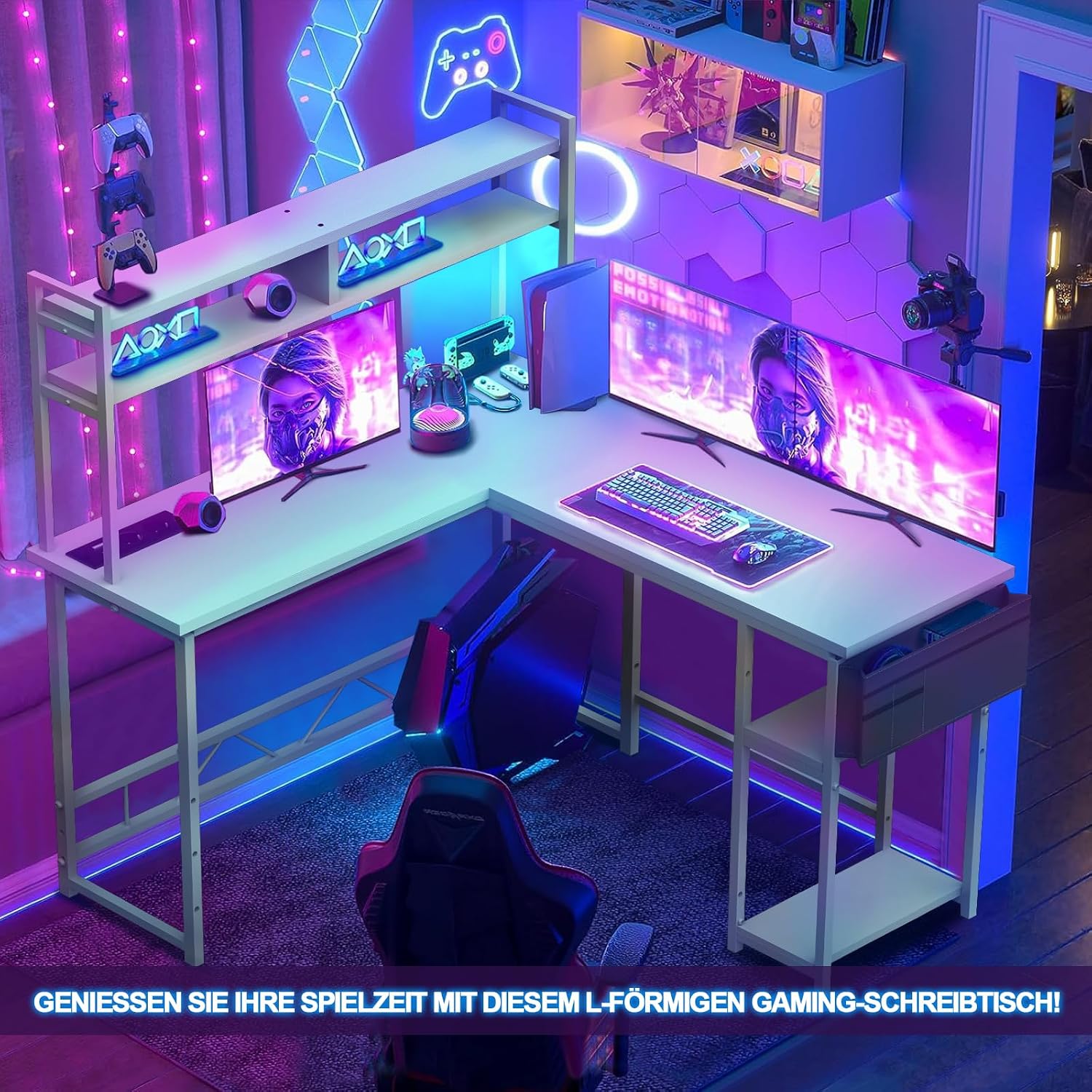

Image 4.1: The fully assembled Devoko L-Shaped Gaming Desk, showcasing its design and functionality in a typical use environment.

5. Operating Instructions

5.1 LED Lighting

The desk includes an integrated LED light strip for ambient lighting. Connect the LED strip to a power source as indicated in the assembly guide. Use the provided remote control to turn the lights on/off, change colors, adjust brightness, and select lighting modes.

Image 5.1: The LED light strip and its remote control. The remote allows for customization of colors and lighting effects.

5.2 Power Outlets and USB Ports

The desk is equipped with a built-in power strip featuring two standard power outlets and two USB charging ports. This allows for convenient power access for your computer, monitors, and other electronic devices.

• Power Connection: Plug the desk's main power cord into a wall outlet.
• Using Outlets: Plug your devices (e.g., monitors, PC) into the standard power outlets.
• Using USB Ports: Connect your USB-powered devices (e.g., smartphone, tablet, gaming accessories) to the USB ports for charging.

Image 5.2: The integrated power strip with two outlets and two USB ports, designed for easy access to power and charging.

6. Maintenance

• Cleaning: Wipe the desk surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• Dusting: Regularly dust the desk and its components to prevent accumulation.
• Fastener Check: Periodically check all screws and bolts to ensure they remain tight. Re-tighten if necessary to maintain stability.
• Cable Management: Organize cables to prevent tangles and reduce strain on connections.

7. Troubleshooting

• Desk is Unstable:
  Solution: Ensure all screws are fully tightened. Check that the desk is on a level surface. Adjust leveling feet if present.
• LED Lights Not Working:
  Solution: Check if the LED strip is properly connected to its power source. Ensure the remote control has working batteries and is pointed at the receiver. Verify the main power cord is plugged in.
• Power Outlets/USB Ports Not Functioning:
  Solution: Ensure the desk's main power cord is securely plugged into a functional wall outlet. Check if the power strip's switch (if any) is turned on. Test with a different device.
• Missing Parts During Assembly:
  Solution: Double-check the packaging. If parts are genuinely missing, contact Devoko customer support with your purchase details.

8. Specifications

Image 8.1: Close-up of the desk's integrated storage solutions, including the CPU stand, two-tier shelves, and a fabric drawer for organization.

9. Warranty and Support

9.1 Warranty Information

This Devoko L-Shaped Gaming Desk comes with a limited warranty. Please refer to the warranty card included in your package for specific terms, conditions, and duration. The warranty typically covers manufacturing defects and material flaws under normal use.

9.2 Customer Support

For any questions, assistance with assembly, troubleshooting, or warranty claims, please contact Devoko customer support. Please have your purchase receipt and model number (Wit) ready when contacting support.

Contact Information:
(Please refer to your product packaging or the retailer's website for the most current customer support contact details.)
