VIVO DESK-KIT-2E71B 71x30 Inch Electric Standing Desk User Manual

Introduction

This manual provides essential instructions for the assembly, operation, and maintenance of your VIVO DESK-KIT-2E71B Electric Standing Desk. This workstation is designed to transition smoothly between sitting and standing positions, promoting an active and ergonomic work environment. Please read this manual thoroughly before use to ensure proper setup and safe operation.

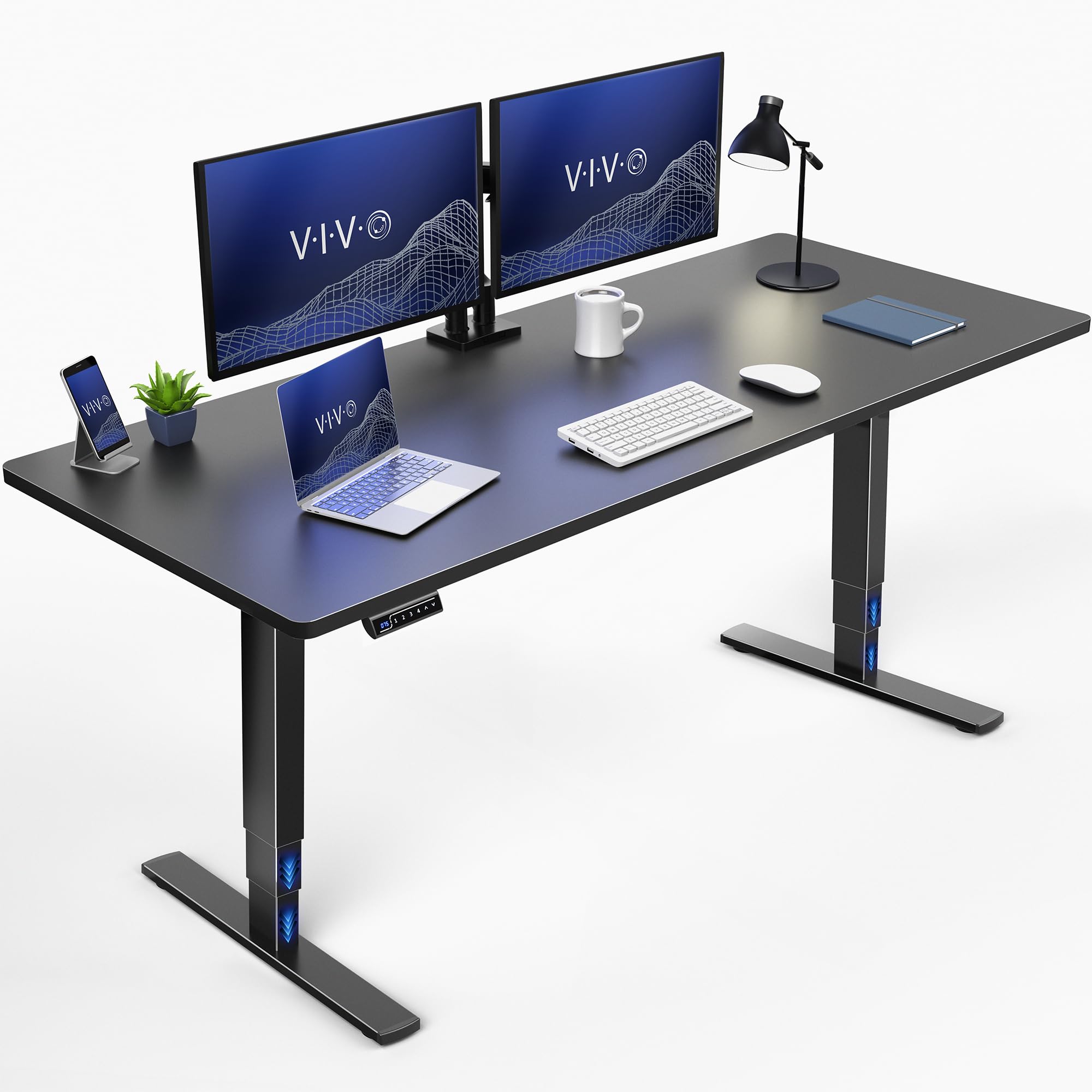

VIVO Black 71 x 30 inch Electric Standing Desk — The VIVO DESK-KIT-2E71B Electric Standing Desk in a typical office setup.

Safety Information

Important: Exceeding the weight limit of 220 lbs (100 kg) may cause damage to the desk or result in injury. Ensure proper assembly as described in the setup section to maintain stability and structural integrity. Keep children and pets away from the desk during height adjustments. Do not place hands or other objects near moving parts.

Setup Instructions

Before beginning assembly, ensure all components are present and undamaged. Refer to the included assembly instructions for detailed, step-by-step guidance. Assembly typically requires one person.

Included Components:

Black 71" x 30" Table Top
Black Electric Single Motor Desk Frame
Hardware and tools for assembly

Assembly Overview:

Unpack all components and verify against the parts list.
Attach the desk legs to the desktop using the provided hardware.
Connect the motor and control panel cables as instructed.
Ensure all connections are secure and the desk is stable before use.

Person assembling the VIVO standing desk frame — Illustration of a person assembling the desk frame, showing the various components.

Operating Instructions

Your VIVO Electric Standing Desk features an intuitive control panel for height adjustment and memory presets.

Height Adjustment:

Use the Up (▲) and Down (▼) arrows on the control panel to raise or lower the desk to your desired height.
The desk offers a height range from 24.8 inches (minimum) to 50.4 inches (maximum).

Memory Presets:

The control panel allows you to save up to three preferred height settings for quick transitions.

Adjust the desk to your desired height using the Up/Down arrows.
Press the M button, then press one of the number buttons (1, 2, or 3) to save the current height to that preset.
To recall a saved height, simply press the corresponding number button. The desk will automatically move to the saved position.

Close-up of the VIVO standing desk control panel with one-touch presets — The desk's control panel features one-touch presets for easy height adjustments.

Illustration showing the extended height range of the VIVO standing desk — Visual representation of the desk's minimum and maximum height settings, accommodating various user heights.

Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your standing desk.

Cleaning: Wipe the desktop and frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
Cable Management: Periodically check and organize cables to prevent tangles and ensure smooth operation during height adjustments.
Inspection: Routinely inspect all screws and connections to ensure they remain tight. Tighten any loose fasteners as needed.

Troubleshooting

If you encounter issues with your VIVO Electric Standing Desk, refer to the following common solutions:

Desk Not Moving: Ensure the power cord is securely plugged into both the desk and a working electrical outlet. Check for any obstructions under or around the desk that might prevent movement.
Wobble: A slight wobble can sometimes occur, especially at higher settings. Ensure all assembly screws are tightened. If the wobble is significant, verify that the desk is placed on a level surface and that the feet are adjusted correctly.
Error Codes: If the control panel displays an error code, consult the full user manual (available as a PDF document) for specific code interpretations and solutions.

If these steps do not resolve the issue, please contact VIVO customer support for further assistance.

Specifications

Key specifications for the VIVO DESK-KIT-2E71B Electric Standing Desk:

Feature	Detail
Brand	VIVO
Model Number	DESK-KIT-2E71B
Product Dimensions (D x W x H)	29.5" x 70.9" x 25.5"
Tabletop Size	71 x 30 inch
Minimum Height	24.8 inches
Maximum Height	50.4 inches
Maximum Weight Recommendation	220 pounds
Material Type	Particle Board, Steel
Lifting Mechanism	Electric Motor
Tabletop Thickness	1 inch
Color	Black Top / Black Frame

Diagram showing the dimensions and weight capacity of the VIVO standing desk — Detailed dimensions and weight capacity of the desk.

Comparison of VIVO desk heavy duty capacity versus other desks — Illustration highlighting the heavy-duty capacity of the VIVO desk, supporting up to 220 lbs.

Close-up showing the 1-inch commercial thickness of the VIVO desktop — The desktop features a 1-inch commercial thickness for durability.

Warranty Information

The VIVO DESK-KIT-2E71B Electric Standing Desk comes with a 3-year limited warranty. This warranty covers manufacturing defects and ensures the product meets VIVO's quality standards. For specific terms and conditions, please refer to the official warranty documentation provided with your purchase or contact VIVO customer support.

Customer Support

For any questions, technical assistance, or warranty claims, please contact VIVO customer support. Our U.S.-based sales and technical support teams are available to provide assistance.

You can typically find contact information on the VIVO official website or within the packaging materials of your product. Please have your model number (DESK-KIT-2E71B) and purchase date ready when contacting support.
