LINSY HOME Farmhouse TV Stand (Model LH216M1-B) Instruction Manual

1. Important Safety Information

Please read and understand all instructions before assembly and use. Keep this manual for future reference.

• Weight Capacity: The top surface supports a maximum of 150 lbs (68 kg). Ensure weight is distributed evenly.
• TV Size: This TV stand is designed to accommodate TVs up to 65-70 inches.
• Anti-Tip Hardware: Always install the provided anti-tip hardware to prevent accidental tipping, especially in households with children or pets.
• Placement: Place the TV stand on a flat, level surface. Avoid placing it near heat sources or in direct sunlight.
• Assembly: Assembly requires two adults. Do not overtighten screws.
• Material: Constructed from P2 class particle board and laminated MDF.

2. Package Contents

Verify all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• All necessary engineered wood panels and shelves.
• Sliding barn door hardware (rails, hangers, handles).
• Adjustable shelf pins.
• Assembly hardware (screws, dowels, cam locks, etc.).
• Anti-tip hardware kit.
• Assembly instructions manual.

3. Setup and Assembly

Follow the step-by-step instructions provided in the included assembly guide. Each part is labeled for easy identification.

3.1. Preparation

1. Clear a spacious area for assembly.
2. Lay out all parts and hardware, matching them with the parts list.
3. Gather necessary tools (screwdriver, hammer, etc.).

3.2. Assembly Steps (General Overview)

1. Assemble the main frame of the TV stand.
2. Install the fixed shelves and back panels.
3. Attach the sliding barn door rails and hangers.
4. Assemble the barn doors and attach handles.
5. Insert adjustable shelf pins and place adjustable shelves.
6. Secure the anti-tip hardware to the TV stand and wall.

Figure 3.1: Product dimensions showing 15.7"D x 60"W x 24"H, with a maximum weight capacity of 150 lbs on top and 30-50 lbs on shelves.

Figure 3.2: The assembled TV stand accommodating a large television, showcasing its farmhouse design and storage capabilities.

Figure 3.3: Detail of the cable management cutouts for organizing wires and the thickened tabletop for durability.

4. Operating Instructions

4.1. Sliding Barn Doors

The TV stand features smooth-gliding barn doors that allow flexible access to storage compartments. Simply slide the doors along the top rail to reveal or conceal the central or side shelves.

Figure 4.1: The sliding barn door mechanism, highlighting the smooth sliding rail, anti-rust alloy handles, and unique woven patterns on the doors.

4.2. Adjustable Shelves

The shelves within the cabinets are adjustable to three different height levels, allowing you to customize storage space for various items such as consoles, DVDs, books, or decorative pieces.

1. Remove any items from the shelf you wish to adjust.
2. Carefully lift the shelf and remove the four shelf pins supporting it.
3. Reinsert the shelf pins into the desired holes at the new height.
4. Place the shelf back onto the pins, ensuring it is level and secure.

Figure 4.2: Illustration demonstrating the three height-adjustable shelf positions within the cabinet sections.

4.3. Cable Management

Utilize the concealed circular cable holes located on the back panel to route and organize wires from your electronic devices, maintaining a tidy appearance.

5. Maintenance and Care

• Cleaning: Wipe the surface with a dry, soft cloth. Avoid using harsh chemicals or abrasive cleaners, as they may damage the laminated finish.
• Spills: Immediately wipe up any spills to prevent moisture damage.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
• Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration.

6. Troubleshooting

• Wobbly Stand: Ensure all screws are tightened. Check that the stand is on a level surface. Adjustable levelers on the legs can help compensate for uneven floors.
• Doors Not Sliding Smoothly: Check the sliding rail for any obstructions. Ensure the door hangers are properly seated on the rail.
• Shelf Misalignment: Verify that all four shelf pins are inserted correctly and at the same height for each shelf.
• Missing Parts: If any parts are missing upon arrival, refer to the contact information in the Warranty & Support section.

7. Specifications

8. Product Overview Video

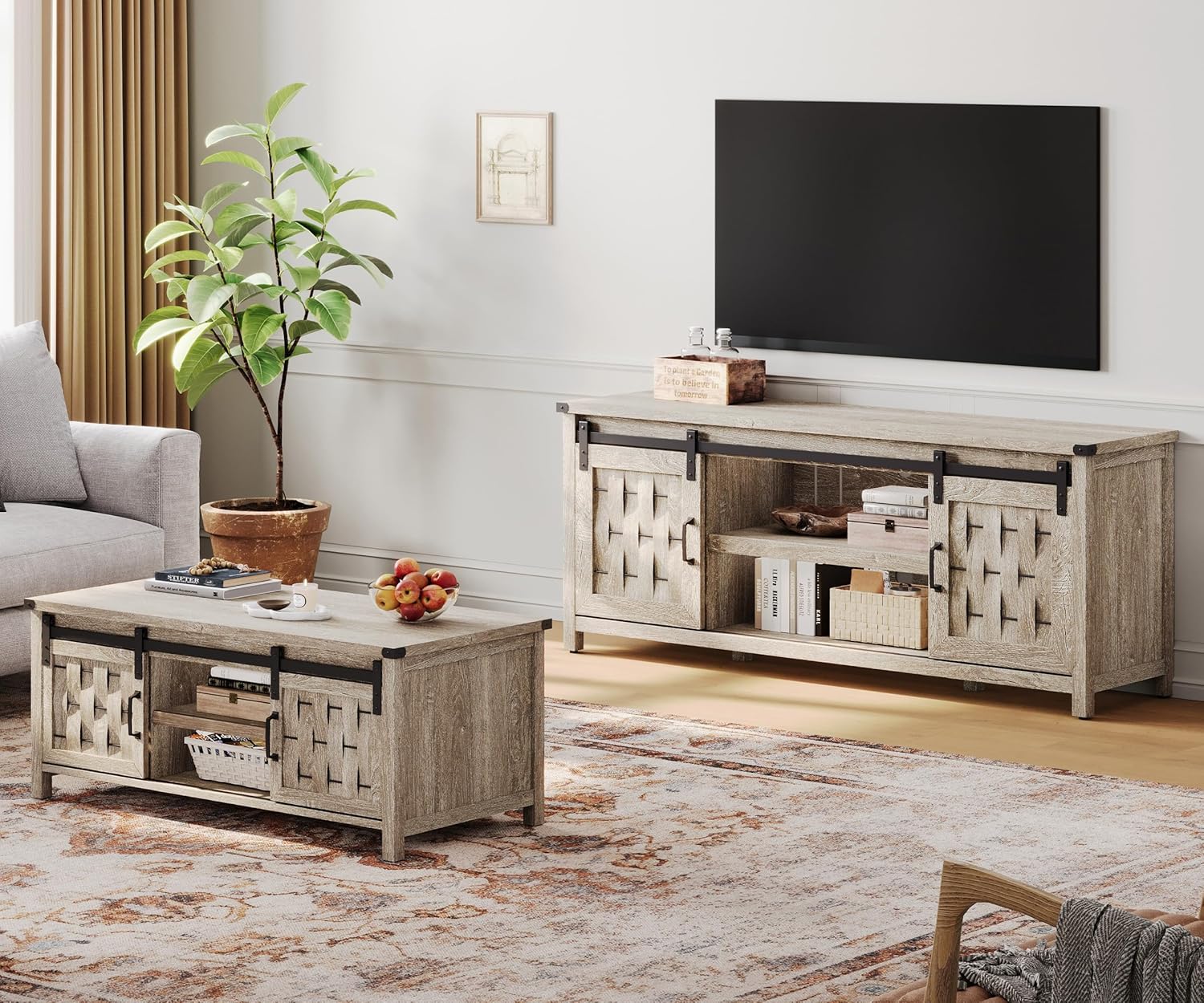

Watch this video for a comprehensive overview of the LINSY HOME Farmhouse Woven Patterned Series, showcasing the TV stand and other matching furniture pieces.

9. Warranty and Support

For any questions, concerns, or issues regarding your LINSY HOME Farmhouse TV Stand, please contact the seller directly through the platform where you made your purchase. Refer to your purchase documentation for specific warranty details and contact information.

LINSY HOME is committed to providing quality products and customer satisfaction.
