Mabe PTM12HABWJM2 Portable Air Conditioner User Manual

1. Product Overview

The Mabe PTM12HABWJM2 is a portable air conditioner designed to provide cooling and heating for residential and commercial spaces. It features R-32 refrigerant, which is environmentally friendly, and a Pro Shield coating to protect against corrosion and inhibit bacterial growth. This unit offers a capacity of 12,000 BTUs, making it suitable for various room sizes.

Key Features:

• Cooling and Heating: Provides both cooling and heating functions for year-round comfort.
• R-32 Refrigerant: Utilizes R-32, a pure refrigerant that does not harm the ozone layer and reduces global warming impact by up to 70%.
• Pro Shield Coating: Protects the unit against corrosion and helps prevent bacterial growth.

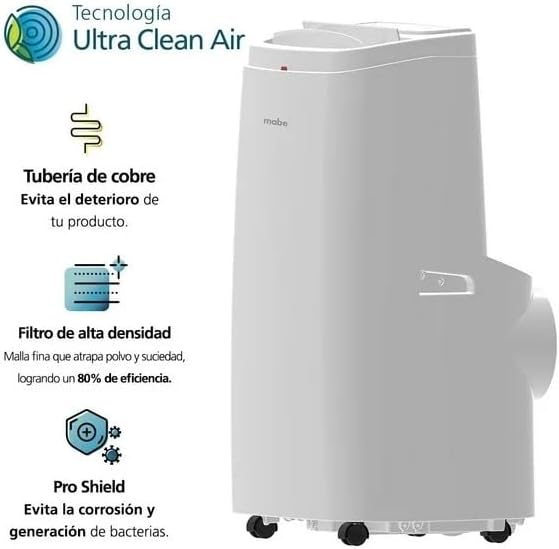

• Ultra Clean Air Technology: Enhances air quality.
• High-Density Filter: A fine mesh filter that traps dust and dirt, achieving up to 80% efficiency.
• Remote Control: For convenient operation from a distance.
• Easy to Transport: Equipped with wheels for easy mobility.

2. Components and Parts

Your Mabe portable air conditioner comes with several components for optimal performance and installation. Familiarize yourself with these parts before setup.

The unit also includes a window kit for exhaust ventilation, a flexible discharge hose, and a remote control for convenient operation.

3. Setup and Installation

Proper installation is crucial for the efficient operation of your portable air conditioner. This unit is designed for easy setup without requiring a permanent outdoor unit. The 'Split System' mentioned in some specifications refers to the internal components and not a traditional two-part AC system.

Installation Steps:

1. Unpack the Unit: Carefully remove the air conditioner and all accessories from the packaging.
2. Position the Unit: Place the unit on a flat, stable surface near a window and a power outlet. Ensure there is at least 20 cm (8 inches) of space around the unit for proper airflow.
3. Assemble the Window Kit: The window kit consists of adjustable panels. Slide the panels to fit your window opening and secure them with the provided screws.
4. Attach the Exhaust Hose: Connect one end of the flexible exhaust hose to the air conditioner's exhaust port and the other end to the window kit adapter. Ensure a secure fit to prevent air leakage.
5. Seal the Window: Use the foam seal provided to seal any gaps around the window kit to maximize efficiency.
6. Power Connection: Plug the power cord into a grounded 115V (AC) electrical outlet.

For a visual guide on general portable AC installation, you may refer to the video below. Please note that this video is a general guide and may not show the exact Mabe model, but the installation principles are similar.

4. Operating Instructions

Your Mabe portable air conditioner can be operated using the control panel on the unit or the included remote control.

Control Panel:

• Power Button: Press to turn the unit ON or OFF.
• Mode Button: Cycle through operating modes: Cooling, Heating, Fan, and Dehumidifier.
• Temperature Adjustment: Use the Up/Down arrows to set the desired temperature.
• Fan Speed: Adjust fan speed (Low, Medium, High).
• Timer: Set a timer for automatic turn ON/OFF.
• Sleep Mode: Activates a quiet operation mode for comfortable sleep.

Remote Control:

The full-function remote control allows you to conveniently adjust all settings from a distance. Refer to the remote control's specific buttons for power, mode, temperature, fan speed, timer, and sleep functions.

5. Maintenance

Regular maintenance ensures the longevity and efficiency of your air conditioner. The high-density filter should be cleaned periodically.

Filter Cleaning:

1. Turn Off and Unplug: Always turn off the unit and unplug it from the power outlet before performing any maintenance.
2. Locate the Filter: The filter is typically located on the back or side of the unit behind a removable grille.
3. Remove the Filter: Gently pull out the filter.
4. Clean the Filter: Wash the filter with warm, soapy water. Rinse thoroughly and allow it to air dry completely before reinserting. Do not use harsh chemicals or abrasive cleaners.
5. Reinstall the Filter: Slide the dry filter back into its slot and close the grille.

The unit also features an auto-cleaning system to prevent odors and the spread of airborne contaminants.

6. Specifications

7. Troubleshooting

If you encounter issues with your Mabe portable air conditioner, refer to the following common troubleshooting steps:

• Unit Not Turning On:
  • Check if the power cord is securely plugged into a working outlet.
  • Ensure the circuit breaker has not tripped.
  • Verify the ON/OFF button on the unit or remote control has been pressed.
• Insufficient Cooling/Heating:
  • Check if the air filter is clean and not obstructed. A dirty filter can restrict airflow.
  • Ensure the exhaust hose is properly installed and sealed to the window kit, preventing hot air from re-entering the room.
  • Confirm the room size is appropriate for the unit's capacity (12,000 BTU).
  • Close all windows and doors in the room to prevent outside air from entering.
  • Set the desired temperature lower for cooling or higher for heating.
• Unusual Noise:
  • Ensure the unit is placed on a flat, stable surface to minimize vibrations.
  • Check for any foreign objects inside the unit or near the fan blades.
• Water Leakage:
  • Verify the drain plug is securely in place.
  • If the unit has a continuous drain option, ensure the drain hose is properly connected and not blocked.

If these steps do not resolve the issue, please contact Mabe customer support.

8. Warranty and Support

Product Warranty:

The Mabe PTM12HABWJM2 Portable Air Conditioner comes with a 1-year limited warranty on the product. Additionally, the compressor is covered by a 5-year warranty.

Customer Support:

For assistance with installation, repairs, or maintenance, please contact Mabe Service. Have your product model and serial number ready when you call.

Phone: 461 471 7000
WhatsApp: 55 41635939
